Fernwähler - Wallbox Serie WQ (1956-65) |
Copyright |
WQ-100 |
WQ100: 100 Selections (1962-66) |
||||||||||||||||
Photos and
information below: Jim D.
Cashbox, 29.09.1962:
Cashbox, 15.01.1966:
|
||||||||||||||||
|
||||||||||||||||

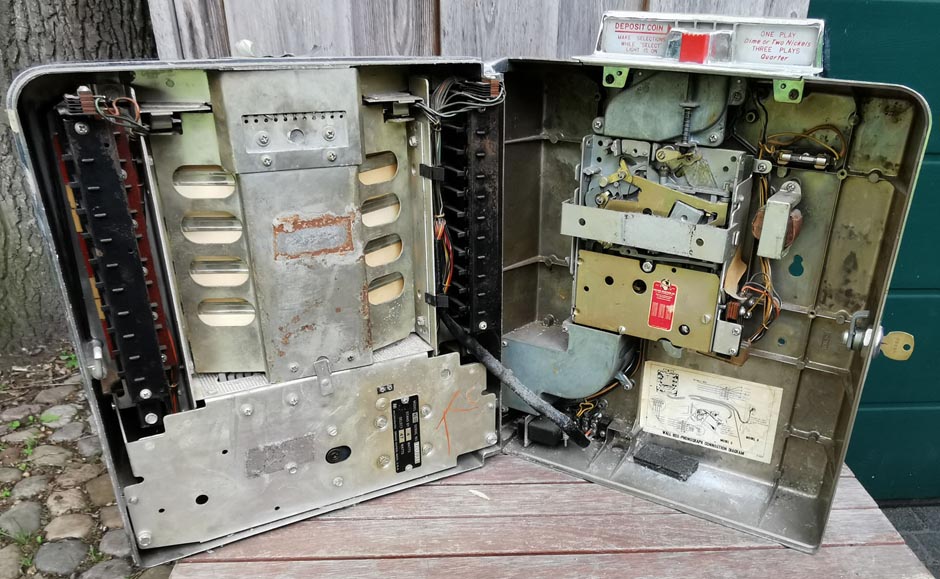

WQ-120: 120 Selections |
||||||||||||||||
120 Selections | 25 cent slug rejector | single pricing unit, non accumulative credit unit
|
||||||||||||||||
|
||||||||||||||||
Foto:
Harald Schlosser

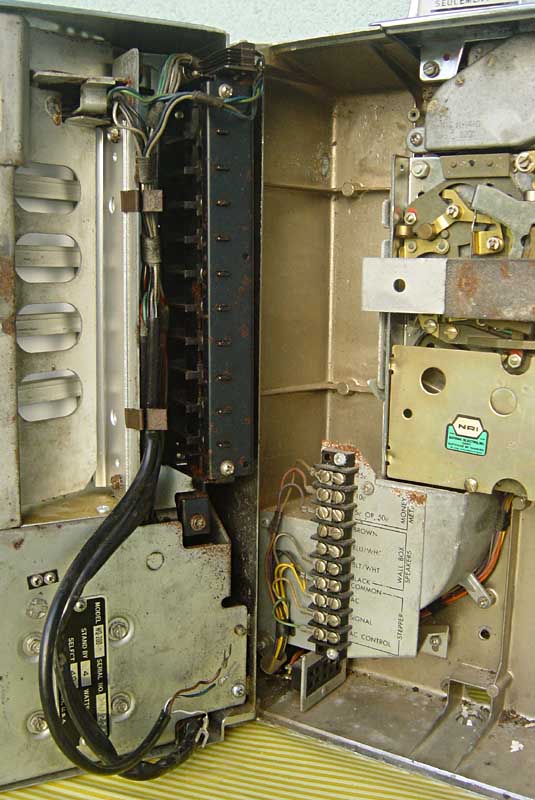

grüne Ausführung ab AMI Continental;
Foto: Axel Rosenberger |
||||||||||||||||
|
||||||||||||||||
- Sorry, no photo yet -
|
||||||||||||||||
|
||||||||||||||||
Bilder: Andreas Rittsteiger
|
||||||||||||||||
|
||||||||||||||||
- Sorry, no photo yet -
|
||||||||||||||||
|
||||||||||||||||
WQ 200-4 (ab 1962?) |
||||||||||||||||

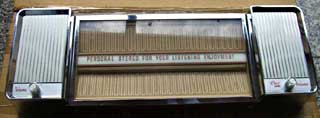

Version für Verwendung mit SFE Wallbox Stereo Speaker (1964)
|
||||||||||||||||
|
||||||||||||||||
WQ 200-5: 200 Selections |
||||||||||||||||
Photos: Jim D.
|
||||||||||||||||
|
Technische Daten - Specifications | ||||||||
WQ100 | WQ120 | WQ200 | WQ200-1 | WQ200-2 | WQ200-3 | WQ200-4 | WQ200-5 | |
Wahlen / Selections | 100 | 120 | 200 | 200 | 200 | 200 | 200 | 200 |
Lampen / Lamps |
Credit: 4x #47 |
Credit: 4x #47 |
Credit: 4x #47 Pages: 2x #47 |
Credit: 4x #47 Pages: 2x #47 |
Credit: 4x #47 Pages: 2x #47 |
|||
Sicherungen /
Fuses |
500 mA slo blo | 500 mA slo blo | 800 mA slo blo | 800 mA slo blo | ||||
Münzprüfer / Slug rejector |
25 cent | 25 cent | 25 cent | 25 cent | 25 cent | 50 cent | 25 cent | 50 cent |
Krediteinheit / Credit Unit |
Single Pricing Non accumulative |
Single Pricing Non accumulative |
Dual pricing Accumulative | No dual pricing Accumulative |
Dual pricing Accumulative |
Dual pricing Accumulative Bonus Play |
||
Tasten / Buttons | Red&white color scheme | Red&white color scheme | Red&white color scheme, green color scheme for Continental only | Red&white color scheme | Red&white color scheme | Red&white color scheme | Green color scheme |
Green color scheme |
Abmessung /
Size |
||||||||
Jukebox |
JLK100, JNK100 Lyric, Conti 2/100 |
H120, I120, J120, K120 | G200,
H200, I200, J200, K200 Conti, Conti 2/200 |
G200,
H200, I200, J200, K200 Conti, Conti 2/200 when equipped for dual pricing |
G200,
H200, I200, J200, K200 Conti, Conti 2/200 |
G200,
H200, I200, J200, K200 Conti, Conti 2/200 when equipped for dual pricing |
G200,
H200, I200, J200, K200, Conti, Conti 2/200 JAL, JEL JBM, JAN |
G200,
H200, I200, J200, K200 Conti, Conti 2/200 JAL, JEL JBM, JAN when equipped for dual pricing |
Stepper | CCB | CCA |
CCA |
CCA | CCA | CCA |
CCA CEA CFA CGA |
CCA CEA CFA CGA |
Besonderheit/ Feature | Red button at
lower left no function |
Red
resp. green button at
lower left no function |
Red Release button
at lower left in function |
Red button at
lower left no function |
Red Release button
at lower left in function |
Extra terminal board for SFE speaker |
Green Release button
at lower left in function Extra terminal board for SFE speaker |
Die Angaben haben keinen
Anspruch auf Vollständigkeit oder Richtigkeit.
<<<
