Super 40 (1957)
|
BAL-AMI im Archiv von Jukebox-World |
|
|
BAL-AMI Super 40 (1957) |
Copyright |
|
courtesy of John Johnson at JJ's BAL-AMI Website and Tony Holmes |
|
|
Super 40 (1957) |
|
|
| Technische Daten - Specifications | |
| Wahlen / selections | 40 |
| Lampen / lamps | cabinet: 3x 15W 18" T8; |
| Verstärker / amplifier | Echo Beam UK F-40 |
| Netzteil / power supply | |
| Kreditgerät / credit unit | |
| Lautsprecher / speaker | low: Goodmans 10" 15 Ohm moving coil; treble Goodmans 5" 15 Ohm moving coil |

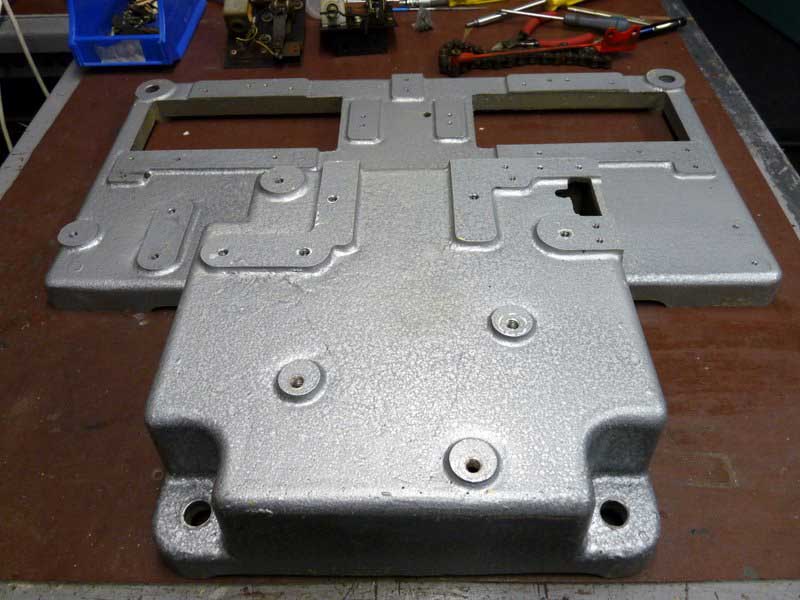

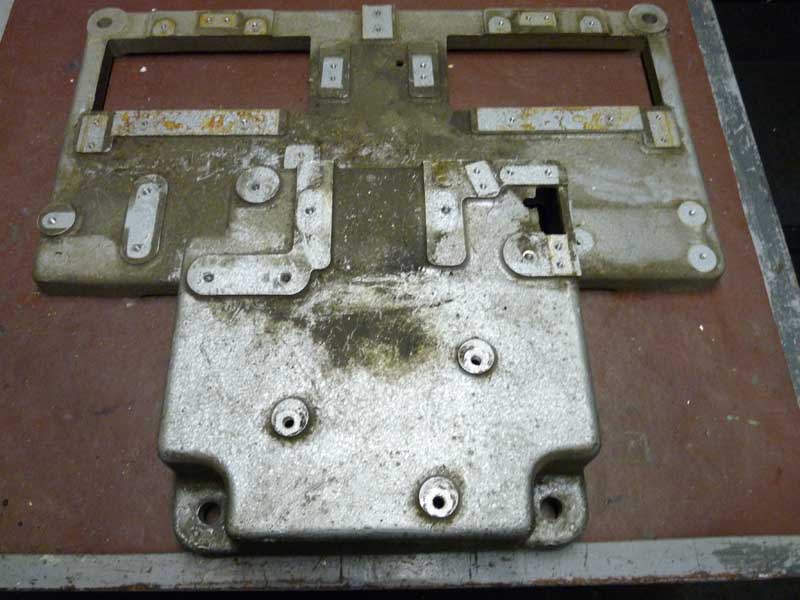

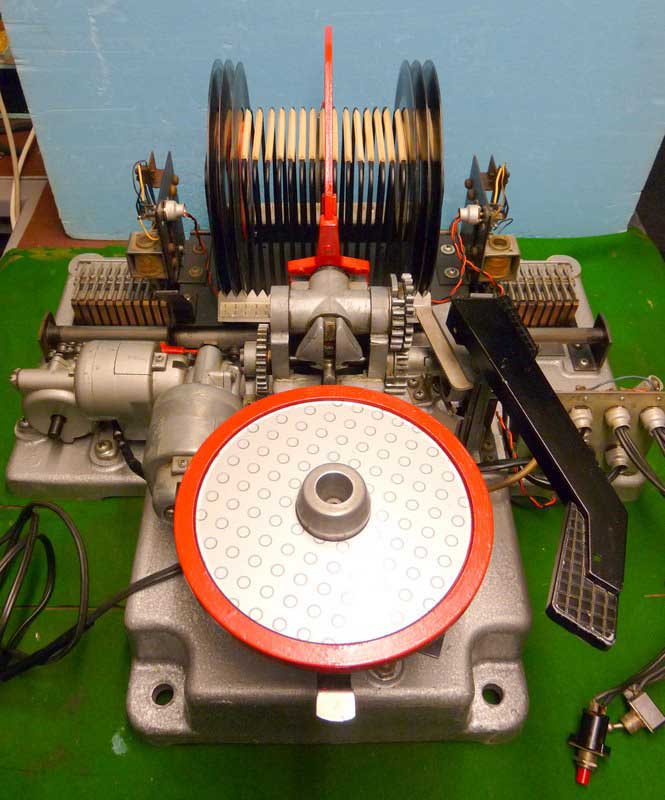

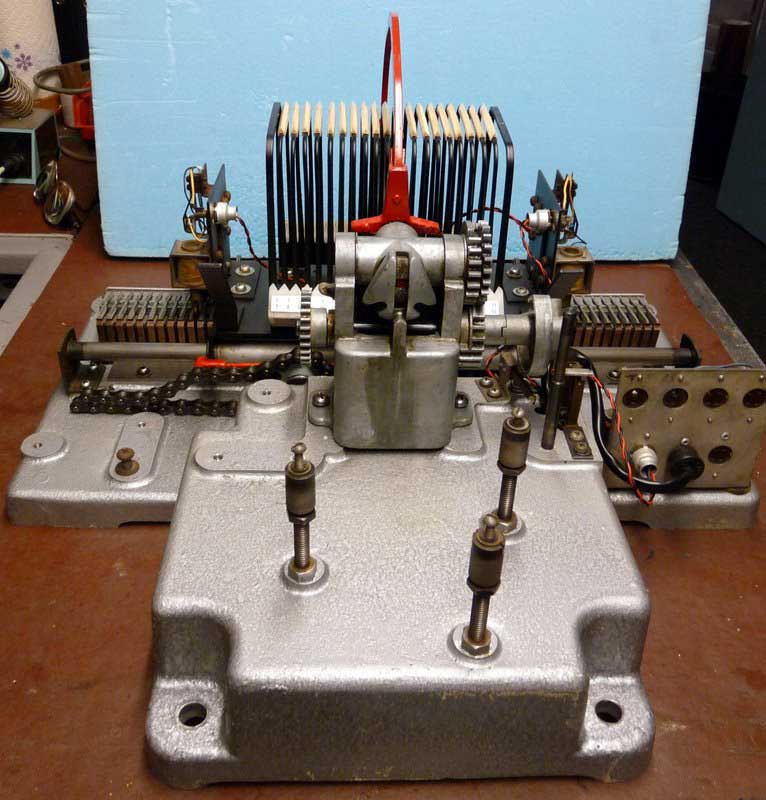

| Mechanismus / mechanism | sinmlar to G40 but 45 rpm |
| Tonabnehmer / cartridge | |
| Sicherungen / fuses | cartridge fuse 3A; mechanism 2A; credit unit 1A |
| Schlüssel / key | |
| Abmessungen (HxBxT) / size | H x W x D: 144 x 64 x 69 cm / 56.5 x 25 x 27"; 98 kg / 218 lbs |
| Zubehör / accessories | |
| Besonderheiten / specialties | |
|
