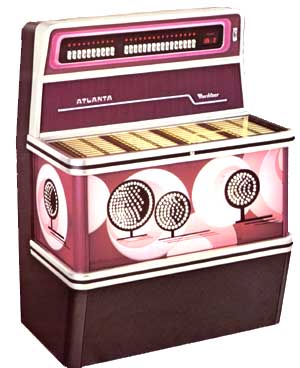

Atlanta 160 |

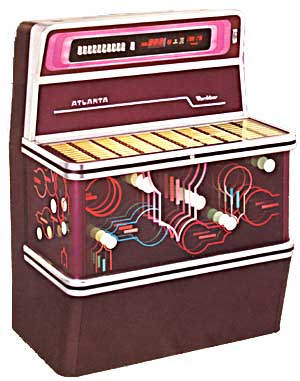

Atlanta 200 |
|
|
 |
|
|
|
| Technische Daten - Specifications | |
| Wahlen / Selections | 160 resp. 200 |
| Lampen / Lamps |
Cabinet: TL 16W / 29" / T8
| Record
indicator: GE #2341 T5/24V/30mA Amplifier: Festoon lamp (Soffitte): 6V / 18 W |
| Mechanismus / Mechanism | 41010 |
| Verstärker / Amplifier | H80 |
| Lautsprecher / Speaker | |
| Tonabnehmer / Cartridge | Shure M75C |
| Sicherungen / Fuses |
Amplifier H80: Si1: 2A (220V) / 3,15A (117) slo blo Si2, Si3, Si4, Si6: 3,15A slo blo |
| Schlüssel / Key | WUA1 |
| Abmessungen / Size | |
| Zubehör / Accessories |
Wallbox FW160, FW161 Remote volume control 40009 (stereo), potentiometer: 2x 10 k log | Mono potentiometer 40018: 10 k log Extra speaker W20; Microphone 40069 |
| Besonderheiten / Features | Front window available with 3D motif too. |
| Neupreis / New price 1980 |
Atlanta 200E: 5420 DM - with 3D motif Atlanta 200E: 5300 DM - standard motif Atlanta 160: 5210 DM - with 3D motif Atlanta 160: 5090 DM - standard 3D motif |
