| Lyric-Modelle – 1968 |
Copyright |
|
Lyric F ••• Lyric FL ••• Lyric C ••• Lyric CL |
|
|
Lyric F |
Lyric FL |
|
|
|
|
|
|
|

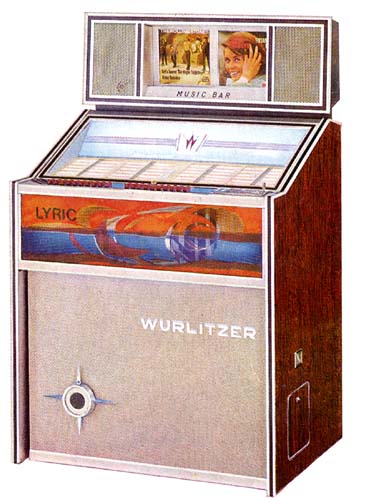

Lyric C |
Lyric CL |
|
|
|
|
|
| Technische Daten - Specifications | ||||||
| Wahlen / Selections | 100 | |||||
| Lampen / Lamps |
Cabinet: TL 16W / 29" / T8 |
Credit: E10 24V / 0,05A / 1,2W 2x 2,5k or 2x 5k or 2x 10k |
|||||
| Verstärker / Amplifier |
F, FL, C, CL: Transistorized
- 35 Watt CL: Transistorized - 2x 25 Watt |
|||||
| Lautsprecher / Speaker |
F, FL, C: 2x 16 Ω (stereo) or 8 (mono) C, CL: 2x 16 Ω (stereo) or 8 (mono), 2x 24 Ω (speaker box) |
|||||
| Tonabnehmer / Cartridge | Schuman-Merula with needle Merula STC 480 | |||||
| Sicherungen / Fuses |
Stepper: 1x 1A |
1x 4A Amplifier stereo: 2A (240V) / 6A (120V), 2x 2A, 1x 6A, 1x 4A | Amplifier mono: 2A (240V) / 6A (120V), 3x 1.25A, 1x 4A |
|||||
| Schlüssel / Key | WUA1 | |||||
|
Abmessungen H x B x T Size H x W x D |
Lyric F: 99,5 x 80,5 x 61,5 cm | 110
kg Lyric FL:129,5 x 80,5 x 61,5 cm | 122 kg Lyric C:129,5 x 80,5 x 61,5 cm | 124 kg Lyric CL:129,5 x 80,5 x 61,5 cm | 124 kg Lyric Hideaway: 88 x 82 x 56 cm | 87 kg |
|||||
| Zubehör / Accessories |
All models: Wallbox
5225 | Stepper 195, 196
| Remote volume control 162-166 |
Wall speaker 155 Lyric F: 2x25 Watt Amplifier, Hit Tunes, Popularity Meter, Coin Counter, Intermix 33/45 rpm Lyric FL: 2x25 Watt Amplifier, Hit Tunes, Popularity Meter, Coin Counter, Intermix 33/45 rpm Lyric C: 2x25 Watt Amplifier, Hit Tunes, Popularity Meter, Coin Counter, Intermix 33/45 rpm Lyric CL: 2x25 Watt Amplifier, Hit Tunes, Popularity Meter, Coin Counter, Intermix 33/45 rpm |
|||||
| Besonderheiten / Features | The shown front panels were available for all Lyric models. | |||||
| Lyric F | Standard compact version | |||||
| Lyric FL | Illuminated display to show four record covers or a neutral picture | |||||
| Lyric C | Sound diffusing top panel, display to hold record sleeves and location name | Upper speaker | |||||
| Lyric CL |
Illuminated display box with panorama picture, removable to get view
of record covers and name of location Slug Rejector for 4 coins | Upper speaker | Hit Tunes Feature | Popularity Counter |
|||||
| Neupreis / Price back then | Lyric M: 2695 DM | Lyric F: 2995 DM | Lyric FL: 3175 DM | Lyric C: 3395 DM | Lyric CL: 3895 DM | Hideaway: 2433 DM |
|
Die Angaben haben keinen Anspruch auf Vollständigkeit oder Richtigkeit. |
