Jensen IMA-AMI Musikbox Jukebox J40 J-40

J-40-A: Factory Photo	J-40-A: PR-Photo
	Aufsatz als "künstlerische Freiheit" / top sign as artistic license

J-40-A

Umbau auf 45 RPM, umgebauter Grill / converted to 45 RPM, converted grill screen
Pictures: adp Gauselmann
IMA-AMI Jensen J40

IMA-AMI Jensen J40

J-40 A/B: Factory Photo	J-40 A/B: PR-Photo
A = Grill (grille screen) J40; B= Tasten (buttons) J-40B	A = Grill (grille screen) J40; B= Tasten (buttons) J-40B

J-40 A/B

Umbau Grill und Aufsatz / Conversion grille screen and top sign
Picture by courtesy of the owner
IMA-AMI Jensen 40

J-40 A/B
Umbau Grill und Mechanismus; Mechanismus aus AMI G-40? Conversion of grille screen and mechanism; mechanism taken from a AMI G-40? Pictures by courtesy of the owner

Jensen J 40B - Factory Photo

IMA-AMI Jensen J 40 B

Technische Daten - Specifications
	J40	J40B
Wahlen / selections	40 - 78 RPM
Lampen / lamps	keyboard: 20W/T12/24" \| upper display box: 20W/T12/24" \| select: 18V/100 mA

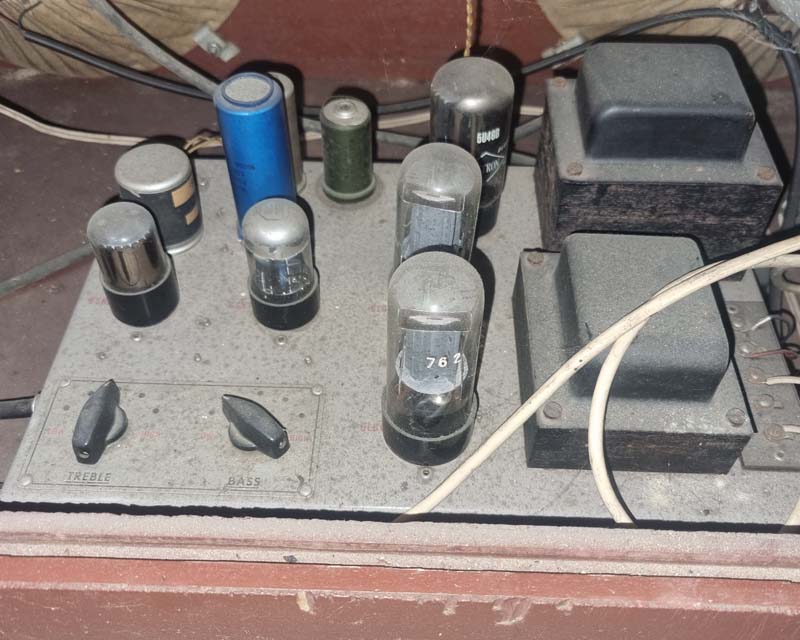

Verstärker / amplifier	Jensen A20: 1x 5U4, 2x 6L6, 2x 6J7, 1x 6SN7GT
Netzteil / power supply
Kreditgerät / credit unit
Lautsprecher / speaker	2x 12" permanent magnet; voice coil 7 Ohm

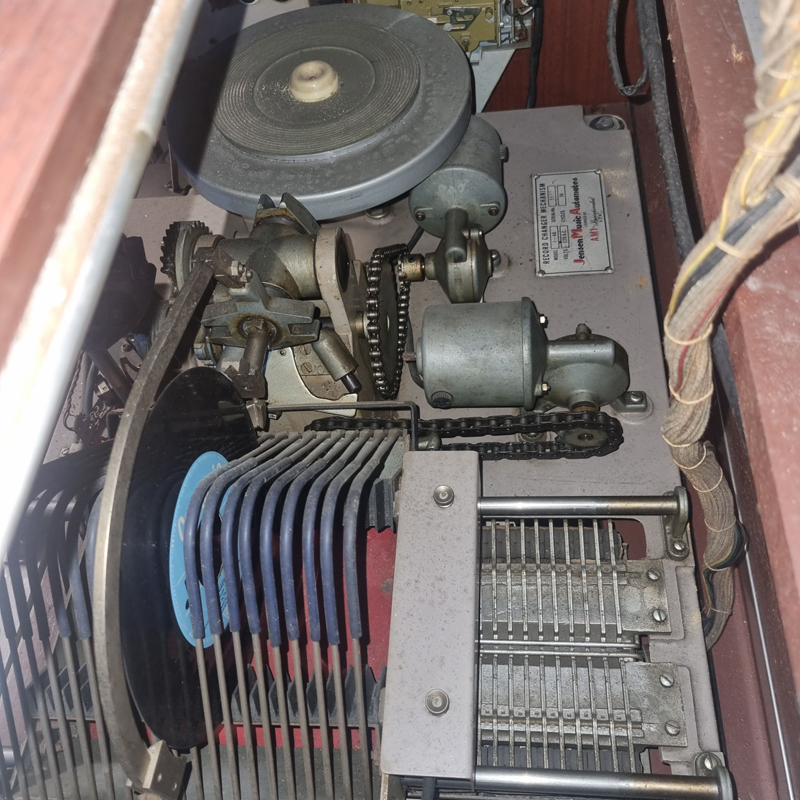

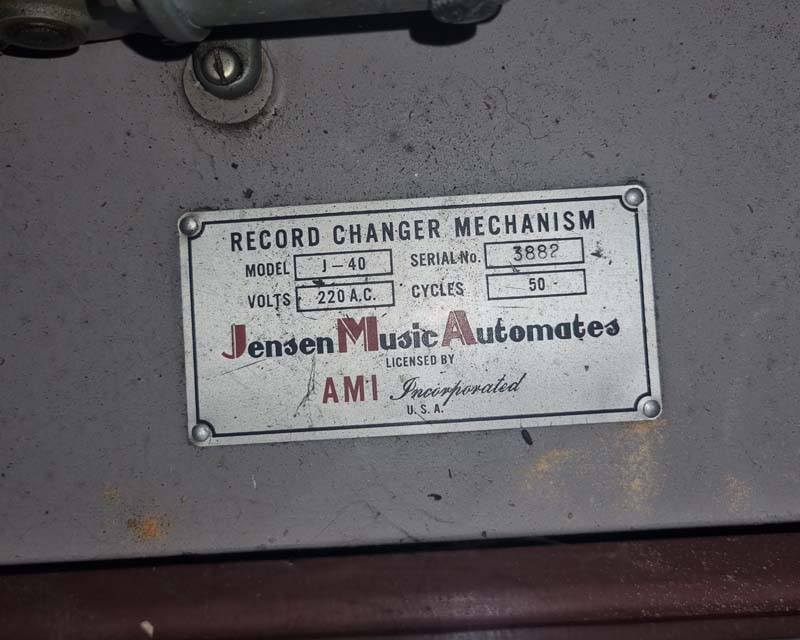

Mechanismus / mechanism
Tonabnehmer / cartridge
Sicherungen / fuses	Junction Box: 2A \| amplifier: 2A
Schlüssel / key
Abmessungen (HxBxT) / size	143 x 88 x 64 cm; 108 kg
Zubehör / accessories
Besonderheiten / specialties	upper display box could be customized

Jensen / IMA-AMI Musikboxen im Archiv von Jukebox-World
Jensen J-40 und J 40-B (1951-1954)	Copyright
40 selections, 78 RPM - 45 RPM optional The first European Jukebox was introduced in 1951 by the Danish company "
