Bergmann Palm Beach (1968) |
|
 |
|
|
|
|
| Jupiter 120M - Mediterrean (1968) | |
Photos courtesy Hervé D.
|
|
|
|
|

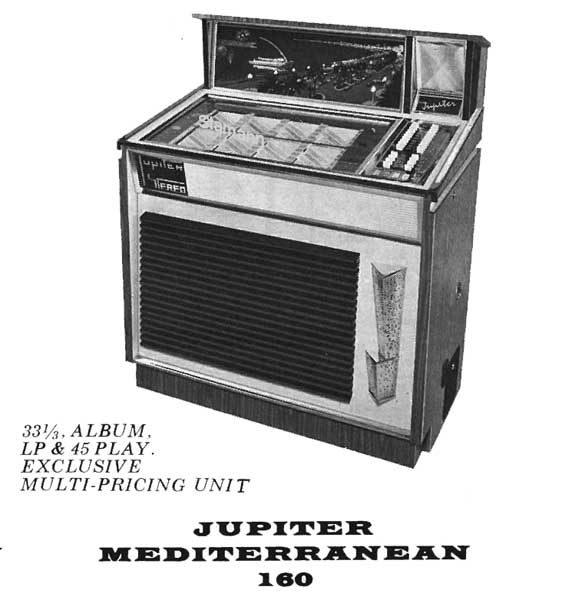

| Jupiter 160M - Mediterrean (1968) | |
 |
|
|
|
|
| Technische Daten - Specifications | ||
|
120M Mediterrean / Palm Beach |
160M Mediterrean |
|
| Wahlen / Selections | 120 | 160 |
| Lampen / Lamps | Cabinet: 2x TL 20W/24"/T12 | 1x TL 25W/28"/T12 | |
|
Verstärker / Amplifier |
Transistor
SCS 2x30 EKS Potentiometer: 2x 25 kOhm |
Transistor SCS
2x30 EKS Potentiometer: 2x 25 kOhm |
| Netzteil / Power supply | ||
| Kreditgerät / Credit unit | ||
|
Lautsprecher / Speaker |
Low: 2x 12" High frequency: 2x 5" |
Low: 2x 12" High frequency: 2x 5" |
|
Tonabnehmer / Cartridge |
Jupiter: Grey cartridge with imprint "Jupiter" and "Made in France" Bergmann: Schumann-Merula STC 487 |
Jupiter: Grey cartridge with imprint "Jupiter" and "Made in France" |
| Sicherungen / Fuses | Power supply: 4A, 2A, 3A, 1.6A, 800 mA | Power supply: 4A, 2A, 3A, 1.6A, 800 mA |
| Schlüssel / Key | 4313A | 4313A |
| Abmessungen / Size | 138 x 90 x 62 cm; 130 kg | 138 x 90 x 62 cm; 130 kg |
| Zubehör / Accessories | Remote Volume Control 2x 50K | Remote Volume Control 2x 50K |
|
Besonderheiten / Feature |
Intermix Multi-Pricing Unit |
|
