Mills Soundies resp. "Talkie"

Copyright

Mills "Panoram" (1940-42)
Model type 470, 470A and 470B with RCA
16mm film projector MI1340 playing "Soundies"

The Panoram was the Soundies only venue. Former plans for a production of 30000 Panorams were reduced to 5000 due to the WW 2. The price to watch a Soundies was a dime (10c) while listening to a jukebox only did cost a nickel (5c). A Soundie took about 3 minutes.
It is said that about 1800 Soundies had been produced between 1940 and 1947 - cinemas and other exhibitors didn't like them.

Video of a playing Panoram   •••   www.millspanoram.com   •••   MTV for the 1940's


Mills "Panoram"

Mills Panoram

Fotos: Christian
Mills Panoram



Photos below courtesy of Larry Fisher
Mills Panoram Mills Panoram Mills Panoram
Mills Panoram Mills Panoram
Mills Panoram Mills Panoram
Mills Panoram Mills Panoram
Mills Panoram Mills Panoram Mills Panoram

Mills Panoram

Mills Panoram

Mills Panoram

Mills Panoram

Mills Panoram Mills Panoram
Mills Panoram Mills Panoram
Mills Panoram Mills Panoram
Mills Panoram Mills Panoram

Mills Panoram Mills Panoram Mills Panoram
Mills Panoram Mills Panoram Mills Panoram



Lloyd Thoburn: Very interesting photo of a Mills Panoram that was made with clear panels to display the inner workings of one. This photo is dated 9/5/40. An interesting fact about the Soundies which were played on this machine is that the company was headed by James Roosevelt, son of Franklin D. Roosevelt, who was President of the United States at the time.

Mills Panoram



Popular Science 11/1940
Mills Panoram





Technische Daten - Specifications
Wahlen / Selections 8 films, non selective
Lampen / Lamps
Verstärker / Amplifier

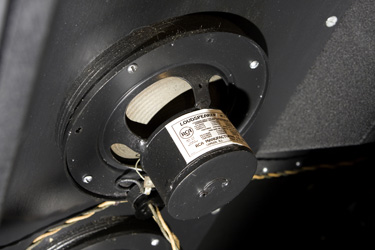

Lautsprecher / Speaker 4
Film Projektor / Film projector RCA 16 mm film projector MI1340
Monitor / Screen 24" x 18"
Sicherungen / Fuses

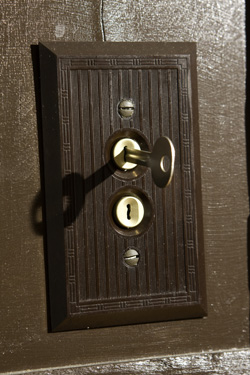

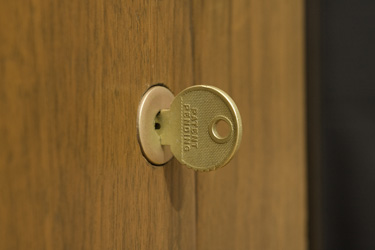

Schlüssel / Key
Gehäuse / Cabinet Walnut Art-Deco
Abmessungen / Size H x B x T / H x W x D: 79" x 34" x 28"
Zubehör / Accessories
Strom / Power 115V / 60 Hz Volt;  normal operating 980 Watts
Besonderheiten / Feaures Illuminated scrolling title strip at top
Neupreis / Price back then US$ 695



Die Angaben haben keinen Anspruch auf Vollständigkeit oder Richtigkeit.
Bei den (importierten) Boxen können im Laufe der Jahre durchaus Veränderungen vorgenommen worden sein. Copyright.
