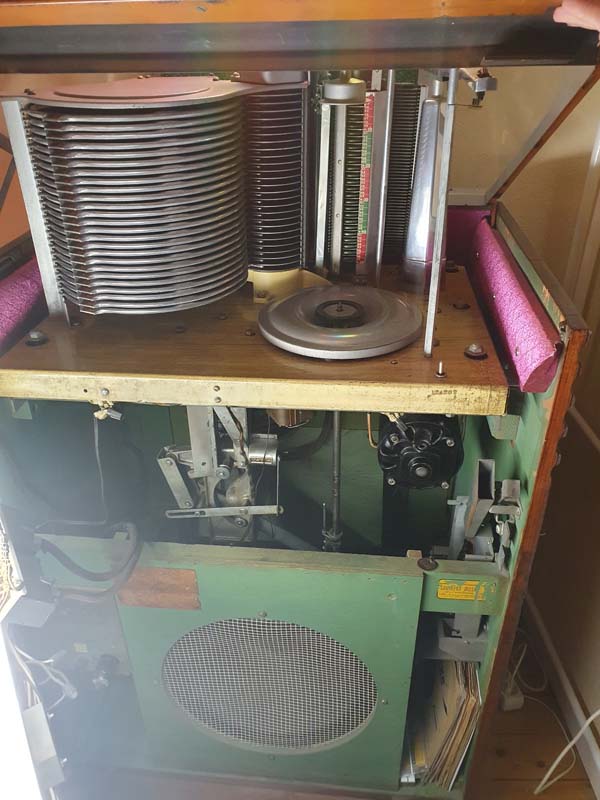

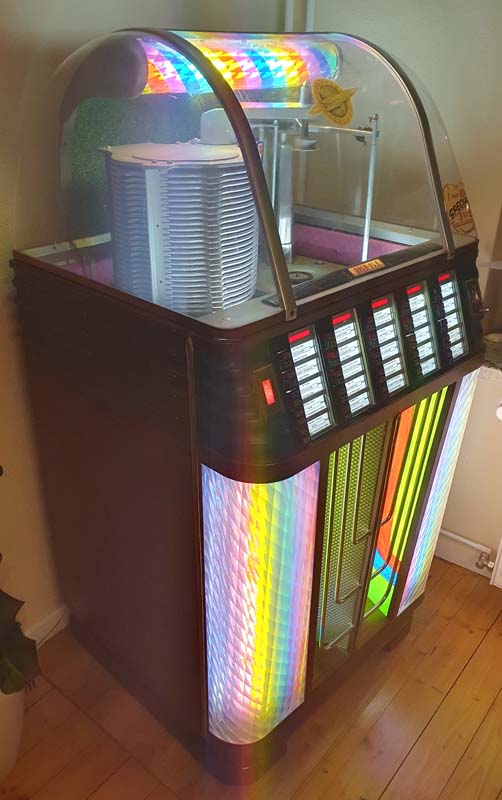

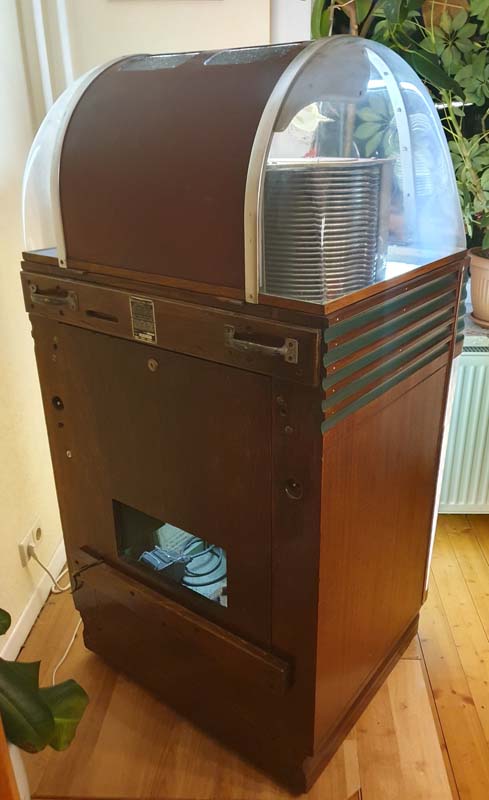

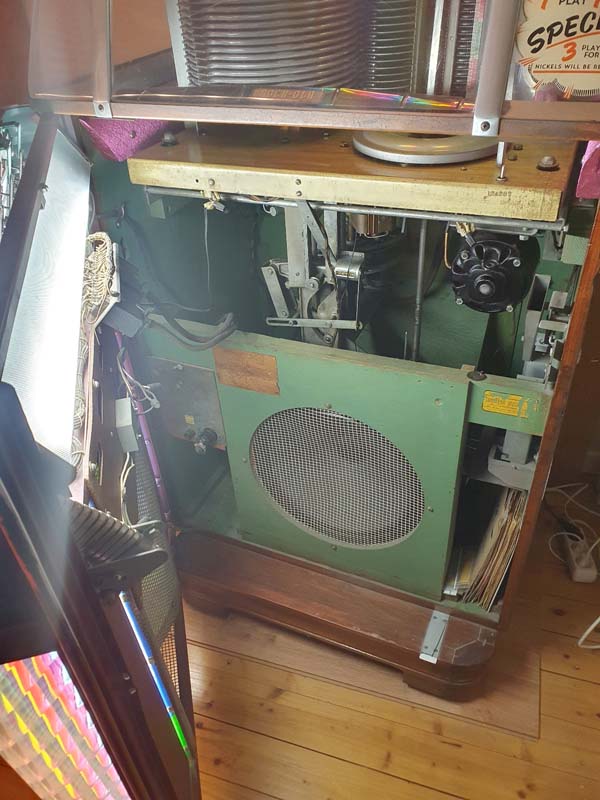

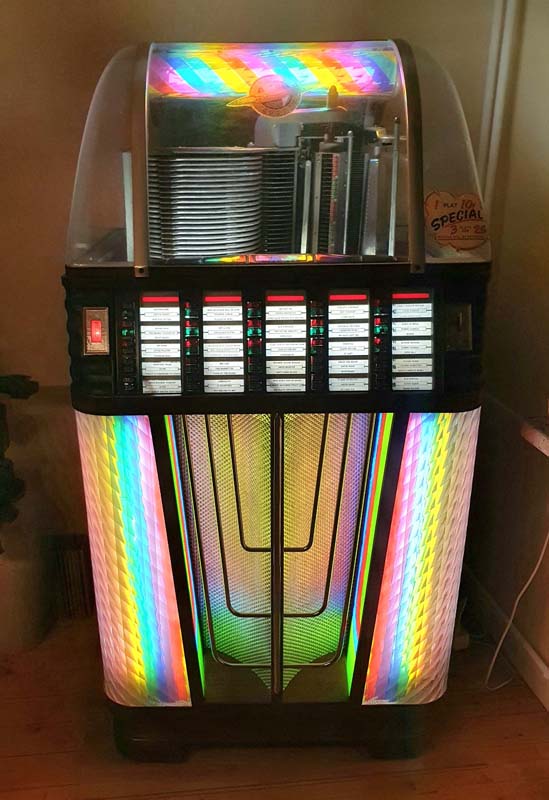

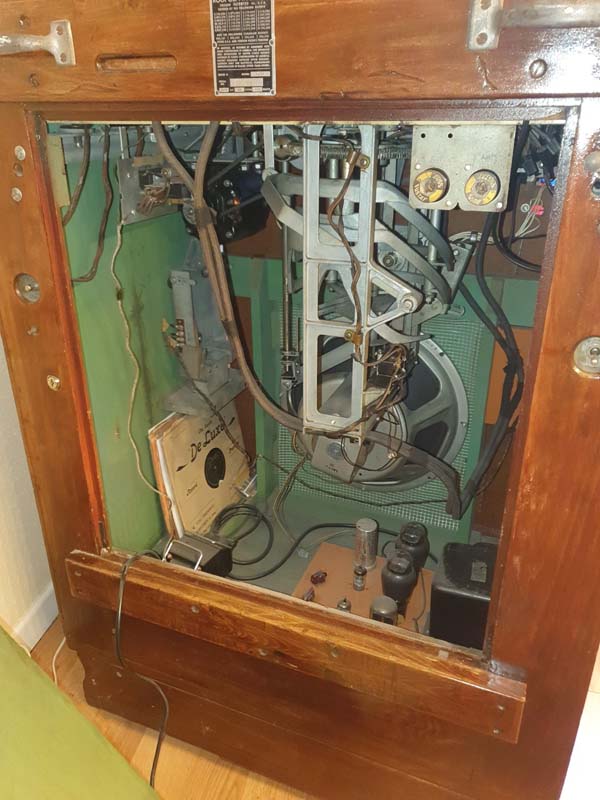

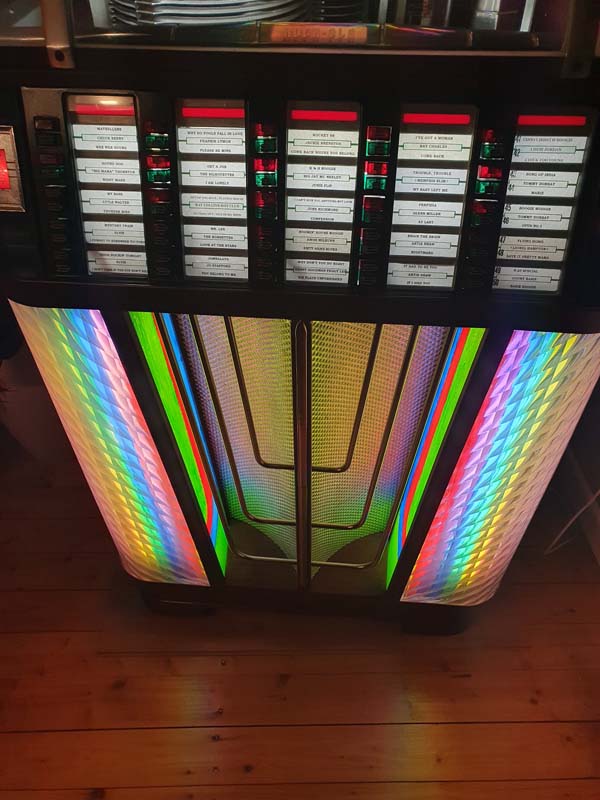

Rock-Ola 1434 - Super Rocket (1951) |
|
50 Wahlmöglichkeiten, 78 RPM, doppelter Tonarm |
|
Rock-Ola Musikboxen im Archiv von Jukebox-World |
|
| Rock-Ola Hideaway |
Copyright |
|
Rock-Ola 1434 Super Rocket &
1436 – 1436A Fireball |
|
|
Rock-Ola 1434 - Super Rocket (1951) |
|
50 Wahlmöglichkeiten, 78 RPM, doppelter Tonarm |
| Technische Daten - Specifications | |
| Wahlen / selections | 50 |
| Lampen / lamps | dome: TL 15W/18"/T12; titleholder: TL 20W/24"/T12; pilaster: TL 20W/24"/T12 |
| Verstärker /
amplifier Netzteil / power supply |
15416-A: 2x 6L6; 5U4G; 12AU7; 12AX7 |
| Kreditgerät / credit unit | 15387-A |
| Kontollbox / control box | |
| Lautsprecher / speaker | 2x 32878 P12P Dual Cone (m. Hochtonkegel - Jensen DUAX) |
| Tonabnehmer / cartridge | Mono: USA: GE VRII; Germany
often Elac KST 103; USA stereo: Columbia SC-2S; Germany often Elac KST 103 |
| Sicherungen / fuses | Power Supply / amplifier: 3A; 10A; credit unit: 100 mA |
| Schlüssel / key | F-592 |
| Abmessungen / size | |
| Zubehör / accessories |
Stepper
1713; wallbox 1542;
Wall Box
Bar Bracket
1531;
Universal
Bar Bracket 1533 |
| Besonderheiten / specialties | last Rock-Ola version with records in a stack |
|
Rock-Ola 1436 - Fireball - 120 Wahlmöglichkeiten, 78 und 45 RPM (1952) |
|
50 Wahlmöglichkeiten, doppelter Tonarm
|
|
Rock-Ola 1436A: |
|
- 120 selections 78 & 45 RPM (1952, no picture yet) - |
| Technische Daten - Specifications | ||
|
1436 |
1436A |
|
| Wahlen / selections | 120 | available for 78 or 45 RPM |
| Lampen / lamps | dome: TL 15W/18"/T12; titleholder: TL 20W/24"/T12; pilaster: TL 20W/24"/T12 | |
| Verstärker / amplifier | 17050-A | 17360-A:
2x 6L6; 5U4; 2x 6SN7 Potentiometer: 10k; fuse: 3A |
| Netzteil / power supply | 17355-A Fuses: 3x 3A | |
| Kreditgerät / credit unit | 16970-A | |
| Kontollbox / control box | 17348-A | |
| Lautsprecher / speaker | ||
| Tonabnehmer / cartridge | Astatic 51-2 (78RPM) or Astatic 51-1 (45 RPM) | Astatic 51-2 (78RPM) or Astatic 51-1 (45 RPM) |
| Sicherungen / fuses | Amp: 3A; Credit: 100 mA; power supply: 3x 3A | |
| Schlüssel / key | F-592 | |
| Abmessungen / size | ||
| Zubehör / accessories |
Stepper
1715
/
1717;
wallbox
1544;
Wall Box
Bar Bracket
1531;
Universal
Bar Bracket 1533 |
|
| Besonderheiten / specialties | first Rock-Ola model with
rotating magazin and 120 sel. first Rock-Ola model for 45 rpm either 78 or 45 rpm |
either 78 or 45 rpm |
|
