Rock-Ola Musikboxen im Archiv von Jukebox-World |
|
| Rock-Ola 480 (1979-80) ••• Rock-Ola 484 (1980-81) |
Copyright |
|
160 selections Spain: distributed by Famaresa |
|

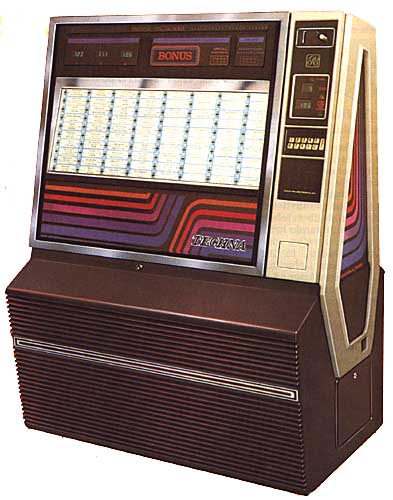

| Rock-Ola 480 - Techna | Rock-Ola 484 |
|
|
|
|
|
| Technische Daten - Specifications 480 and 484 | ||
| 480 | 484 | |
| Wahlen / Selections | 160 | 160 |
| Lampen / Lamps | Cabinet:
2x TL19W/T8/28" | 1x TL20W/T8/24" Card holder: 4x #53 Power supply + amplifier: #1829 each |
Cabinet:
2x TL19W/T8/28" | 1x TL20W/T8/24" Card holder: 4x #53 Power supply + amplifier: #1829 each Keyboard Ass.: 2x #34 |
| Verstärker / Amplifier | 52280-A | |
| Netzteil / Power supply |
US: 52390-A | D: 52405-A |
CAN: 52395-A Japan: 52400 | AUS: 52410-A |
US: 52390-A | D: 52405-A |
CAN: 52395-A Japan: 52400 | AUS: 52410-A |
| Kreditgerät / Credit unit | 52455-1A | 53360-A |
| Lautsprecher / Sspeaker | Lower 12" 8 Ohm: #51781 | Lower 6" 8 Ohm: #51502 | Lower 12" 8 Ohm: #51781 | Lower 6" 8 Ohm: #51502 |
| Tonabnehmer / Cartridge | Shure M44 | Shure M44 |
| Sicherungen / Fuses | PC
Boards: 2A, 2x 1A Power Supply US: 800 mA, 250mA, 5A Power Supply DE: 800 mA, 250mA, 3A Power Supply CAN: 800 mA, 250mA, 5A GMQ, 250 mA GMQ |
Flasher PC
Board: 800 mA slo blo Power PC Board: 500 mA Battery PC Board: 500mA 125V Sub-Min Fuse Rectifier PC Board: 2A, 2x 1A Power Supply US: 800 mA, 250mA, 5A Power Supply DE: 800 mA, 250mA, 3A Power Supply CAN: 800 mA, 250mA, 5A GMQ, 250 mA GMQ |
| Schlüssel / Key | P-600 | P-600 |
| Abmessungen / Size |
H 144,7 x B 105 x T 62,2 cm | 139,5 kG | H 57-7/8" x W 42" x D 24-7/8" | 310 lbs |
|
|
Zubehör / Accessories |
Stepper
1775 with wallbox
507
or stepper 1780 with wallbox 508
Microphone
Kit 2130 2121 aux. power supply 2122 manual remote, 2156-1 motorized remote (w/ on-off switch) 2173 motorized remote (w/o on-off switch) 2300 Deluxe Wall Speaker |
Deluxe Wall Speaker
2300 Mot. Remote Vol. Control: 2156-2 Aux. Wallbox Power Supply 2121 2173 motorized remote (w/o on-off switch) Microphone Kit 2130 Stepper 1775 with wallbox 507 or 1780 with wallbox 508 |
| Besonderheiten / Features | ||
|
Die Angaben haben keinen
Anspruch auf Vollständigkeit oder Richtigkeit. |
|
