Musikbox Jukebox

Commander


Photos courtesy of David Brenner

Colonel ••• Colonel as "Your Choice by Voice"

Envoy - Picture: Jo van Dongen (†)

Envoy - MarblGlo version - Picture: Jo van Dongen (†)

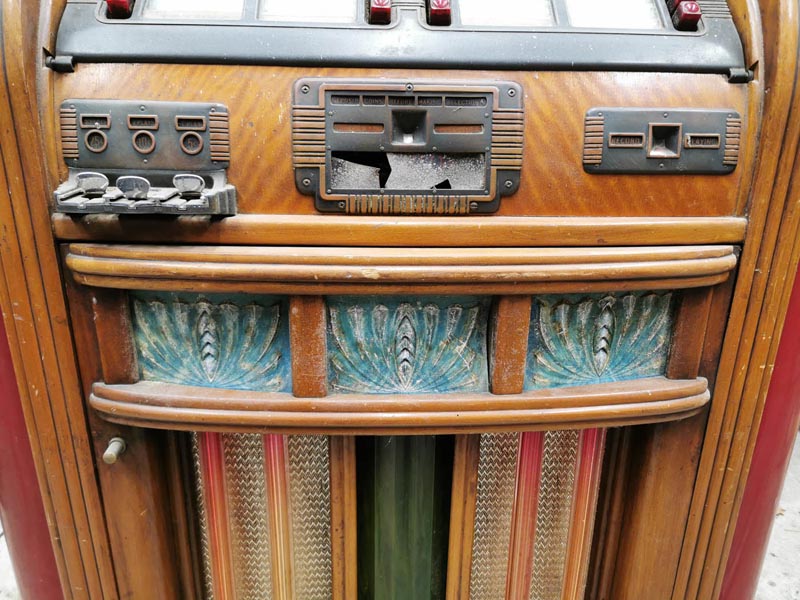

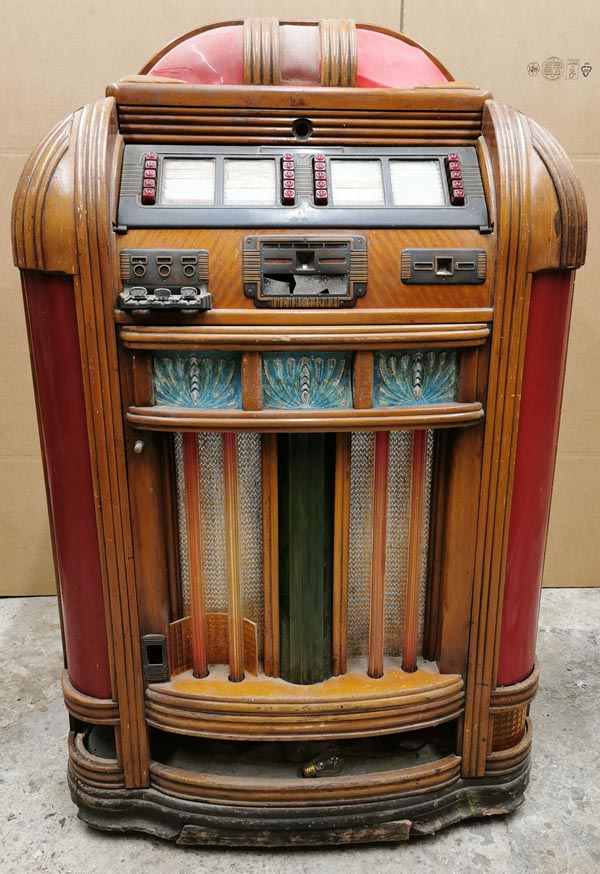

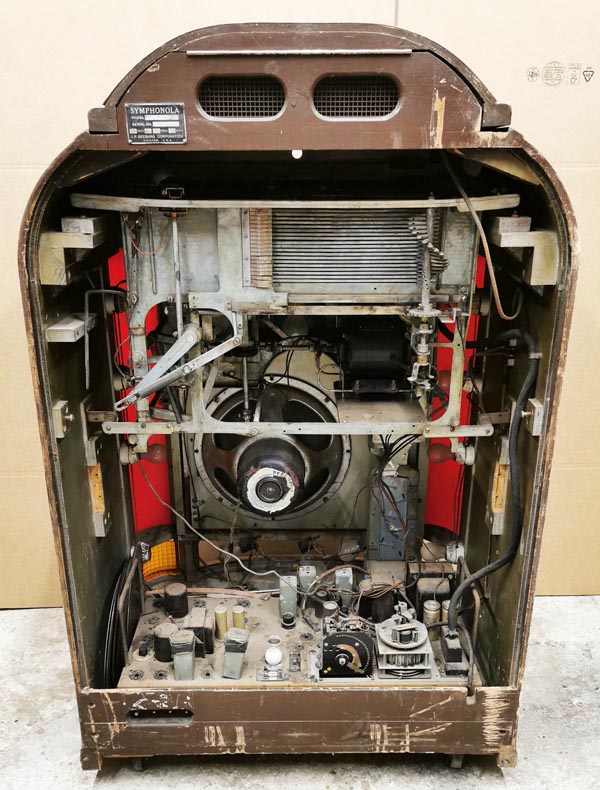

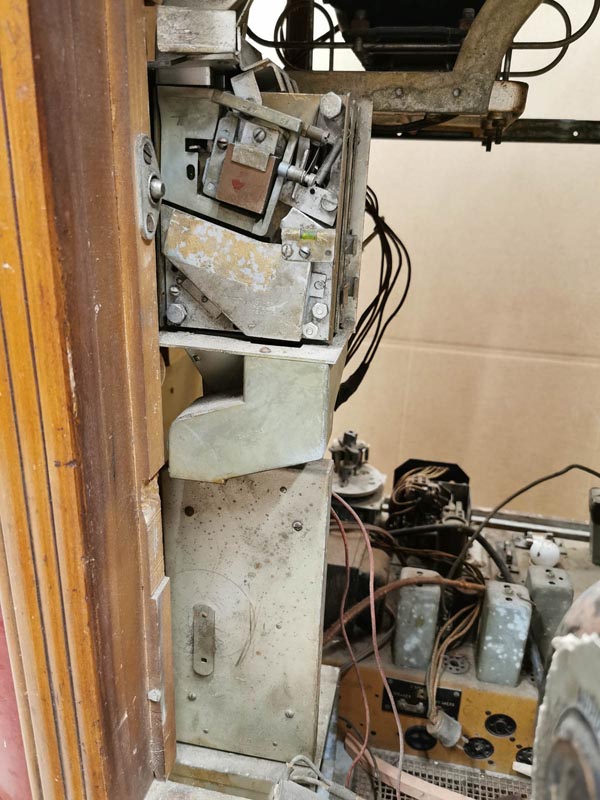

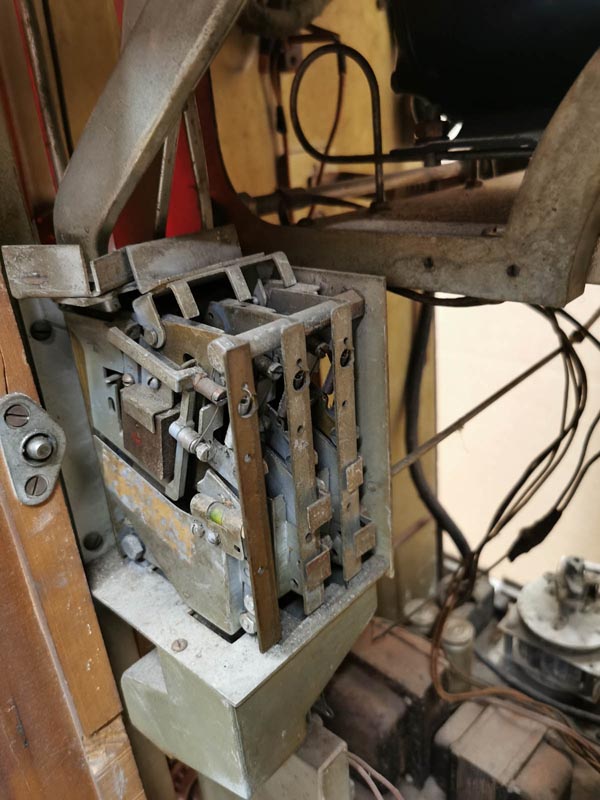

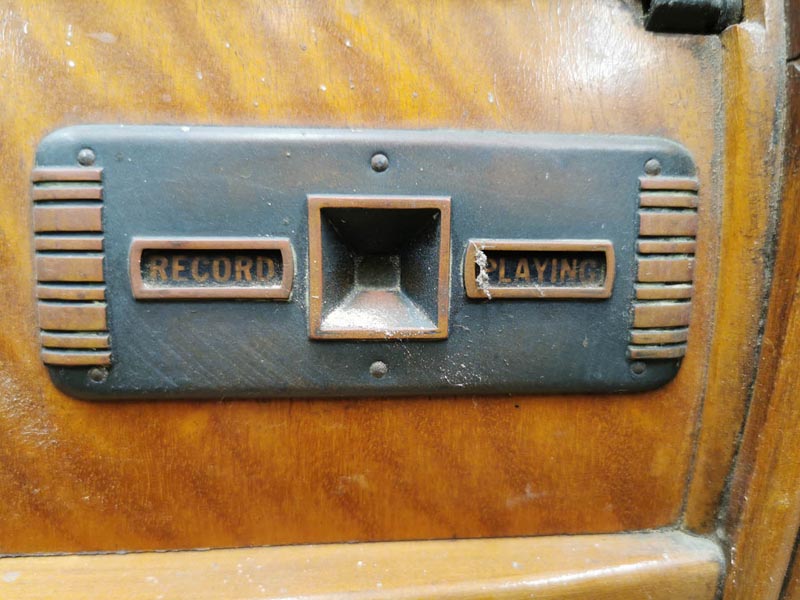

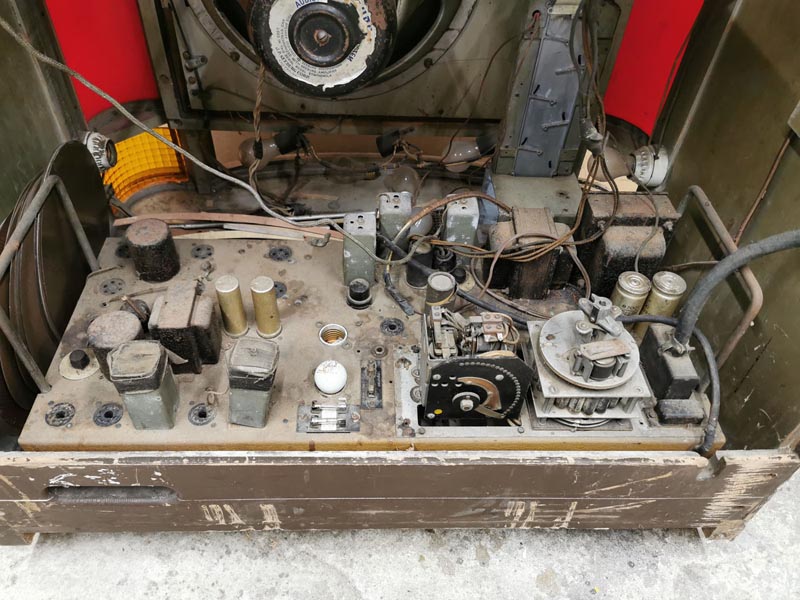

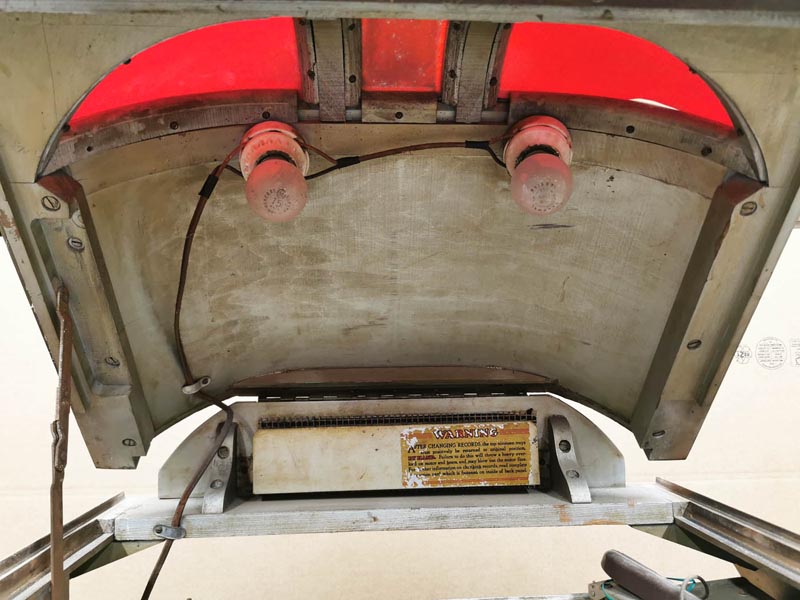

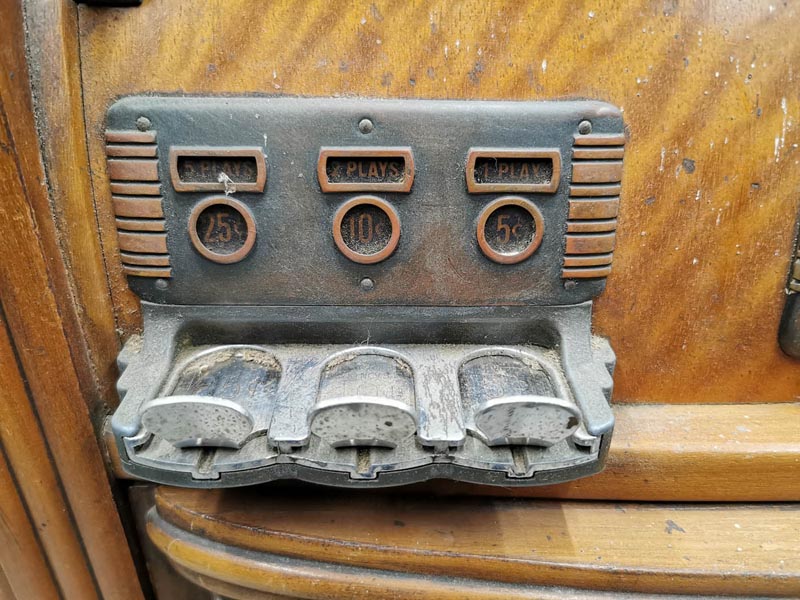

Seeburg Envoy

Major - courtesy of Bernard

Concert Master

Original cabinet finish: Marbelized

Seeburg Concert Master

Concert Maestro - picture courtesy of The Sell it Now Store

Cadet - courtesy of David Brenner

More pictures of the Maestro:
Telephone Line Music System "Your Choice by Voice"

Amplifier 625-3 - used in Cadet, Envoy, Major

Amplifier and Speaker refurbished by Honeyjukes, GB

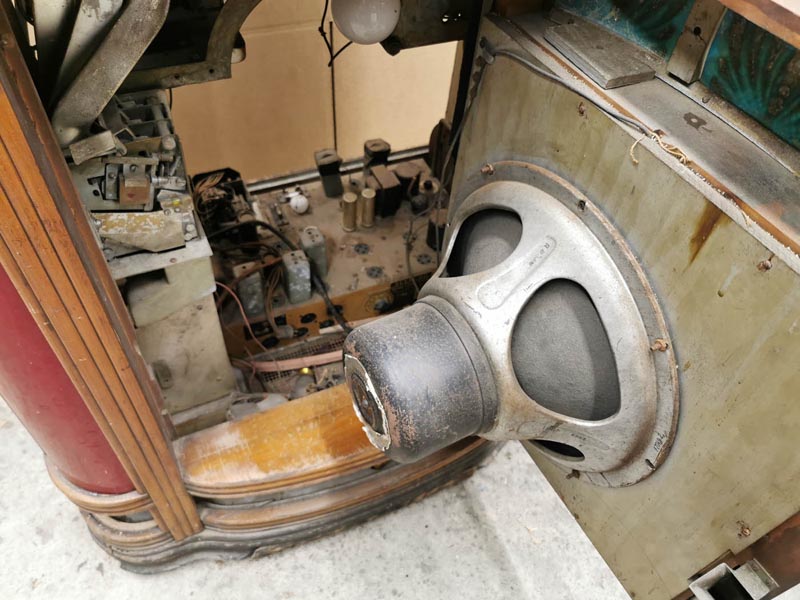

Speaker Jensen A15 - used in Cadet, Envoy, Major

MCS1 - Master Control Station - used in RCES models

Photos and information by Stéphane B.
"For information, the 2A4G tube is a little but hard to find, and in my particular case, the wiring of heater was cut at the manufacture and it was impossible to use-it anymore. You can use the 6.3V wiring and replace the 2A4G by a 884 tube type!
The original interstage transformer was out of order, by chance I found with some help an alternative (need to be completely tested), but the SOFTONE RC-20 seem to be working well (needed to adapt to the chassis)."

Technische Daten - Specifications
	ES: Electrical Selection	MS: Manual Selection	RCES: Remote Control Electrical Selection
Wahlen / Selections	20	20	20

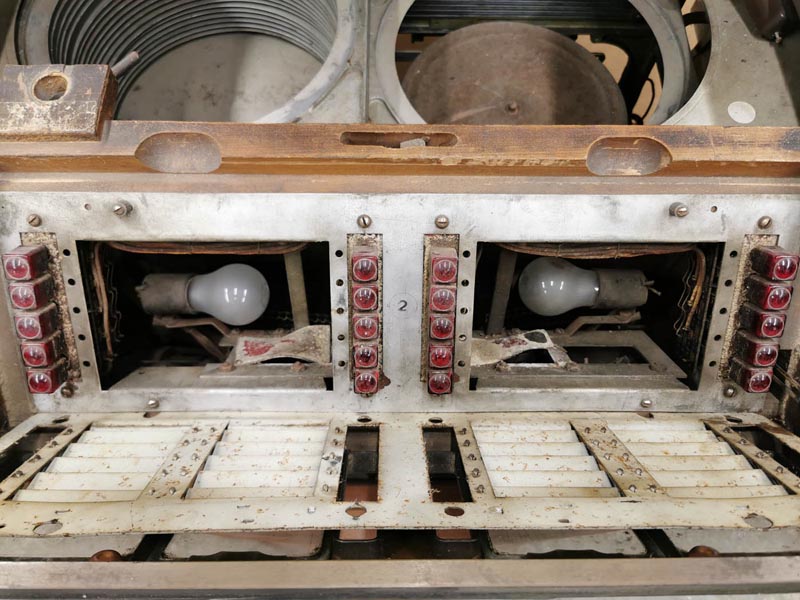

Lampen / Lamps	Cadet: 30W Lumiline; 18x E27 10 W, 1x E27 25 W, 5x E27 15 W, 2x GE #51 Commander: 30W Lumiline, 7x E27 10 W, 2x E27 60 W, 12x E27 15 W, 2x GE #51 Concert Master: 30W Lumiline, 2x GE #51 7x E27 10 W, 2x E27 60 W, 15x E27 15 W	Cadet, Commander with mechanical selector 30V: Miniature 32V light strip, 7x E27 10 Watt, 1x E27 25 Watt, 15x E27 15 Watt, 2x GE #51 Commander with mechanical selector 110V: 30W Lumiline, 7x E27 10 W, 1x E27 60 W, 15x E27 15 W, 2x GE #51
Verstärker / Amplifier	Cadet, Envoy, Major: 625-3: 76, 6J5, 2x 2A3, 5Z3, 80 Colonel, Concert Master, Commander: 830-3: 2x 2A3, 2x 76, 2x 6C6, 1x 5Z3, 80 Concert Maestro: 11-30: 5x 76, 2x6C6, 1x80, 2xA3, 1xZ3	Cadet, Envoy, Major: 625-3: 76, 6J5, 2x 2A3, 5Z3, 80 Colonel, Concert Master, Commander: 830-3: 2x 2A3, 2x 76, 2x 6C6, 1x 5Z3, 80 Concert Maestro: 11-30: 5x 76, 2x6C6, 1x80, 2xA3, 1xZ3	MCS1 - Master Control Station: Amplifier: 2x 6C6, 2x 762x 2A3 Selection. Receiver: 2x 6K7, 6H6, 2A4G, 80 6X5G Transmitter: 6J5G, 2x 6F8G
Netzteil / Power Supply	F-6507-A	F-6507-A	MCS1
Mechanismus / Mechanism	Freborg	Freborg	Freborg
Electrical Selector	ES-1Z	./.	ES-1Z
Solenoid Drum	SD-3Z	SD-3Z	SD-3Z
Lautsprecher / Speaker	Cadet, Concert Master, Commander: 1x small permanent magnet, 1x 15" low	Cadet, Concert Master, Commander: 1x small permanent magnet, 1x 15" low	Cadet, Concert Master, Commander: 1x small permanent magnet, 1x 15" low
Tonabnehmer / Cartridge
Sicherungen / Fuses	Cadet, Commander, Concert Master: 2x 4A	Cadet with mechanical selector 30V: 4A, 10A
Schüssel / Key
Abmessungen / Size
Zubehör / Accessories	Extra speaker Top Spot, Lyre, SpeakOrgan
Besonderheiten / Features	Models available with mechanical (MS) and electrical selector (ES) or as a remote control version (RCES)

Seeburg Jukeboxes & Wallboxes im Archiv von Jukebox-World
Seeburg Symphonola 1940	Copyright
Commander ••• Colonel ••• Major ••• Envoy ••• Concert Master ••• Cadet ••• Concert Maestro 20 Wahlmöglichkeiten - selections, 78 RPM
