Seeburg Extra Speaker Teardrop (1946 - 1955)

Copyright

RS1-8, RS2-8 (1946 – 1948): For Seeburg 146, 147, 148 (Trash Can), M100A, M100B, M100C, 100W
CVS1-8, CVS2-8, CVS4-8 (1949 – 1954): For M100A, M100B, M100C, 100W

Cabinet design: Nels A. Miller

Within the years at least 5 different versions have been produced: RS1-8, RS2-8, CVWS1-8, CVWS2-8, CVS4-8

Type Specification
RS1-8 Remote Speaker for use with Seeburg 146, 147 & 148; could as well be used with M100A, M100B, M100C, 100W
RS2-8 Remote Speaker - with "volume level" switch for adjustments without affecting the volume of the other speakers in the same system - e.g. near a telephone; separate "On-Off-Switch"; for Seeburg 146, 147 & 148; could as well be used with M100A, M100B, M100C, 100W
CVWS1-8 Constant Voltage Wall Speaker; 8" speaker; colour bakelite brown; starting with model M100A up to 100W
CVWS2-8 Constant Voltage Wall Speaker; 8" speaker; colour ivory; starting with model M100A up to 100W
CVS4-8 Constant Voltage Wall Speaker; 8" speaker; starting with model M100A up to 100W
Output impedance of all models: Either 500 Ohm on R.C. Special Master Amplifier or 8 Ohm on Master Amplifier


RS1-8

Bilder: Stephan Ernst
Seeburg Teardrop RS1-8

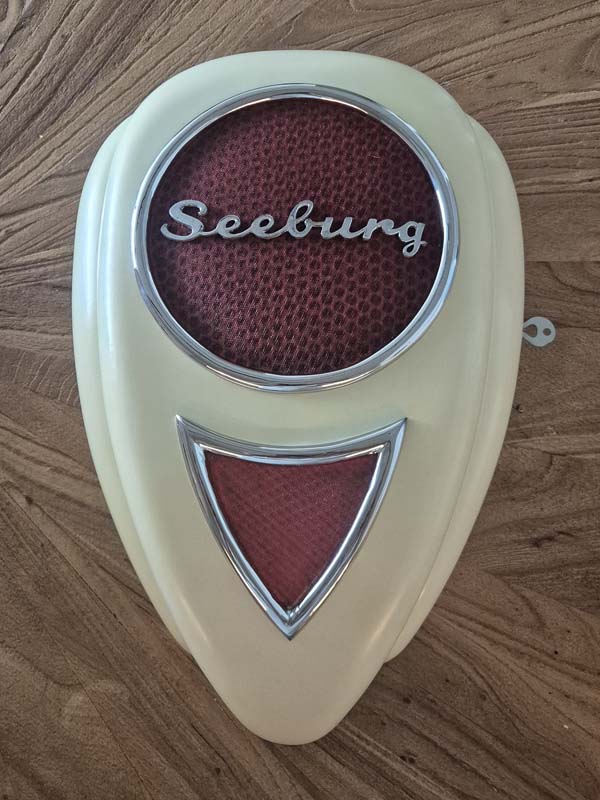

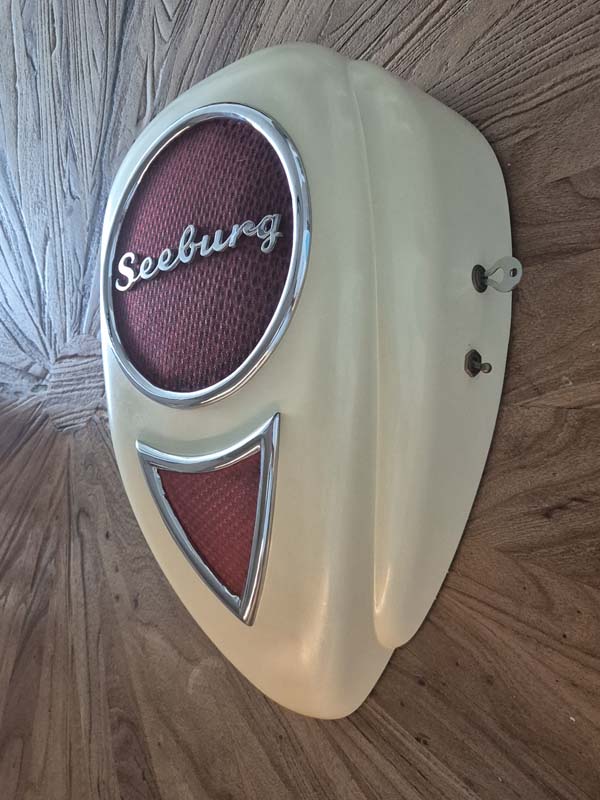

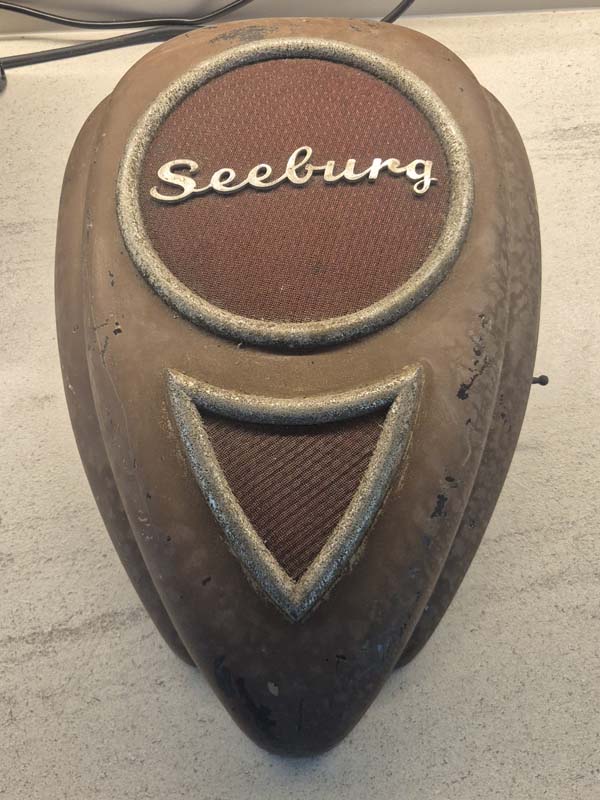

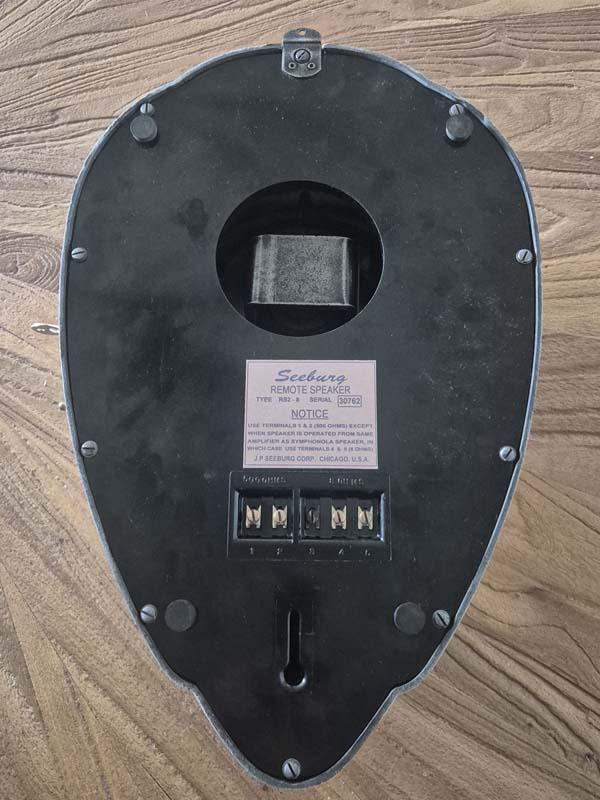

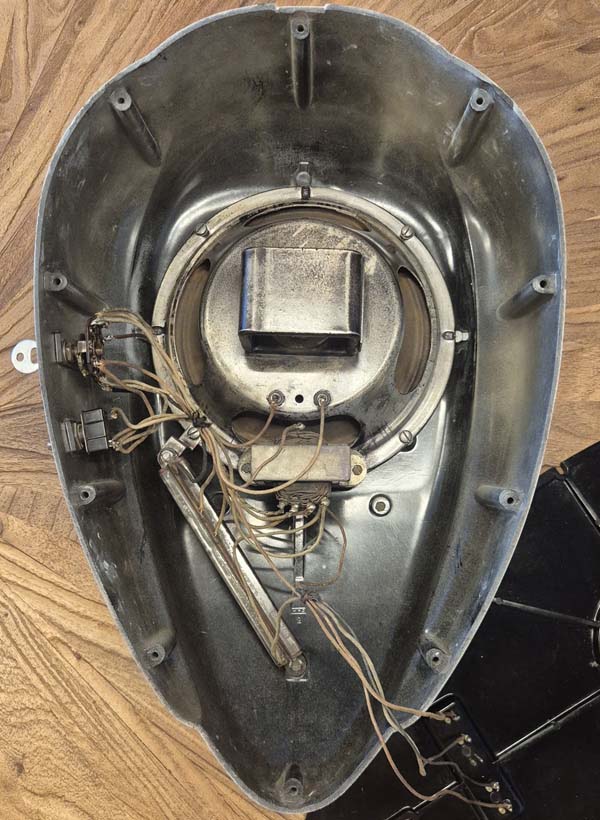

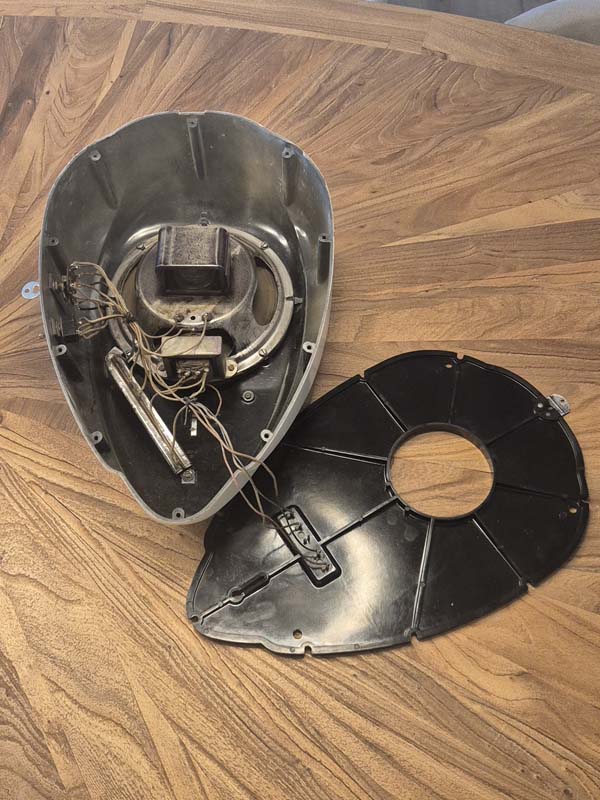

RS2-8

Source: Original 146 Service Manual by Seeburg
Seeburg Teardrop RS1-8





CVS2-8   and   CVS1-8

Bild: Axel Rosenberger
Seeburg Teardrop





CVS4-8

Photos courtesy of Benjamin Thoburn

Seeburg Teardrop CVS4-8

Seeburg Teardrop CVS4-8



Die Angaben haben keinen Anspruch auf Vollständigkeit oder Richtigkeit.
Bei den (importierten) Boxen können im Laufe der Jahre durchaus Veränderungen vorgenommen worden sein. Copyright.
