Sound Leisure im Archiv Jukebox-World |
|
|
Manhattan
(built since 1990) |
Copyright |
|
All pictures courtesy of
Sound Leisure and
Stamann Musikboxen and Bernard M. |
|
|

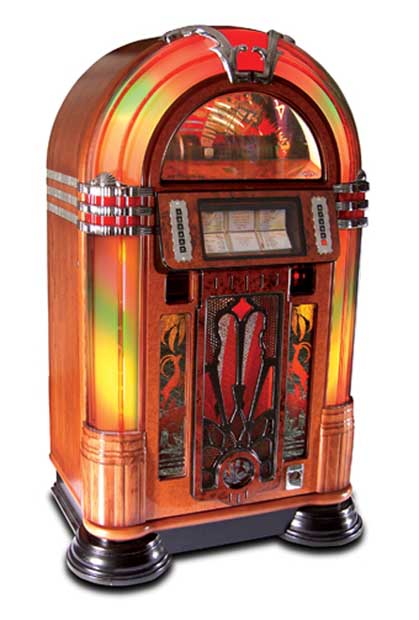

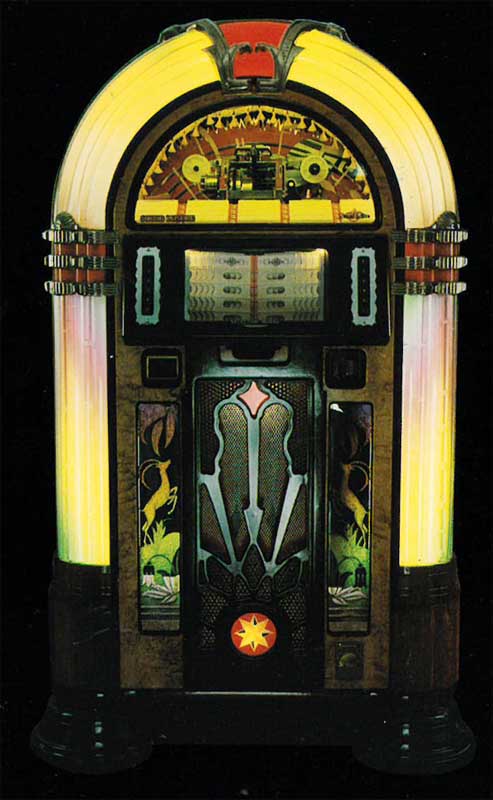

Manhattan, Vinyl |
|
|
|
|
|
|
|
|

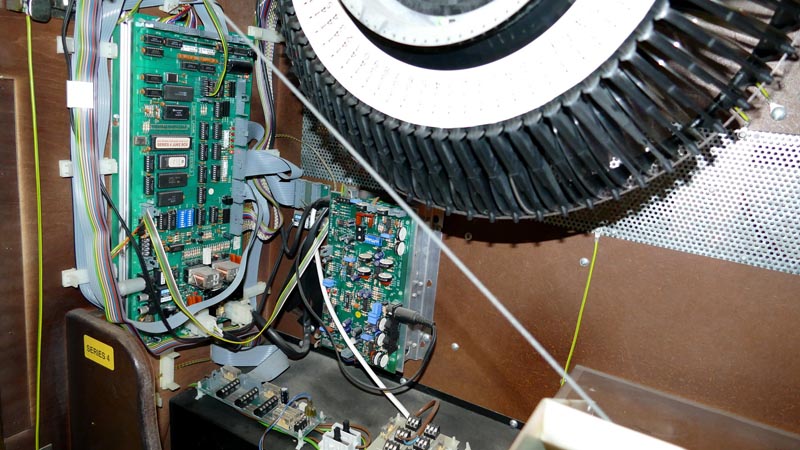

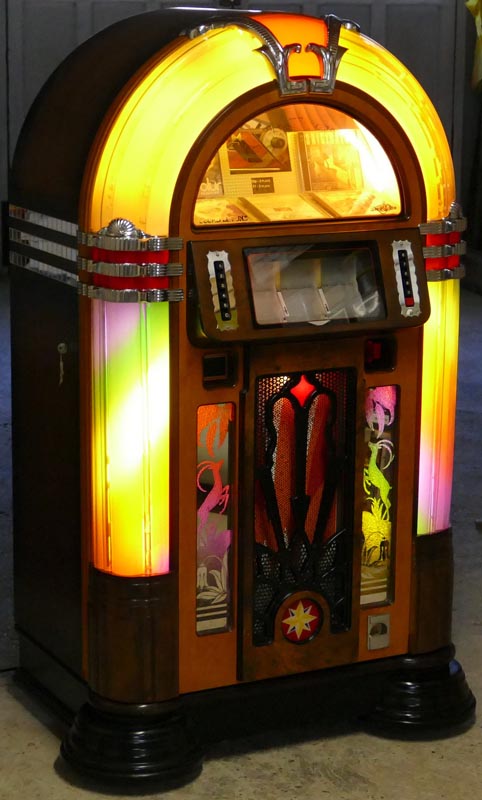

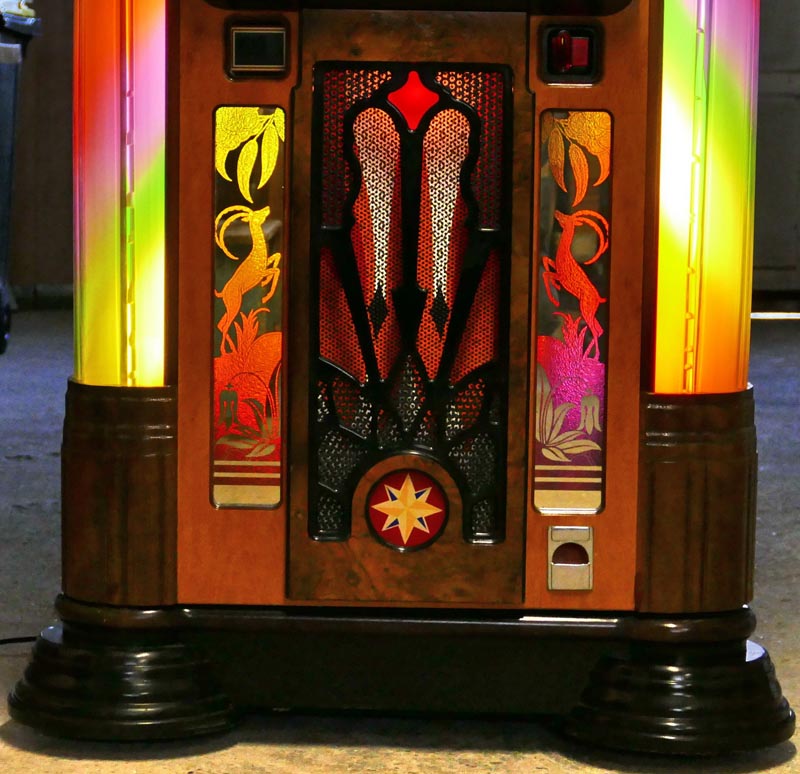

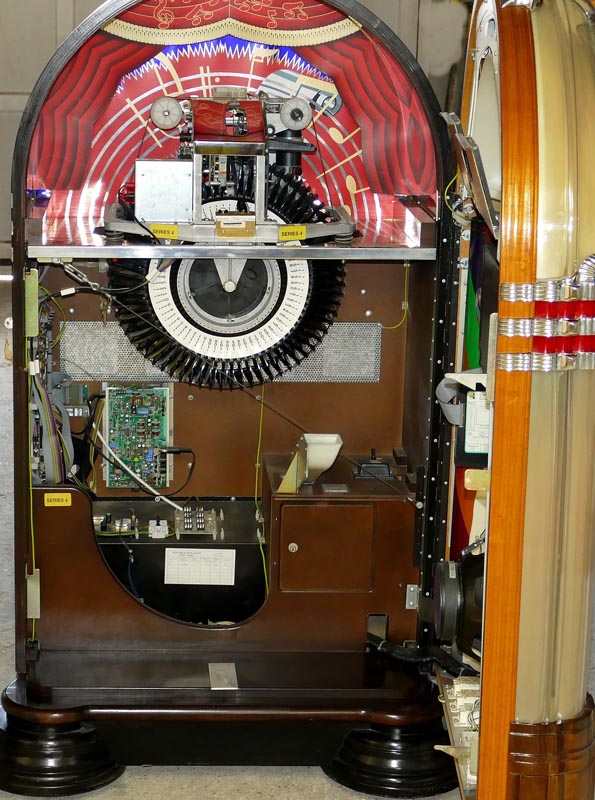

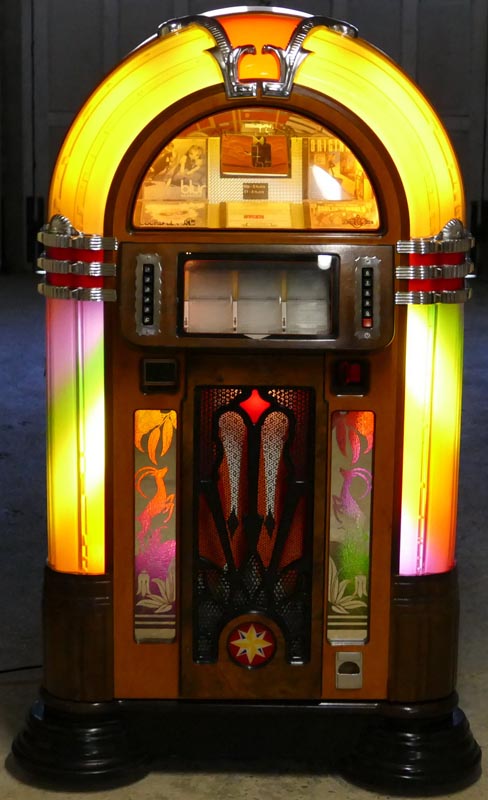

Manhattan, CD |
|
|
|
|
|
|
|
|
Manhattan CD - The Classic Style |

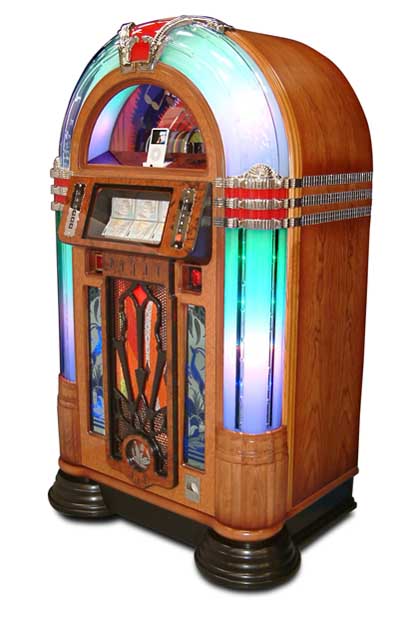

Manhattan CD - The Wooden Style |
|
|
|
|
|
|
|

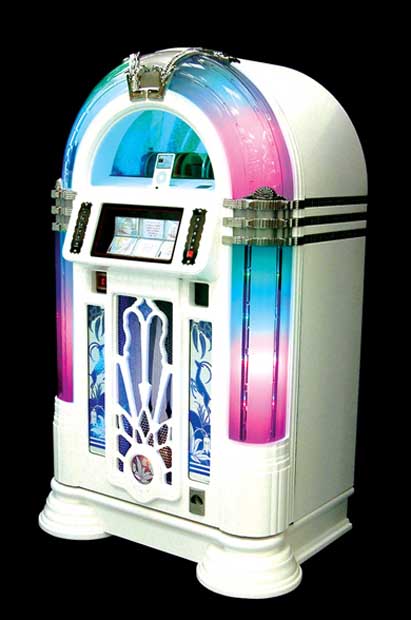

Manhattan CD - The Ice White Style |
|
|
|
|
|
|
|
| Technische Daten - Specifications Manhattan Vinyl & CD | ||
|
Manhattan Vinyl |
Manhattan CD | |
| Kapazität / Capacity |
Series 4 mechanism: 70 CDs 21st Century mechanism: 80 CDs |
|
| Lampen / Lamps | ||
| Verstärker / Amplifier |
Series 4 mechanism: Mk6 60W per channel or Mk7 21st Century mechanism: Mk7 Stereo 150W RMS per channel or D4, 4 Channel amplifier, 4 x 60 watts per channel for superb audio reproduction |
|
| Netzteil / Power supply | ||
| Kreditgerät / Credit unit | ||
| Lautsprecher / Speaker |

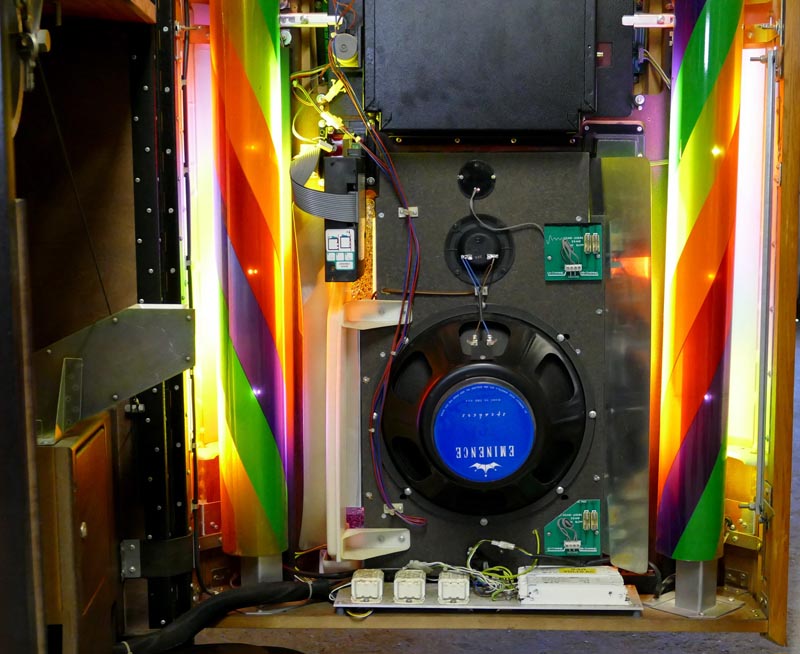

Series 4 mechanism: 1 x tweeter, 1 x mid range, 1x 12" bass 21st Century mechanism: 2 x tweeter, 2 x mid range and 1 x 12” Twin cone bass speaker |
|
| Player |

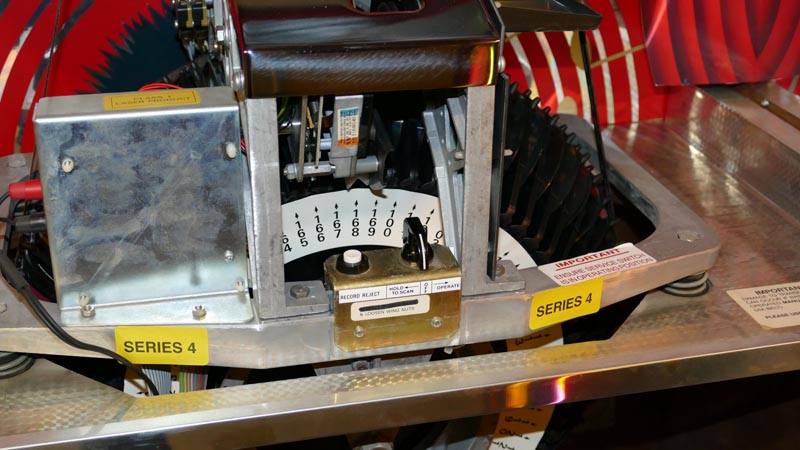

1. Version: Series 4 mechanism Philips CDM12 2. Version: 21st Century mechanism |
|
| Sicherungen / Fuses | ||
| Schlüssel / Key | ||
| Abmessungen / Size |
59-1/2 x 37-1/2 x 27-1/2" / 151,5 x 95 x 70 cm 130 kg |
|
| Zubehör / Accessories | ||
| Besonderheiten / Features | Connections for up to 6 speakers | |
|

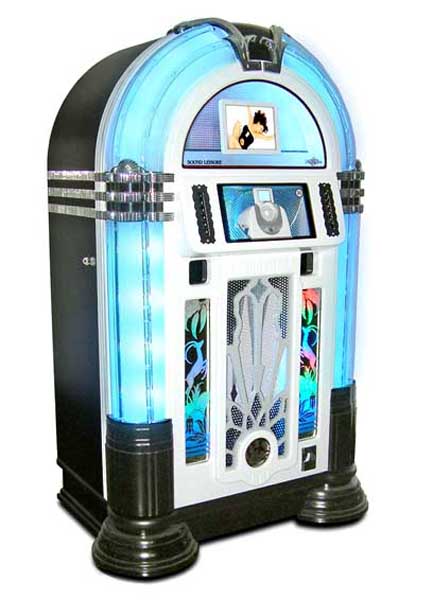

Manhattan Xi (built since 2006) |
|
|
|
|
|
|
|
| Technische Daten - Specifications Manhattan Xi iPod | |
| Kapazität / Capacity | 80 CDs |
| Lampen / Lamps | Diamond Pack LED lighting |
| Verstärker / Amplifier | Mk7 Twin channel Amplifier, 150w per channel |
| Netzteil / Power supply | |
| Kreditgerät / Credit unit | |
| Lautsprecher / Speaker | 2 x tweeter, 2 x mid range 1 x 12” Twin cone bass speaker |
| Player |
2. version: 21st Century CD mechanism iPod cradle designed to automatically accept all iPods (except nano); charges automatically iPod when docked |
| Sicherungen / Fuses | |
| Schlüssel / Key | |
| Abmessungen / Size | 59-1/2 x 37-1/2 x 27-1/2" / 151,5 x 95 x 70 cm; 130 kg |
| Zubehör / Accessories | |
| Besonderheiten / Features |
Connections for up to 6 speakers iPod: Integral LCD video screen Playback: displays music videos. Image/Photo slideshow (with audio tracks only) |
|
Die Angaben haben keinen
Anspruch auf Vollständigkeit oder Richtigkeit. |
|
