passend für Wurlitzer 1500, 1550, 1500-A, 1550A und Fernwähler
5204A und 5205; 5207 auch möglich.

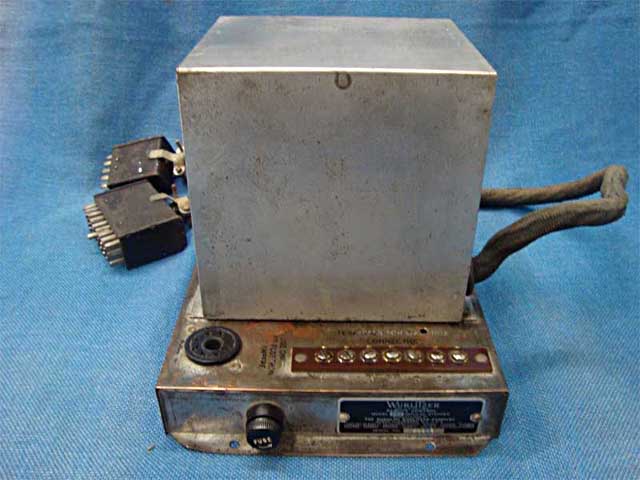

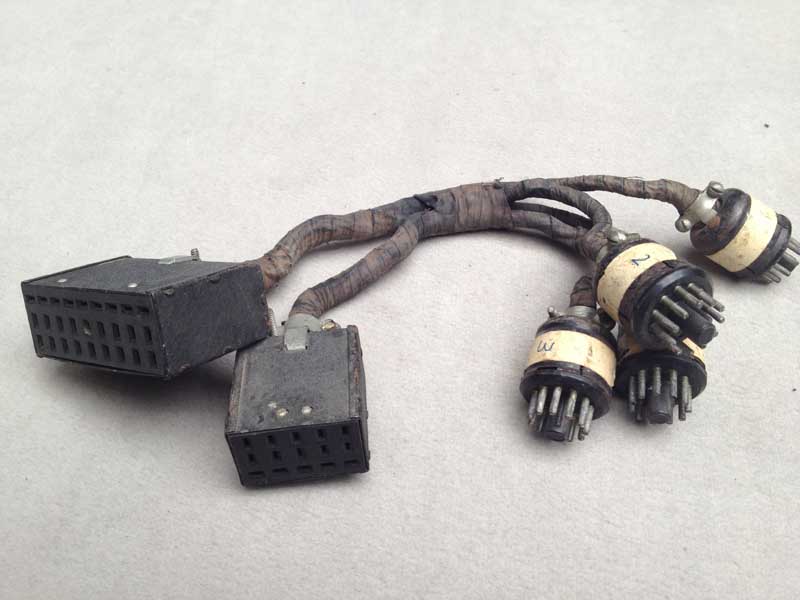

Hinweis: für spätere Anpassung wurde der originale rechteckige Stecker durch
runde ersetzt.Anschluß Stepper 253 an FW
5207:
wallbox terminal no.1 to stepper terminal no. 1 (pulse)
wallbox terminal no.2 to stepper terminal no. 2 (common)
wallbox terminal no.3 to stepper terminal no. 3 (24V power) |
For use with Wurlitzer 1500, 1550, 1500-A,
1550A and wallbox 5204A and 5205. Can be used for 5207, too.
Please note: for use on later models the original
rectangular plug was exchanged against round ones.

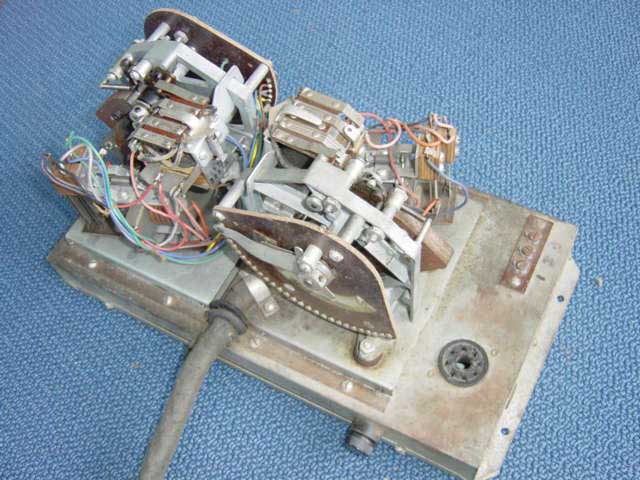

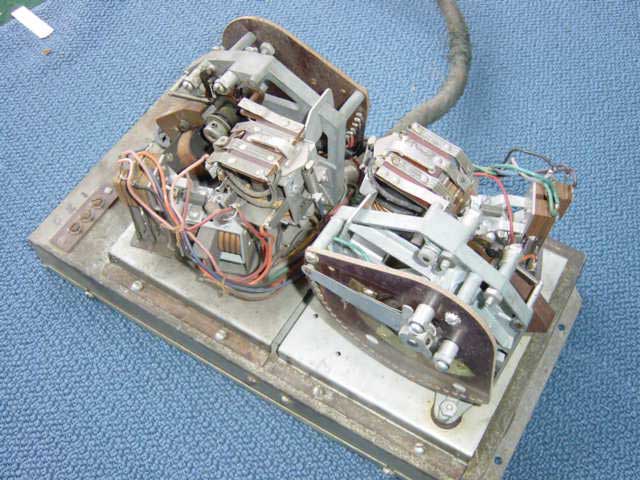

how to connect stepper 253
to wallbox 5207:
wallbox terminal no.1 to stepper terminal no. 1 (pulse)
wallbox terminal no.2 to stepper terminal no. 2 (common)
wallbox terminal no.3 to stepper terminal no. 3 (24V power) |
