Wurlitzer 2800 ••• Wurlitzer 2810 Wurlitzer 2800-4 ••• Wurlitzer 2810-4 (1964) |
Copyright |
Wurlitzer 2800: 200 Wahlmöglichkeiten Wurlitzer 2810: 100 Wahlmöglichkeiten Wurlitzer 2800-4: 200 Wahlmöglichkeiten mit "Little LP-Funktion" Wurlitzer 2810-4: 100 Wahlmöglichkeiten mit "Little LP-Funktion" |
Wurlitzer 2800: 200
Selections Wurlitzer 2810: 100 Selections Wurlitzer 2800-4: 200 Selections with "Little LP Selector" Wurlitzer 2810-4: 100 Selections with "Little LP Selector" |

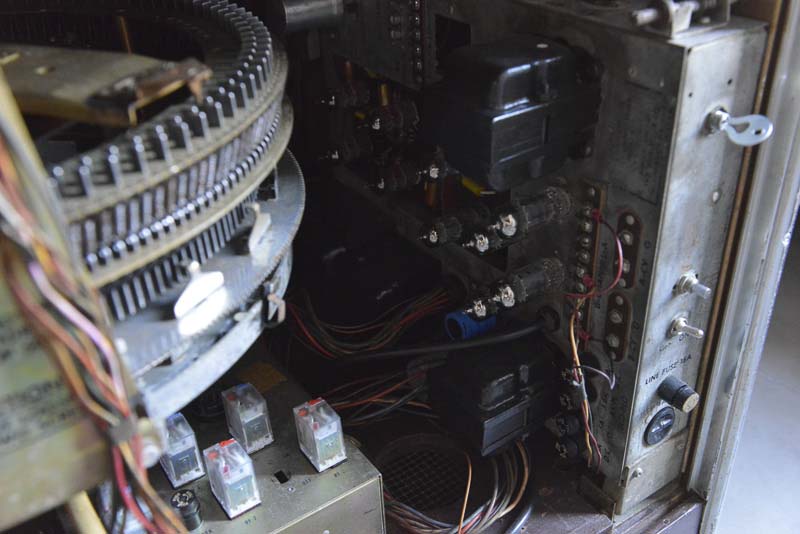

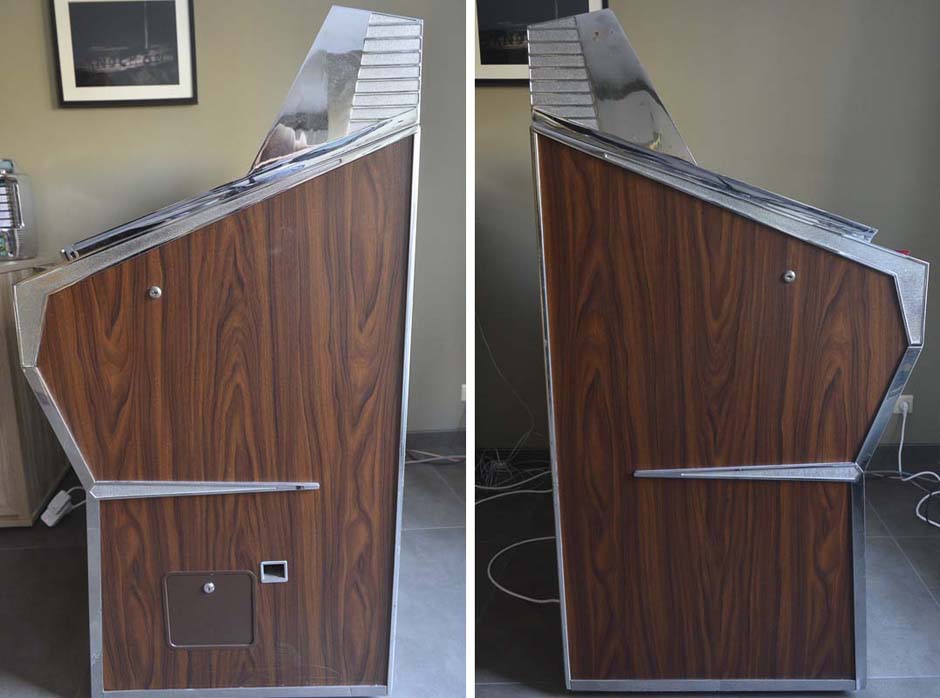

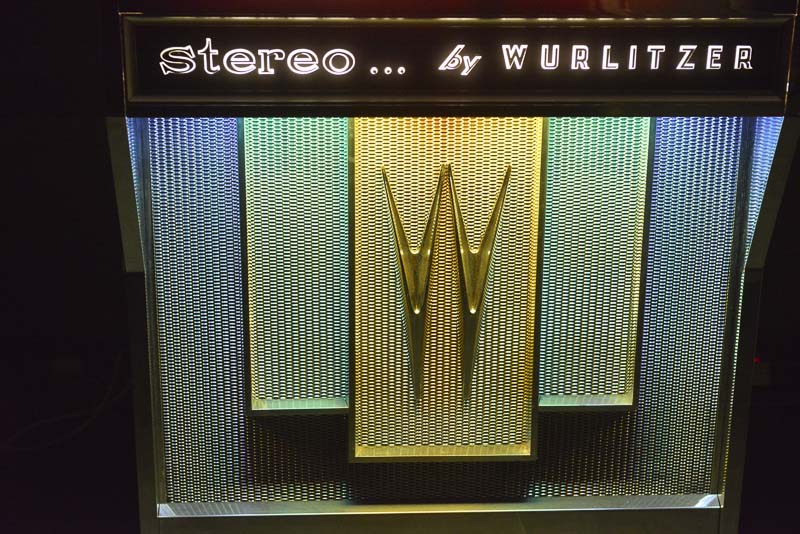

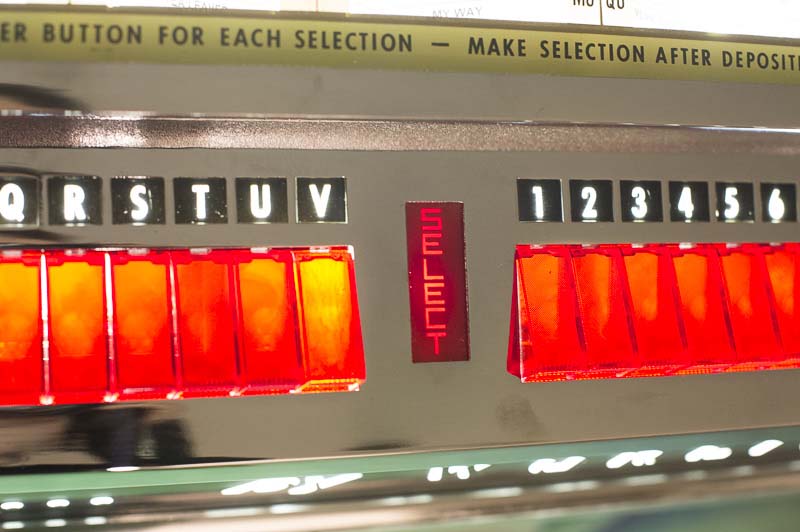

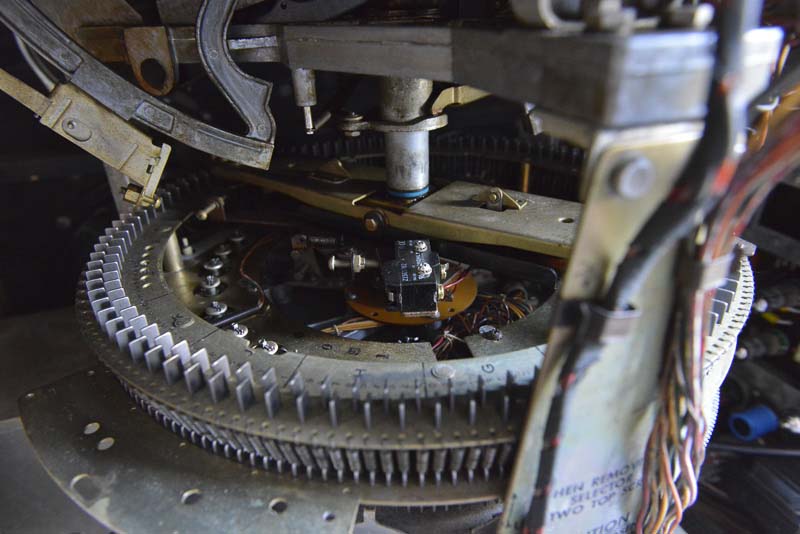

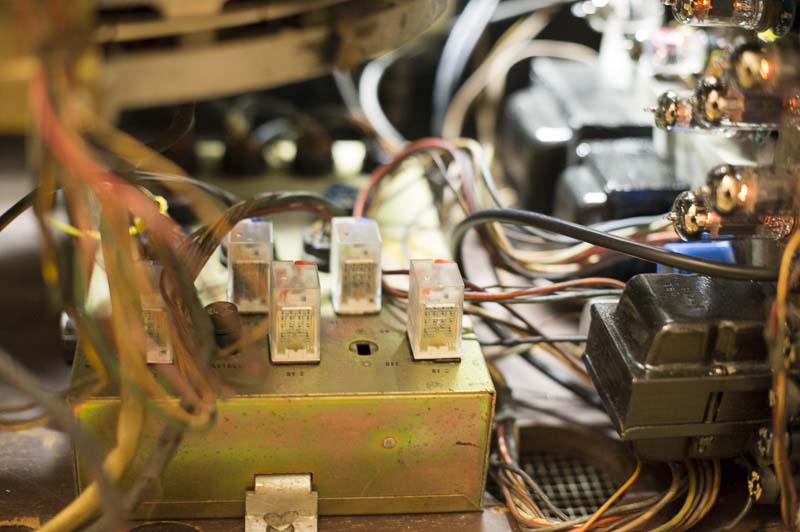

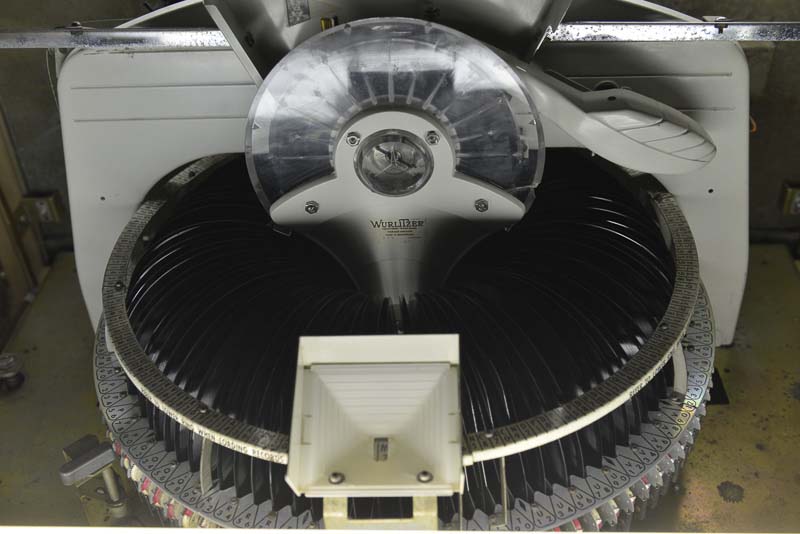

Wurlitzer 2800 |
|
Photos: Steven St.
|
|
|
|

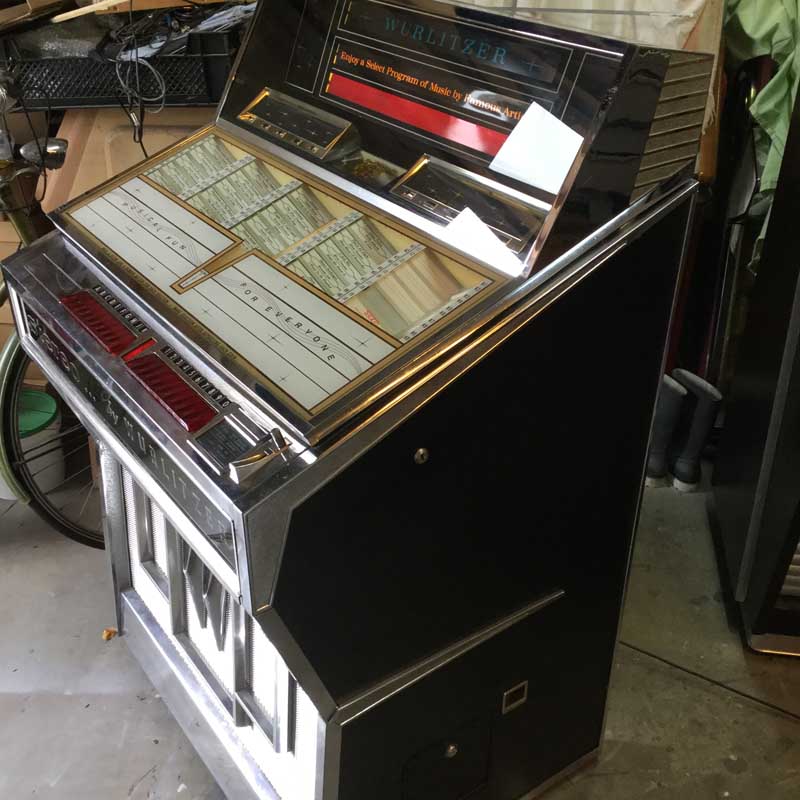

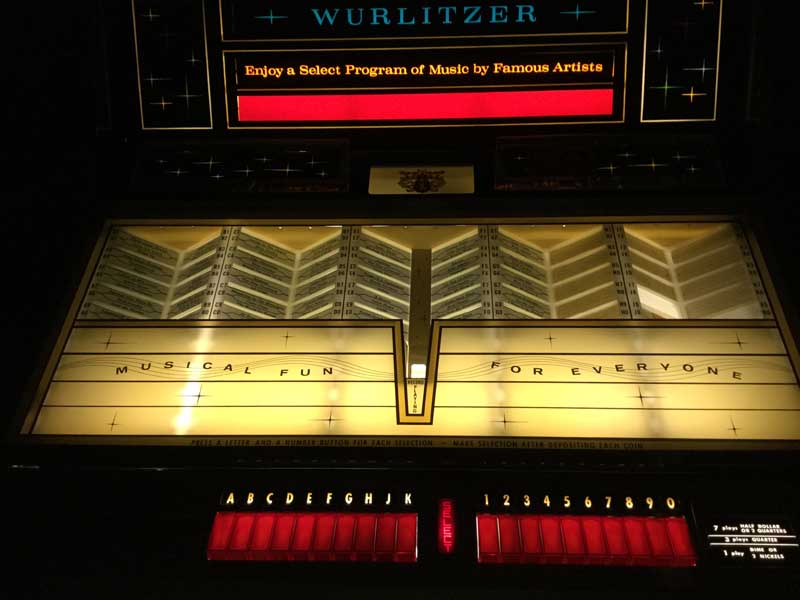

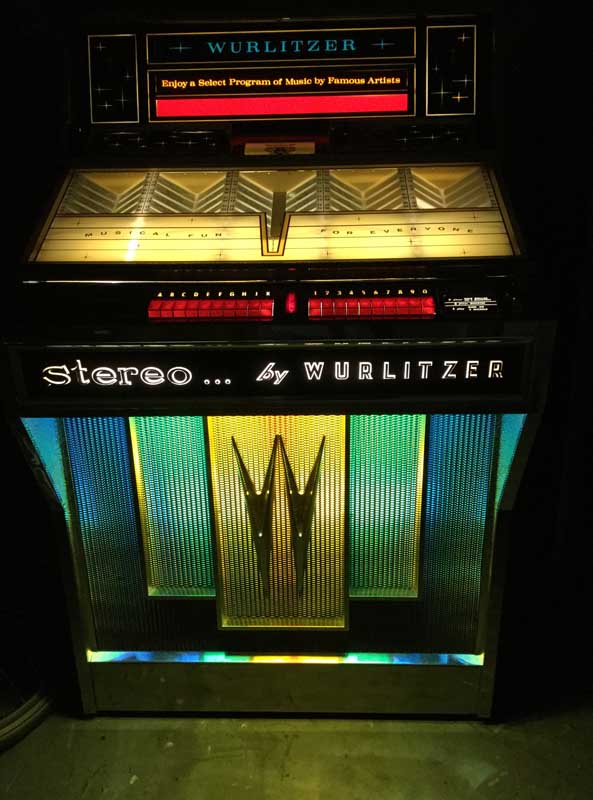

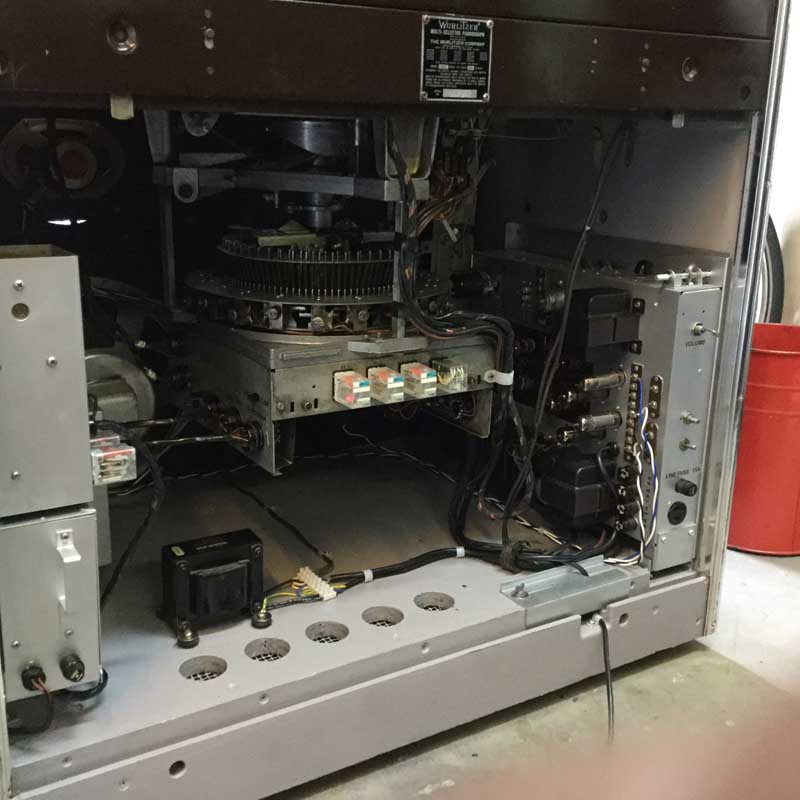

Wurlitzer 2810 |
|
Photos courtesy of
Martin Knegt
|
|
|
|
Wurlitzer 2800-4 |
|
200 Selection Phonograph with "Little
LP-Selector"
|
|
|
|
Wurlitzer 2810-4 |
|
100 Selection Phonograph with "Little
LP-Selector"
|
|
|
Technische Daten - Specifications | ||
2800 | 2810 | |
Wahlen / Selections | 200 | 100 |
Lampen / Lamps |
Cabinet: 3x TL 25W/28"/T12 Select lamp: GE #44; Junction Box: GE #303 Top Tunes: GE #12 |
Cabinet: TL 25W/28"/T12 Select lamp: GE #44 Top Tunes: GE #12 |

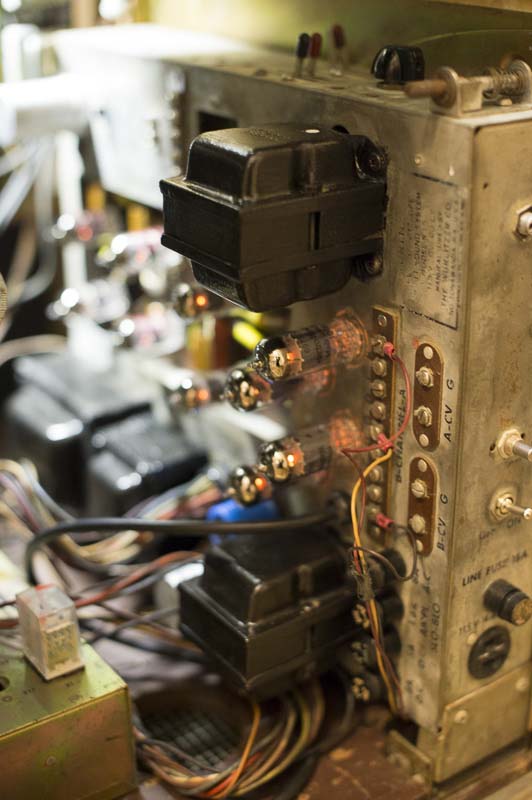

Verstärker / Amplifier | 545: 2x 12AX7 oder 7025, 2x 12AU7A, 2x 7199, 4x 6973 | 545: 2x 12AX7 oder 7025, 2x 12AU7A, 2x 7199, 4x 6973 |
Lautsprecher / Speaker |
Low 1x 12" 16Ω AlNiCo #120777 Mid 1x 12" 8Ω AlNiCo #117754 Tweeter 1x 6" 8Ω AlNiCo #124121 |
Low 1x 12" 16Ω AlNiCo #120777 Mid 1x 12" 8Ω AlNiCo #117754 Tweeter 1x 6" 8Ω AlNiCo #124121 |
Tonabnehmer / Cartridge | Sonoflex 9TAF | Sonoflex 9TAF |
Sicherungen / Fuses |
Amp 545: 15A, 5A, 8A, 1.6A; Stepper 261: Fustat 3.2A Power Supply: 800 mA |
Amp 545: 15A, 5A, 8A, 1.6A; Stepper 259A: 500 mA, 800 mA; Power Supply: 800 mA |
Schlüssel / Key | RW95 | RW95 |
Abmessungen / Size | H x B x T: 134 x 84 x 69 cm / H x W x D: 52.5 x 33. x 27" | H x B x T: 134 x 84 x 69 cm / H x W x D: 52.5 x 33. x 27" |
Zubehör / Accessories |
Kit 169A;
Booster 222, Stepper 261 Wallbox 5250, 5010 - Top Tunes Private Stereo Speaker 5121 |
Kit 169A;
Booster 222; Stepper 159A Wallbox 5200, 5010 - Top Tunes Private Stereo Speaker 5121 |
Besonderheiten / Features | 2800-4: Equipped with
"Little LP Selector" Coin mechanism needs addional switch, Control unit needs with extra motor and relay unit Selector assemby needs extra wiring and four pin sockets |
2810-4: Equipped with
"Little LP Seelector" Coin mechanism needs addional switch, Control unit needs with extra motor and relay unit Selector assemby needs extra wiring and four pin sockets |
|
