Wurlitzer im Archiv Jukebox-World

Wurlitzer 312   •••   316   •••   412   •••   416 (1936)

Copyright

412 Prototype   •••   412 Aftermarket


Model 312 - 12 Wahlen / Selections

Model 316 - 16 Wahlen / Selections

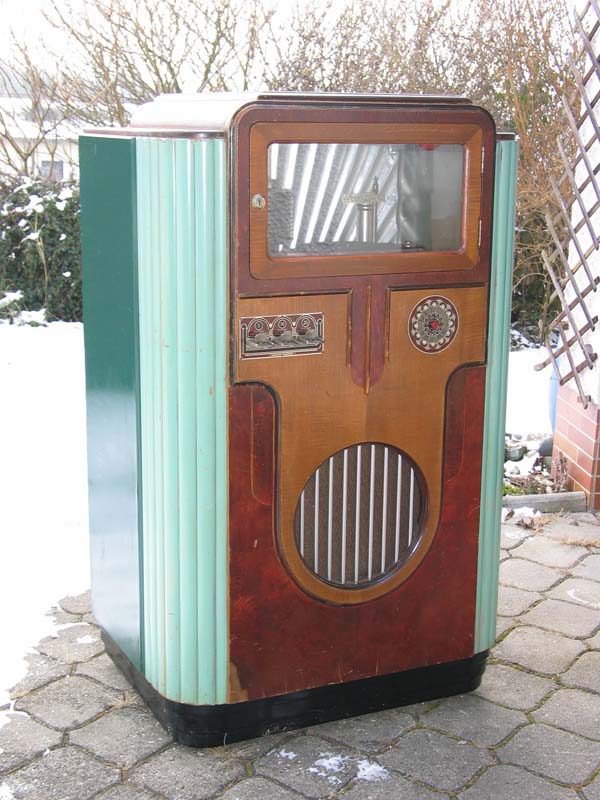

Wurlitzer 312

Wurlitzer 316

Wurlizer 312
Photo courtesy of Axel Rosenberger

Wurlitzer 312





Model 412 - 12 Wahlen / Selections Play Meter Wurlitzer 412

Wurlitzer 412

Wurlitzer 412




Model 416 - 16 Wahlen / Selections

Wurlitzer 416
Photo courtesy of Benjamin Thoburn

Wurlitzer 416





Technische Daten - Specifications
  312 316 412 416
Wahlen / Selections 12 16 12 16
Lampen / Lamps Cabinet: E27 40W/120V blue and red, E27 25W/120V green
Dial lamp: E27 15 Watt
Service lamp (?): 150W
Cabinet: E27 40W/120V blue and red, E27 25W/120V green
Dial lamp: E27 15 Watt
Service lamp (?): 150W
Cabinet: E27 40W/120V blue and red, E27 25W/120V green
Dial lamp: E27 15 Watt
Service lamp (?): 150W
Cabinet: E27 40W/120V blue and red, E27 25W/120V green
Dial lamp: E27 15 Watt
Service lamp (?): 150W
Verstärker / Amplifier 651: 2x 76, 4x 48
660: 30, 3x 45, 5Z3
# 42000-42750
661: 30, 3x 45, 5Z3
# >/= 42751
751: 76, 48
771: 2x 30, 4x 45, 5Z3
651: 2x 76, 4x 48
660: 30, 3x 45, 5Z3
# 42000-42750
661: 30, 3x 45, 5Z3
# >/= 42751
751: 76, 48
771: 2x 30, 4x 45, 5Z3
Lautsprecher / Speaker
Tonabnehmer / Cartridge
Sicherungen / Fuses Junction box: 3A Junction box: 3A Junction box: 3A Junction box: 3A
Schlüssel / Key
Gehäuse / Cabinet
Abmessungen / Size
Zubehör / Accessories
Besonderheiten / Features




Model 412 - Prototype

Wurlitzer 412
This model is made 100% from mahogany wood. It is a manual selector but uses buttons instead of levers.
When you cancelled a selection from the W412, the cancel button cancelled ALL selections, not just one.
There was also no coin return so these were beautiful but primitive…
Picture and Info: Edward M. Liss



Chicago Simplex Dist. Co. Wurlitzer 412 - with Lucite Bars (1938)

Wurlitzer 412 with Lightup Lucite Bars Chicago Simplex

Upper ad: Automatic Age May 1938
Photos below: Dirk

Wurlitzer 412 with Lightup W24





Corcoran Repeat-Play-Cabinet (1938)

Corcoran Jukebox





Haller Furn. Co.: Model 412 (left) and 416 (right) in Cabinet 101

Pictures courtesy of Lloyd Thoburn
Wurlitzer 412

Wurlitzer 412

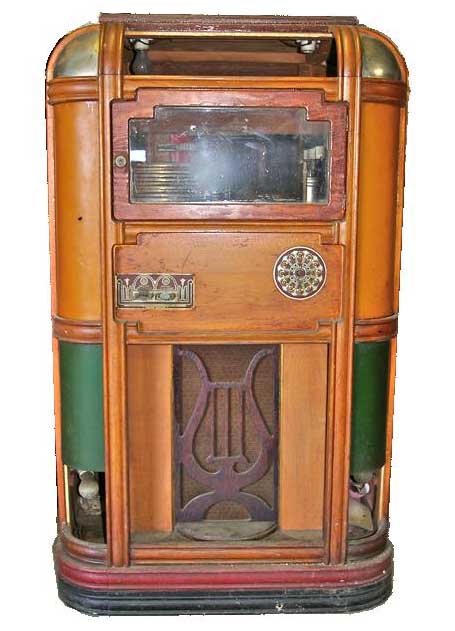

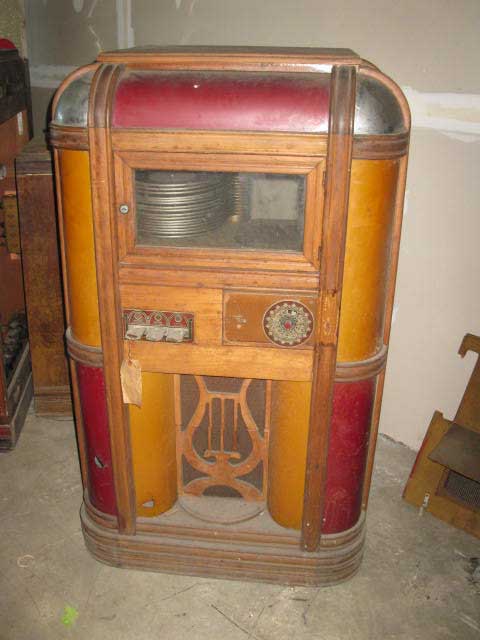

Jacobs Novelty or Gerber & Glass: Model 412 - Aftermarket Light-Up (year: ?)

Wurlitzer 412
Pictures courtesy of Lloyd Thoburn

Wurlitzer 412






Miller Vending Company Universal Cabinet with Light-Up Grill (1947)

Universal Cabinet Miller Vending Company Phonograph Jukeboxes Light-Up Kit





Miraben: Wurlitzer 412 (1940)

Wurlitzer 412 with Lightup by Miraben
Ad Billboard 10. August 1940





Amplifier 771

Used in models 316, 416, 616, 716 and 616A
Wurlitzer amplifier 771



Die Angaben haben keinen Anspruch auf Vollständigkeit oder Richtigkeit.
Bei den (importierten) Boxen können im Laufe der Jahre durchaus Veränderungen vorgenommen worden sein. Copyright.
