AMI & Rowe/AMI Musikboxen im Archiv von Jukebox-World
Rowe/AMI ••• Microtecnica	Copyright
Rowe/AMI JAL & JEL (1962-63) Microtechnica AMI JCL-200 Mechanismus anpassbar von 200 auf 100 oder 160 Wahlen Vorgestellt in 5/1962	Rowe/AMI JAL&JEL (1962-63) Microtechnica AMI JCL-200 Mechanism convertable from 200 to 100 and 160 selections Introduced in 5/1962

Lizenzen in anderen Ländern / License holder in other countries:

Microtecnica, Turin, Italy	JCL-200
National Instruments Pty. Ltd, Australia	JEL-200A

JAL

Features:

Automatic Selection System
Stereo Round System
AMI Automix 33-1/3 - 45 RPM
Top-Talent-Tunes
Location Personalization

Mechanism 1100: Could be converted to 100 or 160 sel
Cabinet: One-colour-sides - available in brown or black paint or wood grain decal
Lamps: See table below
Front with "Stereo Round" and "Rowe AMI" available in black and red
The vertical bar at grill is not aligned with grill

Photos below courtesy of Tim

JEL (LB200)

Features:

Automatic Selection System
Stereo Round System
AMI Automix 33-1/3 - 45 RPM
Top-Talent-Tunes
Location Personalization
Mechanism 1100: Could be converted to 100 or 160 sel
Cabinet: Two-colour-sides
Lamps: See table below

Below: ID plate of Australian JEL200A jukebox

National Instruments PTY Australia AMI Rowe JEL200A

Titelanzeige: Anpassung von 200 an 160 oder 100 Wahlen - Title board: Conversion from 200 to 160 or 100 selections only

JCL-200

Manual selection - mechanism: 960, amplifier R-2776, R 2020, cabinet in different colours
Made by Microtecnica Torino under license AMI (international) S.A. Panama R.P.

Microtecnica AMI JCL-200 Jukebox Musikbox

Pictures courtesy of two friendly sellers

JCL-200

Microtecnica AMI JCL-200 Jukebox Musikbox

Technische Daten - Specifications
	JAL	JEL	JCL
Wahlen / Selections	200	200	200
Gehäuse / Cabinet	Available in brown or black paint or wood grain decal Front with "Stereo Round" and "Rowe AMI" available in black and red The vertical bar at grill is not aligned with grill	Two colour sides	Available in black paint or wood grain Front with "Stereo Round" and "AMI" only available in black and blue and brown
Lampen / Lamps	Listed in Service Manual: Top Door: 2x 6W/9"/T8; 15W/18"/T8 Front Door: 20W/24"/T12; 8W/12"/T5; #6S6DC or 10C7/5DC Credit: # 47 (3) Listed in revised Service Manual: Top Door: 6W/9"/T8; 25W/28"/T12 Front Door: 25W/28"/T12; #6S6DC or 10C7/5DC; incandescent lamp behind "Rowe AMI" Credit: # 47 (3)	Listed in Service Manual: Top Door: 25W/28"/T12 Front Door: 25W/28"/T12, #6S6DC or 10C7/5DC Credit: # 47 (3) Listed in revised Service Manual: Top Door: 6W/9"/T8; 25W/28"/T12 Front Door: 25W/28"/T12; #6S6DC or 10C7/5DC; incandescent lamp behind "Rowe AMI" Credit: # 47 (3)	25W/28"/T12 2x 6W, 2x 8W, 1x 15W

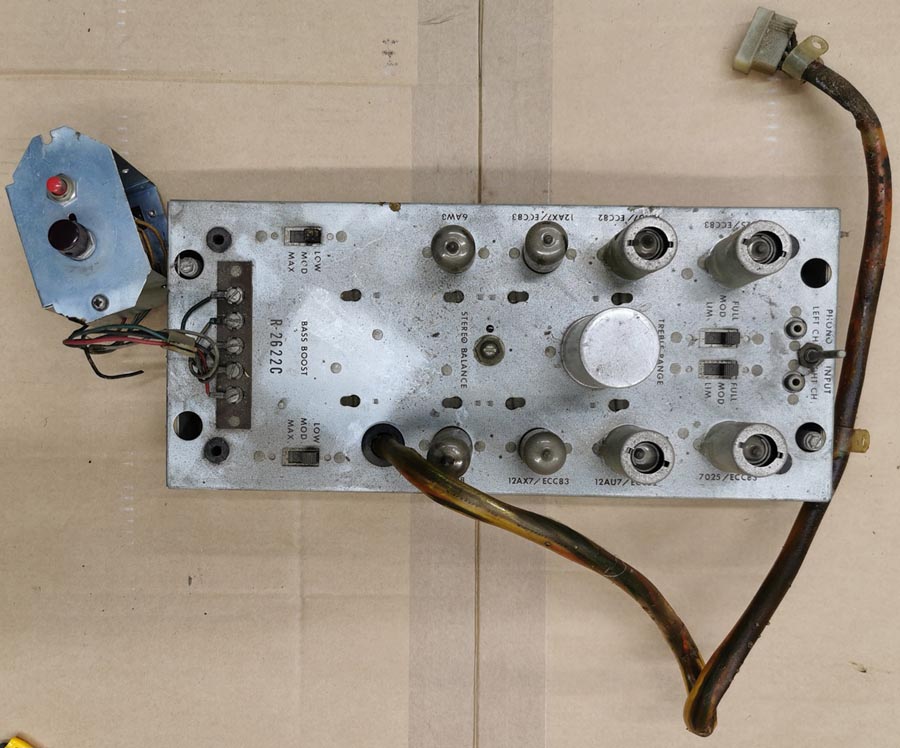

Verstärker / Amplifier	Power Amp R-2620: 2x 12AX7, 5U4GB, 4x 7868; Control Amp R 2622: 2x 12 AX7, 2x 6AW8A, 2x 12AU7, 2x 7025/ECC83	Power Amp R-2620: 2x 12AX7, 5U4GB, 4x 7868; Control Amp R 2622: 2x 12 AX7, 2x 6AW8A, 2x 12AU7, 2x 7025/ECC83	Basic Amplifier R-2777: 5U4GB, 2x 12AU7, 2x 6973 Add-On Power L-2728: 2x 12AU7, 2x 6973 Stereo Control R 2020: 2x 12AX7, 2x 7025/ECC83
Netzteil / Power supply	L 2526	L 2526
Kreditgerät / Credit unit	R-1473B	R-1473B
Lautsprecher / Speaker
Mechanismus / Mechanism	1100	1100	960
Tonabnehmer / Cartridge	Shure M-77DA with stylus Shure N77	Shure M-77DA with stylus Shure N77	GE VR22
Sicherungen / Fuses	Selector: 2A, 600 mA slo blo; Junction Box: 8A fl., 2A, 3.2 A Fustat	Selector: 2A, 600 mA slo blo; Junction Box: 8A fl., 2A, 3.2 A Fustat
Schlüssel / Key	C-440A	C-440A
Abmessungen / Size	145 x 85 x 68 cm; 188 kg	145 x 85 x 68 cm; 188 kg
Zubehör / Accessories	CDA: For use with any wallbox CDD: For use with Seeburg 100 selection wallbox Wallbox WQ200 Remote volume control H 3037E	CDA: For use with any wallbox CDD: For use with Seeburg 100 selection wallbox Wallbox WQ200 Remote volume control H 3037E	No stepper nor wallbox
Neupreis 1963 / Original price	Pricelist Nordwestdt. Autom GmbH & Co. 06/1963: 6450 DM
Besonderheiten / Features	First Rowe/AMI model Mechanism could be converted from 200 to 100 and 160 selections; Automix as standard feature	First Rowe/AMI model Mechanism could be converted from 200 to 100 and 160 selections; Automix as standard feature	Model JCL only available by Microtechnica, Italy Manual selection jukebox with technical equipment from previous models

Die Angaben haben keinen Anspruch auf Vollständigkeit oder Richtigkeit.
Bei den (importierten) Boxen können im Laufe der Jahre durchaus Veränderungen vorgenommen worden sein. Copyright.
