Rock-Ola Musikboxen im Archiv von Jukebox-World |
|
Rock-Ola Mech-O-Matic - Intermix 33-1/3 / 45 rpm - Albumfunktion |
Copyright |
Mechanismusabdeckung Regis, Empress ••• Intermix Regis ••• Intermix 430 | |
Was bedeutet die Albumfunktion in Rock-Ola Musikboxen? | What means the album-feature in Rock-Ola jukeboxes? | |||||||||||||||||||
Es gab dazu Singleschallplatten mit mehr als einem
Titel pro Seite, 33-1/3 UpM und kleinem Mittelloch - vergleichbar mit den EPs
bzw. ähnlich der Quartett Single in der DDR (Hinweis: da aber mit 45UpM und
großem Loch). Diese sog. Alben sollten mehr kosten, und somit wurde die
entsprechende Funktion im Kreditwerk eingerichtet. Die Mechanik erkennt dann,
sofern entsprechend ausgerüstet, anhand der Größe des Mittellochs und schaltet
die Geschwindigkeit entsprechend um. |
There were records availabe with more
than one title per side, 33-1/3 rpm and a small center hole, comparable to the
EPs or similar to the quartet records in the GDR (note: But with 45 rpm and a
large hole). These so-called albums needed to cost more, and so the
corresponding function was set up in the credit unit. The mechanism then
recognizes, if equipped accordingly, the size of the center hole and switches
the speed accordingly. |
|||||||||||||||||||
|
||||||||||||||||||||
Mechanismusabdeckung Rock-Ola Regis und Empress mit 33/45 RPM Umschaltung | Mechanism cover Rock-Ola Regis and Empress with 33/45 Intermix | |||||||||||||||||||
Bilder und Information: Axel Rosenberger
|
||||||||||||||||||||
|
||||||||||||||||||||
Rock-Ola Regis "Mech-O-Matic" 33/45 RPM Intermix |
||||||||||||||||||||
Fotos: Erich
|
||||||||||||||||||||
|
||||||||||||||||||||

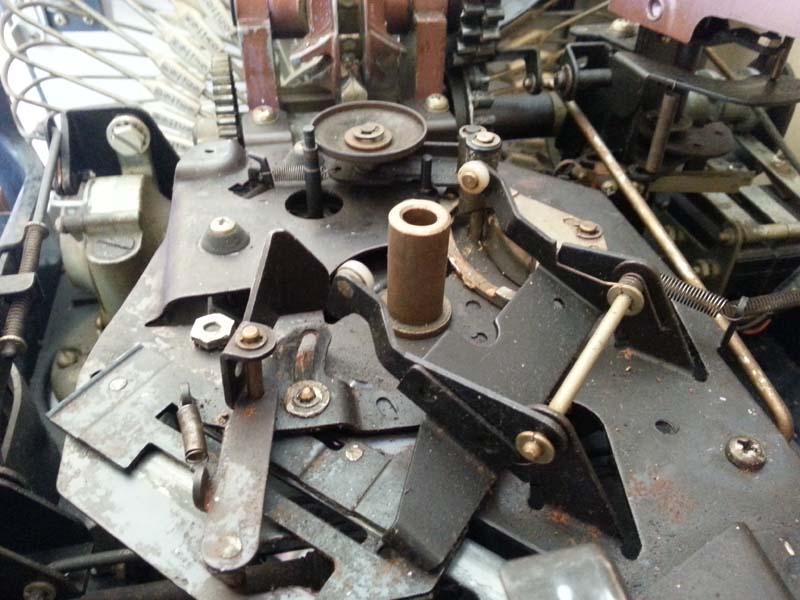

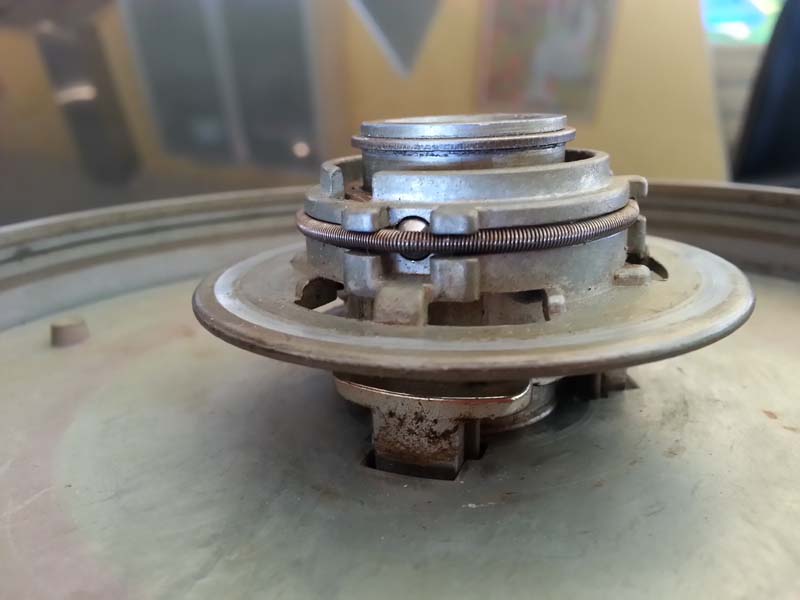

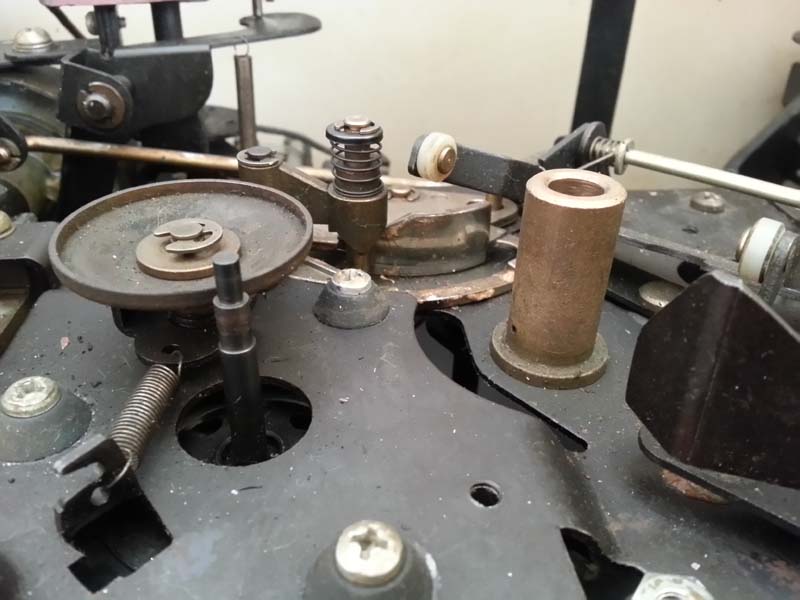

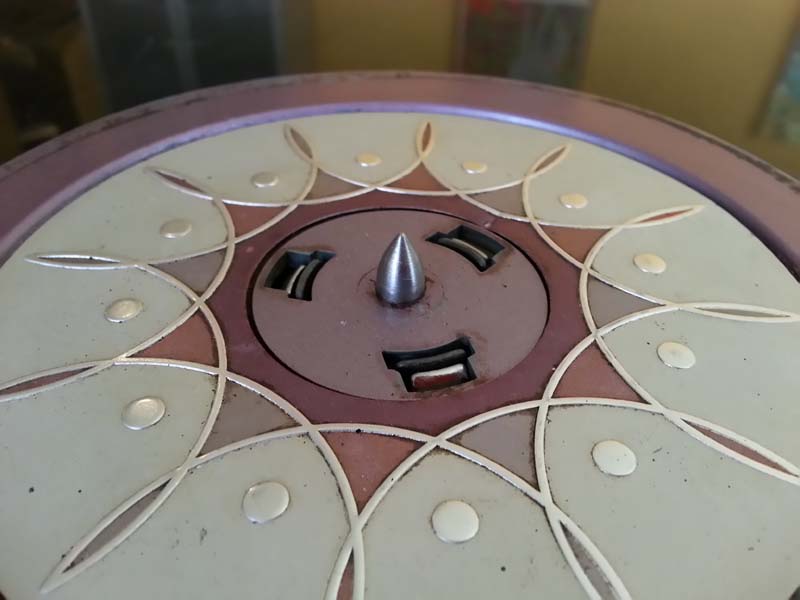

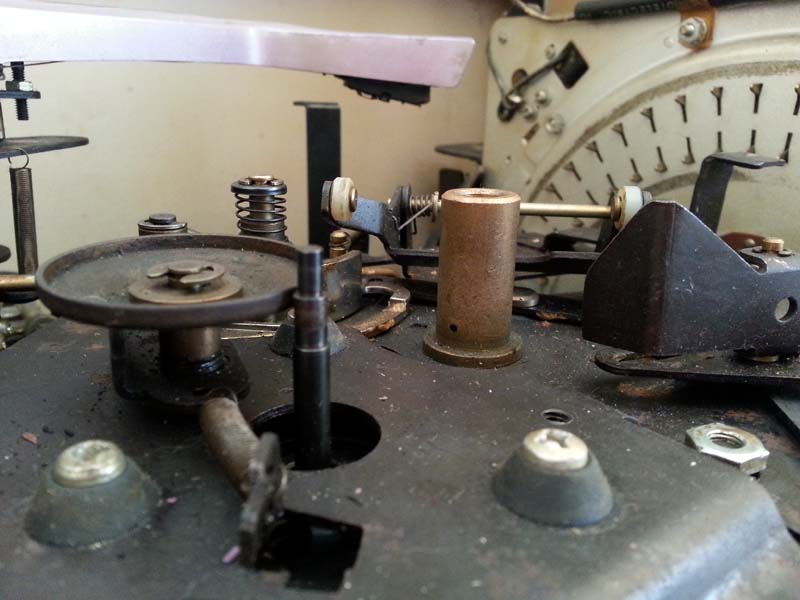

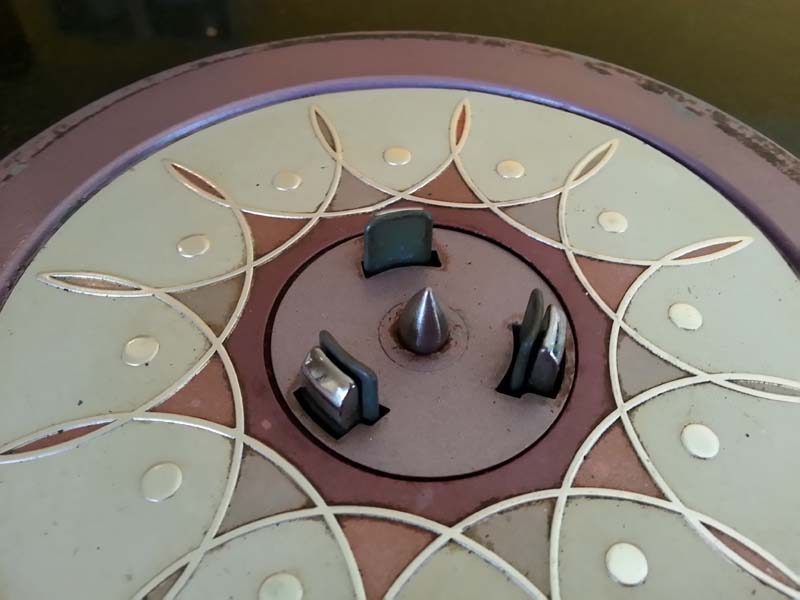

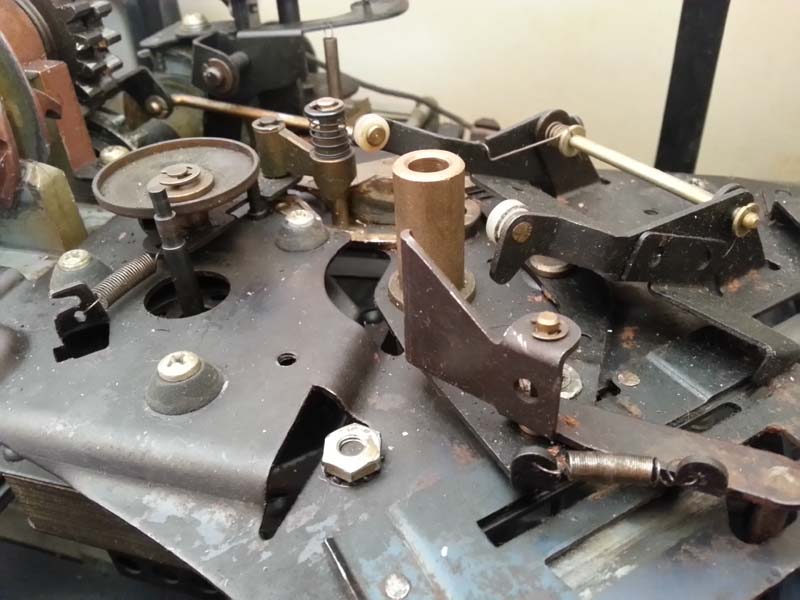

33/45 rpm intermix in Rock-Ola 430 |
||||||||||||||||||||
Photos courtesy of Marcel C.
|
||||||||||||||||||||
Die Angaben haben
keinen Anspruch auf Vollständigkeit oder Richtigkeit. Bei den (importierten) Boxen können im Laufe der Jahre durchaus Veränderungen vorgenommen worden sein. Copyright. |
||||||||||||||||||||
