Jukebox Mills Musikbox Do-Re-Mi Studio Zephyr Swing king

889: Do-Re-Mi - 1936

Mills Do-Re-Mi
Twin speaker, three coin device

Photo courtesy of Tony Holmes

Mills Do-Re-Mi

Photos courtesy of Cliff
Mills Do-Re-Mi

Mills Do-Re-Mi

Swing King - 1937 - introduced Oct 1936

898: Natural cabinet finish; Three coins
also available as
894: Natural cabinet finish; Single coin
and
897: Natural cabinet finish; Single coin

893: Blue/silver cabinet finish; Single coin
or
895: Blue/silver cabinet finish; Single coin
also available as
896: Blue/silver cabinet finish; Three coin

Swing King - 1937

Swing King with aftermarket kit? Shows same half circle upper plastics like on some Zephyr models.

Studio - 1937 - Mills 892

Swing King with aftermarket kit? Shows same half circle upper plastics like on some Zephyr models.

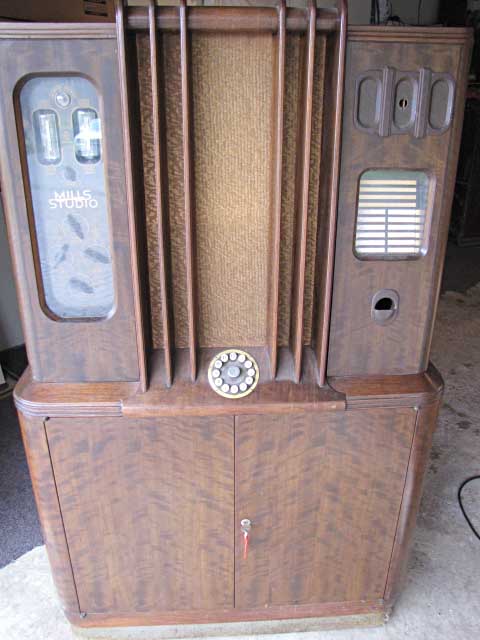

Mills 891: Studio

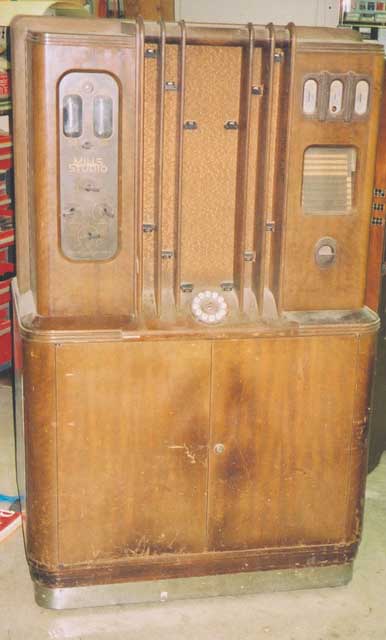

Mills 892: Studio

Single coin device; record counter; wired for receiver
Photo courtesy Llyod Thoburn

Three coin device; timer record counter; wired for receiver
Photo courtesy Bill Butterfield

Technische Daten - Specifications
	Do-Re-Mi & Do-Re-Mi DeLuxe	Studio	Swing King
Wahlen / Selections	12	12	12
Lampen / Lamps
Verstärker / Amplifier	MCP-2386 (60 cy) / MCP-2196 (25 cy): 32, 30, 5Z3, 2x 2A3 or MCP-2429 (60 cy) / MCP-2428 (25 cy): 75, 76, 5Z3, 2x 2A3 or Do-Re-Mi DeLuxe: MCP-1644-B (60 cy) / MCP-1614 (25 cy): 2x 30, 5Z3, 2x 2A3		MCP-2802 (60 cy) / MCP-2806 (25 cy): 75, 76, 5Z3, 2x 2A3
Netzteil / Power supply
Kreditgerät / Credit unit	No credit unit
Lautsprecher / Speaker	2x dynamic speaker MCP 2385-A or 2x dynamic speaker MCp 1643-A (DeLuxe)	2x dynamic speaker MCP 3656	2x dynamic speaker MCP 2801
Mechanismus / Mechanism
Tonabnehmer / Cartridge	Magnetic pick-up with permo-point needle	Magnetic pick-up with permo-point needle	Magnetic pick-up with permo-point needle
Sicherungen / Fuses
Schlüssel /Key
Abmessungen / Size
Zubehör / Accessories	Remote control consisting of impulse receiver and oscillator \| Radio coin-box	Remote control consisting of impulse receiver and oscillator \| Radio coin-box	Remote control consisting of impulse receiver and oscillator \| Radio coin-box
Besonderheiten / Features

Die Angaben haben keinen Anspruch auf Vollständigkeit oder Richtigkeit.
Bei den (importierten) Boxen können im Laufe der Jahre durchaus Veränderungen vorgenommen worden sein. Copyright.
