Rock-Ola 1438 - Comet Fireball (1954) - 120 selections

Vorgestellt in 45 US und ausländischen Städte am 3.-5. Oktober 1953: 40 in USA, 2 in Kuba, 2 in Kanada und 2 in Neufundland   Presented on Oct 3-4-5, 1953 in 45 US and foreign cities: 40 USA, 2 in Cuba, 2 in Canada and 2 in Newfoundland

Rock-Ola Comet





Rock-Ola 1440 - Comet Playmaster (1954) - 120 selections

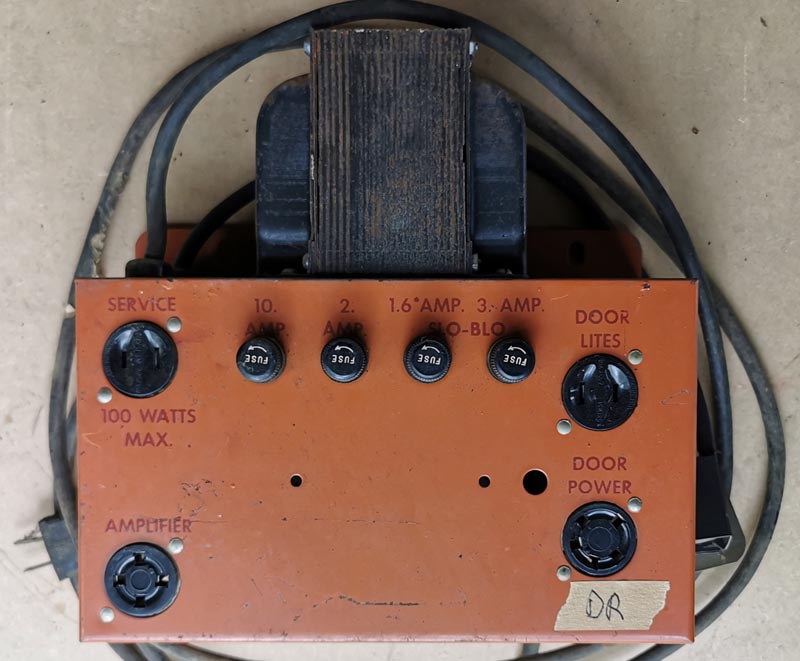

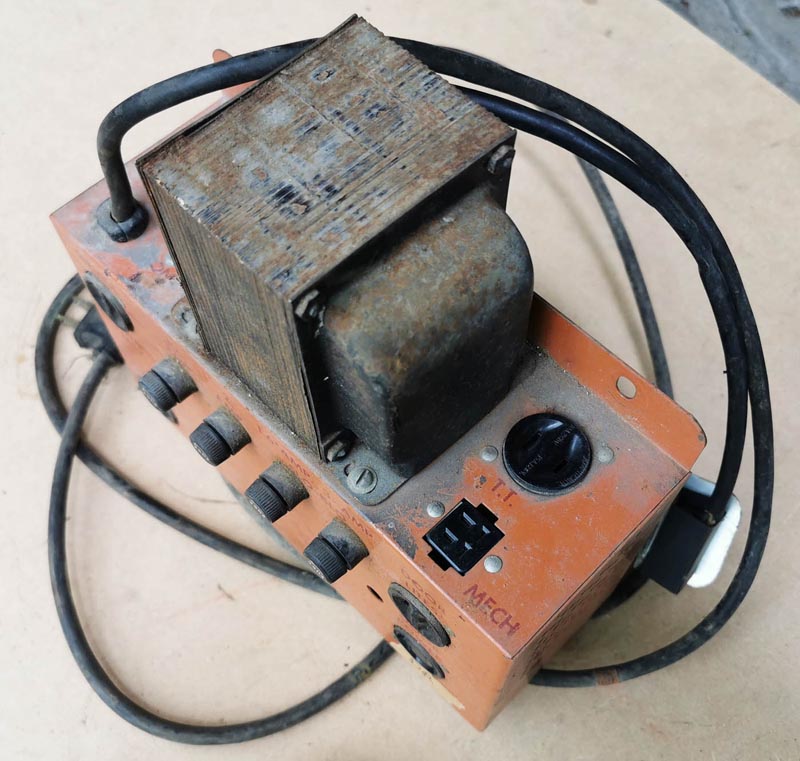

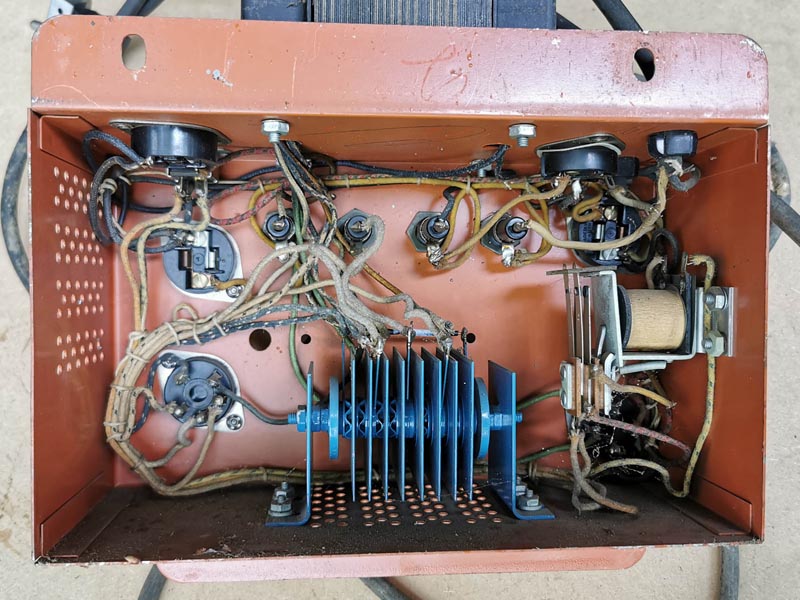

Rock-Ola Comet Playmaster 1440





Technische Daten - Specifications 1438, 1440, 1446
  1438 1440 1446
Wahlen / Selections 120 120 120
Designer Cabinet: C.E. Waltman
Lampen / Lamps

Pilaster and Cabinet: 4x TL 20W/24"/T12
Select, Coin, Programm: GE #47 (3)

./.

Pilaster and cabinet: TL 20W/24"/T12

Verstärker / Amplifier 17795-A: 2x 6L6, 5U4, 2x 6SN7
Potentiometer: 10k
17795-A: 2x 6L6, 5U4, 2x 6SN7
Potentiometer: 10k
18640-A: 2x 6L6, 5U4, 2x 6SN7   Potentiometer: 25k
Netzteil / Power supply
Kreditgerät / Credit unit
Lautsprecher / Speaker     12" with field coil, tweeter
Mechanismus / Mechanism
Tonabnehmer / Cartridge Astatic 51 with stylus N 29 - 45 rpm Astatic 51 with stylus N 29 - 45 rpm Astatic 51 with stylus N 29 - 45 rpm
Sicherungen / Fuses Amplifier: 3A  |  Credit: 100 mA
Power Supply: 1x 3A, 1x 1.6A, 1x 2A, 1x 10A
Amplifier: 3A  |  Credit: 100 mA
Power Supply: 1x 3A, 1x 1.6A, 1x 2A, 1x 10A

Schlüssel / Key F-593 F-593 F-593
Abmessungen / Size
Zubehör / Accessories

Wall Box Bar Bracket 1531
Universal Bar Bracket
Stepper
1717 (orange colour)
Wallbox 1546
Extra speaker Super-Tonette 1611

Romote Volume Control 1927

Wall Box Bar Bracket 1531
Universal Bar Bracket
Stepper
1719
Wallbox 1546
Extra speaker Super-Tonette 1611

Romote Volume Control 1927
Wall Box Bar Bracket 1531
Universal Bar Bracket
Stepper
1717 (red colour)
Wallbox 1546
Extra speaker Super-Tonette 1611

Besonderheiten / Features




Rock-Ola 1446 (1954) - Hi-Fidelity, 120 selections

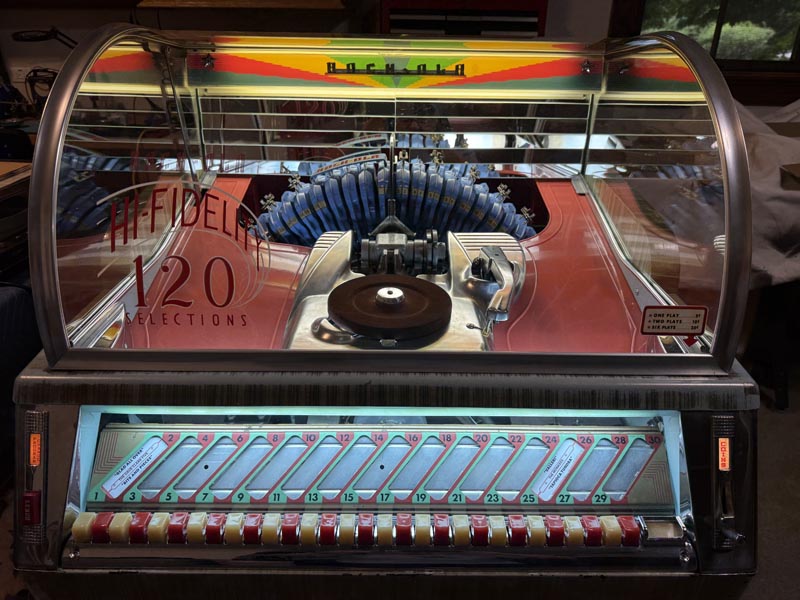

Rock-Ola 1446 Hi-Fidelity

Alle Fotos und Infos: Axel Rosenberger
Rock-Ola 1446 Hi-Fidelity
Hinweis: die Pilaster sind durch Licht von seeblau in grün verfärbt.
Das nachfolgende Foto zeigt Pilaster in der Originalfarbe Seeblau.
  Note: The pilasters are discoloured by light from aquamarine to green.
The following photo shows pilasters in their original colour.

Rock-Ola Comet

Rock-Ola Comet

links: Rock-Ola 1438 - Mitte: Rock-Ola 1446 (restauriert)
Restaurierte und neu maserierte Box: der Maserierer hatte das Gehäuse zu "grau" maseriert. Es hätte blauer sein sollen. Sein Argument damals war: "...das Hellblau hat man doch heute nicht mehr..."  Was sollten Michael und ich machen? Wir haben das Gehäuse akzeptiert, da es keine Alternative gab.
Plexisäulen: waren Reproduktionen aus der Schweiz, die leider auch zu grün eingefärbt waren. Die Farbzylinder in den Plexisäulen entsprechen genau dem Original. Die Farbgebung der Comet war hier auch unterschiedlich.
1438 vs. 1446: Gut zu sehen ist auf dem Bild, daß die 1446 (HiFi) und die 1438 (Comet) keine identischen Gehäuse besaßen. Im Bereich der Seitenscheiben verläuft die Gehäusekante bei der 1446  flacher. Auch ist dort auf der Innenseite zur Mechanik hin, kein verspiegeltes Blech wie bei der Comet montiert.



Left: Rock-Ola 1438 - Center: Rock-Ola 1446 (restored)
Restored and re-grained jukebox: The painter did re-grain the cabinet in a too grey colour. It should have been more blue. His arguments back then: "Nobody wants this light blue these days any longer." What should Michael and I have done but accepting the cabinet because of not having an alternative.
Pilasters: Those were reproductions made in Switzerland. They also were coloured slightly too green. The colour cylinders in the pilasters were true to original. The colour scheme of model Comet has been different back then.
1438 vs. 1446: It can be weel seen on the photo that model 1446 (HiFi) and 1438 (Comet) did not have identical cabinets. Where the side windows are the edge of the cabinet is more flat at model 1446. It also does not have mounted a mirrored metal plate on the inside towards mechanism like model 1438 des have.

Rock-Ola Comet

Unrestauriertes Gehäuse im teilzerlegten Zustand: die Originalmaserierung ist vergilbt (hellblau und gelb ergibt einen grünen Farbton),
Aber man kann auf der Gehäuseinnenseite erahnen, wie der Farbton einst war.



Unrestored cabinet partially disassembled: The original graining scheme got yellowish by the age (light blue and yellow make a green colour).
From
inside the cabinet.one can guess how the original colour has been.

Rock-Ola Comet

Rock-Ola Comet

Zerlegtes Plattenmagazin in Originalfarbe

  Disassembled magazin in original colour

Ausbau des Plattenmagazins
Um das Plattenmagazin auszubauen, muss man fast die ganze Mechanik zerlegen.
Das ganze Chassis muss aus der Box, der Selector muss ausgebaut werden, ein Sicherungsring auf der Hauptwelle muss entfernt werden, der sich auf- und abwickelnde Kabelbaum muss nach unten ausgefädelt werden, die hintere Quertraverse muss abgenommen werden und dann kann man das komplette Magazin nach hinten aus dem Grundrahmen ziehen.



Removing the record basket
To remove the record basket almost the whole mechanism has to be disassembled.
The whole chassis needs to be removed as well as the selector. A retaining ring on the main shaft needs to be removed. The up- and downwards winding wiring harness must be unthreaded downwards and the rear crossbar must be removed. Then the complete magazine can be pulled backwards out of the frame

Rock-Ola Comet

Speaker 12" and tweeter



Speaker 12" and tweeter

Rock-Ola Comet

Die lachsroten Plastikeinschubplatten, seitlich rechts und links von der Plattenspielerabdeckung, waren nicht mehr vorhanden waren und auch nicht zu bekommen. Daher mußten wir auf einen Eigenbau zurückgreifen.
Der Eigenbau ist farblich zu rot. Die originalen, lachsroten Plastikeinschübe besaßen einen erhabenen, nach innen versetzten Wulst und zeigten ein Ährenmotiv auf der Oberfläche.



The salmon coloured plastic boards, left and right of the mechanism cover, were neither there nor to find anywhere. Hence we had to produce them by ourselves.
Our reproduction came out too red. The original salmon coloured plastic boards did have an embossed offset overlap inwards and did show an ear motif on the surface.

Verstärker 18640-A
Rock-Ola Comet Fireball Verstärker Amplifier





Mechanikabdeckungen 1446 und 1438 im  Vergleich

Fotos und Informationen: Axel Rosenberger

Die silberne Plattentellerverkleidung der 1438 war aus poliertem Aluguss gefertigt und somit fast unzerstörbar.
Die Abdeckung der 1446 dagegen bestand schon, wie auch bei den späteren Rock-Olas, aus von hinten verchromten Plexiglas.



The silver maechanism cover of 1438 was made from polished aluminium and hence almost undestroyable.
The mechanism cover of 1446 was made, like later ones as well, from chrome plated plastic.

Links - Left: 1446                                                                                      Rechts - Right: 1438
Rock-Ola 1446 und 1438

Links - Left: 1446                                                                                      Rechts - Right: 1438
Rock-Ola 1446 und 1438

Links - Left: 1446                                                                                      Rechts - Right: 1438
Rock-Ola 1446 und 1438





Rock-Ola 1446 - Customized

Version with Pepsi design                                                                                                                                                           Photos courtesy of Alan

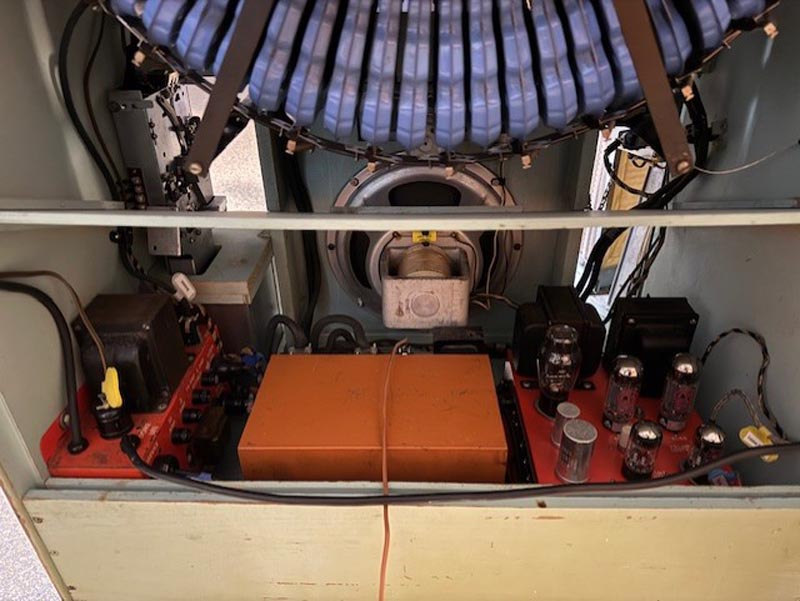

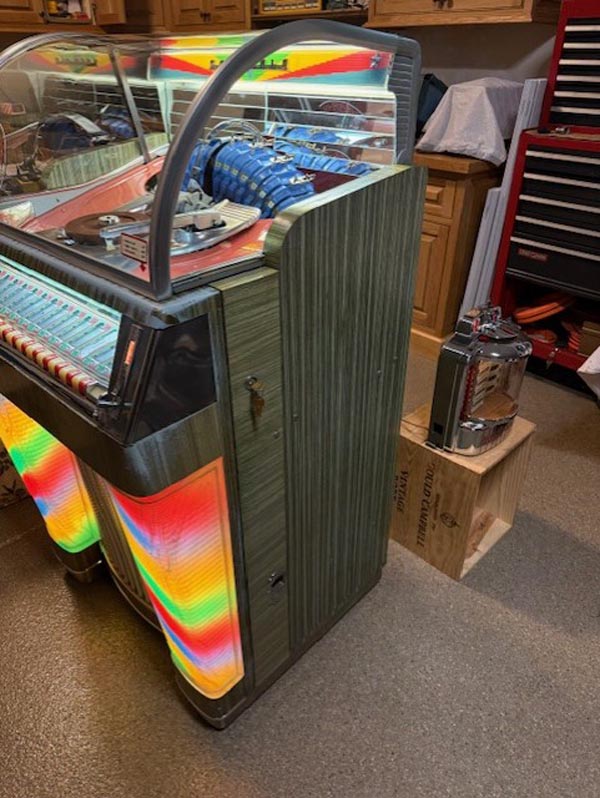

Rock-Ola Comet

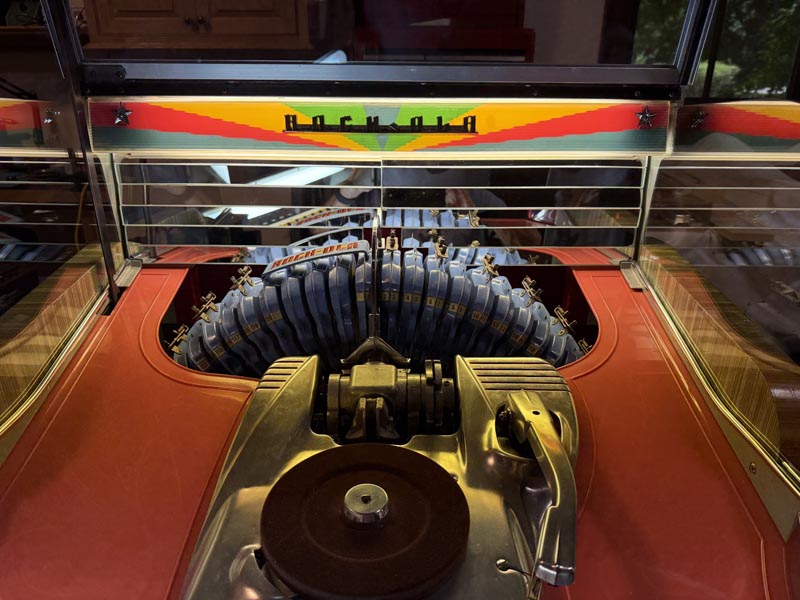

Rock-Ola Comet
