Rock-Ola 1465 & 1465A (1958)

Copyright

Rock-Ola 1465
Rock-Ola's zweites Modell mit 200 Wahlmöglichkeiten
vorgestellt im Februar 1958.
Angeboten in zwei Versionen:
Bild rechts: mit oberem Glas mit "Rock-Ola" Schriftzug"

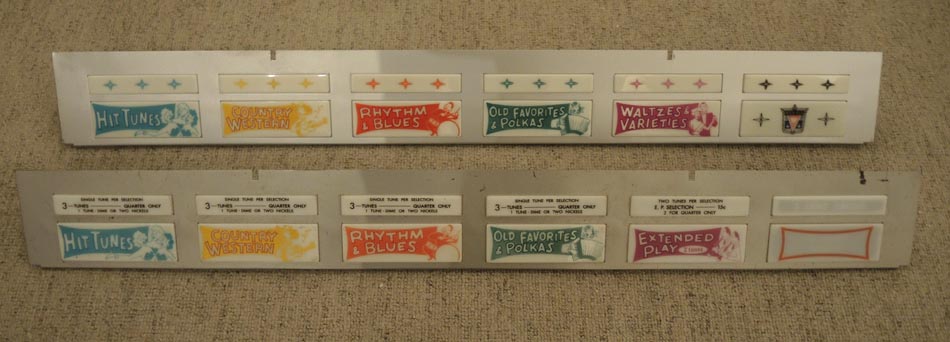

Bild links: mit Kategorieschildchen oberhalb der Programmtasten

Rock-Ola 1465
Rock-Ola's second model with 200
selections
introduced in February 1958
Offered in two versons:
Picture right: With upper glass and "Rock-Ola" lettering
Picture left: With a refined
picture window programming feature

Cashbox Feb 15, 1958: "The Rock-Ola phonographs are being called "The Aristocrats of Phonographs,” by the firm as well as by the firm’s distributors."

Rock-Ola 1465

Rock-Ola 1465



Rock-Ola 1465





Ausführliche Fotodokumentation einer Restaurierung   –   Detailed Photo Gallery of the restoration by
Christian und Julia Gredel,
Internet: http://www.juke-para.de, www.restaurierung-von-moebeln.de

R.O. 1465
Diese Postkarte zeigt die R.O. 1465 im "Roof Garden Hotel Vervuurt" in
Paramaribo, Surinam, Südamerika.
Diese und ähnliche Postkarten erhalten Sie im Set "On Location"

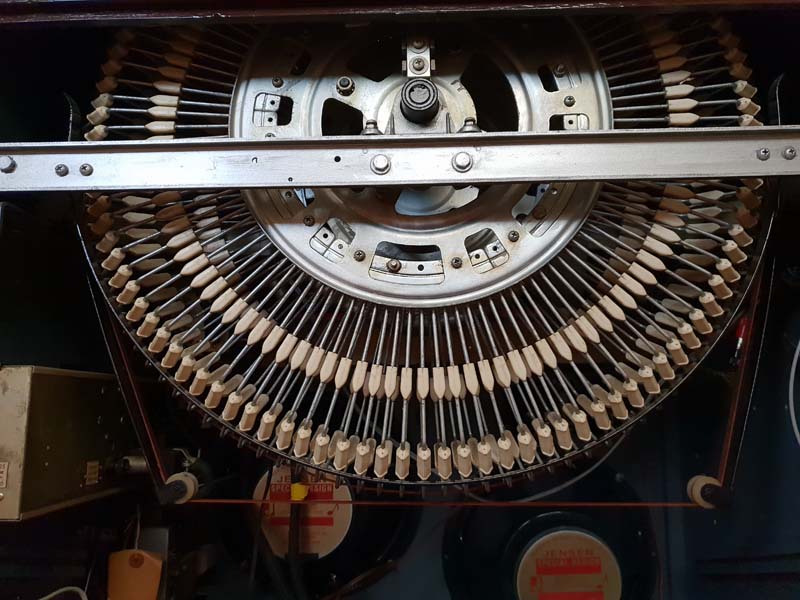

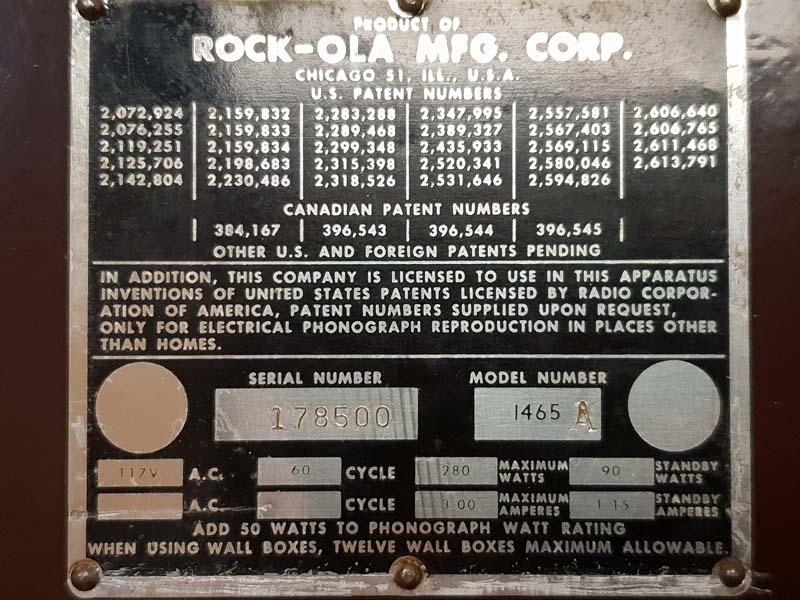

Rock-Ola 1465A

Optisch wie 1465
Eigenens Netzteil
Magazin Tempo 1/200 mit Fangband, in eine Richtung laufend
Später modifizierte 1465 Modelle?
Oder wurden noch vorhandene 1465 Gehäuse mit Tempo 1 Magazin vervollständigt?
Erprobung des Plattenmagazins vor Serienfertigung Tempo 1?
Sie können mehr zum Hintergrund beitragen?



Cabinet like 1465
Own power supply
Magazin with magazin belt like Tempo 1/200, rotating ccw only
Modified 1465 models at a later date?
Or had been left over 1465 cabinets completed with Tempo 1 record magazins?
Was the magazin tested before serial production for Tempo 1?
You can offer information regarding the history of this model?

Email

Fotos: Andreas H.

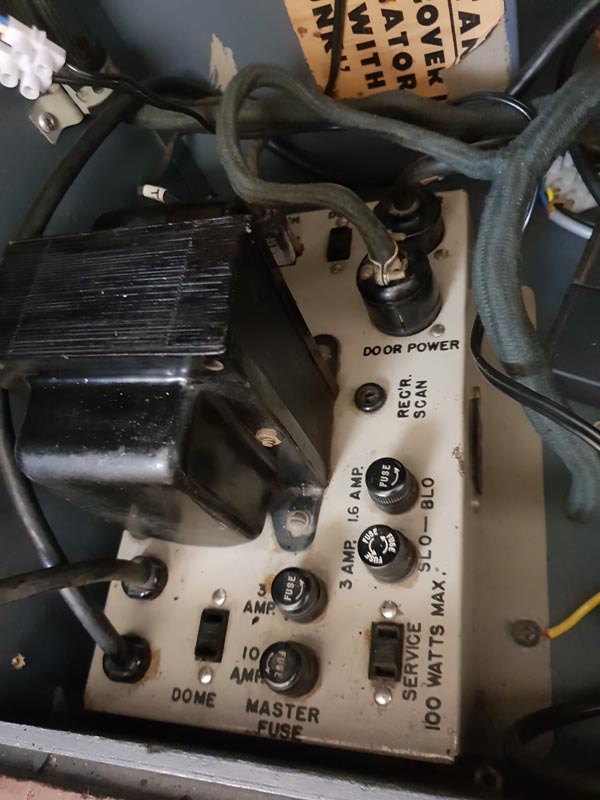

Rock-Ola 1465A Power Supply

Netzteil



Power Supply

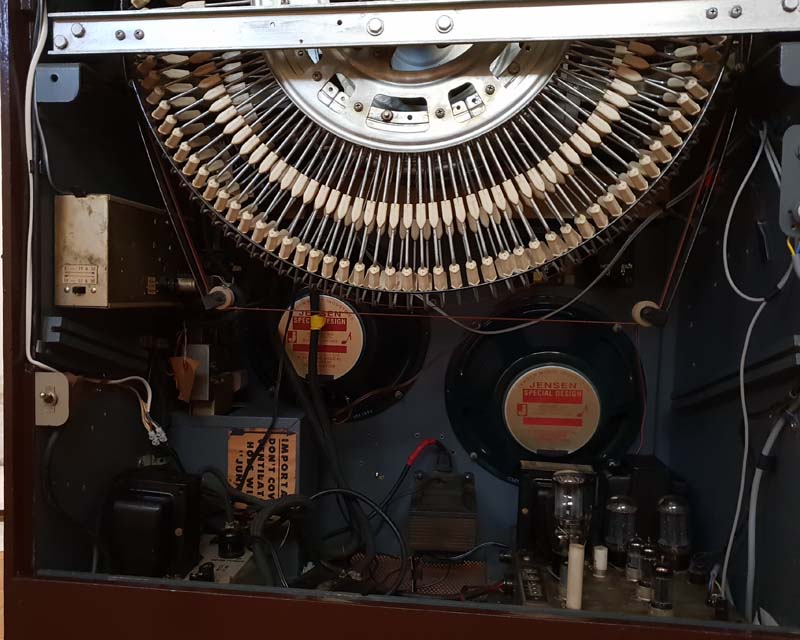

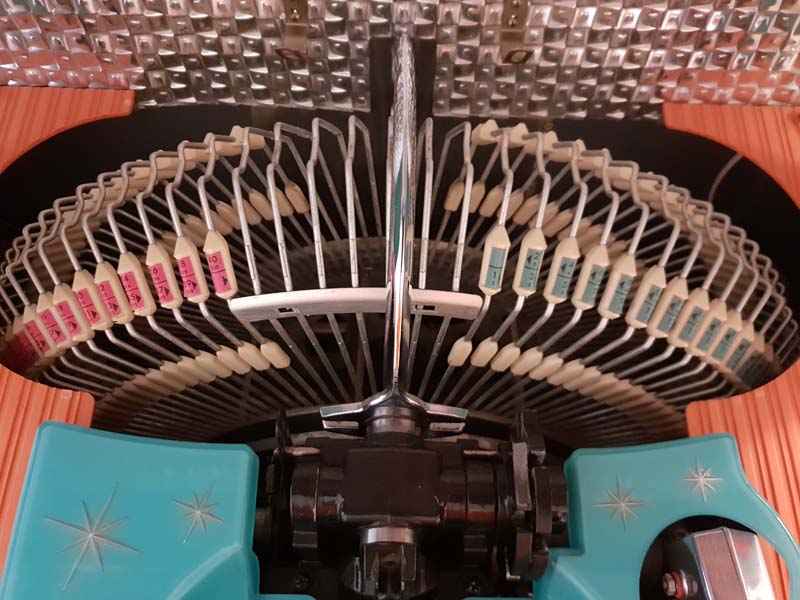

Rock-Ola 1465A

Verstärker wie 1465
Magazin Tempo 1/200 mit Fangband, in eine Richtung laufend
Hinweis: Lautsprecher wurden beim Aufarbeiten ersetzt



Amplifier like1465
Magazin with magazin belt like Tempo 1/200, rotating ccw only
Note: Speakers had been replaced while refurbishing

Rock-Ola 1465A

Rock-Ola 1465A

Rock-Ola 1465A

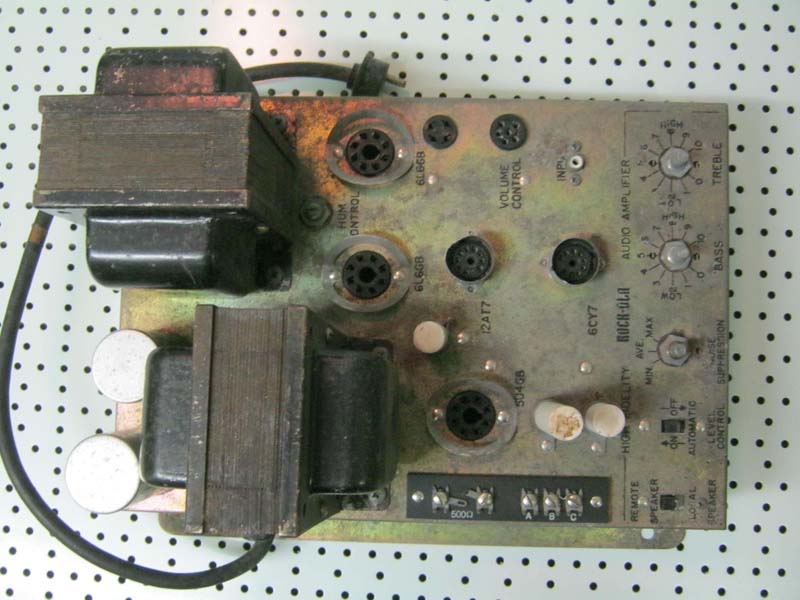

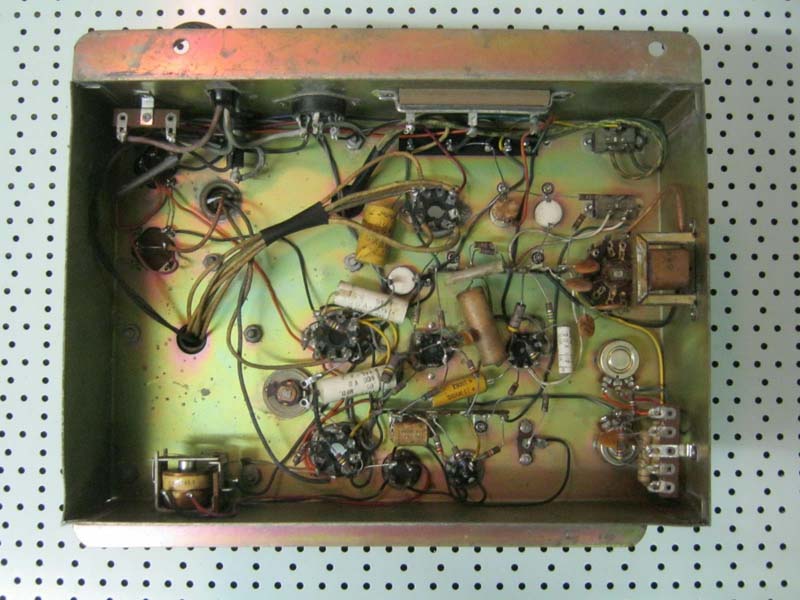

Verstärker / Amplifier 31451-A - Version 1

Verstärkernummer im Schaltplan: 31450-A / Number on schematic: 31450-A
Rock-Ola 1458 Amplifier





Verstärker / Amplifier 31451-A* - Version 2

Fotos: Decor Tech / Information: M. Sommer

Der Verstärker scheint wie der obige 31451-A zu sein, jedoch mit einem Thermistor für die AVC wie ab der Tempo. Daher findet man 2 Röhren weniger.
* Nummer möglicherweise nicht korrekt.



The amplifier seems to be like the above shown 31451-A but having a thermistor for the AVC like the later Tempo. Hence this amplifier has two valves less.
* Number not known for sure.

Rock-Ola 1465A Amplifier

Rock-Ola 1465A Amplifier





NOVA Verstärker / NOVA Amplifier

1458 Amplifier - Nova
More pictures





Technische Daten - Specifications
  1465 1465-A
Wahlen / Selections 200 200
Lampen / Lamps Cabinet: 2x TL 20W/24"/T12   |   Credit/coin: GE #44   |   Categories: 5x GE #81   |   Program buttons: #44 Cabinet: 2x TL 20W/24"/T12   |   Credit/coin: GE #44   |   Categories: 5x GE #81   |   Program buttons: #44
Verstärker / Amplifier 31451-A: 6L6 GB (2), 12AT7, 6CG7 (2), 6BA6, 5U4GB   or   NOVA Amplifier with 3x ECC 83, EF 83, 2x EL 34
Number on schematic: 31450-A

31451-A: 6L6 GB (2), 12AT7, 6CG7 (2), 6BA6, 5U4GB   or
2nd version (number not known): 6L6 GB (2), 12AT7, 6CG7, 5U4GB with thermistor for AVC
Netzteil / Power supply 117V: 31460-A
220V: 31461-A
220V: 31461-A
Kreditgerät / Credit unit 31251-A 31251-A
Lautsprecher / Speaker Low: 2x 12" Jensen P12R/16 – R.O. #30237 + 1x high-freq. horn Low: 2x 12" Jensen P12R/16 – R.O. #30237 + 1x high-freq. horn
Tonabnehmer / Cartridge USA: Astatic 51-1 with needle N29-1
Europe: Usually Elac KST 103
USA: Astatic 51-1 with needle N29-1

Sicherungen / Fuses Power Supply: 1.6A, 3A (2), 10A   |   Amp: 3A
Credit Unit: 100 mA
Power Supply: 1.6A, 3A (2), 10A   |   Amp: 3A
Credit Unit: 100 mA
Schlüssel / Key F-592 F-592
Abmessungen / Size W 30-3/4" x H 55-3/4 x D 26-7/8"   |   323 lbs W 30-3/4" x H 55-3/4 x D 26-7/8"   |   323 lbs
Zubehör / Accessories Stepper 1755
Wallbox 1555   |   Wall Box Bar Bracket 1541
Remote volume control 1927

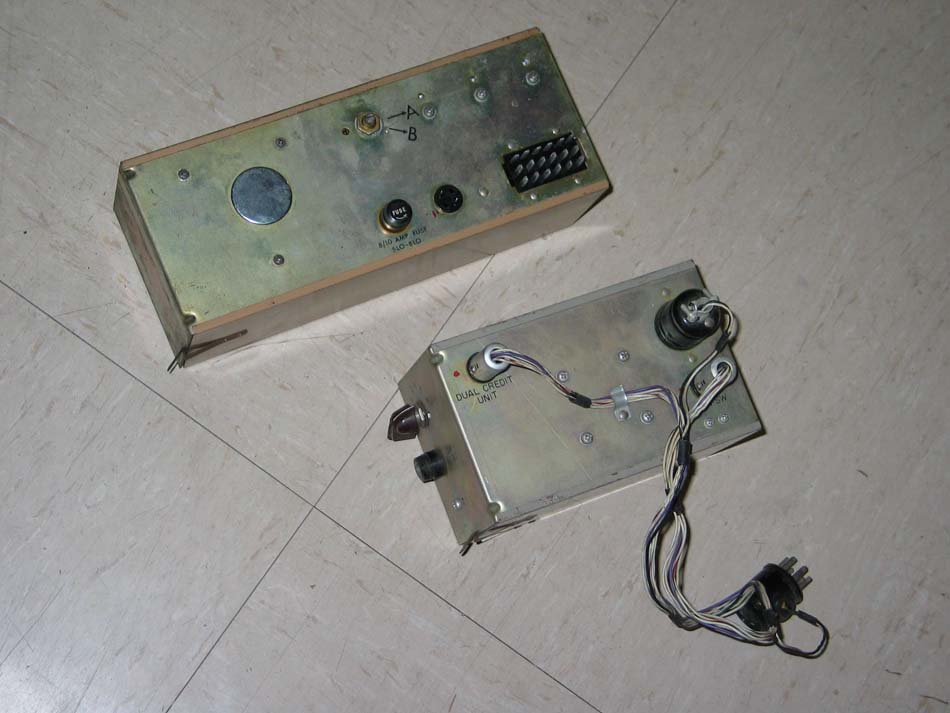

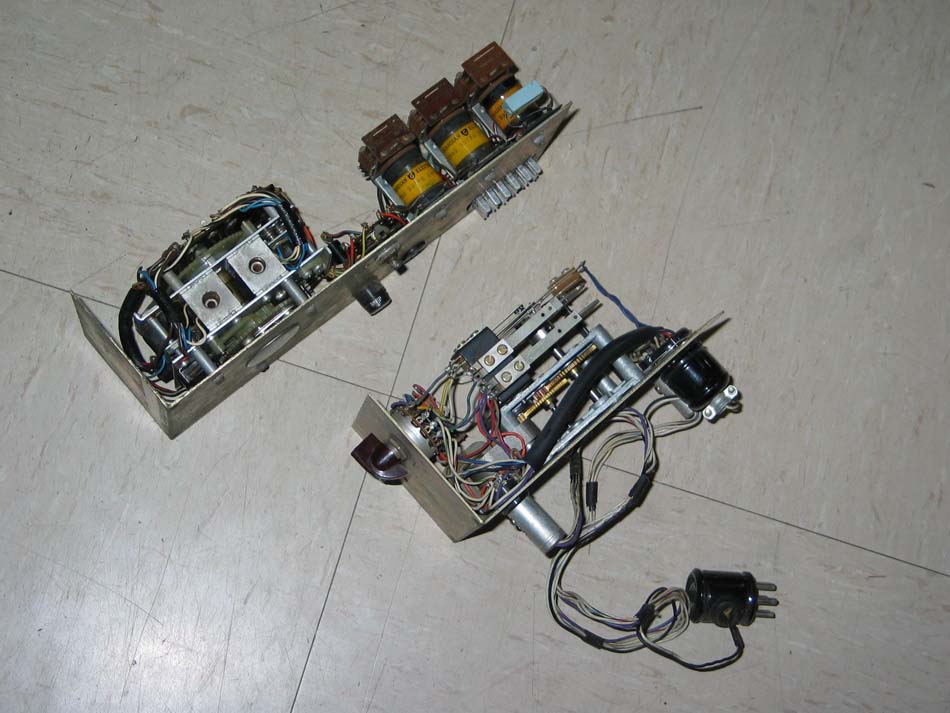

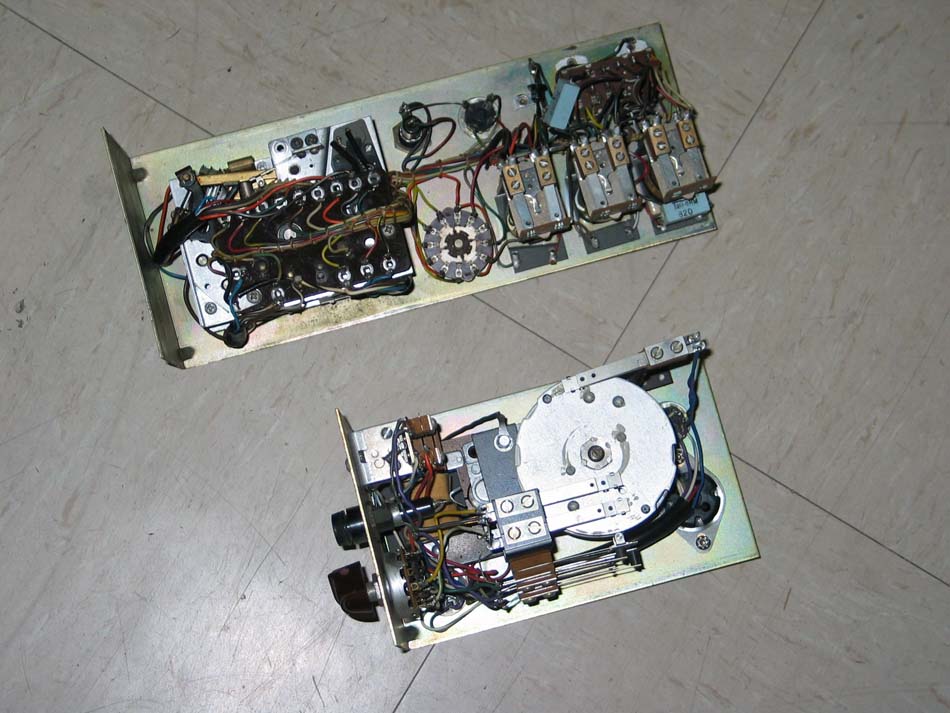

Dual Pricing Credit Unit
Stepper 1755
Wallbox 1555   |   Wall Box Bar Bracket 1541
Remote volume control 1927
Dual Pricing Credit Unit
Besonderheit / Features Rock-Ola's second 200 sel. model
Upper picture window programming feature optional
Magazin like Tempo 1
Amplifier modified with thermistor for AVC and 2 valves less




Entfernen der unteren Chromblende

How to remove the lower chrome plated panel

Frage: Wie bekommt man die untere Chromblende ab?

Antwort: Die untere Chromblende ist von der Gehäuseunterseite aus mit, ich glaube, drei Schrauben befestigt. Um diese Schrauben herausdrehen zu können, muss man das Gehäuse auf den Rücken legen.
In der Chromblende befindet sich ein rechteckiges Brett, welches durch den Gehäuseboden hindurch festgeschraubt ist.
Meiner Erfahrung nach genügt es aber nicht, nur die drei Schrauben herauszudrehen, denn das innen liegende Brett ist auch noch ( nicht vollflächig, nur an ein paar einzelnen Punkten ) mit dem unteren Gehäusebrett verklebt.

Wenn die drei Schrauben auf der Gehäuseunterseite entfernt sind, kann man auf der Gehäuseunterseite den Rand der Chromblende etwas anheben und dann am Chromblendenrand, rechts und links an der Box mit einem langen, schlanken Schraubendreher zwischen das untere Gehäusebrett und das oben erwähnte, innen liegende Brett fahren und vorsichtig auf das Ende des Schraubendrehers klopfen.
Damit kann man die Verklebung lösen und die Chromblende kann nach vorne abgenommen werden.



Question: How can the lower chrome plated panel be removed?

Answer: The lower chrome trim is fixed underneath at the bottom of the cabinet with most likely three screws. To be able to unscrew these screws, the jukebox has to be laid on its back.
Inside the chrome panel there is a rectangular board that is screwed through the bottom of the cabinet.
In my experience, however, it is not enough to unscrew only the three screws, because the inner board is also glued to the lower cabinet board (not completely, only at a few individual points).

Once the three screws on the underside of the cabinet have been removed, the rim of the chrome trim can slightly be lifted on the underside of the cabinet.  And then, at the rim of the chrome panel, also on the right and left sides of the jukebox, run with a slim screwdriver between the lower cabinet board and the above mentioned board on the inside and tap carefully the end of the screwdriver.
This will loosen the glue and the chrome panel can be removed towards the front.



Die Angaben haben keinen Anspruch auf Vollständigkeit oder Richtigkeit.
Bei den (importierten) Boxen können im Laufe der Jahre durchaus Veränderungen vorgenommen worden sein. Copyright.
