Rock-Ola 1496  •••   Rock-Ola 1497 Empress (1962)

Copyright

Vorgestellt - Introduced 1/1962
1496 - 120 Wahlmöglichkeiten   1497 - 200 Wahlmöglichkeiten

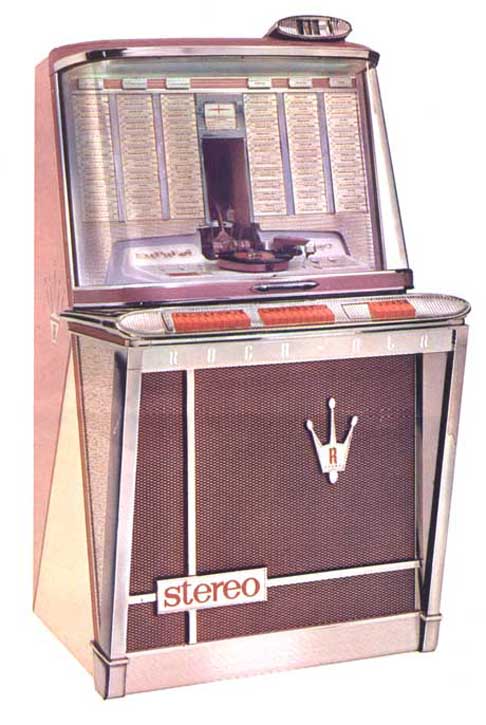

Rock-Ola 1496 Empress Rock-Ola 1497 Empress





Originale Gehäusefarbe – Original Cabinet Colour
Rock-Ola 1496

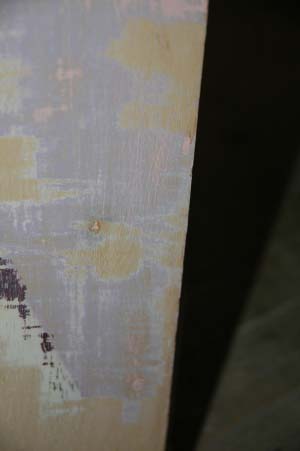

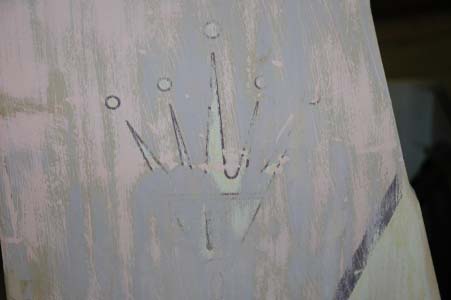

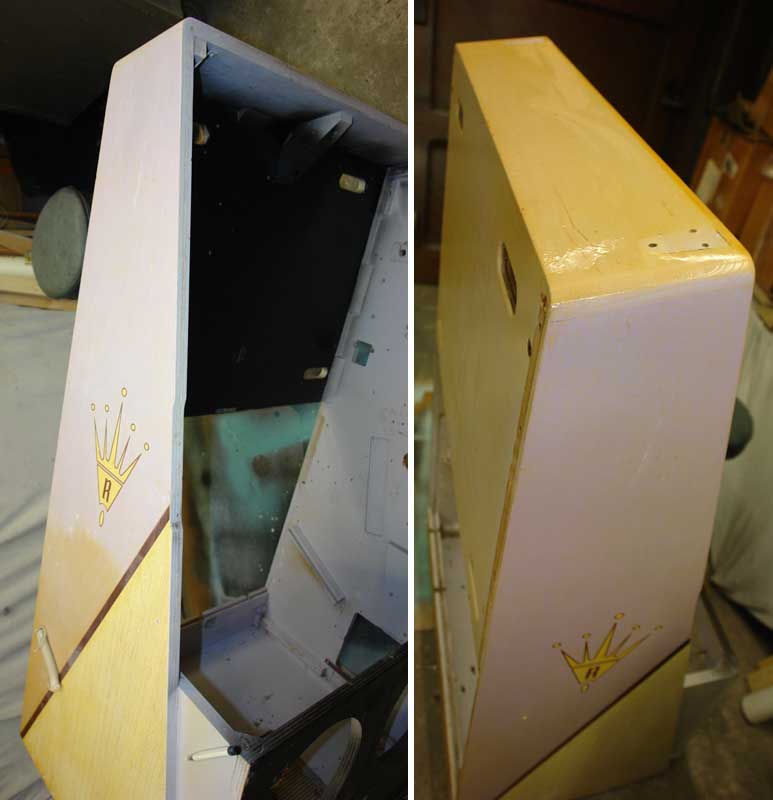

Der originale Fliederfarbton kommt unter einer rosa Lackierung zum Vorschein
The original lilac colour can be seen beneath a pink paint

Rock-Ola 1496
Rock-Ola 1496

Empress nach der Restaurierung
Empress after restoration

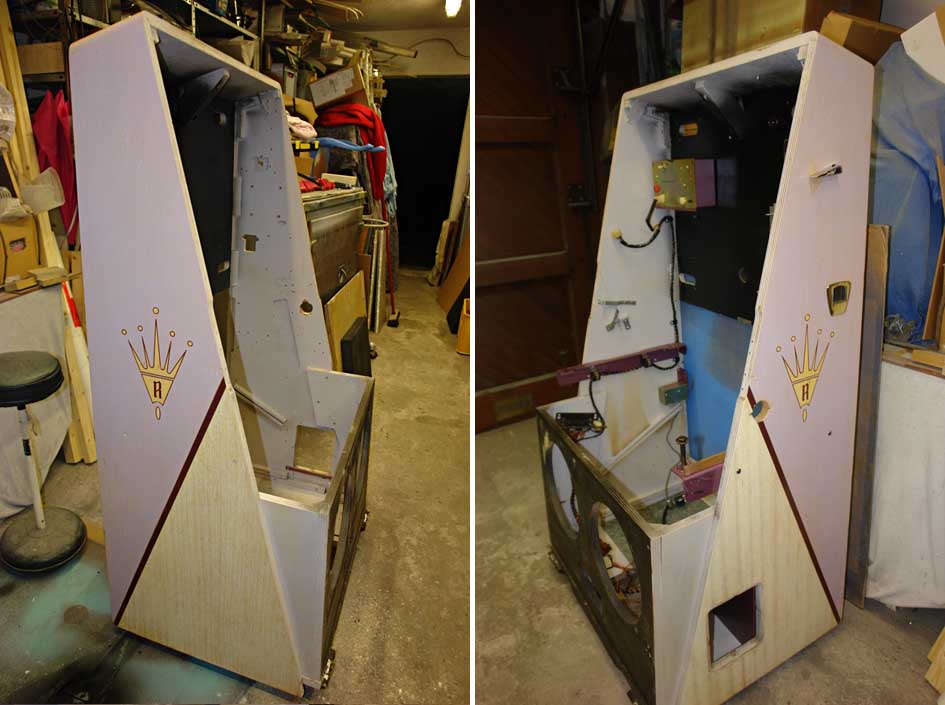

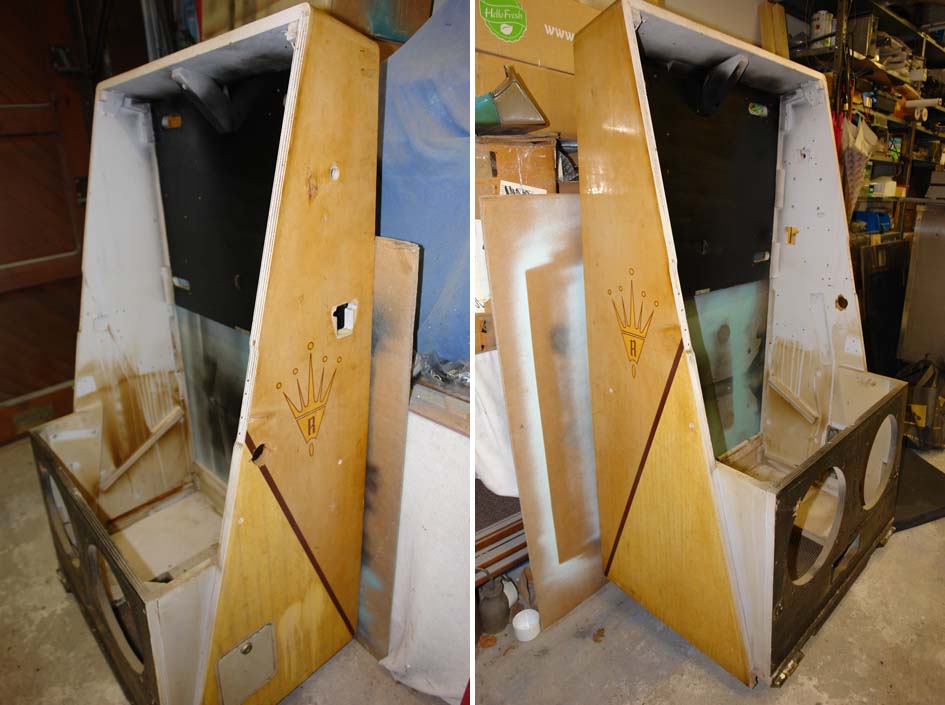

Originales Gehäuse wird gereinigt – Original Cabinet gets cleaned very well
Photos: Courtesy of Dirk
Rock-Ola 1496 1497 Cabinet

Rock-Ola 1496 1497 Cabinet

Rock-Ola 1496 1497 Cabinet

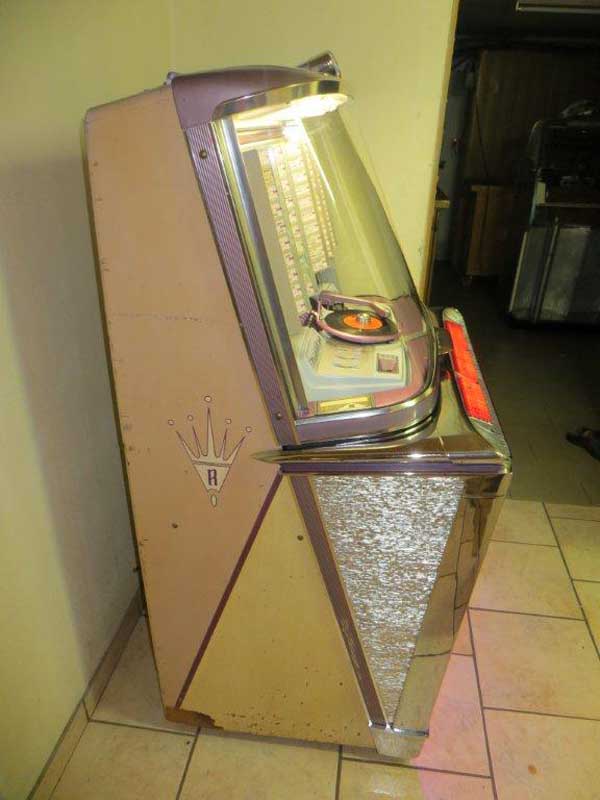

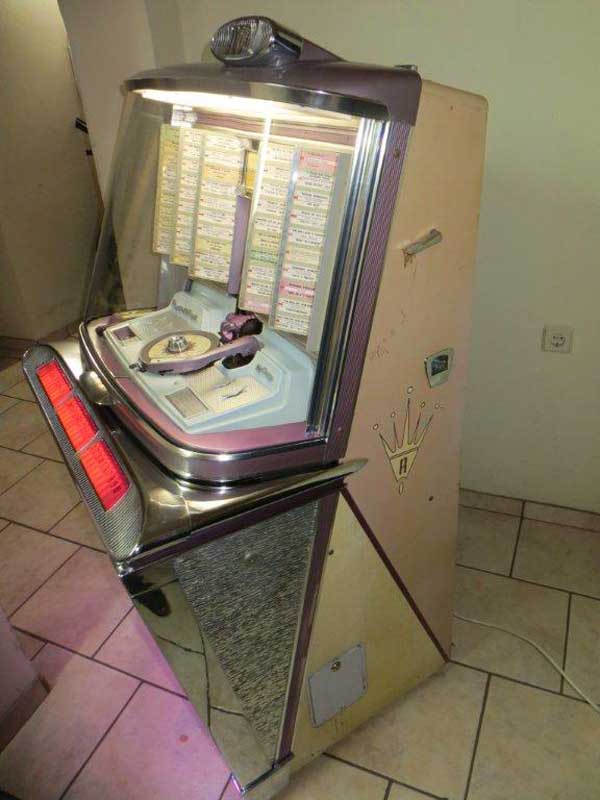

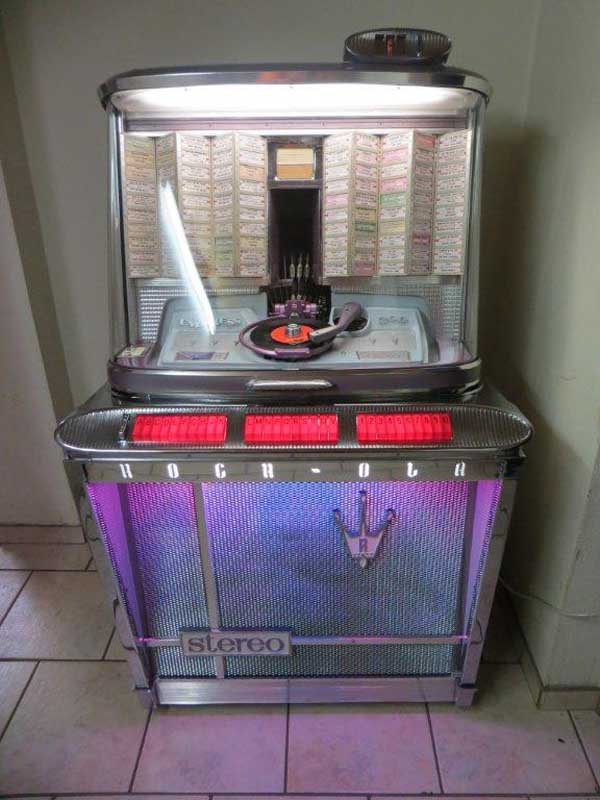

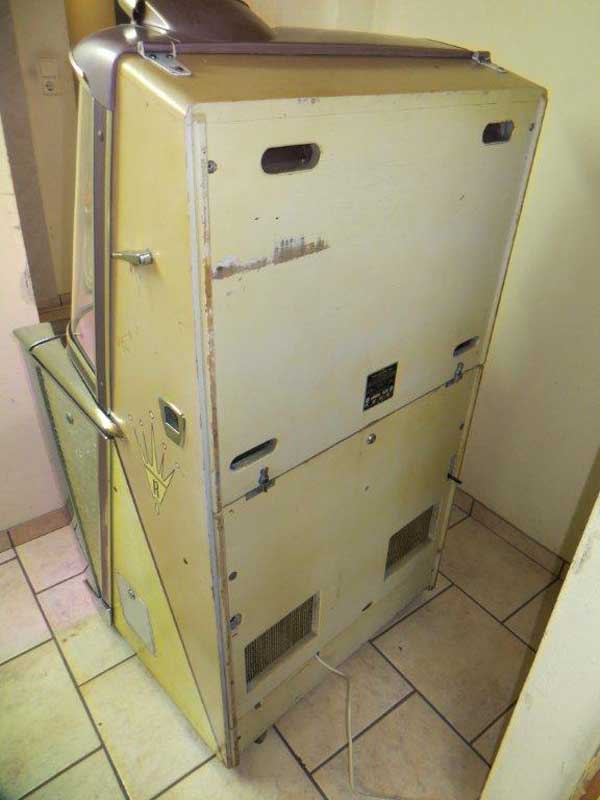

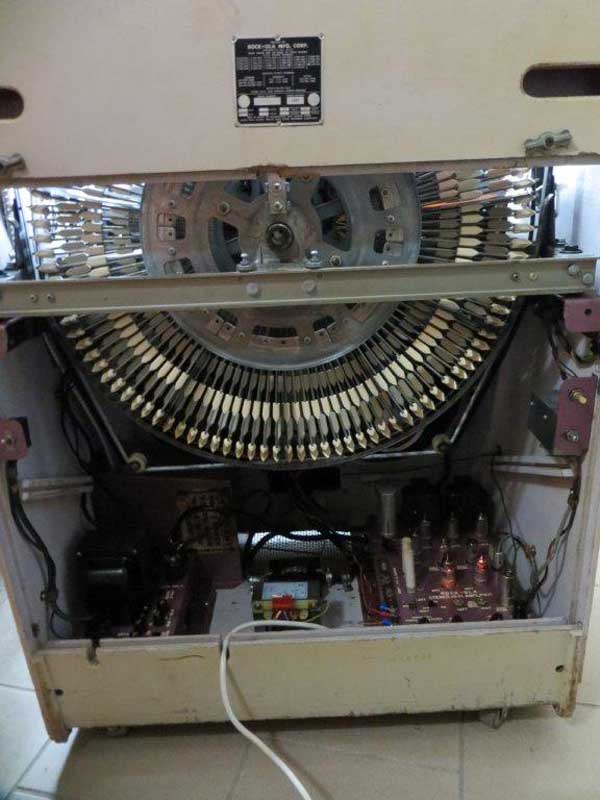

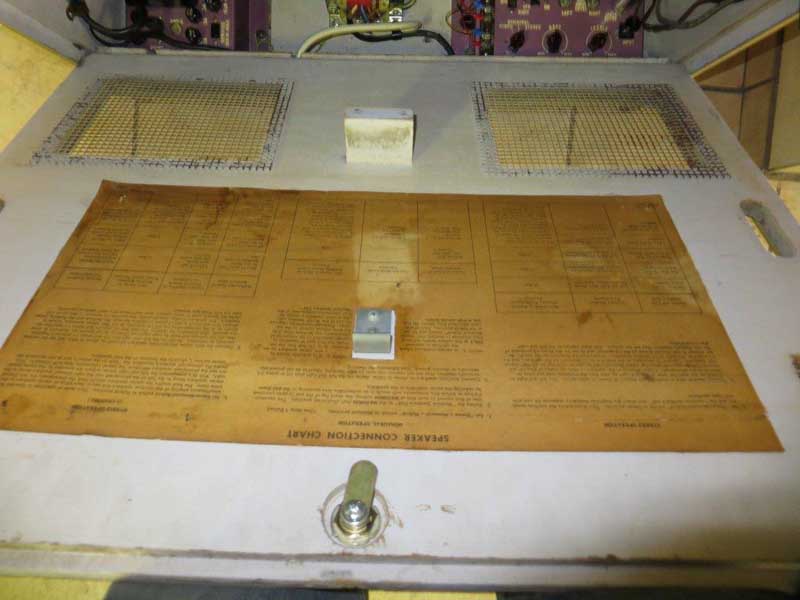

1497 im Originalzustand – 1497 in original condition
Fotos: Erich
Rock-Ola 1497 Empress

Rock-Ola 1497 Empress

Rock-Ola 1497 Empress

Rock-Ola 1497 Empress

Rock-Ola 1497 Empress

Rock-Ola 1497 Empress

Rock-Ola 1497 Empress

Rock-Ola 1497 Empress



Rock-Ola 1497 Empress

Hinweis: die Farben des Lichtdiffusers wurden angepaßt. Original: mattweiß.

Note: The colours of the light diffuser are modified. Original: matt white

Rock-Ola 1497 Empress

Rock-Ola 1497 Empress

Rock-Ola 1497 Empress

Rock-Ola 1497 Empress

Rock-Ola 1497 Empress

Rock-Ola 1497 Empress

Rock-Ola 1497 Empress

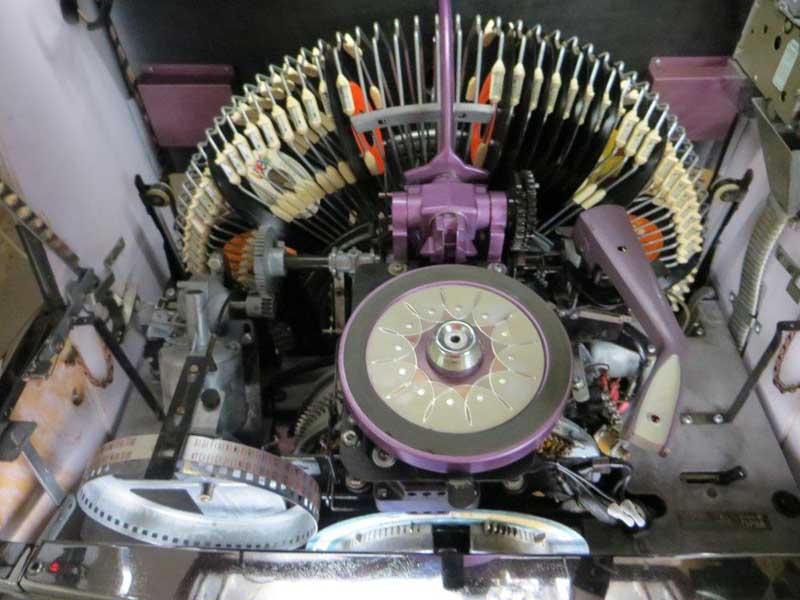

Mechanikabdeckung / mechanism cover








Technische Daten - Specifications
Wahlen / Selections 1496: 120   |  1497: 200
Lampen / Lamps Cabinet: 2x TL 20W/24"/T12   |   Select: GE #44;
Verstärker / Amplifier 35260-A: 4x 6973, 2x 6CY7; 12AX7, 2x 12AU7   |   Potentiometer: 2x 25 KOhm;
NOVA Amplifier

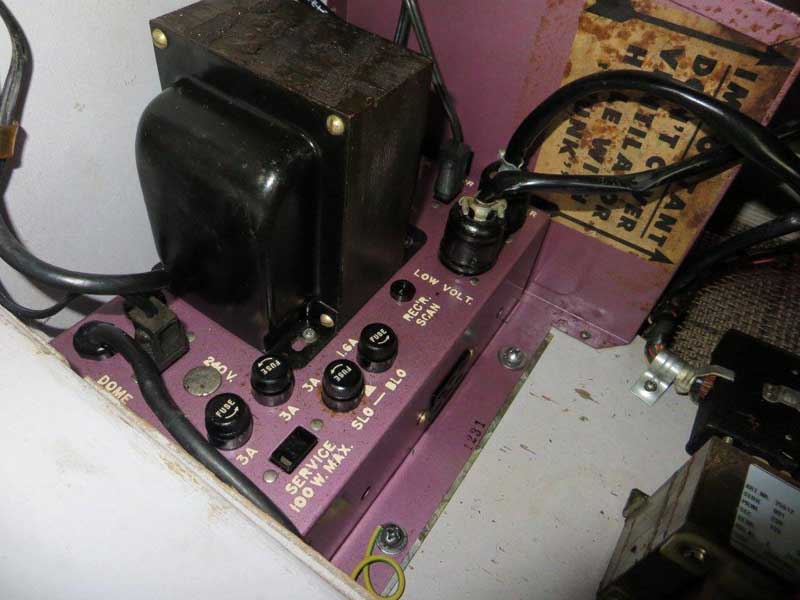

Netzteil / Power supply 35240-A

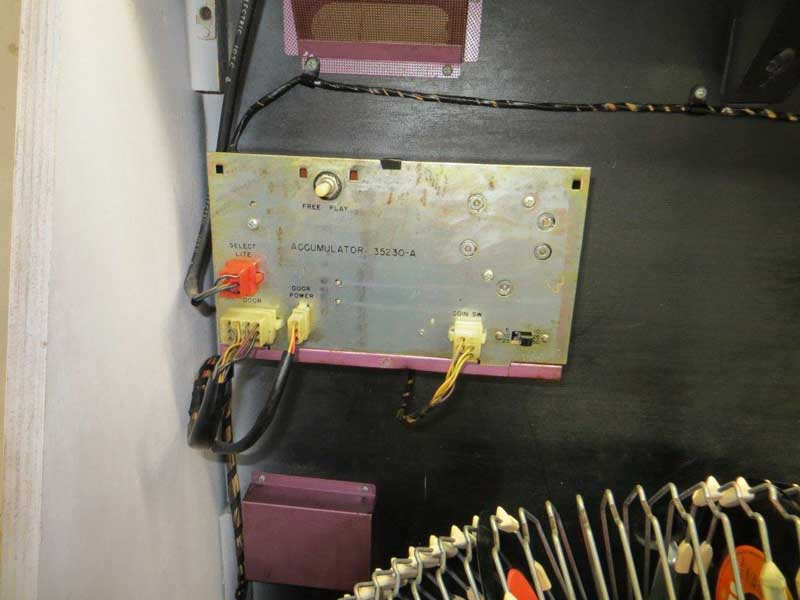

Kreditgerät / Credit unit 35230-A
Kontollbox / Control box 35175-A
Lautsprecher / Speaker Bass: Jensen 35391
Tonabnehmer / Cartridge Astatic-15D with needle Astatic N-43 resp. Astatic 17 with needle Astatic N-41
Sicherungen / Fuses Power Supply: 3 A (3x), 1.6 A   |   Amp: 1 A; All values slo-blo
Schlüssel / Key F-592
Abmessungen / Size 76 x 153 x 70 cm / 29.875 x 59.875x 27.5";
1478: 138 kg / 304 lbs; 1485: 142 kg / 313 lbs
Gehäuse / Cabinet Gehäuse hell: etwa RAL 1015 mit metallic-lila-Maserung
Farbcodes:
KIA pink coral metallic P422/6UL3B oder
Metall: Standox 60932 - Kia J2 Pink Corall Metallic
Holz: Standox 81141 - Fiat 929A Lilla Metallic
Aufarbeitung Gehäuse

Farbangaben ohne Gewähr / NO warranty on colour codes *
Light cabinet: ca. RAL 1015 with metallic-lilac-texture
Colour codes:
KIA pink coral metallic P422/6UL3B or
Metal: Standox 60932 - Kia J2 Pink Corall Metallic
Wood: Standox 81141 - Fiat 929A Lilla Metallic
Aufarbeitung Gehäuse

Farbangaben ohne Gewähr / NO warranty on colour codes *
Zubehör / Accessories Extra speaker Stereo-Twin: 1622, 1623
Reverba-Sound Amp & Reverbaration Unit 1964
Reverba Sound Remote Control
Romote Vol.
Control 1950   |   Wall Box Bar Bracket 1541   |   Intermix 33 1/3 - 45 RPM
Stepper 1738 (120 sel.) / 1755 (200 sel)   |   Wallbox 1557
Besonderheiten / Feature
Stückzahl bekannt / Production known 1496: 1789 1497: 904
Stückzahl vermutet / Production estim. 1496: 2000 1497: 1000
Preis / Price 1962 1496: 5250 DM (Phoenix Apparate; Schmitz & Gerdes) 1497: 5850 DM (Phoenix Apparate; Schmitz & Gerdes)


* ►►►
Diese Farbangaben sind Erfahrungs- und Richtwerte, Empfehlungen verschiedener Mitglieder des Forums, die dem Originalfarbton (sehr) nahe kommen können. In der Regel empfiehlt es sich, anhand eines gut erhaltenen Originalmusters den Farbton bei einem Lackierer oder Farbenfachgeschäft bestimmen und mischen zu lassen. So kann der Farbton an die übrigen Farben der Jukebox angepasst werden, ohne dass es "zu neu" aussieht.
Die Farbtöne haben sich im Verlauf von mehreren Jahrzehnten verändert. Ehemals gleiche Farben "vergilben" unterschiedlich. Je nach Material und Untergrund wirken Farben unterschiedlich, z.B. auf Kunststoff anders als auf Metall. Daher sind vorgefundene alte Farbtöne zunächst kritisch zu überprüfen und nur bedingt als Referenz geeignet.
Gut erhaltene originale Farbtöne finden sich i.d.R. unter Leisten, Abdeckungen, Profile usw., also dort, wo Licht und Nikotin nicht hinkommen.




* ►►►
The given colour codes are a rule of thumb, a guide or recommendation given by various user of the forum, which might match the original ones close.
In general it is recommended - based on a well kept original colour pattern - to determine and get the right colour mixed with a professional painter shop. This makes sure the colour matches those from the jukebox well without looking "too new".
Within several decades colours have been faded. Formerly same colours faded in a different way. Depending on material and ground they might look different today. For example a colour seems to be more light on plastic than on metal. Hence old colours need to be checked carefully and can be taken as a reference in limited suitability only.
Good kept original colours can often be found below bars, brackets, covers, trims - there, where sun and nicotine could not reach and influence.



Die Angaben haben keinen Anspruch auf Vollständigkeit oder Richtigkeit.
Bei den (importierten) Boxen können im Laufe der Jahre durchaus Veränderungen vorgenommen worden sein. Copyright.
