Rock-Ola Jukeboxes 1938

Copyright

Monarch   •••   Windsor   •••   Ambassador   •••   Playboy


Monarch - 20 Selections

Mr. I. F. Webb, Vice-President and Sales Manager of the Rock-Ola Phonograph Division: "When we were designing our new phonograph, we searched about for something new in lighting effects for we realize the psychological effect of lights and colors. We hit upon the idea of duplicating the most famous electrical display in the world - the indescribably beautiful play of the Aurora Borealis. As a compliment to the new ‘Borealis’ light-up grille, the translucent panel surrounding the selector buttons is lighted through a grilled casting with color combinations that illuminate the buttons and attract the eye. These new features are highly endorsed by operators bcause this display aids in bringing the customers in and keeping them in the location for a time profitable to all.” (Automatic Age, 3/1938, p. 45)

Original Price 1938: US$ 272.50

Rock-Ola Monarch
Photo courtesy Lloyd Thoburn





Windsor - 20 Selections

Original Price 1938: US$ 242.50

Rock-Ola Windsor

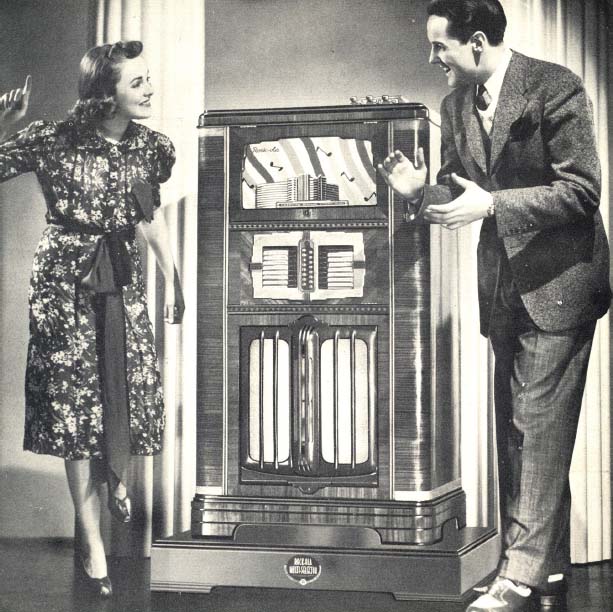

Ambassador 16 - 16 Selections

Promoted as "Sweetest Little Money Maker in the Music Business"
Size w/o stand "Hi-Boy": H51-1/2 x W28" x D21"
Cartridge: Lightweight Crystal Cartridge
Rock-Ola Ambassador





Playboy – speaker and selector

Rock-Ola Playboy





Technische Daten - Specifications
Wahlen / Selections 20
Lampen / Lamps
Verstärker / Amplifier D: 6C5G, 2x 6B5, 5Z3; Potentiometer: 0.5 Meg.Ohm for speaker with 8 ohm at 400 cycles, field resistance: 7000 ohm
E: 76, 2x 6L6G, 5U4; Potentiometer: 0.5 Meg.Ohm for speaker with 8 ohm voice coil, field resistance: 5400 ohm
Netzteil / Power supply
Kreditgerät / Credit unit No credit unit
Lautsprecher / Speaker 1x 12", 8 ohm at 400 cycles, field resistance: 7000 ohm
Mechanismus / Mechanism Smythe mechanism
Tonabnehmer / Cartridge Monarch, Windsor: Crystal pick-up - 3.5 ounces
Ambassador: Lightweight crystal pickup
Sicherungen / Fuses
Schlüssel / Key
Abmessungen / Size



Zubehör / Accessories Extra speaker permanent magnet 8 Ohm V.C.;
Playboy coin operated remote speaker/selector with light-up grill
Besonderheiten / Features


Die Angaben haben keinen Anspruch auf Vollständigkeit oder Richtigkeit.
Bei den (importierten) Boxen können im Laufe der Jahre durchaus Veränderungen vorgenommen worden sein. Copyright.
