Seeburg Select-O-Matic Library - SICM Seeburg Industrial Commercial Music (1948)
Introduced to industrial-commercial field in 12/1947 and on March 31, 1948 to operators
Plays for 14 hours without repeating

Copyright



IC-S1: Basic version with dual line amplifier or radio if desired
SL-1: Housed in its own cabinet
SLB-1: SL-1 placed on cabinet B-1 without amplifier and speaker
SLBA-1: SL-1 placed on cabinet BA-1 with amplifier and speaker

SLBA-2: SL-2 placed on cabinet BA-2

200 Selections: 10" and 12" records, 78 RPM
Accessories: Paging Amplifier and mixer, desk microphone, Remote Control Power Swtch, Industrial Commercial Remote Control Unit
Recessed wall and ceiling speakers, 8" and 12" speakers in wood housing, 8" brown bakelite or neutral plastic Teardrop and 12" brown bakelite or neutral plastic Mirror Speaker

Price in 1950:
IC-S1: US$ 1610
SLBA-1: US$ 1475

More information about Seeburg 78 RPM Library Units can be found here: https://seeburg1948.com/

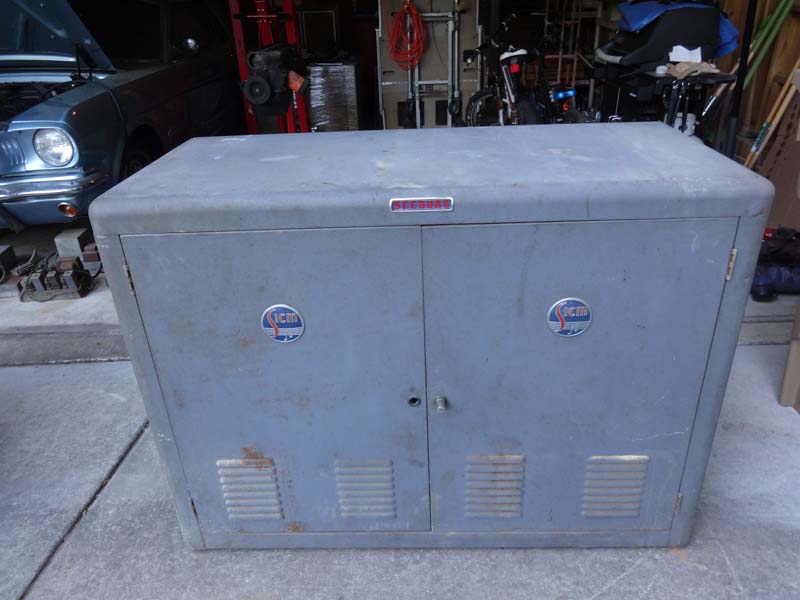

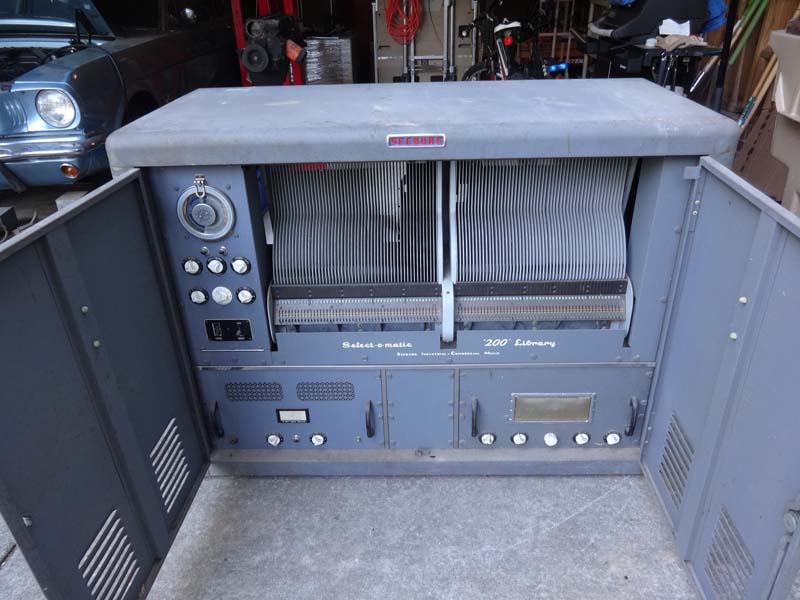

IC-S1 - Basic Model

Equipped for both local and remote record and paging services. The dual-line amplifier in the lower center provides two outgoing telephone lines for remote service..
Seeburg IC-S1 Library Unit

Seeburg IC-S1 Library Unit

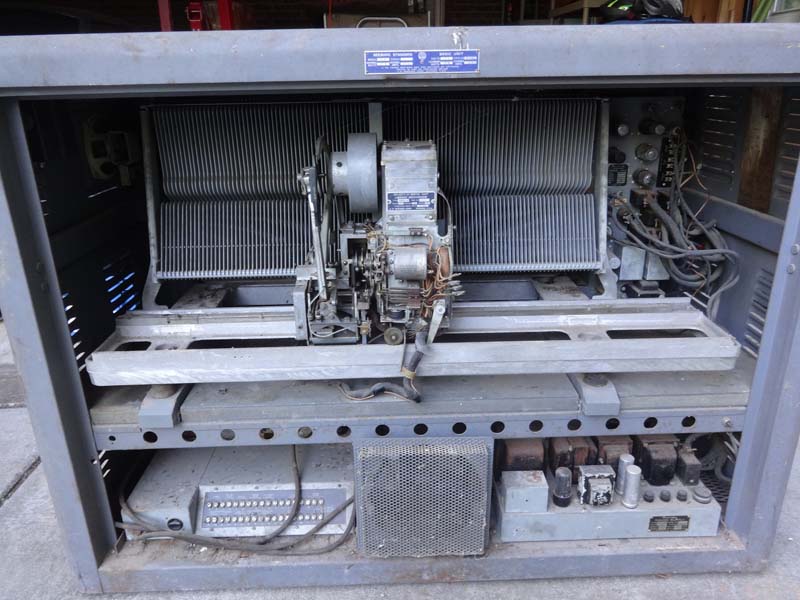

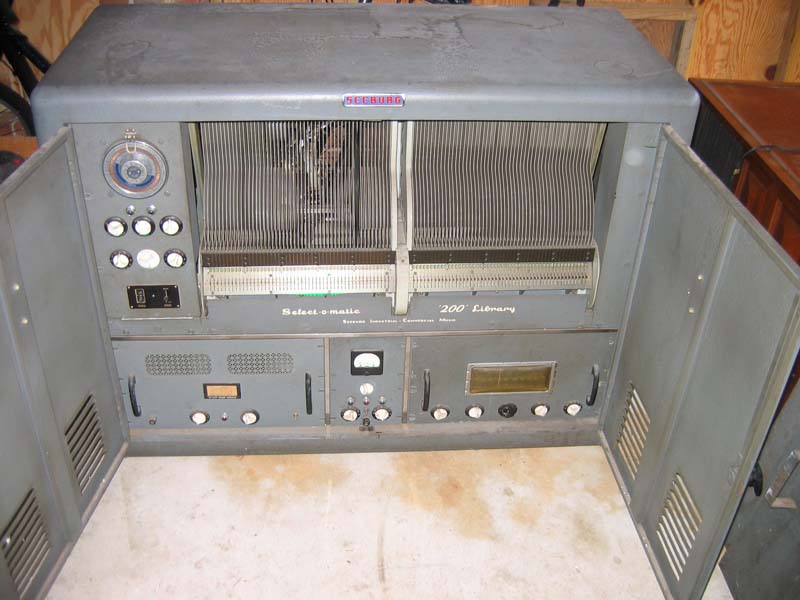

IC-S1 - with radio AM/FM

If desired, the amplifier at the lower right can be replaced by a AM/FM radio.
Photos courtesy of Jim D.

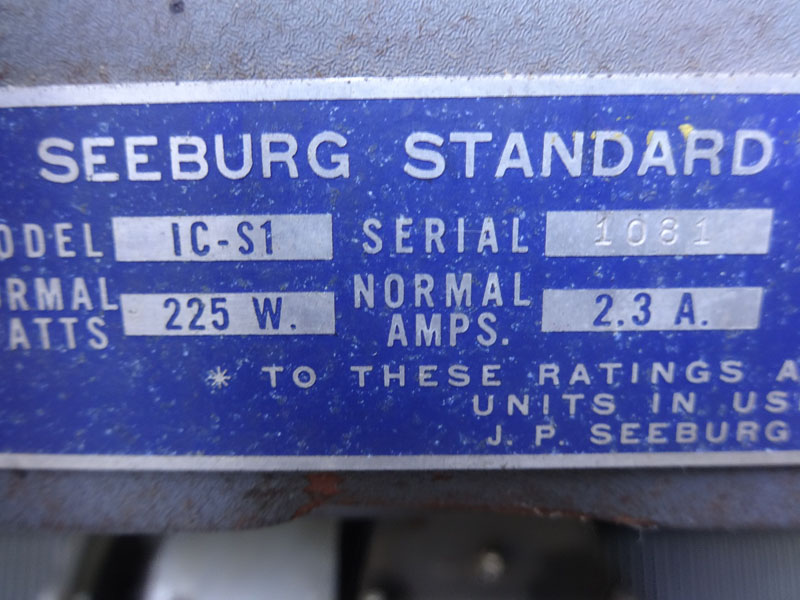

Seeburg IC-S1 Library Unit

Seeburg IC-S1 Library Unit

Seeburg IC-S1 Library Unit

Seeburg IC-S1 Library Unit

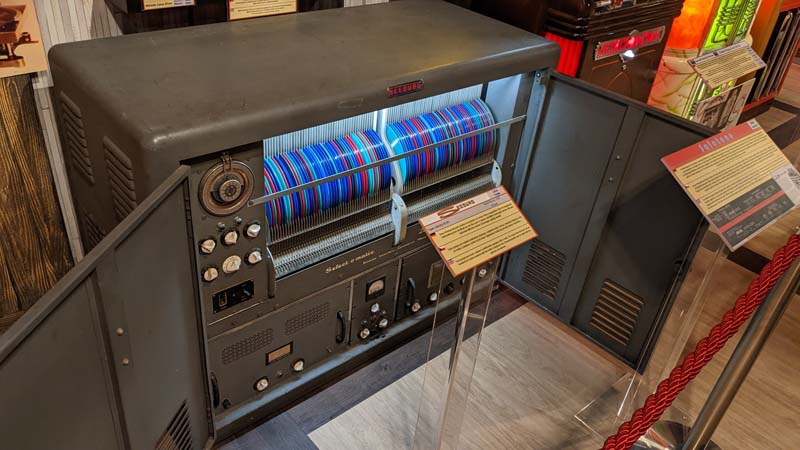

IC-S1 - with radio AM/FM and dual-line amplifier (lower center)

Seeburg IC-S1 Library Unit

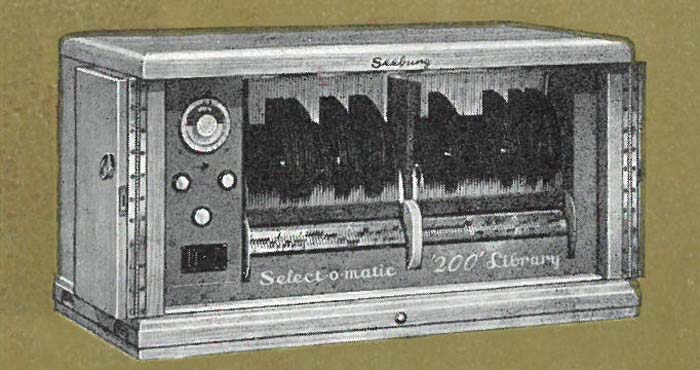

SL-1

Size: 52-1/4 x 27-3/8 x 25-1/4"

Seeburg IC-SL1 Library Unit





SLB-1

Model SL-1 placed on the base cabinet B-1 without amplifier and speaker
Cabinets B1 provides 12 albums for storage of 144 additional records. Size: 52-1/4 x 18-1/8 x 25-3/4"
Seeburg IC-SL1 Library Unit

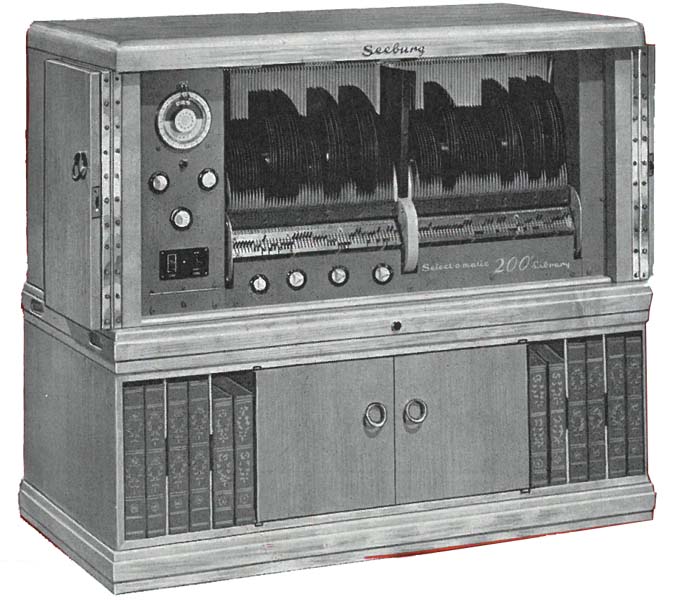

SLBA-1

SL-BA1: Model SL-1 placed on the base cabinet BA-1 with amplifier and speaker
Cabinet BA1 provides 12 albums for storage of 144 additional records. Size: 52-1/4 x 18-1/8 x 25-3/4"

Photos and information courtesy of Jim D.
Seeburg Library Unit SLBA1
Front closed

Seeburg Library Unit SLBA1
Rear of the unit with back doors with working locks and key. A kill switch disconnects motor power when the right rear door gets removed.

Seeburg Library Unit SLBA1
Speaker doors open. Note also the upper doors have locks. This is not shown on the black and white brochure photo for SLB1 above.

Seeburg Library Unit SLBA1
Front open. Most photos I've seen the mechs are gold painted, but this one is gray. I'm not sure what the significance of that is yet. Maybe later production?
Or they ran out of gold paint that day. There is a switch at the far right that turns on the light when you open the door.

Seeburg Library Unit SLBA1
Control panel and preamp. There is a main amplifier and speaker in the base unit.

Seeburg Library Unit SLBA1
Mechanism - note the crystal cartridge, not magnetic like the M100A but a crystal one.

Seeburg Library Unit SLBA1

Seeburg Library Unit SLBA1





Library Unit for 500 selections - five units added next to each other

Thanks to LIFE who offer the photos for non-commercial use





Technische Daten - Specifications SL-1
  Library Unit SL-1 Cabinet B-1 Cabinet BA-1
Wahlen / Selections 200 - 10" and 12" records Storage for 144 records Storage for 144 records
Gehäuse / Cabinet
Lampen / Lamps
Control Panel     ./.
Vorverstärker / Preamplifier ./. ./.
Netzteil / Power supply
Electrical Selector
Lautsprecher / Speaker ./. ./.
Mechanismus / Mechanism 200-S3L6 ./. ./.
Tonabnehmer / Cartridge Astatic crystal cartridge - Seeburg #600052 ./.

./.

Sicherungen / Fuses
Schlüssel / Key
Abmessungen / Size
Zubehör / Accessories Home Remote Control HRC-1
Remote Controlled Power Switch RCPS
Extra transformer for more than 3 remote speakers
Aux. amplifier
Aux. panel Ass. 600324
./. ./.
Besonderheiten / Features No coin-op, designed for industrial plants, hotels, and clubs

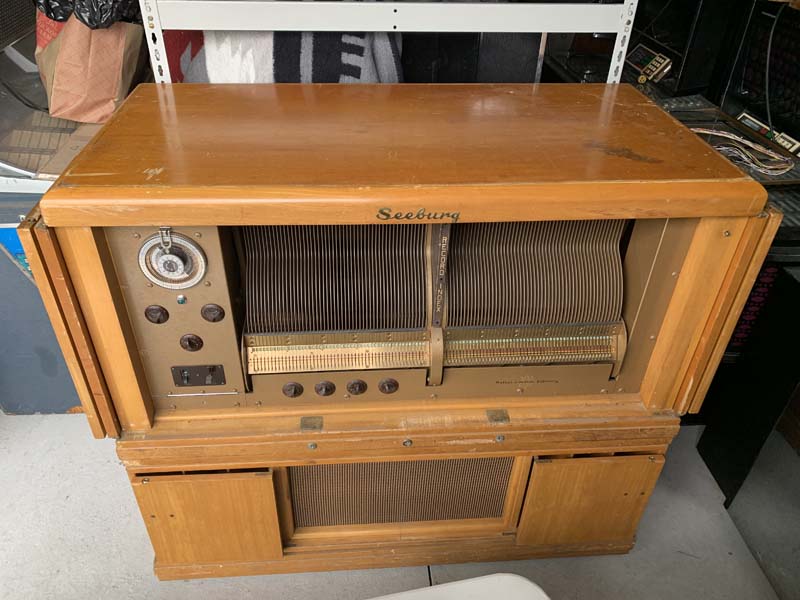

SLBA-2

Photos and information courtesy of Ben of BAP Jukebox Restoration and Service. Feel free to contact Ben when you need more information.

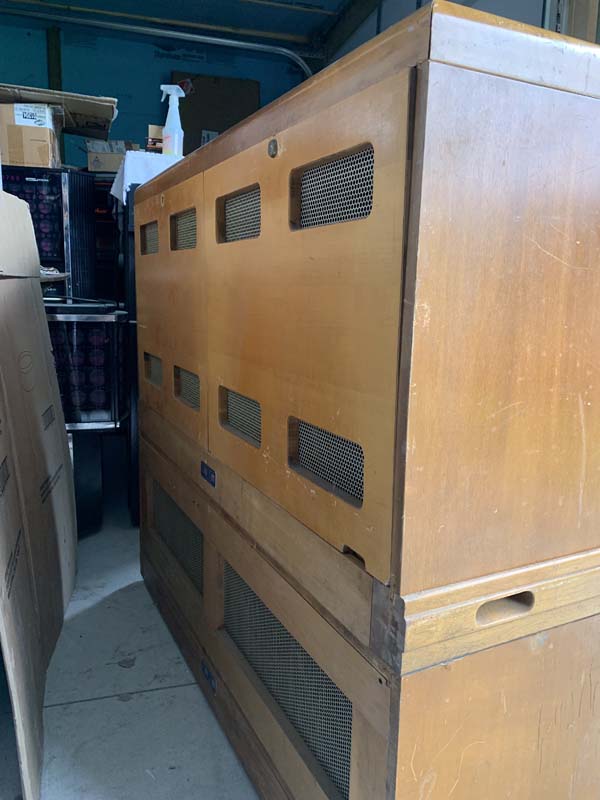

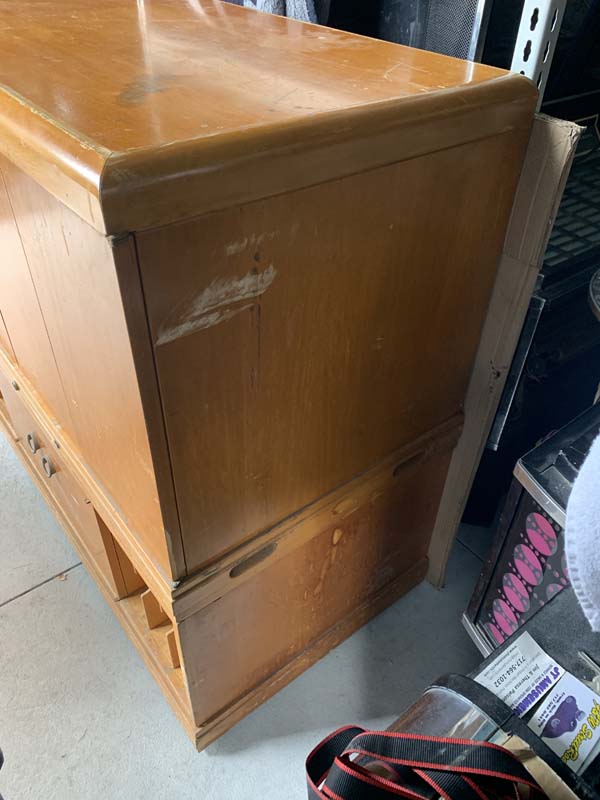

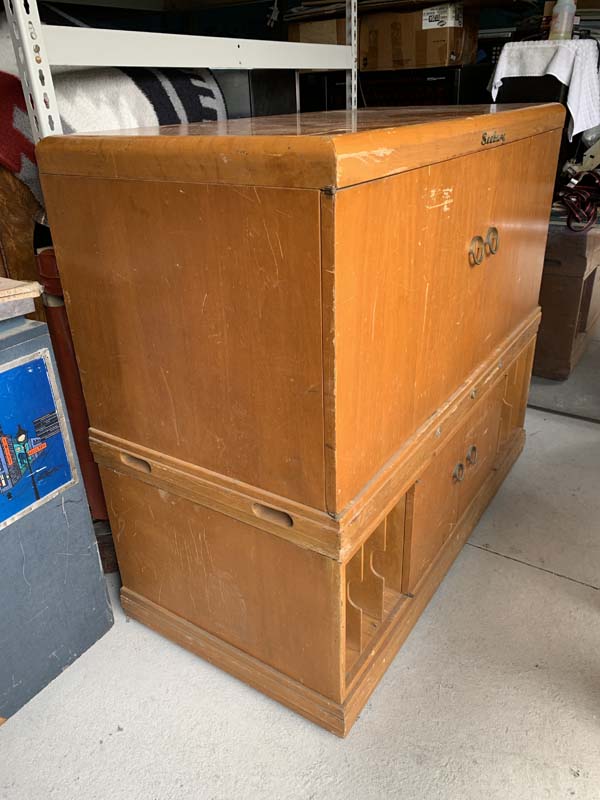

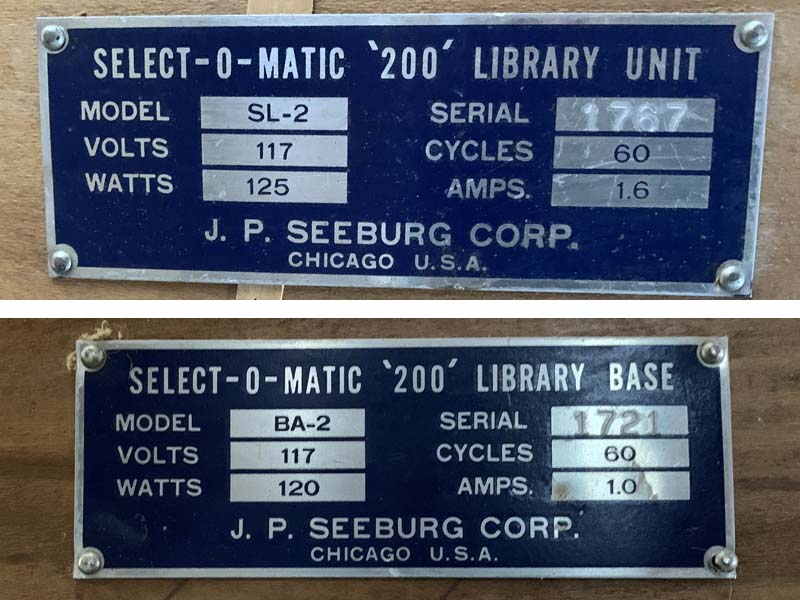

Seeburg SLBA-2 Library Unit

Seeburg SLBA-2 Library Unit

Seeburg SLBA-2 Library Unit

Seeburg SLBA-2 Library Unit

Seeburg SLBA-2 Library Unit

Seeburg SLBA-2 Library Unit





Technische Daten - Specifications SL-2
  Library Unit SL-2 Cabinet B-2 Cabinet BA-2
Wahlen / Selections 200 - 10" and 12" records Storage for 144 records Storage for 144 records
Gehäuse / Cabinet
Lampen / Lamps GE #51
Lumiline 30W 17.5" ( ~ 44.5 cm)

Control Panel CP2-L6   ./.
Vorverstärker / Preamplifier ./. ./. 18A1-16
Netzteil / Power supply
Electrical Selector
Lautsprecher / Speaker ./. ./. Jensen 12" with voice coil, #50233
Mechanismus / Mechanism 200-S4L6 ./. ./.
Tonabnehmer / Cartridge Astatic crystal cartridge - Seeburg #600052 ./.

./.

Sicherungen / Fuses
Schlüssel / Key Front: Fort Lock B603
Back: Chicago Lock 2386

Abmessungen / Size
Zubehör / Accessories Home Remote Control HRC-1
Remote Controlled Power Switch RCPS
Extra transformer for more than 3 remote speakers
Aux. amplifier
Aux. panel Ass. 600324
./. ./.
Besonderheiten / Features No coin-op, designed for industrial plants, hotels, and clubs



Die Angaben haben keinen Anspruch auf Vollständigkeit oder Richtigkeit.
Bei den (importierten) Boxen können im Laufe der Jahre durchaus Veränderungen vorgenommen worden sein. Copyright.
