Wurlitzer 1400
Wurlitzer 1450 (1951)
|
Wurlitzer Musikboxen und Fernwähler im Archiv von Jukebox-World |
|
|
Wurlitzer 1400 Deluxe ••• 1450
Standard (1951 - 1952) 78 or 45 or 33-1/3 rpm |
Copyright
|
|

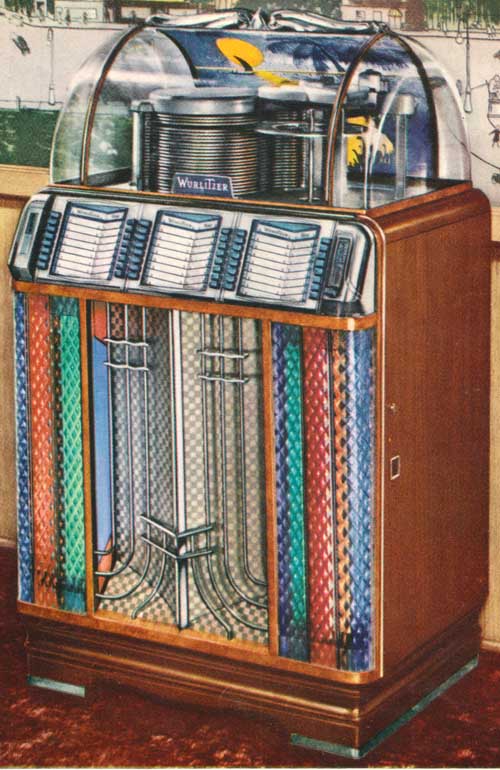

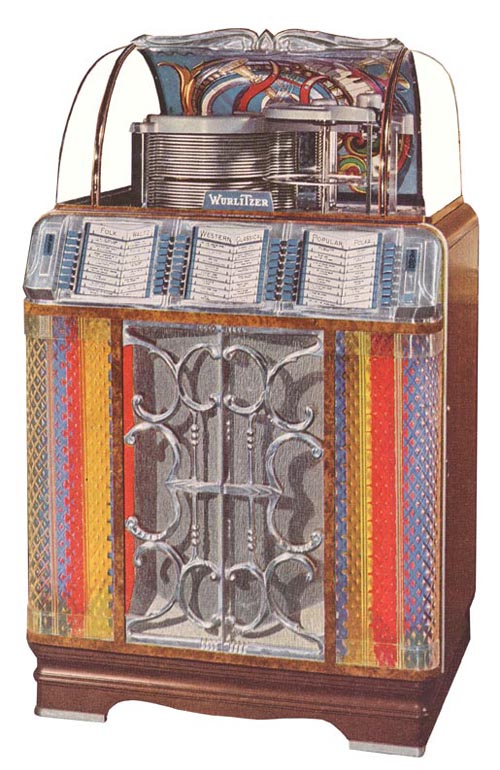

Wurlitzer 1400 |
|
|
Ad 1951 |
Ad 1952 |
|
|
|
|
|
|
|
Wurlitzer 1450 (1951) |
|
|
Ad 1951 |
|
|
|
|
| Technische Daten - Specifications | ||
| 1400 | 1450 | |
| Wahlen / Selections | 48 | 48 |
| Lampen / Lamps |
Cabinet: 4x TL 20 W 24" T12 Select & coin glasses: 2x #47 |
Cabinet: 4x TL 20 W 24" T12 Select & coin glasses: 2x #47 |
| Verstärker / Amplifier | 514: 5U4, 2x 6L6, 6SN7GT, 2x 6SJ7, 6J5 | 514: 5U4, 2x 6L6, 6SN7GT, 2x 6SJ7, 6J5 |
| Lautsprecher / Speaker | 15" electro-dynamic; field coil: 5.2 KOhm, voice coil 8 Ohm | 15" electro-dynamic; field coil: 5.2 KOhm, voice coil 8 Ohm |
| Tonabnehmer / Cartridge | Cobra | Cobra |
| Sicherungen / Fuses | Amplifier 514: 2A; 15A | Amplifier 514: 2A; 15A |
| Schlüssel / Key | RW-44 | RW-44 |
| Gehäuse / Cabinet | 1400 Deluxe:
cabinet in rich walnut Background theme in 1951:"Musical Instruments" and "Sunset" Background theme in 1952:"Sunset" |
1450 Standard:
cabinet in wood, covered with Textileather in mahagony, blonde, blue
or brown Background theme in 1951:"Musical Instruments" and "Sunset" Background theme in 1952:"Sunset" |
| Abmessungen / Size | H x W x D: 57-1/8 x 34-1/2 x 27-5/8" | 350 lbs | H x W x D: 57-1/8 x 34-1/2 x 27-5/8" | 350 lbs |
| Zubehör / Accessories |
AVC:
Kit 126
|
Kit 129 Aux. Amp 227; Model 29 Volume Control for 227 Remote: Stepper 248 or 2x 219 | Wallbox 4851 Extra speaker: 5100 (blue) 5110 (off-white) Kit 113 | Kit 127 |
AVC:
Kit 126
|
Kit 129 Aux. Amp 227; Model 29 Volume Control for 227 Remote: Stepper 248 or 2x 219 | Wallbox 4851 Extra speaker: 5100 (blue) 5110 (off-white) Kit 113 | Kit 127 |
| Besonderheiten / Features | Mechanism could easily
be converted from 78 to 45 or 33-1/3 rpm New colour and grill design in 3/1952 |
Mechanism could easily
be converted from 78 to 45 or 33-1/3 rpm New colour and grill design in 3/1952 |
| Neupreis / Price 1951 | 1400 Deluxe: US$ 949.50 | 1450 Standard: US$ 914.50 |

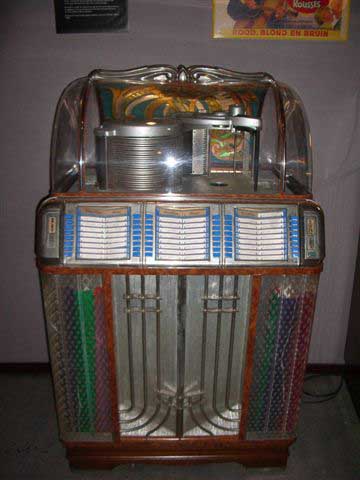

Foto: Axel Rosenberger
|

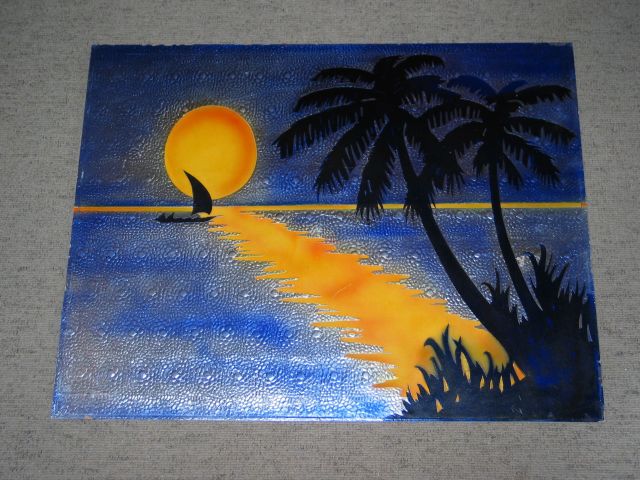

Hintergrundmotiv "Sonnenuntergang" – theme "sunset" |
|
ab 3/1952 – since 3/1952 |
|
|
Fotos: Axel Rosenberger |
|

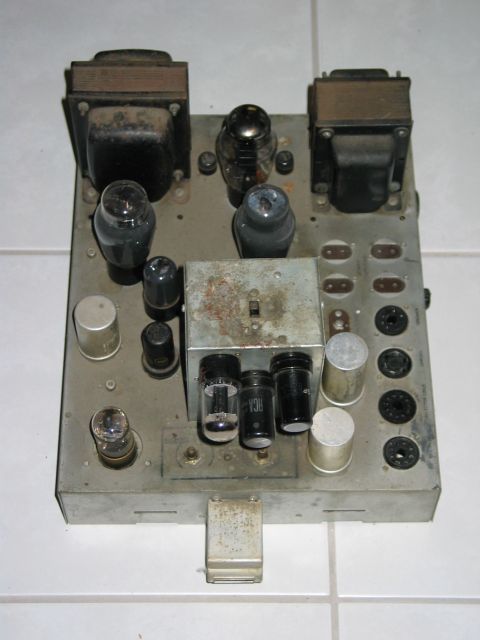

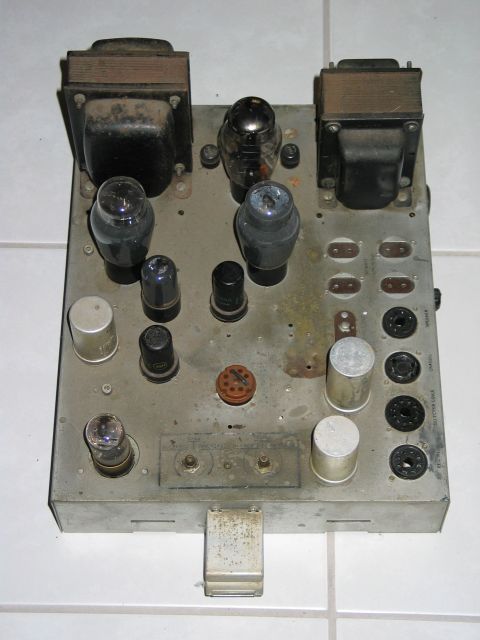

| Verstärker 514 - ohne AVC / Amplifier 514 - without AVC Kit 126 | Verstärker 514 - mit AVC / Amplifier 514 - with AVC Kit 126 |
 |
 |
|
Die Angaben haben keinen
Anspruch auf Vollständigkeit oder Richtigkeit. |
|
|
