| Lyric (1981) |
|
|
100 Wahlmöglichkeiten – selections – sélèctions |
|
|
|
|
|
| Technische Daten - Specifications | |
| Wahlen / Selections | 100 |
| Lampen / Lamps |
Cabinet: TL 16W / 29" / T8 |
Iindicator: GE #2341 T5/24V/30mA Amplifier: Soffitte 6V / 18 W |
| Verstärker / Amplifier | S79 | H79 | Later ones from 1980 or 1981 possible |
| Lautsprecher / Speaker | 2x 16Ω 15W |
| Tonabnehmer / Cartridge | Shure M75 (with pre-amplifier if needed, depends on amplifier) |
| Sicherungen / Fuses | Amplifier: 6x 2A resp. 3,15 A | Stepper: 1x 2A and 4A |
| Schlüssel / Key | WUA1 |
| Abmessungen / Size | |
| Zubehör / Accessories |
Stepper 40143 | Wallbox
FW 160 und 161 | Extra speaker W20, W10,
W14 Microfon 40010 | Remote vol. control 40009 (stereo), 40018 (mono) |
| Besonderheiten / Features |
Regarding manuals and flyers published

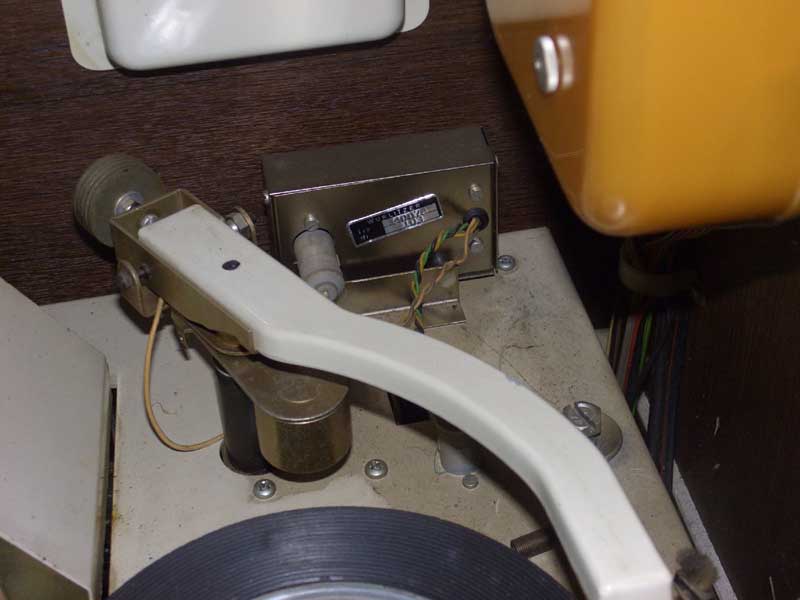

by the Deutsche Wurlitzer no Lyric was produced in 1981. The shown version might be a limited customized version. Note that in this model a pre-amplifier is used with Shure M75 cartridge. Amplifiers built 1980 and later could be switched for use with either ceramic or magnetic cartridges. |
|
Die Angaben haben keinen
Anspruch auf Vollständigkeit oder Richtigkeit. |
