Rock-Ola 1422, 1426 Jukebox Musikbox Phonograph

1422

R.O. 1422

Technische Daten - Specifications Rock-Ola 1422
Wahlen / Selections	20
Mechanismus / Mechanism	Smyth
Gehäuse / Cabinet
Lampen / Lamps	Upper cabinet: TL 15W/18"/T12 Large pilaster: 2x TL 20W/24"/T12 Short pilaster: E27 7,5W/110 V; 25W/110V "Thank you": Ba9s 28V 4,8W
Verstärker / Amplifier	Model O - 12238-A: 2x 6L6; 1x 6J5; 1x 5U4 pot: dual volume control 2 Meg 50 M Ohm Model OS: add. 6SN7 in voltage amplifier stage - coupled to power amp. stage
Netzteil / Power Supply	12242-A
Kreditgerät / Credit Unit	12220-A
Kontollbox / Control Box
Lautsprecher / Speaker	Dynamic speaker, voice coil 8 Ohm, field coil 5000 Ohm
Tonabnehmer / Cartridge	Astatic L-21 ceramic Often replaced by Astatic 4, 12 or 12U (crystal) or later with Astatic 51-2
Sicherungen / Fuses	Power Supply 3A, 6A, 10A; amplifier 3A
Schlüssel / Key	D032
Abmessungen / Size	B x H x T = 29 3/4 x 58 x 26"
Zubehör / Accessories	Extra speaker: 1603, 1807 Moderne, 1606 Tonette, Super Tonette, Tone-O-Lier Wall Box Bar Bracket 1531, Universal Bar Bracket 1533, Wall Box Line Booster 11795 Remote Vol. Control 1906; wallbox 1530
Besonderheiten / Features

1426

1426 und 1426 A: unterschiedliche Kreditgeräte	1426 and 1426 A: Different credit units

1426RA

Photo courtesy of Coinopwarehouse
Blonde cabinet, credit unit similar to model 1428

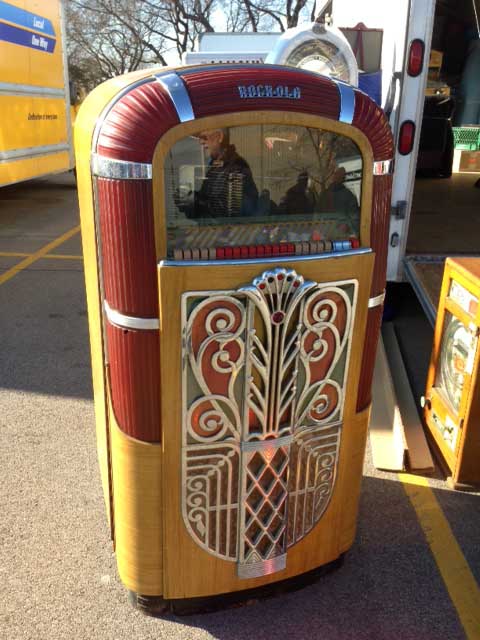

Rock-Ola 1426RA

Technische Daten - Specifications Rock-Ola 1426
	1426	1426A	1426E	1426R	1426RA
Wahlen / Selections	20	20	20	20	20
Mechanismus / Mechanism	Smyth	Smyth	Smyth	Smyth	Smyth
Gehäuse / Cabinet	Dark	Dark			Blonde
Lampen / Lamps	Pilaster: TL 20W/24"/T12 Upper cabinet: TL15W/18"/T12 "Thank you" lamp: Ba9s 28V 4,8W	Pilaster: TL 20W/24"/T12 Upper cabinet: TL15W/18"/T12 "Thank you" lamp: Ba9s 28V 4,8W	Pilaster: TL 20W/24"/T12 Upper cabinet: TL15W/18"/T12 "Thank you" lamp: Ba9s 28V 4,8W	Pilaster: TL 20W/24"/T12 Upper cabinet: TL15W/18"/T12 "Thank you" lamp: Ba9s 28V 4,8W	Pilaster: TL 20W/24"/T12 Upper cabinet: TL15W/18"/T12 "Thank you" lamp: Ba9s 28V 4,8W
Verstärker / Amplifier	Model O - 12238-A: 2x 6L6; 1x 6J5; 1x 5U4 Pot: Dual volume control 2 Meg 50 M Ohm Model OS: Add. 6SN7 in voltage amplifier stage - coupled to power amp. stage	Model O - 12238-A: 2x 6L6; 1x 6J5; 1x 5U4 Pot: Dual volume control 2 Meg 50 M Ohm Model OS: Add. 6SN7 in voltage amplifier stage - coupled to power amp. stage	Model O - 12238-A: 2x 6L6; 1x 6J5; 1x 5U4 Pot: Dual volume control 2 Meg 50 M Ohm Model OS: Add. 6SN7 in voltage amplifier stage - coupled to power amp. stage	Model O - 12238-A: 2x 6L6; 1x 6J5; 1x 5U4 Pot: Dual volume control 2 Meg 50 M Ohm Model OS: Add. 6SN7 in voltage amplifier stage - coupled to power amp. stage	Model O - 12238-A: 2x 6L6; 1x 6J5; 1x 5U4 Pot: Dual volume control 2 Meg 50 M Ohm Model OS: Add. 6SN7 in voltage amplifier stage - coupled to power amp. stage
Netzteil / Power Supply	12242-A	12242-A	12242-A	12242-A	12242-A
Kreditgerät / Credit Unit	12220-A
Kontollbox / Control Box
Lautsprecher / Speaker	Dynamic speaker, voice coil 8 Ohm, field coil 5000 Ohm	Dynamic speaker, voice coil 8 Ohm, field coil 5000 Ohm	Dynamic speaker, voice coil 8 Ohm, field coil 5000 Ohm	Dynamic speaker, voice coil 8 Ohm, field coil 5000 Ohm	Dynamic speaker, voice coil 8 Ohm, field coil 5000 Ohm
Tonabnehmer / Cartridge	Astatic L-21 ceramic Often replaced by Astatic 4, 12 or 12U (crystal) or later with Astatic 51-2	Astatic L-21 ceramic Often replaced by Astatic 4, 12 or 12U (crystal) or later with Astatic 51-2	Astatic L-21 ceramic Often replaced by Astatic 4, 12 or 12U (crystal) or later with Astatic 51-2	Astatic L-21 ceramic Often replaced by Astatic 4, 12 or 12U (crystal) or later with Astatic 51-2	Astatic L-21 ceramic Often replaced by Astatic 4, 12 or 12U (crystal) or later with Astatic 51-2
Sicherungen / Fuses	Power Supply 3A, 6A, 10A Amplifier 3A	Power Supply 3A, 6A, 10A Amplifier 3A	Power Supply 3A, 6A, 10A Amplifier 3A	Power Supply 3A, 6A, 10A Amplifier 3A	Power Supply 3A, 6A, 10A Amplifier 3A
Schlüssel / Key	D032	D032	D032	D032	D032
Abmessungen / Size
Zubehör / Accessories	Extra speaker: 1603, 1807 Moderne, 1606 Tonette, Super Tonette, Tone-O-Lier Wall Box Bar Bracket 1531, Universal Bar Bracket 1533, Wall Box Line Booster 11795 Remote Vol. Control 1906 Wallbox 1530	Extra speaker: 1603, 1807 Moderne, 1606 Tonette, Super Tonette, Tone-O-Lier Wall Box Bar Bracket 1531, Universal Bar Bracket 1533, Wall Box Line Booster 11795 Remote Vol. Control 1906 Wallbox 1530	Extra speaker: 1603, 1807 Moderne, 1606 Tonette, Super Tonette, Tone-O-Lier Wall Box Bar Bracket 1531, Universal Bar Bracket 1533, Wall Box Line Booster 11795 Remote Vol. Control 1906 Wallbox 1530	Extra speaker: 1603, 1807 Moderne, 1606 Tonette, Super Tonette, Tone-O-Lier Wall Box Bar Bracket 1531, Universal Bar Bracket 1533, Wall Box Line Booster 11795 Remote Vol. Control 1906 Wallbox 1530	Extra speaker: 1603, 1807 Moderne, 1606 Tonette, Super Tonette, Tone-O-Lier Wall Box Bar Bracket 1531, Universal Bar Bracket 1533, Wall Box Line Booster 11795 Remote Vol. Control 1906 Wallbox 1530
Besonderheiten / Features

1424 Play Master

R.O. 1424

Technische Daten - Specifications Rock-Ola 1424
Wahlen / Selections	20
Mechanismus / Mechanism	Smyth
Verstärker / Amplifier	Model O - 12238-A: 2x 6L6; 1x 6J5; 1x 5U4 pot: dual volume control 2 Meg 50 M Ohm Model OS: add. 6SN7 in voltage amplifier stage - coupled to power amp. stage
Netzteil / Power Supply	12242-A
Kreditgerät / Credit Unit	12220-A
Kontollbox / Control Box
Lautsprecher / Speaker	Ddynamic speaker, voice coil 8 Ohm, field coil 5000 Ohm
Tonabnehmer / Cartridge	Astatic L-21 ceramic Often replaced by Astatic 4, 12 or 12U (crystal) or later with Astatic 51-2
Sicherungen / Fuses	Power Supply 3A, 6A, 10A; amplifier 3A
Schlüssel / Key
Abmessungen / Size
Zubehör / Accessories	Extra speaker: 1603, 1807 Moderne, 1606 Tonette, Super Tonette, Tone-O-Lier wallbox 1530, 1536; Wall Box Bar Bracket 1531, Universal Bar Bracket 1533, Wall Box Line Booster 11795 Remote Vol. Control 1906
Besonderheiten / Features

Verstärker Modell O – amplifier type O

Fotos: Dirk Schirner

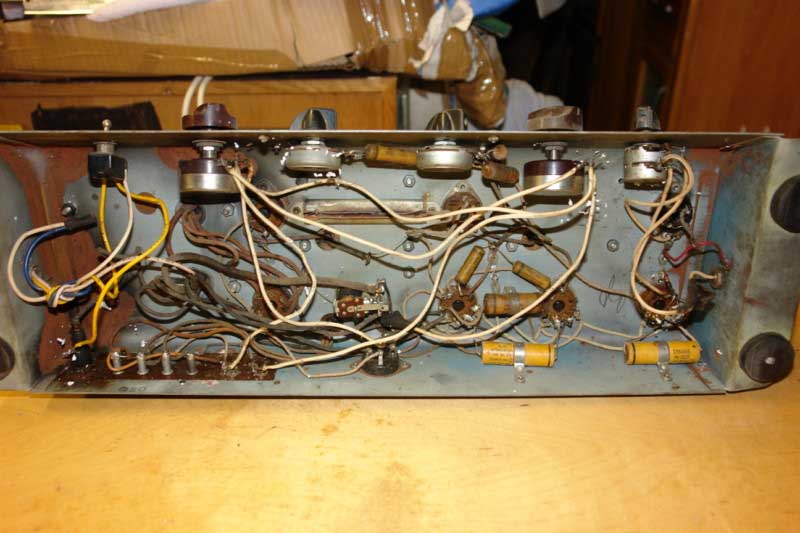

Rock-Ola Verstärker Amplifier Type O

Rock-Ola Verstärker Amplifier Type O
