6000   •••   6001   •••   6002   •••   HSC1   •••   HSC2   •••   HSC3   •••   AP1   •••   AP2: 33 RPM

Home Remote Selection Controls: HRSC-1, HRSC-2, HRSC-3            •••            Home Remote Level Controls: HRLC-1, HRLC-2

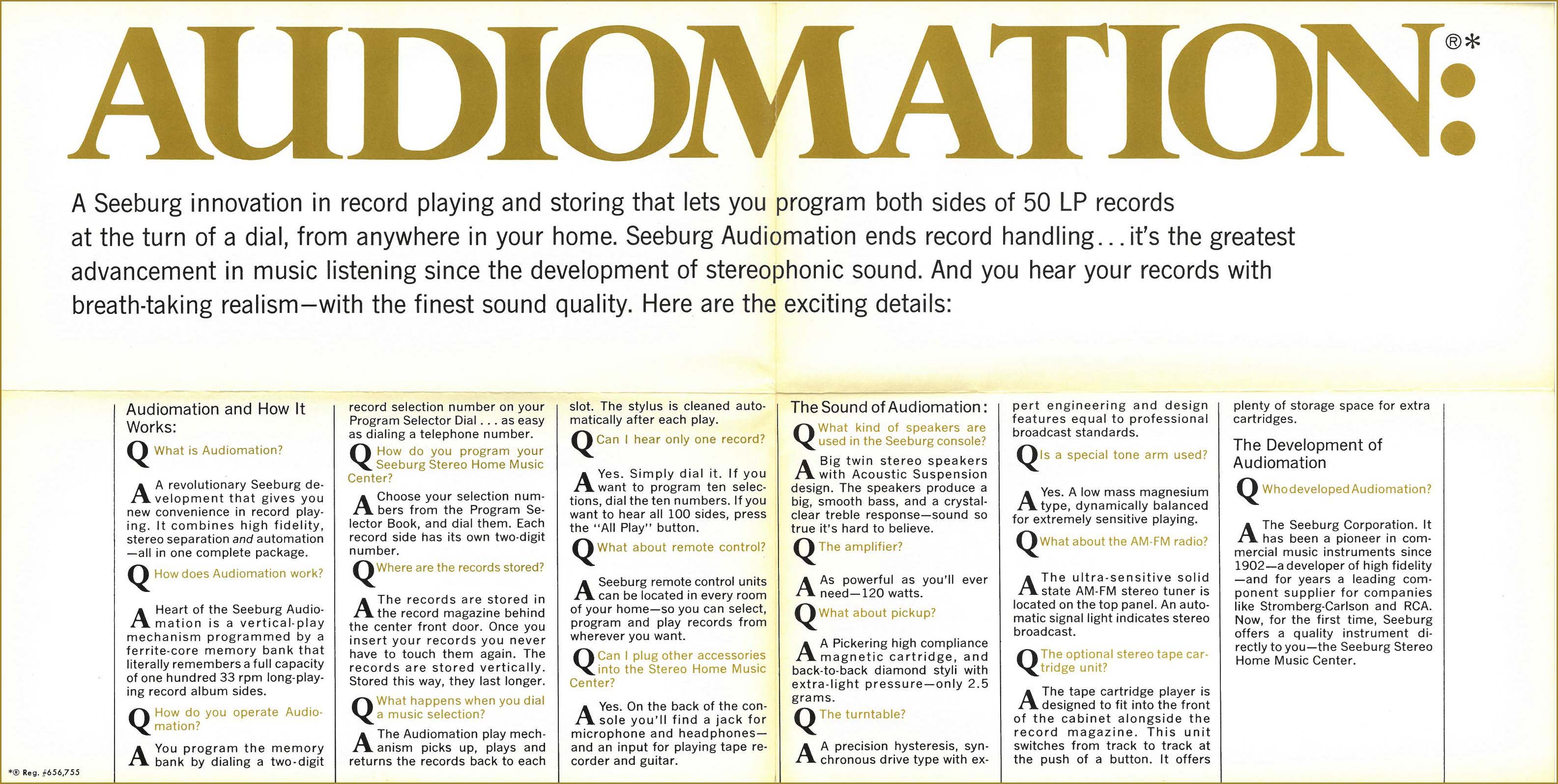

Presentation of Audiomation


6000 – The Kenilworth - Contemporary Style (1968)

Cabinet: Hand-crafted walnut; with FM/AM-FM multiplex tuner
Home Stereo System 6000





6001 – The Granada - Mediterranean Style (1968)

Cabinet: Hand-rubbed pecan; with FM/AM-FM multiplex tuner
Home Stereo System 6001

Photos courtesy of Hans
Home Stereo System 6001

Home Stereo System 6001





6002 – The Milano - Italian Style (1968)

Cabinet: Hand-crafted deeply-rubbed cherry; with FM/AM-FM multiplex tuner
Home Stereo System 6002





Technische Daten - Specifications
  6000 6001 6002
Wahlen / Selections 50 12" LPs  50 12" LPs  50 12" LPs
Lampen / Lamps
Ausstattung / Equipment FM/AM-FM multiplex tuner FM/AM-FM multiplex tuner FM/AM-FM multiplex tuner
Verstärker / Amplifier
Netzteil / Power supply
Mechanismus / Mechanism
Electrical Selector
Tormat
Kreditgerät / Credit unit
Lautsprecher / Speaker
Tonabnehmer / Cartridge Pickering with red wedge type stylus Pickering with red wedge type stylus Pickering with red wedge type stylus
Sicherungen / Fuses
Schlüssel / Key
Abmessungen
Size
B 149 x H 71 x T 55 cm; 125 kg
W x H x D 60" x 28" x 22"; 275 lbs
B 149 x H 71 x T 55 cm; 125 kg
W x H x D 60" x 28" x 22"; 275 lbs
B 149 x H 71 x T 55 cm; 125 kg
W x H x D 60" x 28" x 22"; 275 lbs
Zubehör / Accessories
Besonderheiten / Features
Neupreis / Price back then US$ 895 US$ 995 US$ 995




Home Stereo Console HSC1: The Grand Americas (introduced 1967)

Cabinet: Hand-crafted walnut, cherry or pecan
FM/AM-FM multiplex tuner
Home Stereo Console





Home Stereo Console HSC2: The Grand Espana (introduced 1967)

Cabinet: Hand-crafted pecan wood finish
FM/AM-FM multiplex tuner
Home Stereo Console





Home Stereo Console HSC3: The Grand Italia (introduced 1967)

Cabinet: Hand-crafted cherry
FM/AM-FM multiplex tuner
Home Stereo Console





Technische Daten - Specifications
  HSC1 HSC2 HSC3
Wahlen / Selections 50 12" LPs  50 12" LPs  50 12" LPs
Lampen / Lamps
Ausstattung / Equipment FM/AM-FM multiplex tuner FM/AM-FM multiplex tuner FM/AM-FM multiplex tuner
Verstärker / Amplifier
Netzteil / Power supply
Mechanismus / Mechanism
Electrical Selector
Tormat
Kreditgerät / Credit unit
Lautsprecher / Speaker
Tonabnehmer / Cartridge Pickering with red wedge type stylus Pickering with red wedge type stylus Pickering with red wedge type stylus
Sicherungen / Fuses
Schlüssel / Key
Abmessungen
Size
B 149 x H 71 x T 55 cm; 130 kg
W x H x D 60" x 28" x 22"; 290 lbs
B 149 x H 71 x T 55 cm; 130 kg
W x H x D 60" x 28" x 22"; 290 lbs
B 149 x H 71 x T 55 cm; 130 kg
W x H x D 60" x 28" x 22"; 290 lbs
Zubehör / Accessories HRSC-1, HRSC-2, HRSC-3
HRLC-1, HRLC-2

Titlebook
Extra Speaker HRSS-1
Stereo Headphones HHK-1
HRSC-1, HRSC-2, HRSC-3
HRLC-1, HRLC-2

Titlebook
Extra Speaker HRSS-1
Stereo Headphones HHK-1
HRSC-1, HRSC-2, HRSC-3
HRLC-1, HRLC-2

Titlebook
Extra Speaker HRSS-1
Stereo Headphones HHK-1
Besonderheiten / Features
Neupreis / Price back then US$ 1295 US$ 1295 US$ 1295




AP 2 (1967)

AP1 (1967)

Home Stereo Console

AP2 - Audiomation Record Changer
Cabinet: Unfinished, no doors

AP2A - Stereo Matic II: Record changer unit
FM/AM-FM multiplex tuner, speaker; Amplifier in rich walnut
Cabinet: Unfinished for flush-mount wall or cabinet installation

AP1 - Audiomation Record Changer
Cabinet: Oiled walnut

AP1A - Stereo Matic I: Record changer unit
FM/AM-FM multiplex tuner, speaker; Amplifier in matching finish
Cabinet: Magnificent hand-rubbed walnut cabinet





AP1 (1967)

Home Stereo Console

Home Stereo Console

Home Stereo Console Home Stereo Console




Technische Daten - Specifications
  AP1 AP2
Wahlen / Selections 50 12" LPs  50 12" LPs
Lampen / Lamps
Ausstattung / Equipment FM/AM-FM multiplex tuner FM/AM-FM multiplex tuner
Verstärker / Amplifier
Netzteil / Power supply
Mechanismus / Mechanism
Electrical Selector
Tormat
Kreditgerät / Credit unit
Lautsprecher / Speaker
Tonabnehmer / Cartridge Pickering with red wedge type stylus Pickering with red wedge type stylus
Sicherungen / Fuses
Schlüssel / Key
Abmessungen / Size W x H x D 33" x 21-1/2" x 22-1/2"; 140 lbs W x H x D 33" x 21-1/2" x 22-1/2"; 140 lbs
Zubehör / Accessories Extra Speaker HRSS-1
HRSC-1, HRSC-3
Stereo Headphones HHK-1
Extra Speaker HRSS-1
HRSC-1, HRSC-3
Stereo Headphones HHK-1
Besonderheiten / Features
Neupreis / Price back then US$ 995 US$ 895




Home Remote Selection Controls: HRSC-1, HRSC-2, HRSC-3

Photos and information courtesy of Kevin, Seeburg Jukebox Information Club

HRSC-1 ist ein Wand-Wähleinheit, die in einer Standard Doppelsteckdose montiert wird. Als Ergänzung zur Wählscheibe gibt es einen beleuchteten Ein/Aus-Schalter, einen Löschknopf für die aktuelle sowie einen transparenten Knopf um alle Wahlen zu löschen. Preis im Mai 1969: $35.50 for the HRSC-1.

The HRSC-1 is a wall-mounted selection control which mounts into a standard double electrical box.  In addition to the selector dial, it has an illuminated power button, a reject button to cancel the current selection, and a clear button to clear all selections. Retail price in May of 1969 was $35.50 for the HRSC-1.

HRSC-1
Home Remote Stereo Console Seeburg



HRSC-3 ist ein Tisch-Fernwähler mit allen Merkmalen des HRSC-1 plus Eingang für Kopfhörer mit Lautstärkeregelung.
Die Wähleinheit verwendet ein 6-adriges Kabel, für Audio werden weitere drei oder vier Adern benötigt.
Preis im Mai 1969: $75.00 for the HRSC-3.

The HRSC-3 is a tabletop remote, which has all of the features of the HRSC-1 plus a headphone jack with a volume control. The selectors use a 6-conductor cable, and the audio would require three or four more conductors.
Retail price in May of 1969 was $75.00 for the HRSC-3.

HRSC-3
Home Remote Stereo Console Seeburg


Ein Buch für die Titelstreifen gehörte zu jeder Fernwahleinheit, ebenso zu jedem Hauptgerät oder Hintergrundmusikgerät.

A titlestrip book was included with each remote selector, as well as with the main console or playback unit.

Home Remote Stereo Console Seeburg




Home Remote Level Controls: HRLC-1, HRLC-2

Photos and information courtesy of Kevin, Seeburg Jukebox Information Club

HRLC-1 und HRLC-2 sind Wand-Lautstärkeregler, die in einer Standard Doppelsteckdose montiert werden. Der Unterschied zwischen beiden ist, dass HLRC-1 für 8 oder 16 Ohm Lautsprecher, HRLC-1 dagegen für 70V (oder 100V) "Constant Voltage" Betrieb. Jenachdem wann sie produziert wurden, findet man zwei verschiedene Knöpfe.
Preis im Mai 1969: $25.95

The HRLC-1 and HRLC-2 are wall-mounted volume controls which mount into standard double electrical boxes.  The difference between them is that the HLRC-1 is for 8 or 16 ohm speakers, whereas the HRLC-2 is for 70V (or 100V) "Constant Voltage" systems.  Depending on when they were made, there were two different knobs they might have been supplied with.  Retail Price in May of 1969 was $25.95 for either.

HRLC-2
Home Remote Stereo Console Seeburg





Audiomation is Here!

Home Stereo System Audiomation

Home Stereo System Audiomation



Die Angaben haben keinen Anspruch auf Vollständigkeit oder Richtigkeit.
Bei den (importierten) Boxen können im Laufe der Jahre durchaus Veränderungen vorgenommen worden sein. Copyright.
