Seeburg PFEA1U (Electra)   •••    APFEA1 (Fleetwood) – 1965-66
Introduced in 10/1965

Copyright

Electra: Standard Version
Fleetwood: Deluxe Version


PFEA1U: Phonograph Electra Autospeed Universal Dual Pricing Unit
EPFEA1U-H5: Export Phonograph Electra Autospeed Universal Dual Pricing Unit, 220 VAC 50 Hz
EPFEA1A-H5: Export Phonograph  Electra Autospeed Album Pricing Unit, 220 VAC 50 Hz
EPFEA1UQ-151-H5: Export 220 VAC 50 Hz - Germany

APFEA1: Album Pricing Unit Phonograph Fleetwood Electra Autospeed; with Income Totalizer Unit
EAPFEA1-H5: Export Album Pricing Unit Phonograph Fleetwood Electra Autospeed, 220 VAC 50 Hz; with Income Totalizer Unit


Seeburg PFEA1U (Electra) APFEA1 (Fleetwood)
Seeburg Electra
Seeburg Discothèque background panel which is mostly known
Seeburg Electra
Seeburg LP ALBUMS and SINGLES in the BIG sound
Seeburg Electra
Photo courtesy Lloyd Thoburn




Frequenzweiche - Stereo Network SN-9
Seeburg Electra SN9 Seeburg Electra
Photos courtesy of Bill Butterfield




Sign Seeburg Discothèque to the BIG SOUND
Seeburg Doscotheque Sign Big Sound
Photo courtesy Lloyd Thoburn




Technische Daten - Specifications
  PFEA1U APFEA1
Wahlen / Selections 160 160
Gehäuse / Cabinet Decarlite® slate-blue color Decarlite® slate-blue color
Lampen / Lamps Cabinet: 2x TL 30W/36"/T8 (BL)   |   1x TL 30W/36"/T8 (CW) Record indicator: 2x GE #19  |   Credit: 2x GE #55 Cabinet: 2x TL 30W/36"/T8 (BL)   |   1x TL 30W/36"/T8 (CW) Record indicator: 2x GE #19  |   Credit: 2x GE #55

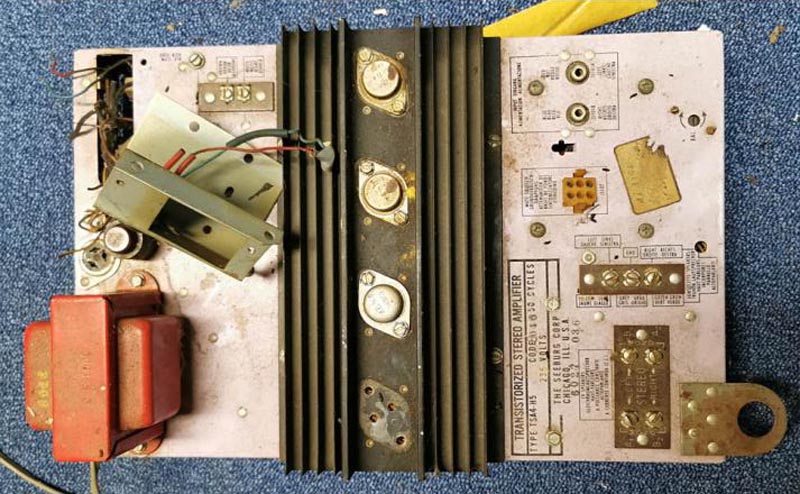

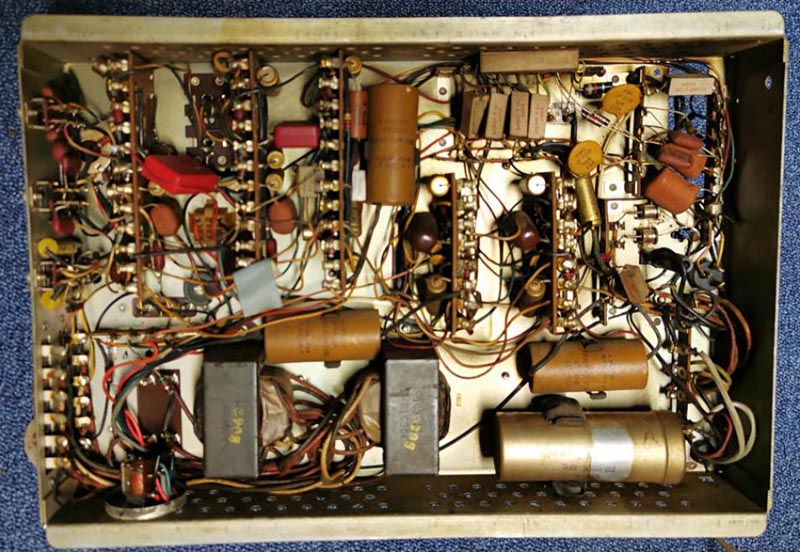

Verstärker / Amplifier TSA4 or PAS1, PAS1-H5, PAS1-5 (for add. speaker) TSA4 or PAS1, PAS1-H5, PAS1-5 (for add. speaker)
Netzteil / Power supply SCC3 SCC4 Code B
Stepper Stepper SSU2K (60 Hz), SSU2K-H5 (50 Hz) Stepper SSU2K (60 Hz), SSU2K-H5 (50 Hz)
Mechanismus / Mechanism 133S4 133S5
Electrical Selector TES 1610-56 TES 1610-56
Tormat 160TM3 160TM4
Kreditgerät / Credit unit UDPU4 APU3
Auto-Speed-Unit 45TASU2 45TASU2
Lautsprecher / Speaker 2x low frequency 12" AlNiCo  5 Ohm |   6x high frequency 5"
Stereo Network: SN-9
2x low frequency 12" AlNiCo  5 Ohm |   6x high frequency 5"
Stereo Network: SN-9
Tonabnehmer / Cartridge Seeburg first stereo cartridge - T-shaped needle Seeburg first stereo cartridge - T-shaped needle
Sicherungen / Fuses SCC: 15 A, 1.5A, 125mA  |  Amplifier: 800mA  |
Mechanism: 5A
115V Power Junction: 6.25A   |   235V Power Junction: 3.2A
SCC: 15 A, 1.5A, 125mA  |  Amplifier: 800mA  |  Mechanism: 5A
115V Power Junction: 6.25A  |  235V Power Junction: 3.2A
APU: 1.6A and 0.5A
Schlüssel / Key F-336 F-336
Abmessungen / Size
(H x B x T   |   H x W x D)
49-1/2" x 40-1/2" x 26-1/4"
365 lbs
49-1/2" x 40-1/2" x 26-1/4"
375 lbs
Zubehör / Accessories Stepper SSU2K (60 Hz), SSU2K-H5 (50 Hz)
Wallbox Consolette SC1, Consolette SC2   |   PRVC 3
Extra speaker TW1-8, TR1-8, TC1-8, EBWC2-12, DDS1, DDS2, DWS1, DWS2
Discotheque Dance Version Kit DDCK-3
Sign Seeburg Discothèque Big Sound
PSS1 - Stepper Power Supply
Stepper SSU2K (60 Hz), SSU2K-H5 (50 Hz)
Wallbox Consolette SC1, Consolette SC2   |   PRVC 3
Extra speaker TW1-8, TR1-8, TC1-8, EBWC2-12, DDS1, DDS2, DWS1, DWS2
Discotheque Dance Version Kit DDCK-3
Sign Seeburg Discothèque Big Sound
PSS1 - Stepper Power Supply
Besonderheiten / Features Income Totalizer Unit IT4R optional
Selection: Left sides of the records being selected on the left-to-right scan, and the right sides selected on the right to left scan - like on previous models B to DS.
Income Totalizer Unit IT4R (Money Counter) as a standard
Selection: Plays both sides of the records scanning left to right. If both sides are selected, it plays the left side, returns it when finished, brings it right back out and plays the right side.


Die Angaben haben keinen Anspruch auf Vollständigkeit oder Richtigkeit.
Bei den (importierten) Boxen können im Laufe der Jahre durchaus Veränderungen vorgenommen worden sein. Copyright.
