| Matador | Quad Matador (photos courtesy of Dave) |
 |
 |
|
Accessory: kit for Quadraphonic Sound |
|
|
|
|
| HSPS2 and EHSPS2 (Export Version) | |
|
Photos and information by Laurent C.
|
|
|
|
|

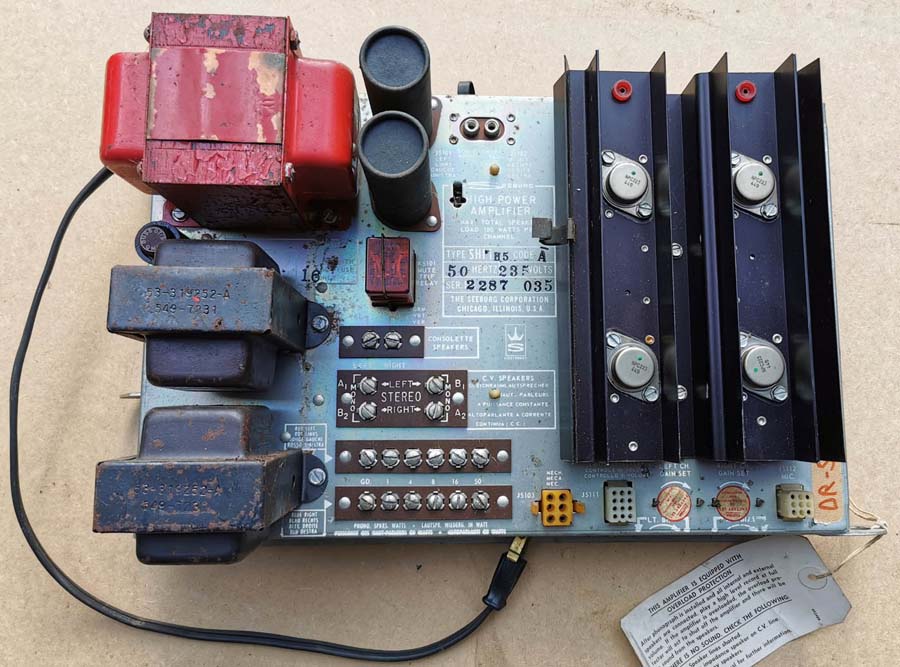

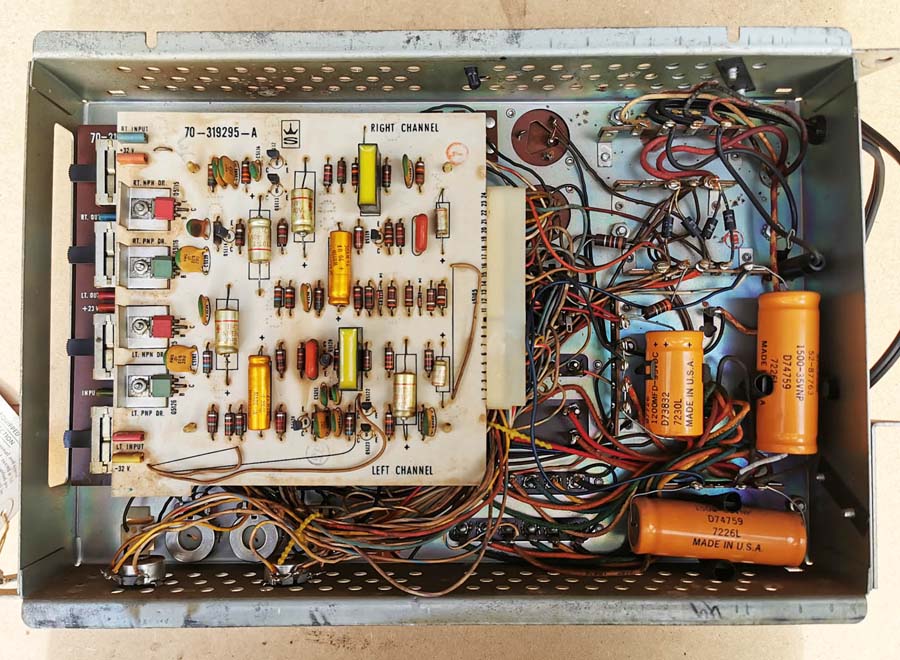

| Verstärker SHP1 Amplifier | |
|
Version 235 / 50 Hz.
|
|
|
|
|
| Technische Daten - Specifications | ||
| SPS2 | HSPS2 | |
| Wahlen / Selections | 160 | 160 |
| Lampen / Lamps |
Cabinet: TL 30W/36"/T8 (1), 19W/24"/T8 (1), 19W/28"/T8 (1) Credit and instruction: GE #656 (7) Record indicator: GE #19 (20) |
|
| Verstärker / Amplifier | SHP1 | SHP1 |
| Netzteil / Power supply | DCC4 | DCC4 |
| Kreditgerät / Credit unit | DTP1 | DTP1 |
| Tormat | 160TM7 | 160TM7 |
| Electrical Selector | DES3 | DES3 |
| Lautsprecher / Speaker |
2x 12" 5 Ohm low frequency 2x rectangular horn type high frequency 16 Ohm, #512983 |
|
| Mechanismus / Mechanism | 160ST26 | 160ST26 |
| Tonabnehmer / Cartridge | Seeburg stereo cartridge with yellow needle | Seeburg stereo cartridge with yellow needle |
| Sicherungen / Fuses |
DCC: 15 A, 3.2A, 800mA, 125mA | Amplifier: 3.2A,
2A Mechanism: 500 mA |
SSAS:
2A Power Junction: 6.25A |
DCC: 15 A, 3.2A, 800mA, 125mA | Amplifier: 3.2A,
2A Mechanism: 500 mA |
SSAS:
2A Power Junction: 6.25A |
| Schlüssel / Key | F 293 | |
| Abmessungen / Size | 133 x 10x 70 cm | 330 lbs / 150 kg | |
| Zubehör / Accessories |
Remote Volume Control
PVCR 4 Wallbox Digital Electronic Consolette DEC3, DEC4 Paging Kit TP1K | DRIT1BK4-56 Auto-Speed-Unit SAS2K2; Digital Consolette PowerSupply DCPS1K-56 Extra speaker USC1K, TW1-8, TR1-8, TCI-8, FR50 Seeburg Alarm & Envoy Kit SAVE1K Dollar Bill Validator DBV2K6-B |
Remote Volume Control
PVCR 4 Wallbox Digital Electronic Consolette DEC3, DEC4 Paging Kit TP1K | DRIT1BK4-56 Auto-Speed-Unit SAS2K2; Digital Consolette PowerSupply DCPS1K-56 Extra speaker USC1K, TW1-8, TR1-8, TCI-8, FR50 Seeburg Alarm & Envoy Kit SAVE1K Dollar Bill Validator DBV2K6-B |
| Besonderheiten / Features | First Seeburg model for Quadraphonic sound | |
|
|
