STD 4 / ESTD 4 - Mardi Gras (1977)
Quad Mardi Gras with extra speaker QS50
Photos courtesy Michael O.
Original Factory Photo
Photos courtesy Laurent C.
|
Bilder Seeburg Jukeboxes & Wallboxes im Archiv von Jukebox-World |
|
| Seeburg STD4 |
Copyright |
|
Seeburg STD4 / ESTD4 – Mardi Gras
•••
Seeburg – Quad Mardi Gras
•••
Seeburg HSTD4/EHSTD4 – Hideaway 160 Wahlmöglichkeiten E = Export More info on the Seeburg Quadraphonic Sound by late Anthony J. Miller |
|
|
STD 4 / ESTD 4 - Mardi Gras (1977) |
|
|
|
|
|

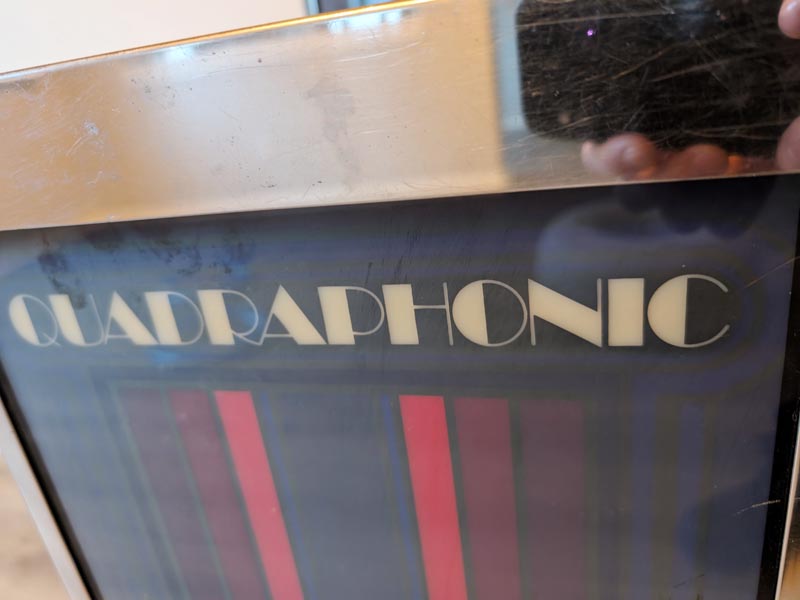

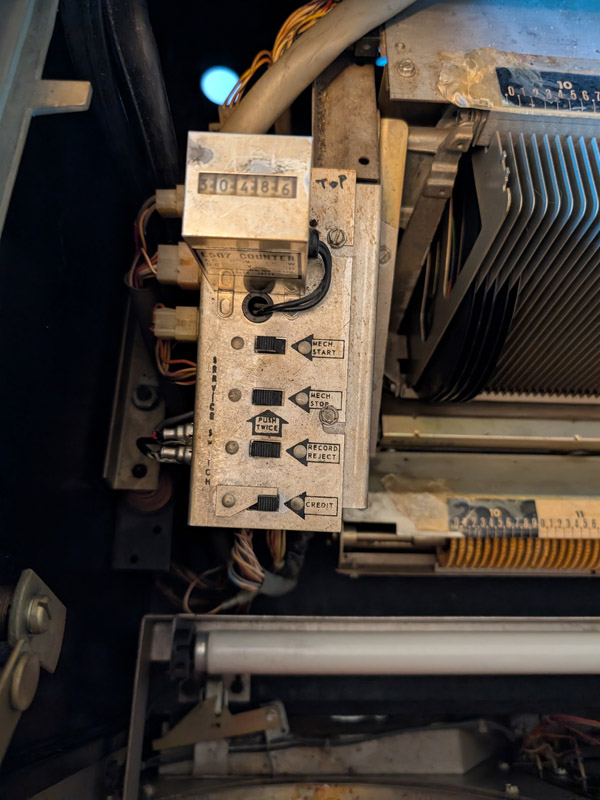

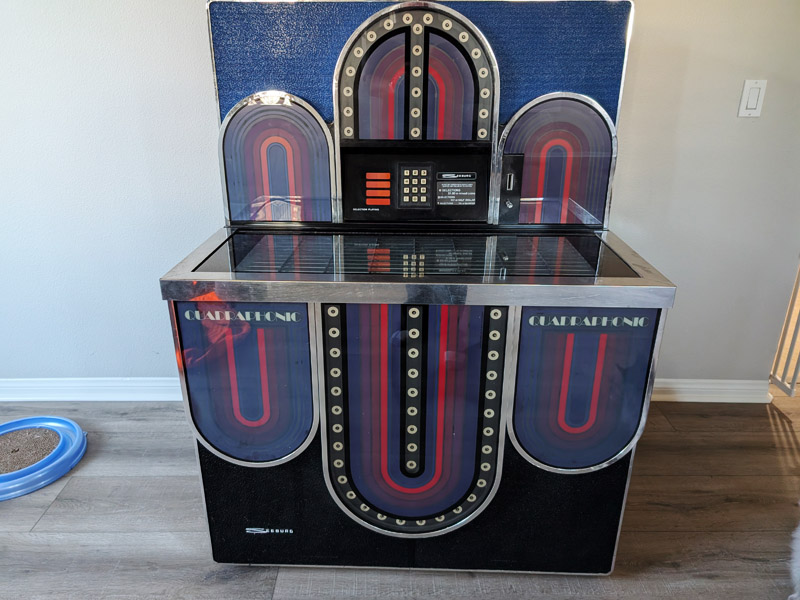

Quad Mardi Gras with extra speaker QS50 |
|
Photos courtesy Michael O.
Original Factory Photo |
|
|
|
Photos courtesy Laurent C.
|
|
|
| Technische Daten - Specifications STD4 / SQS4 | |||
| STD4 | SQS4 | HSTD4 | |
| Wahlen / Selections | 160 | 160 | 160 |
| Lampen / Lamps |
Cabinet: 2x TL 30W/36"/T8, GE #2182 (59)Credit and instruction: GE
#656 (7) Record indicator: GE #19 |
Cabinet: 2x TL 30W/36"/T8, GE #2182 (59)Credit and instruction: GE
#656 (7) Record indicator: GE #19 |
|

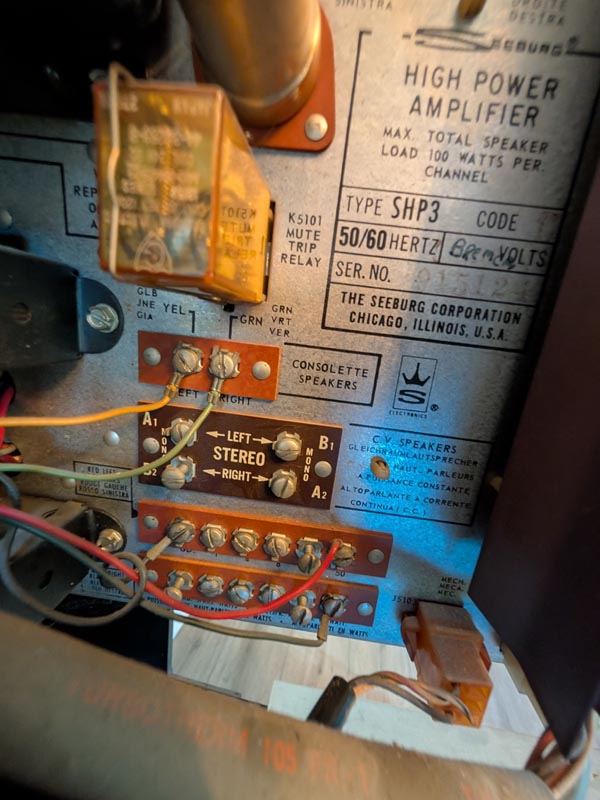

| Verstärker / Amplifier | SHP3 | SHP3 | |

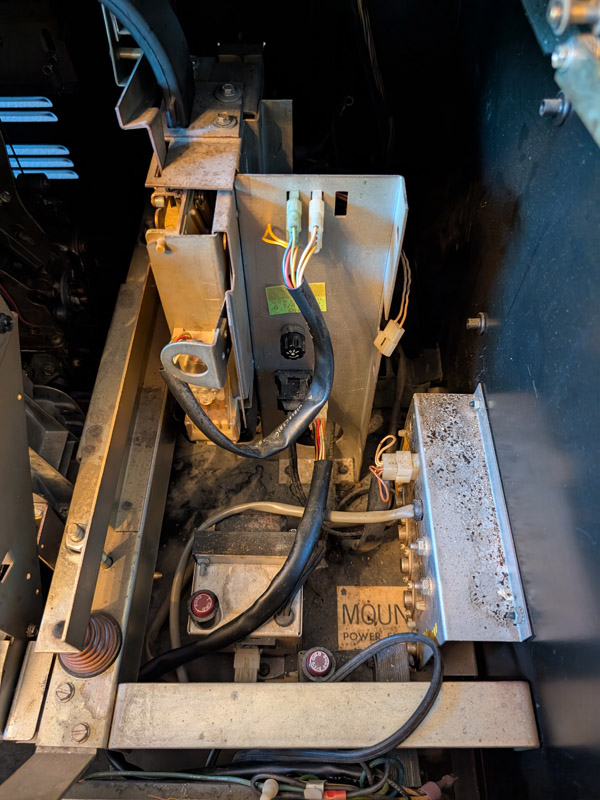

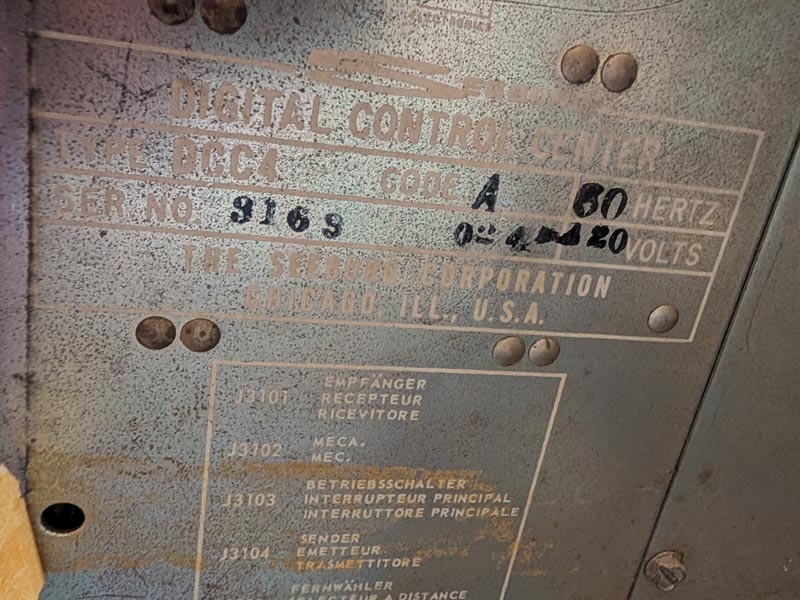

| Netzteil / Power supply | DCC42-56 | DCC42-56 | DCC42-56 |
| Kreditgerät / Credit unit | DTP1 | DTP1 | |
| Tormat | 160TM7 | 160TM7 | 160TM7 |
| Electrical Selector | DES5 | DES5 | |
| Lautsprecher / Speaker | 2x 12"
5 Ohm LF, 2x rectangular horn type HF 16 Ohm, #512983 |
||
| Mechanismus / Mechanism | 160ST28 | 160ST28 | 160ST28 |
| Tonabnehmer / Cartridge | Seeburg stereo cartridge with yellow needle | Seeburg stereo cartridge with yellow needle | Seeburg stereo cartridge with yellow needle |
| Sicherungen / Fuses | DCC:
7.5A, 3.2A, 125mA, 800 mA SAS: 2A | Mechanism: 0.5A Amplifier SHP3: 3.2 A | 2 A Power Junction: 6.25A Light Power: 1A |
DCC:
7.5A, 3.2A, 125mA, 800m A SAS: 2A | Mechanism: 0.5A Amplifier SHP3: 3.2 A | 2 A Power junction: 6.25A Light power: 1A |
|
| Schlüssel / Key | F 293 | ||
| Abmessungen / Size | 137 x
100 x 72 cm / 53-7/8 x 40 x 27-3/4" 164 kg / 364 lbs |
||
| Zubehör / Accessories |
PVCR 4 | Wallbox DEC3, DEC4 Digital Consolette power supply DCPS1K-56 Extra speaker FR50, LS50K, QS50 Dollar Bill validator DBV2K8 Income Totalizer DRITIBK6-56 Dollar Bill validator DBV2K8 SAS2 | Paging Kit TP1K Phono Audio Control PACK1 |
PVCR 4 | Wallbox DEC3, DEC4 Digital Consolette power supply DCPS1K-56 Extra speaker FR50, LS50K, QS50 Dollar Bill validator DBV2K8 Income Totalizer DRITIBK6-56 Dollar Bill validator DBV2K8 SAS2 | Paging Kit TP1K Phono Audio Control PACK1 |
PVCR 4 | Wallbox DEC3, DEC4 Digital Consolette power supply DCPS1K-56 Extra speaker FR50, LS50K, QS50 Paging Kit TP1K Phono Audio Control PACK1 |
| Besonderheiten / Features | EHSTD4-H5: Equipped for export with 235V 50 Hz. |
||
|
|
