Wurlitzer Jukebox im Archiv von Jukebox-World

Wurlitzer 3600 – Super Star (1972)

Copyright

Vorgestellt in 10/1971
Wurlitzer 3600: 200 Wahlmöglichkeiten
Wurlitzer 3610: 100 Wahlmöglichkeiten
Wurlitzer 3660: 160 Wahlmöglichkeiten

Zwei Farbvarianten: warme mandarin- und kühle aquamarin Schattierungen

Introduced in 10/1971
Wurlitzer 3600: 200 selections
Wurlitzer 3610: 100 selections
Wurlitzer 3660: 160 selections

Two colour versions: warm tangerine and cool aquamarine shades

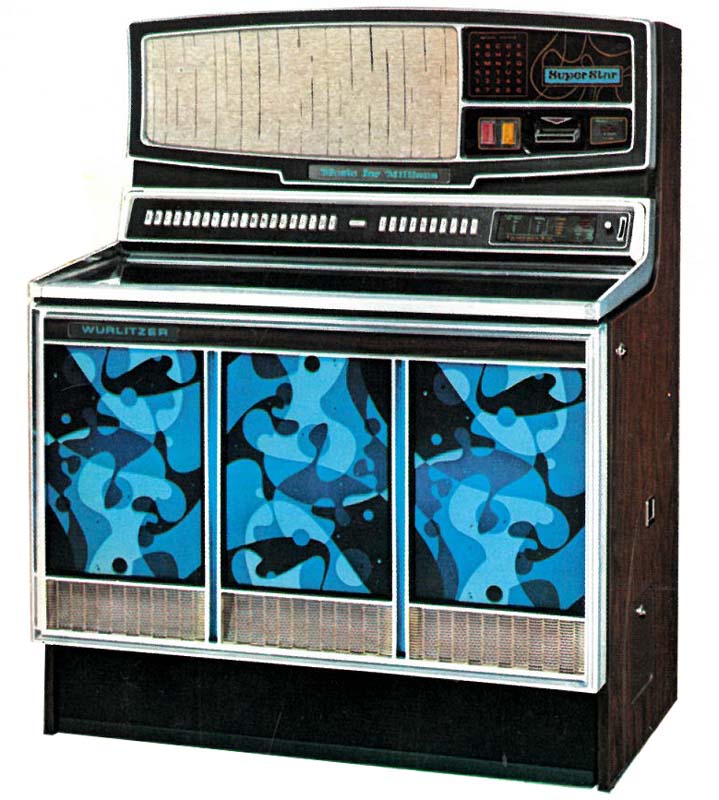

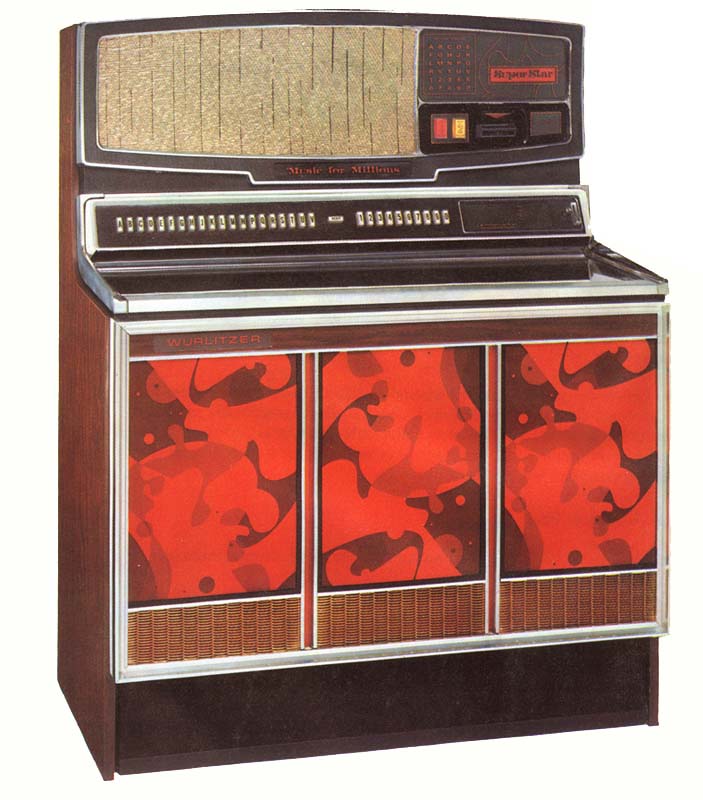

Wurlitzer 3600

Wurlitzer 3600

Wurlitzer 3600

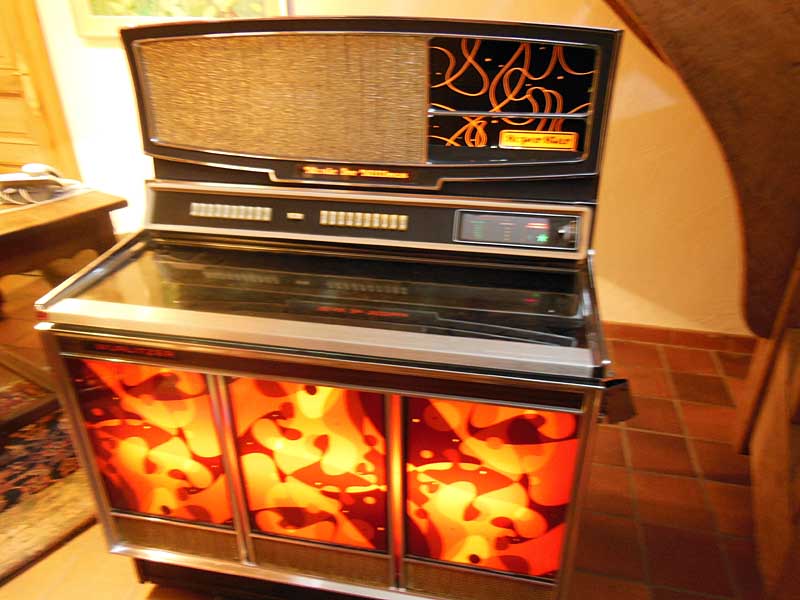

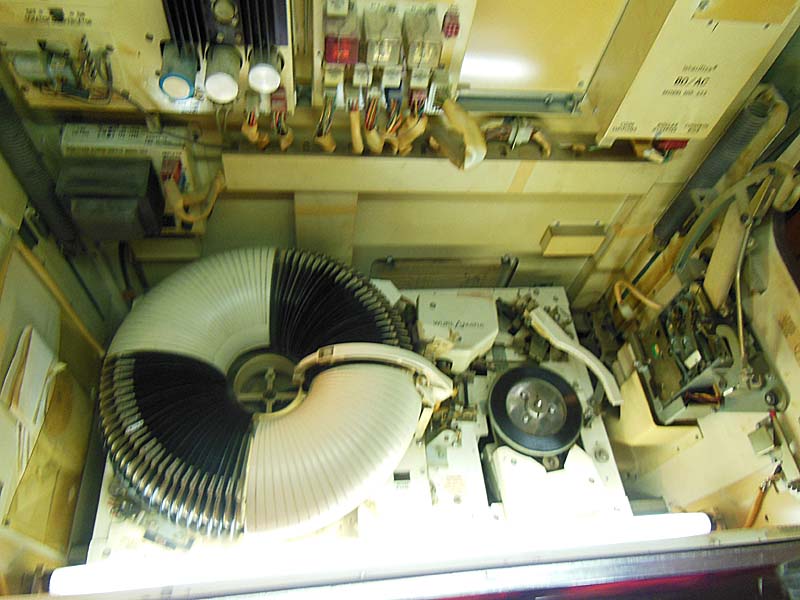

Wurlitzer 3610

Photos courtesy Michel
Wurlitzer 3610

Wurlitzer 3610





Wurlitzer 3660



– Sorry, no photo yet   –







Technische Daten - Specifications
Wahlen / Selections 100 / 160 / 200
Lampen / Lamps
Verstärker / Amplifier 553
Lautsprecher / Speaker 2x 12" lower range and 2x 6" upper range
Tonabnehmer / Cartridge Astatic 133 with needle N 51 or N 63
Sicherungen / Fuses
Schlüssel / Key RW-110
Gehäuse / Cabinet
Abmessungen / Size 132 x 102 x 65 cm
Zubehör / Accessories Booster 222B   |   Microphone Kit 220   |   Kit 219
Stepper 270 (100/200 sel.), 271 (160 sel.)   |   Wallbox 5220 / 5220A (160/200 sel.), 5225 / 5225A (100 sel.)
Extra speaker Satellite II
Besonderheiten / Feature Available in both warm tangerine and cool aquamarine shades.
"Using light control film, developed by the 3M compnay, Wurlitzer has eliminated glare around the title strips of the Super Star. Patrons must actually move up to 2 feet of the phonograph or closer to see the selections. Otherwise, the illuminated title strip holder apperas to be a solid black glass matching in color and effec a portion of the phonograph's top. From a distance of more than two feet, the brightly backlighted title strips are totally invisible." (Source: BB 10/16, 1971)


Die Angaben haben keinen Anspruch auf Vollständigkeit oder Richtigkeit. Bitte beachten Sie das Copyright!
Bei den (importierten) Boxen können im Laufe der Jahre durchaus Veränderungen vorgenommen worden sein. Copyright.
