Auf- und Ablegen der Schallplatte -
allgemeine Funktion
Modelle mit 45 rpm Mechanismen |
|
Picking up and returning the record - general
function
Models with 45 rpm mechanisms |
Im Laufwerk gibt es eine Hauptnockenwelle, die das
Auflegen und Zurücklegen der Platte steuert. Diese macht beim Auflegen
und beim Zurücklegen jeweils eine halbe Umdrehung. Eine Nocke auf der
Nockenwelle ist der Clutch Shifting Cam. Darauf läuft eine Rolle des
Clutch Shifting Lever, der über weitere Hebel die die Kupplung betätigt.
Der Clutch Shifting Cam hat zwei unterschiedlich tiefe Vertiefungen.
So lange die Rolle auf der hohen Oberfläche lauft, ist das Laufwerk im
Transfermodus, d. h. die Platte wird aufgelegt oder zurückgelegt.
Wenn die Rolle in die seichtere Vertiefung (die Play Notch) fällt, wird
die Kupplung in den Playmodus geschaltet, d. h. es wird nur mehr der
Plattenteller angetrieben. Wenn die Rolle in die tiefere Vertiefung (die
Scan Notch) fällt, schaltet die Kupplung auf den Scanmodus, d. h. das
Laufwerk fährt hin und her.
Wenn die Rolle in eine der Vertiefungen fällt, bleibt der Zustand
normalerweise erhalten, bis das Trip Solenoid anzieht.
Wenn die Schallplatte sofort wieder zurückgelegt wird, ohne daß das Trip
Solenoid anzieht, kann das nur bedeuten, daß die Rolle nicht in die
Vertiefung fällt. Es ist nun durch genaues Beobachten zu ergründen,
wodurch sie behindert wird. Der Clutch Shifting Lever wird durch eine
relativ starke Feder nach unten gezogen. Es könnte auch sein, daß diese
Feder lahm oder überdehnt ist. Ich habe auch schon einmal eine falsche
(zu schwache) Feder an dieser Stelle gefunden. |
|
There is a main camshaft in the
mechanism that controls the pick up and return of the records. This
makes half a revolution when the plate is picked up and half a
revolution when it gets returned. One cam on the camshaft is the clutch
shifting cam. A roller of the clutch shifting lever runs on it, which
actuates the clutch via additional levers. The clutch shifting cam has
two recesses of different depths.
As long as the roller is running on the high surface, the mechanism is
in transfer mode, i.e. the record is placed on or returned.
When the roller falls into the shallower notch (the play notch), the
clutch is switched to play mode, i.e. only the turntable is driven. If
the roller falls into the deeper notch (the scan notch), the clutch
switches to scan mode, i.e. the mechanism scans back and forth.
If the roller falls into one of the notches, the state is normally kept
until the trip solenoid attracts.
If the record gets returend immediately without the trip solenoid
attracting, this can only mean that the roller has not fallen into the
notch. It is now necessary to carefully observe what is interfering this.
The clutch shifting lever is pulled down by a relatively strong spring.
It could also be that this spring is lame or overstretched. I have also
found a wrong (too weak) spring at this spot.
|
|
Single wird auf- und dann sofort ohne
Abspielen zurück gelegt.
Modelle mit 200 Wahlen u. vgl.bare |
|
Record gets picked up and immediately returned
without playing.
Models with 200 selections and similar ones |
Das Problem kann sowohl mechanisch als auch
elektrisch verursacht werden.
Mechanisch: Die Laufwerke 245STxx von
Seeburg neigen dazu - wenn sie wenig bewegt werden - dass die Kupplung
bzw. die Betätigungshebel durch alte Schmierstoffe verharzen und
schwergängig sind. Das führt dazu, dass das Laufwerk vom
Plattentransport nicht in den Spielmodus kommt und die Platte gleich
wieder weggeräumt.

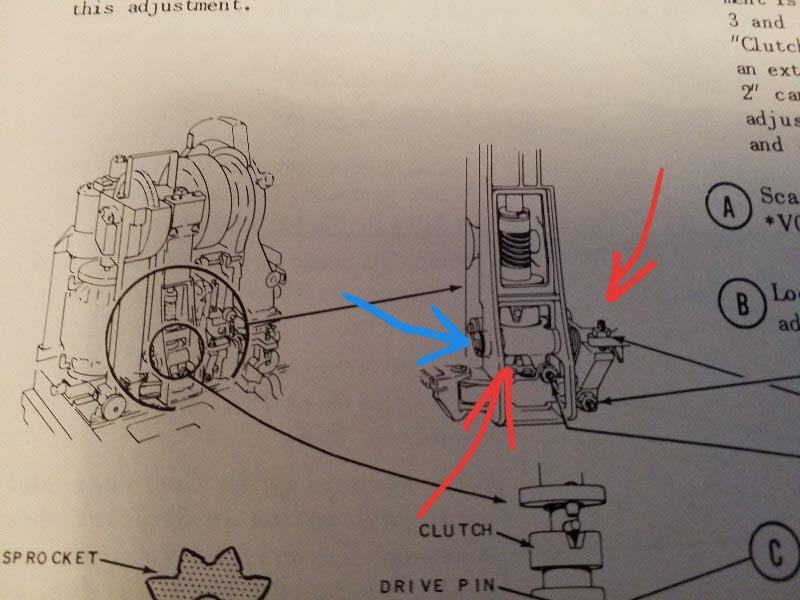

Das nachfolgende Bild zeigt die Kupplungshebel auf der rechten
Laufwerksrückseite. Die roten Pfeile zeigen auf die Hebel, die sich
leicht und unabhängig von der Achse (blauer Pfeil) bewegen sollen. Wenn
sich die Achse mit einem Hebel mitdreht ist das wahrscheinlich der
Fehler.
Damit man etwas sieht, das Laufwerk ganz nach rechts fahren, den
Mechanik-Schlitten nach vorne ziehen und die Verkleidungen abschrauben. |
|
The
problem can be caused both mechanically and electrically.
Mechanically: The Seeburg mechanisms 245STxx tend - if
they are not being played very often - to have old lubricants
that cause the clutch or the operating levers to resinify and
become stiff. As a result, the carriage does not enter play mode
and the record is being immediately returned again.
The following picture shows the clutch levers on the right rear
side of the carriage. The red arrows point to the levers that
should move easily and independently of the axle (blue arrow).
If the axle rotates with a lever, this is probably the fault.
To be able to see something, move the carriage all the way to
the right, pull the mechanism carriage forwards and unscrew the
covers.
|
![laufwerk Laufspule](http://www.jukebox-world.de/Forum/Bilder/Seeburg/Laufwerk-TripCoil.jpg)

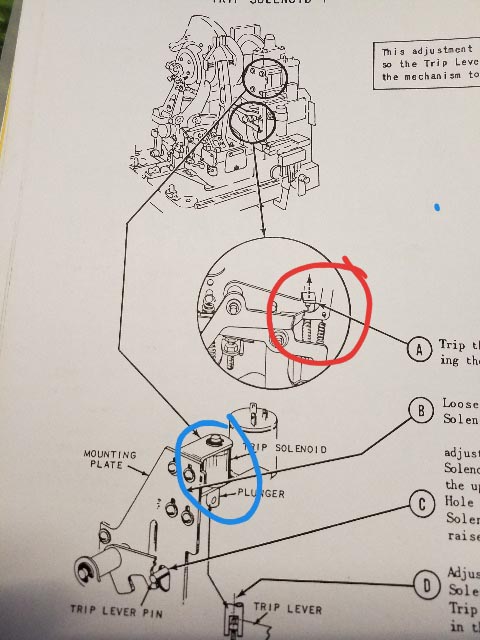

Elektrisch: Es könnte sein, dass der
Plattenendschalter (Mikroschalter) "klebt" oder defekt ist und damit die
Trip-Spule bereits jetzt statt wie normalerweise am Plattenende in
Funktion tritt und die Platte weggeräumt. Ob das der Fall ist kann man
gut beobachten wenn man die Laufwerksverkleidung abnimmt und schaut, ob
die große Spule sofort nach Absetzen des Tonarms wieder anzieht. Am
besten kann man das Arbeiten der Spule sehen, wenn man auf den Hebel
schaut (roter Kreis).
ACHTUNG IM BETRIEB: Finger weg! 115Volt AC sind in
der Nähe!
|
|
Electrically: It could be that the record cut-off switch (microswitch)
is "stuck" or defective and therefore the trip coil is already
now in operation instead of at the end of the record - which is
the normal case - and the record is returned. Whether this is
the case can be easily observed by removing the mechnaism cover
and checking whether the large coil picks up again immediately
after the tonearm is set down. The best way to see if the coil
is working is to look at the lever (red circle).
CAUTION DURING OPERATION: Hands off! 115V
AC are in the vicinity! |
![laufwerk 245STxx](http://www.jukebox-world.de/Forum/Bilder/Seeburg/Laufwerk-Kupplungshebel.jpg) |
|
Single wird kurz angespielt, zurückgelegt,
wieder angespielt usw. Modelle M100A - SMC3 |
|
Record is played briefly, returned, played
again, etc.
Models M100A - SMC3 |
Eine ausführliche Erläuterung (in Englisch)
dieses Problems finden Sie auf der Seite von Tony Miller †, ehemaliger
Seeburg Techniker:
Single wird kurz angespielt, zurückgelegt, wieder angespielt usw.
- für Modelle M100A - SMC3
|
|
A detailed explanation of this
problem can be found on the website of Tony Miller †, former Seeburg
technician:
Record
is played briefly, returned, played again, etc. - for models M100A -
SMC3 |
|
Die Platte wird aus dem Magazin genommen,
für einen kurzen Moment angespielt und dann wieder zurückgelegt. Danach
geht das Laufwerk in Ruheposition bzw. wiederholt den Vorgang. Modelle
mit SCC9. |
|
The record gets picked up
from the magazin, played for a short moment and then returned. After
that the carriage scans into its rest position or repeats this process.
Models with SCC9. |
Das "Trip Relay", das
oben auf dem Control Center (SCC9) aufgesteckt ist, sollte gründlich
überprüft werden. Erfahrungsgemäß liegt der beschriebene Fehler an
verschmutzten Kontakten dieses Relais'. Ersatz
für das Trip-Relais findet man bei Stamann Musikboxen.
Die Tür mit den beiden Lautsprechern herausnehmen, um an das sog.
Netzteil (Solid State Control Center SCC9).
Es muss eine Verriegelung gelöst werden - dann kann man die SCC
herausziehen. In der Mitte ist das "Trip Relay" aufgesteckt (gesichert
mit einem Federbügel) - siehe Bild. Das Relais vorsichtig abziehen, die Schutzkappe
lösen und dann die Kontakte reinigen. Dies geschieht am besten mit einem
Radiergummi oder Leder bzw. einer Kontaktfeile, in keinem Fall aber mit
Schleifpapier! Letzteres zerstört die Kontakte.
Bitte beachten, dass auch
der Tonarmendschalter richtig justiert ist.
|
|
The "Trip
Relay", which is plugged into the top of the Control Center
(SCC9), should be checked thoroughly. Experience has shown that
the fault described is due to dirty contacts on this relay. A
replacement for the trip relay can be found at Stamann
Musikboxen.
Remove the door with the two loudspeakers in order to access the
so-called power supply unit (Solid State Control Center SCC9).
A latch must be released - then the SCC can be pulled out. The
"Trip Relay" is plugged into the center (secured with a spring
clip) - see picture. Carefully pull off the relay, remove the
protective cap and then clean the contacts. This is best done
with an eraser or leather or a contact burnisher, but never with
sandpaper! The latter will destroy the contacts.
Please ensure that the tonearm limit switch is also correctly
adjusted.
|
![SCC9](http://www.jukebox-world.de/Forum/Bilder/Seeburg/SCC9.jpg)
|
|
Der Schlitten
fährt nach der Wahl zur entsprechenden Single, legt sie auf und zurück, legt sie wieder auf
und zurück ohne sie abzuspielen.
Modelle LS1 und andere |
|
After the selection, the carriage moves to the
selected record, picks up and returns it, picks up and returns again
without playing it.
Models LS1 and similar |
Wie weiter oben beschrieben sollte das sog.
Trip-Relais auf der Steuereinheit (SCC, DCC) kontrolliert und ggfs.
gereinigt werden. Bleibt es jedoch dauerhaft angezogen, sobald es einmal anzieht, gibt
es nicht viele Fehlermöglichkeiten.
Das Trip Relay wird durch den
Thyristor SCS eingeschaltet, sobald eine gewählte Platte gefunden wird.
Der Thyristor bleibt leitend, solange Strom durch ihn fließt. Um den
leitenden Zustand zu beenden, muss daher der Strom durch den Thyristor
unterbrochen werden. Dafür gibt es einen Stromkreis (Kontakt 1E1 des
Trip Relay und Kontakt 3M1 auf dem Laufwerk), der den Thyristor
kurzschließt. Kontakt 1E1 wird geschlossen, wenn das Trip Relay anzieht,
Kontakt 3M1 ist im Scan Modus geschlossen. Wenn eine gewählte Platte
gefunden wird, schaltet der Thyristor das Trip Relay ein (und damit
wird auch das Trip Spule am Laufwerk aktiviert). Sobald das Trip
Relay eingeschaltet ist, fließt der Strom nicht mehr über den Thyristor,
sondern durch den oben genannten Stromkreis 1E1 und 3M1, der Thyistor
sperrt daher wieder. In der Folge öffnet dann der Kontakt 3M1 und das
Trip Relay fällt ab.
Wenn der Kontakt 3M1 verschmutzt oder schlecht justiert ist, kann es zu
dem beschriebenen Fehler führen. Der Kontakt 3M1 ist der unterste
Kontakt auf dem großen Kontaktsatz vorne oben auf dem Laufwerk. Er muss
geschlossen sein, wenn das Laufwerk im Scan-Modus ist. |
|
As described above, the
so-called trip relay on the control unit (SCC, DCC) should be checked
and cleaned if necessary. However, if it remains permanently energized
once it has been energized, there are not that many possible faults.
The trip relay is activated by the SCS thyristor as soon as a selected
record is found. The thyristor remains conductive as long as current
flows through it. To terminate the conductive state, the current through
the thyristor must therefore be interrupted. For this purpose, there is
a circuit (contact 1E1 of the trip relay and contact 3M1 on the carriage)
which short-circuits the thyristor. Contact 1E1 is closed when the trip
relay is energized, contact 3M1 is closed in scan mode. When a selected
record is found, the thyristor activates the trip relay (and thus the
trip solenoid on the carriage is also activated).
As soon as the trip relay is activated, the current no longer flows
through the thyristor, but through the above-mentioned circuit 1E1 and
3M1, so the thyristor blocks again. As a result, contact 3M1 opens and
the trip relay de-energizes.
If contact 3M1 is dirty or poorly adjusted, this can lead to the error
described. Contact 3M1 is the lowest contact on the large contact set at
the top front of the carriage. It must be closed when the carriage is in
scan mode
|
|
Nach dem Abspielen
der Platte wird diese nicht mehr automatisch
zurück gelegt. Erst wenn der Knopf an der Fernbedienung (reset) gedrückt
wird, wird die Platte zurück gestellt.
Modelle ab S100 und SS160 (1966/67) bis E100-78 (1978). |
|
After playing the record it does not get
returned into the magazin automatically. Only when pushing the reset
button at the remote volume control it gets returned.
Models S100 and SS160 (1966/67)
up to E100-78 (1978). |
Es hört sich so an, als
ob der Magnet vom Tonarm-Endschalter "wandern" gegangen ist. Der
Endschalter (das durchsichtige Plastikteil links unten am Tonarm) ist
ein
Reed Kontakt, der durch Magnetismus bewegt wird. Der Magnet dazu
sitzt genau gegenüber (etwa 7x 4mm).
Oft lässt nach der langen Zeit der Kleber nach und der Magnet rutscht
runter in die Mechanik bzw. hält sich da Irgendwo fest.
Weitere Hilfe finden Sie auf der Seite von
Tony Miller:
Single wird nicht zurückgelegt - weder automatisch noch durch
Betätigen des Löschknopfes noch über den Fernregler. |
|
It sounds as if the magnet of
the tonearm cut-off switch has "wandered" somehow. The cut-off switch (the
transparent plastic part at the bottom left of the tonearm) is a
reed contact that gets moved by
magnetism. The magnet is located exactly opposite (approx. 7x 4mm).
The glue often wears off after a long time and the magnet slips down
into the mechanism or gets stuck somewhere.
You can find further help on
Tony Miller's website:
Cannot reject record,
either automatically nor from the reject switch on the back of
the cabinet, or from the optional PRVC. |
|
Es wird immer
die gleiche Single abgespielt bis der Reject-Taster betätigt wird.
Alle 45 rpm Modelle |
|
Always the same record gest played again until
the cancel button gets pushed. All 45 rpm models |
Das ist vermutlich ein mechanisches Problem.
Über dem Hebelwerk für die Kupplung gibt es den Safety Lever. Das ist
ein horizontaler Bolzen etwa in Höhe des Plattentellers, der nach links
(von hinten gesehen) geschoben wird, während die Platte in
Spielposition gehoben bzw. ins Magazin zurückgelegt wird. Wenn die Platte wieder im
Magazin liegt, wird der Safety Lever losgelassen und muss mit Federkraft nach rechts
gehen. Wenn dabei die Platte noch nicht ganz im Magazin liegt (weil sie
irgendwo hängen geblieben ist) oder wenn der Bolzen schwergängig ist,
fällt der Hebel am linken Ende auf die Rolle und verhindert, dass die
Kupplung in den Scan-Modus umschalten kann. Die Platte wird daher erneut
hochgehoben und abgespielt.
Vermutlich reicht es, den Safety Lever mit zugehörigen Teilen mit einem
Sprühöl einzusprühen (z.B.
Ballistol), um ihn wieder leichtgängig zu machen. Ansonsten schafft
eine gründliche Reinigung Abhilfe. |
|
This is presumably a mechanical
problem. There is the safety lever above the lever mechanism for the
clutch. This is a horizontal bolt at about the height of the turntable,
which is pushed to the left (seen from the rear) while the records are
picked up into playing position or returned into the magazine.
When the record is back in the magazine, the safety lever gets released
and must move with spring force to the right. If the record is not yet
fully in the magazine (because it has got stuck somewhere) or if the
bolt is stiff, the lever falls onto the roller at the left end and
prevents the clutch from switching to scan mode. The record is therefore
picked up again and played again.
It is probably sufficient to spray the safety lever and associated parts
with a spray oil (e.g. Ballistol) to make it move smoothly again.
Otherwise, thorough cleaning will help.
|
|
Alle Singles werden ohne Wahl automatisch nacheinander
gespielt, erst die A-, dann die B-Seiten. Die Serviceschalter bewirken
nichts. Bei Wahl über Tastatur hört man nach der dritten Ziffer ein
Relais klicken.
Modelle USC2 und vergleichbare Modelle |
|
All records get played automatically in a row,
first the A- and then the B-sides. The service switch don't have an
effect. When selecting via the keyboard a clicking by a relais can be
heard after the third digit.
Models USC2 and similar |
Vermutlich wurden mit
Hilfe des
Batterietricks alle 160 Titel vorgewählt und diese werden nun
abgespielt. Wenn alle Titel abgespielt wurden, sollte das Laufwerk in
die Parkposition fahren.
Das Klick nach Eingabe der dritten Ziffer ist normal. Es ist die Spule auf der Scan Control
Unit, die den Suchlauf steuert. Es ist ein
Hinweis darauf, dass die Elektronik eine Wahl erkannt hat. Allerdings ist
es möglich, dass die Wahl trotzdem nicht eingeschrieben wurde.
Das ist die Funktion der Service Schalter:
-
Setzt / Mech.
Start:
startet den Laufwagen, der einmal hin und her fährt und dann rechts
stoppt. Für den normalen Spielbetrieb muß der Schalter auf "No"
stehen.
-
Aus / Mech. Stop:
durch zweimaliges Betätigen bleibt der Laufwagen stehen
-
Plattensperre / Record Reject:
die gerade gespielte Single wird unterbrochen und zurückgelegt
-
Kredit / Credit:
gibt ein Spiel ohne Münzeinwurf frei, werksseitig in Höhe eines
US-10 Cent Kredits
-
SELECTION PASS
(NO / YES):
Auf NO stehend werden der Read Out Impuls unterdrückt
und eventuell gesetzte Wahlen weder ausgelesen noch gelöscht.
Auf YES stehend kann ein Suchlauf mittels MECH START gestartet werden,
nicht aber über die Tastatur.
Bevor nun irgendwelche
Reparaturen durchgeführt werden können, müssen alle gespeicherten
Wahlen gelöscht werden. Das geschieht normalerweise durch das Abspielen.
Schneller geht es, die Impulsleitung (Cinchstecker) vom
Digital Control Center abzuziehen und einen Suchlauf zu starten (Serviceschalter oder durch die Wahl eines
Titels). Wenn die
Impulsleitung abgesteckt ist, werden die Wahlen zwar gelöscht aber nicht
abgespielt. Wenn das Laufwerk danach in die Parkposition fährt, sollten
alle Wahlen gelöscht sein. Dann die Impulsleitung wieder einstecken und
einen weiteren Suchlauf mittels Serviceschalter starten. Das Laufwerk
darf jetzt nur zweimal hin und herlaufen.
Sollte das nicht der Fall sein, ist die wahrscheinlichste
Fehlermöglichkeit eine schlechte Masseverbindung zwischen Tormat und
Impulsverstärker.
Dazu eine genauere Betrachtung der Vorgänge beim Auslesen: wenn ein
(durch die Elektronik genau definierter) Strom-Impuls über die
Tormat-Kontakte durch einen Magnetkern geschickt wird, wird ein
Spannungsimpuls in der Impulsleitung induziert. Dieser Impuls ist aber
zu klein, um den Thyristor (Impulsverstärker) zu zünden. Wenn der
Magnetkern durch den Stromimpuls ummagnetisiert wurde, ist der
entstehende Spannungsimpuls wesentlich höher und kann den Thyristor
zünden.
Denkbar, aber eher unwahrscheinlich ist noch eine zu hohe
Auslesespannung sowie ein Fehler im Impulsverstärker.
|
|
Presumably all 160 tracks have
been preselected using the
battery trick and these are now being played. When all the tracks
have been played, the carriage should scan into its park position.
The click after entering the third digit is normal. It is the solenoid
on the scan control unit that controls the scan. It is an indication
that the electronics have recognized a selection. However, it is
possible that the selection has not been entered.
This is the function of the service switches:
-
Mech. Start:
Starts the carriage, which moves back and forth once and then stops
on the right. The switch must be set to "No" for normal playing
operation.
-
Mech. Stop:
By pressing twice, the carriage stops.
-
Record Reject:
The record currently playing is interrupted and returned.
-
Credit:
Releases a selection without inserting a coin, factory-set to the
amount of a US 10 cent credit.
-
SELECTION PASS (NO /
YES):
If set to NO, the read-out pulse is suppressed and any selections
that may have been set are neither read out nor deleted.
When set to YES, a search can be started using MECH START, but not
via the keyboard.
Now, before any repair can be
perfomed, all saved selections must be deleted. This is normally done by
playing them. It is faster is to disconnect the pulse line (cinch plug)
from the digital control center and start a search run (with the service
switch or by selecting a title). If the pulse line is disconnected, the
selections are deleted but not played. If the carriage then moves to the
park position, all selections should be deleted. Then plug the pulse
line back in and start another search run with the service switch. The
carriage should now only scan back and forth twice.
If this is not the case, the
most likely fault possibility is a poor ground connection between the
tormat and the pulse amplifier.
Let's take a closer look at what happens during readout: When a current
pulse (precisely defined by the electronics) is sent through a magnetic
core via the Tormat contacts, a voltage pulse is induced in the pulse
line. However, this pulse is too small to ignite the thyristor (pulse
amplifier). If the magnetic core has been remagnetized by the current
pulse, the resulting voltage pulse is much higher and can ignite the
thyristor.
It is also conceivable, but rather unlikely, that the read-out voltage
is too high or that there is a fault in the pulse amplifier.
|
Die Angaben haben keinen
Anspruch auf Vollständigkeit oder Richtigkeit.
Bei den (importierten) Boxen können im Laufe der Jahre durchaus
Veränderungen vorgenommen worden sein. Copyright.
<<< zurück
zur Archiv-Übersicht
|
Ein Service von
![Jukebox-World Jukeboxen Jukeboxes Jukeboxparts Jukebox parts](http://www.jukebox-world.de/img/logo_jukebox_world.gif)
Copyright by
Stamann Musikboxen |
