Vorab genereller Hinweis:
-
NIEMALS
die Sicherungen durch höhere ersetzten oder gar überbrücken. Achten Sie beim Ersetzen der Sicherungen
immer auf die richtigen Werte und Auslösezeit. Dieses ist immer auf der
jeweiligen Komponente angegeben, entweder aufgedruckt oder manchmal auf
der Sicherungskappe. Eine falsche Absicherung kann gravierende Folgen
haben: durchgebrannte Trafos, Motoren und Spulen. Ersatz zu finden ist
oft schwer - und niemals günstig.
|
|
A general note in advance:
-
NEVER
replace the fuses with higher ones or even
bypass them
When replacing fuses, always make sure to use correct values and tripping
time. These are always indicated on the respective component or sometimes on
the fuse cap. A wrong fuse can cause serious consequences: Blown
transformers, motors and coils. Finding replacements is often difficult -
and will never be cheap.
|
Klappergeräuche im
Laufwerk: im Laufwerk ist ein Klappergeräusch. Es ist vom
Suchvorgang bis zum Zurücklegen der Single zu hören.
Alle 45 rpm Modelle inkl. M100A |
|
Rattling noise in carriage: There is a rattling
noise in the carriage. It can be heard from the search process until the
record gets returned.
All 45 rpm models incl. M100A |
Hierfür kommen mehrere Ursachen in Frage:
-
Mechanische Defekte wie lose Teile sollten
ausgeschlossen werden
-
Gummikupplung zwischen Motor und Schnecke: diese
sollte schön weich und geschmeidig sein. Ist die hart/porös, kann das zu
Nebengeräuschen führen.
Funktion und Position der Motorkupplung (45 RPM-Modelle; auch
M100
A)
-
Öffnet die Motorkupplung durch ein verharztes
Getriebe nicht weit genug, streift sie über den Mitnehmerbolzen, was man
als ein rhythmischen Klacken hört.
-
Unter dem Motor befindet sich ein Gummipuffer. dieser
sollte weich sein, um die Vibrationen des Motors zu absorbieren.
-
die Gummilager auf und unter dem Motor sollten
ebenfalls weich sein, um die Vibrationen des Motors zu absorbieren.
-
die Gummis im Plattenteller sollten weich sein, um
Nebengeräusche und Tonschwankungen zu verhindern.
|
|
There are several possible
causes for this:
-
Mechanical defects such as
loose parts should be excluded.
-
The rubber coupling between
the motor and worm:
This should be soft and smooth. If it is hard/porous, this can lead
to background noise.
Function and position of the motor coupling (45
RPM models; also M100A)
-
If the motor clutch does not open far
enough due to a gummy gear, it will rub against the driving pin,
which can be heard as a rhythmic clacking noise.
-
There is a rubber bumper
below the motor.
This should be soft to absorb the vibrations of the motor.
-
The rubber mounts on top
and at bottom of the motor
should also be soft to absorb the vibrations of the motor.
-
The rubbers in the turntable should be
soft to prevent background noise and sound fluctuations.
|
|
Schlitten fährt ständig hin und her
- alle Modelle mit Tormat |
|
Carriage scans continously - all models
with Tormat |
Bei meiner Seeburg Golden
Jet (S100, ES100) fährt der Schlitten nach dem Wählen ständig hin und her,
aber findet keine. Ansonsten funktioniert alles. Wird während der
Fahrt ein Hebel gezogen, nimmt er die Platte und spielt sie ab. Danach
legt er sie zurück und fährt wieder hin und her. Wenn er zweimal hin und
her gefahren ist hält er automatisch an.
Antwort: Das Netzteil sollte überholt werden und alle Kontakte
am Laufwerk gereinigt werden. Hierbei ist auch der Kontakte hinter dem
Motor wichtig, da dieser für die Wahl sehr wichtig ist. Danach sollte
kontrolliert werden, ob alle Kontakte richtig schalten. Die Kontakte des
Tormats sollten
ebenfalls gereinigt werden, danach mit etwas
Ballistol
(o.ä.) pflegen. Nun
sollte es wieder funktionieren. |
|
On my Seeburg Golden Jet (S100,
ES100), the carriage constantly moves back and forth after selection but
does not find any. Otherwise everything works. If a lever is pulled
while scanning, it picks up the record and plays it. It then returns it
and moves back and forth again. When it has moved back and forth twice,
it stops automatically.
Answer:
The power supply unit should be overhauled and all contacts on the
carriage should be cleaned. The contacts behind the motor are also
important here, as this is very important for the selection. Then check
that all contacts are switching correctly. The contacts of the
Tormat
should also be cleaned and then treated with a
little Ballistol (or similar). Now it should work again. |
|
Nach Wahl
fährt Schlitten ständig hin und her, die Röhre 5U4 hat keine Heizspannung - ab
V200 (1955) |
|
After selection the carriage scans continously,
valve (tube) 5U4 doesn't have any heating voltage - from V200 (1955) |
Eine Seeburg AY nimmt
seit einiger Zeit keinen Titel mehr an. Das heißt, man kann die Tasten
drücken und der Schlitten fährt los. Es wird aber keine Single genommen
und gespielt. Zudem fällt auf, dass die Röhre 5U4GB keine Heizpannung
mehr hat. Was kann die Ursache sein?
Antwort: dieser Fehler kann verschiedene Ursachen haben. Da alle
Seeburg Modelle von der V200 (1955) - STD4 (1978) mit einem
Magnetkernspeicher (TORMAT)
für die Wahlspeicherung arbeiten, ist die Fehlersuche nicht ganz
einfach. Man kann nämlich nicht sehen, ob eine Wahl gespeichert wurde.
Als erstes ist zu prüfen, ob das Laufwerk mechanisch funktioniert.
Mechanische Funktion
des Laufwerkes: Rechts neben dem Tonarm und hinter dem großen
Kontaktsatz gibt es einen Metallhebel. Wenn man diesen bei laufendem
Laufwerk hoch drückt, muß das Laufwerk anhalten und eine Platte spielen.
Wenn das funktioniert, ist das Laufwerk mechanisch in Ordnung, der
Fehler liegt dann an der TORMAT-Steuerung. Die TORMAT-Einheit selbst ist
glücklicherweise fast nie kaputt, oftmals sind die Kontakte oxidiert.
Die TORMAT-Steuerung besteht aus drei Teilen. Die häufigsten Fehler:
-
Write-In-Kontakte:
für das Einschreiben sind die WRITE IN - Kontakte in der Credit-Unit
verantwortlich. Das sind fingerförmige Doppelkontakte, die auf einem
Hebel mit einem Isolierteil und einem Metallteil liegen. Dieser Hebel
wird durch eine Spule (Subtract Coil) verschoben, so daß das Metallteil
unter die Kontakte geschoben wird und diese verbindet. Möglicherweise sind zwei von diesen Kontaktsätzen (für Standardwahl und für EP-Wahl) in
der Musikbox vorhanden.
Diese Kontakte und die Metallplatten sind zu reinigen
und die Kontakte müssen leicht gegen den Hebel drücken.
-
Read-Out: das Auslesen (READ OUT) erfolgt über die Kontakte auf
der Unterseite der TORMAT-Einheit. Der Kontaktblock, der mit dem
Laufwerk bewegt wird, hat vier gefederte Kontaktstifte, die mit dünnen
Drähten angeschlossen sind. Diese Drähte können abgerissen sein. Der
Kontaktblock könnte sich gelockert haben, so daß die Kontaktstifte die
Kontakte auf der TORMAT-Einheit nicht mehr berühren können. Der Strom zu
diesen Kontakten kommt aus dem Laufwerk und zwar über den
links-rechts-Umschalter (REVERSING SWITCH) ganz vorne und über den
DETENT SWITCH hinter dem Motor. Besonders dieser hat gerne
Kontaktprobleme.
Die seitliche Einstellung der
Tormat-Einheit ist ebenfalls sehr wichtig für die Funktion. Wenn der
DETENT SWITCH (auf dem Laufwerk, hinter dem Motor ganz unten)
geschlossen ist, muss der Kontaktstift genau mittig auf der
entsprechenden Kontaktniete stehen. Der Detent-Switch wird über
einen Hebel von einem Sternrad betätigt. Dieser Hebel verursacht das
rhythmische Klicken, wenn das Laufwerk hin und herläuft.
Der Kontakt erzeugt die Read-Out-Impulse. Er muss jedes Mal kurz
einschalten, wenn der Kontaktblock auf einem Kontakt der Tormat-Einheit steht;
heißt, bei einmal Hin- und Herlaufen 200 Mal.
Die Spannung wird in der Steuerzentrale erzeugt (Gleichrichterröhre 6X4)
und stabilisiert zwei Stabilisatorröhren (OA2). Diese Stabilisatorröhren
leuchten im Betrieb bläulich/violett. Wenn das Laufwerk läuft, müssen
sie periodisch, im gleichen Takt wie das Geräusch, das vom Detent Switch
erzeugt wird, flackern. Wenn sie das tun, dürfte der READ OUT - Kreis in
Ordnung sein.
Sog. Batterietest zum Testen des
Read-Out-Vorgangs - Geräte mit Röhrenbestückung: den Cinchstecker
vom Impulsverstärker abziehen und kurzzeitig den Minuspol einer 1,5
V-Batterie mit Masse und den Pluspol mit dem Mittelstift
des Steckers verbinden. Dadurch werden alle Titel gewählt. Danach die Leitung
wieder anstecken und eine Platte wählen (um den Scanvorgang zu starten).
Der Serviceschalter muß in PLAY-Position sein. Jetzt müßten der Reihe
nach alle Titel gespielt werden. Wenn das der Fall ist, ist der Read Out-Vorgang einschließlich Impulsverstärker in Ordnung und der
Fehler liegt am Write In Vorgang.
Sog. Batterietest zum Testen des
Read-Out-Vorgangs - Geräte mit Halbleiterbestückung: den Cinchstecker vom Impulsverstärker abziehen
und kurzzeitig den Minus-Pol der Batterie mit dem Mittelstift des
Steckers und den Pluspol mit Masse verbinden.
Dadurch werden alle
Titel gewählt. Danach die Leitung wieder anstecken und eine Platte
wählen (um den Scanvorgang zu starten). Der Serviceschalter muß in PLAY
- Position sein. Jetzt müßten der Reihe nach alle Titel
gespielt werden. Wenn das der Fall ist, ist der Read Out - Vorgang
einschließlich Impulsverstärker in Ordnung und der Fehler liegt am Write-In-Vorgang.
-

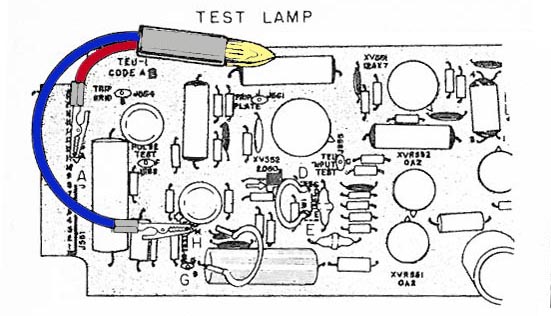

Impulsverstärker
(SENSE): aus der TORMAT-Einheit kommt ein dünnes Kabel mit einem
Cinch-Stecker, der am Impulsverstärker angesteckt ist. Der
Impulsverstärker arbeitet mit einer 12AX7 Röhre, die das Thyratron
(2050) ansteuert. Die 2050 ist im Prinzip ein Schalter, der die
Trip-Spule im Laufwerk betätigt.
Wenn man die 12AX7 bei laufendem Laufwerk
herauszieht, muß die 2050 aufleuchten, das Laufwerk muß anhalten und
eine Platte spielen. Wenn das nicht passiert, ist vermutlich die 2050
defekt. Es könnte auch die 12AX7 defekt sein, was aber nicht sehr
wahrscheinlich ist.
|
|
A Seeburg AY has not accepted a
title for some time now. This means pressing the pushbuttons is
possible and the carriage will start. However, no record is taken and
played. It is also noticeable that the 5U4GB tube no longer has any
heating voltage. What could be the cause?
Answer: This error can have various causes. Since all Seeburg
models from the V200 (1955) - STD4 (1978) work with a magnetic core
memory (TORMAT))
for the selection memory, troubleshooting is not that easy. That is to
say it is not possible to see whether a selection has been stored. The
first thing to check is whether the carriage is working mechanically.
Mechanical function of the
carriage: There is a metal lever to the right of the tone arm and
behind the large set of contacts. If you push this lever up while the
turntable is running, the turntable must stop and play a record. If this
works, the carriage is mechanically OK, the fault is then located in the
TORMAT control unit. Fortunately, the TORMAT unit itself is almost never
broken, often the contacts are oxidized. The TORMAT control unit
consists of three parts. The most common faults:
-
Write-in contacts:
The WRITE IN contacts in the credit unit are responsible for writing
in. These are finger-shaped double contacts that lie on a lever with
an insulating part and a metal part. This lever gets moved by the
subtract coil so that the metal part will be pushed under the
contacts and connects them. There are probably two of these set of
contacts (for standard selection and for EP selection) located in
the jukebox.
These contacts and the metal plates must be cleaned and the contacts
must press easily against the lever.
-
Read-Out: The READ
OUT takes place via the contacts on the bottom side of the TORMAT
unit. The contact block, which is moved with the carriage, has four
spring-loaded contact pins that are connected with thin wires. These
wires may be broken. The contact block may have loosened so that the
contact pins can no longer touch the contacts on the TORMAT unit.
The current to these contacts comes from the carriage via the
left-right REVERSING SWITCH at the very front and via the DETENT
SWITCH behind the motor. The latter in particular tends to have
contact problems.
The lateral adjustment of the Tormat unit is also very
important for the function. When the DETENT SWITCH (on the carriage,
behind the motor at the bottom) is closed, the contact pin must be
exactly centered on the corresponding contact rivet. The detent
switch is operated by a lever on a star wheel. This lever causes the
rhythmic click when the carriage scans back and forth. The contact
generates the read-out pulses. It must switch on briefly each time
the contact block is on a contact on the Tormat unit; means during
one back and forth scan the contact gets closed 200 times.
The voltage is generated in the control unit (rectifier tube 6X4)
and stabilizes two stabilizer tubes (OA2). These stabilizer tubes
glow bluish/violet during operation. When the carriage is scanning,
they should flicker periodically at the same rate as the noise being
generated by the detent switch. If they do this, the READ OUT
circuit should be OK.
So called battery test to test the read-out sequence -
tube-equipped models:
Disconnect the RCA plug from the pulse amplifier and briefly connect
the negative terminal of a 1.5 V battery to earth and the positive
terminal to the center pin of the plug. This will select all titles.
Then re-connect the cable and select a record (to start the scanning
process). The service switch must be in the PLAY position. All
titles should now be played in sequence. If this is the case, the
Read Out process including the pulse amplifier is OK and the fault
is in the Write In Sequence.
So called battery test to test the read out sequence -
models with semiconductor components:
Disconnect the RCA plug from the pulse amplifier and briefly connect
the negative pole of the battery to the center pin of the plug and
the positive pole to ground. This will select all titles. Then
re-connect the cable and select a record (to start the scanning
process). The service switch must be in the PLAY position. All
titles should now be played in sequence. If this is the case, the
read-out sequence including the pulse amplifier is OK and the fault
is in the Write- In-Sequence.
-
Pulse amplifier (SENSE):
A thin cable with an RCA plug comes out of the TORMAT unit and is
connected to the pulse amplifier. The pulse amplifier works with a
12AX7 valve that triggers the thyratron (valve 2050). The valve 2050
is basically a switch that activates the trip coil in the carriage.
If you pull out the 12AX7 while the carriage is scanning, the 2050
should light up, the carriage should stop and play a record. If this
does not happen, the 2050 is probably defective. The 12AX7 could
also be defective, but this is not very likely.
|
|
Nach der Wahl
fährt der Schlitten ständig hin und her, stoppt nicht mehr Modelle
mit DCC (Digital Control Center) |
|
After selection the carriage scans continously,
doesn't stop anymore
Models with DCC (Digital Control Center) |
Der Suchlauf wird durch
die Play Control Unit im Digital Control Center gesteuert. Das ist ein
Schaltwerk mit zwei Spulen und einem Kontakt. Bei jeder Wahl (bzw. beim
Betätigen des entsprechenden Serviceschalters) zieht eine der beiden
Spulen an und schließt den Kontakt.
So lange der Kontakt geschlossen ist, läuft der Motor im Laufwerk
(Suchlauf, Platte auflegen, zurücklegen oder abspielen). Jedes Mal, wenn
das Laufwerk die rechte Endposition erreicht, wird die zweite Spule in
der Play Control Unit betätigt und stellt das Schaltwerk um einen
Schritt zurück. Nach der zweiten Rückstellung wird der Kontakt geöffnet
und der Motor abgeschaltet.
Es gibt folgende Fehlermöglichkeiten:
-
Eine Sicherung ist defekt
-
Die erste Spule ist
dauernd angezogen. Ursache könnte sein, daß der entsprechende
Serviceschalter in eingeschalteter Stellung klemmt.
-
Das Schaltwerk wird
nicht zurückgestellt. Der Kontakt dafür befindet sich auf dem Sucher
unter dem Tormat. Möglicherweise ist der Kontakt verstellt oder
verbogen oder die Laufrichtung wird zu früh umgeschaltet, so dass der
Kontakt die Schaltrampe nicht erreicht.
-
Das Schaltwerk klemmt
und dadurch wird der Kontakt nicht geöffnet.
|
|
The search sequence is
controlled by the Play Control Unit in the Digital Control Center. This
is a switching mechanism with two coils and one contact. Each time a
selection is made (or the corresponding service switch is pressed), one
of the two coils is energized and closes the contact.
As long as the contact is closed, the motor in the carriage runs (search
sequence, picking up a record, returning or playing). Each time the
carriage reaches the right end position, the second coil in the Play
Control Unit is activated and resets the switching mechanism by one step.
After the second reset, the contact is opened and the motor is switched
off.
The following faults are possible:
-
A fuse is defective
-
The first coil is
permanently energized. The cause could be that the corresponding
service switch is stuck in the ON position.
-
The switching mechanism is
not reset. The contact for this is located on the searcher below the
Tormat. The contact may be misaligned or bent or the direction of
scanning may be changed too early so that the contact does not reach
the shifting ramp.
-
A jammed switching
mechanism - therefore the contact is not opened.
|
|
Plattenteller
ohne Single dreht sich dauerhaft, kein Wahl möglich.
ab M100A |
|
Turntable without a record
spins continously, no selection is possible.
From M100A |
Das Laufwerk steht vor einem
Plattenfach, der Motor dreht sich kontinuierlich, obwohl keine Single
aufgelegt ist. Dieser Impuls kann nicht unterdrückt werden.
Antwort:
Wenn der Plattenteller läuft und sich abgesehen
vom Motor nichts bewegt, ist das Laufwerk im Abspielmodus (auch wenn
keine Platte im Fach war und daher auch keine Platte aufgelegt werden
konnte).
Zum unterbrechen, genügt es normalerweise, den Tonarm behutsam
ganz in Richtung Plattenteller zu bewegen, damit der Tonarmendschalter
betätigt wird. Man kann auch den den Cancel-Knopf (neben dem
Lautstärkeregler) oder den Cancel-Schalter auf dem Serviceschalterkasten
betätigen, um dies zu unterbrechen. Der Serviceschalter muß dabei in
"PLAY" - Position stehen.
Sollte das nicht helfen, kann der
Abspielmodus manuell beendet werden.
Zu diesem Zweck gibt es neben dem Tonarm, hinter den Kontaktsätzen,
einen Hebel, der anscheinend nichts betätigt. Wird dieser Hebel kurz
angehoben, müsste der Abspielmodus unterbrochen werden, der Liftarm in
Ruheposition gehen. Anschließend müsste das Laufwerk wieder hin- und
herlaufen, um die nächste gewählte Platte zu spielen.
|
|
The carriage is positioned in
front of a record compartment, the motor rotates continuously even
though no single is loaded. This pulse cannot be suppressed.
Answer:
If the turntable is running and nothing is moving apart from the motor,
the carriage is in play mode (even if no record was in the compartment
and therefore no record could be loaded).
To interrupt this, it is normally sufficient to gently move the tonearm
all the way towards the turntable so that the tonearm cut-off switch
gets activated. You can also press the cancel button (next to the volume
control) or the cancel switch on the service switch box to interrupt
this. The service switch must be in the "PLAY" position.
If this does not help, the
playing mode can be stopped manually.
For this purpose, there is a lever next to the tone arm, behind the
contact sets, which does not seem to operate anything. If this lever is
lifted briefly, the playing mode should be interrupted and the lift arm
should move to the home position. The carriage would then have to scan
back and forth again to play the next selected record. |
|
Beim Wählen wird die derzeit spielende
Single unterbrochen und zurückgelegt. |
|
When selecting the currently
played record gets interrupted and returned. |
Wenn man eine Wahl
drückt, nimmt die Seeburg 222 (Channel) sofort die Platte, an der der
Schlitten gerade steht.
Drückt man während des Abspielens einen weiteren Titel, wird die
laufende Platte sofort unterbrochen und der Schlitten fährt zur nächsten
gewählten Platte. Drückt man wieder, wird gleich wieder unterbrochen
usw.
Das gleiche passiert auch, wenn man einen Titel am Fernwähler wählt.
Antwort:
Das klingt nach einem Massefehler. Die Tormat - Steuerung ist ziemlich
empfindlich in dieser Hinsicht. Es sollte kontrolliert werden, ob der
Cinch - Stecker am Impulsverstärker oxydiert oder beschädigt ist. Die
Kontakte des großen Steckers am Steuerteil,
sollten gereinigt und mit einem Kontaktspray (z. B. Kontakt 60,
Ballistol - Achtung: keinesfalls ein Spray von der Tankstelle)
behandelt werden, um auch hier eine gute Masseverbindung
sicherzustellen.
Es könnte auch einer der Widerstände defekt sein (z.B.
der 56 kOhm).
|
|
If you make a selection, the
Seeburg 222 (Channel) immediately picks up the record on which the
carriage is currently positioned.
If you press another selection while being played, the current record is
interrupted immediately and the carriage moves to the next selected
record. If you press again, it gets interrupted again, and so on.
The same happens if you select a title via the wallbox.
Answer:
This sounds like a ground fault. The Tormat control is quite sensitive
in this respect. You should check whether the RCA plug on the pulse
amplifier is oxidized or damaged. The contacts of the large plug
connected to the control unit, should be cleaned and treated with a
contact spray (e.g. Contact 60, Ballistol - Caution: Never use a spray
from a gas station) to ensure a good earth connection here too.
One of the resistors could also be defective (e.g. the 56 kOhm). |
|
Nach der Wahl wird die Single
herausgenommen, gleichzeitig rattert es sehr laut im Kreditgerät -
Modelle SE100 u.a. mit Single Pricing Unit |
|
After the selection the
record gets ppicked up, a loud rattling noise in the credit unit occurs
- models SE100 and similar with Single Pricing Unit |
Die Kreditvergabe erfolgt über den Schalter an der Single Pricing Unit.
Danach wird gewählt, z.B. K1. Der Motor läuft an, um sich die Platte zu
holen und im selben Moment macht die Single Pricing Unit ein lautes ratterndes
Geräusch. Nach dem Aus- und wieder Einschalten der Musikbox wird der Titel zu
Ende gespielt, nach der nächsten Wahl kehrt das ratternde Geräusch
zurück.
Antwort:
Sehr wahrscheinlich ist, dass das Kreditwerk gereinigt, entharzt, neu
geschmiert und evtl. neu eingestellt werden muss. Im Laufe der Jahre
sammeln sich alte Öle und Fette und verkleben zu einer zähen Masse.
Dadurch sind best. Teile nicht beweglich genug und Kontakte verschmutzt,
so dass sie nicht sauber und präzise schalten. |
|
Credit is established via the
switch at the Single Pricing Unit. Then a selection is made, e.g. K1.
The motor starts to pick up the record and at the same time the Single
Pricing Unit makes a loud rattling noise.
After switching the jukebox off and on again, the title will be played
to the end, and the rattling noise returns after the next selection.
Answer:
It is very likely that the credit unit needs to be cleaned, de-resinfied
and re-lubricated, possibly even adjusted new. Within the years, old
oils and greases gum-up and stick together to a viscous mass. As a
result, some parts are not flexible enough and contacts are dirty, so
that they do not switch precise and well any longer. |
|

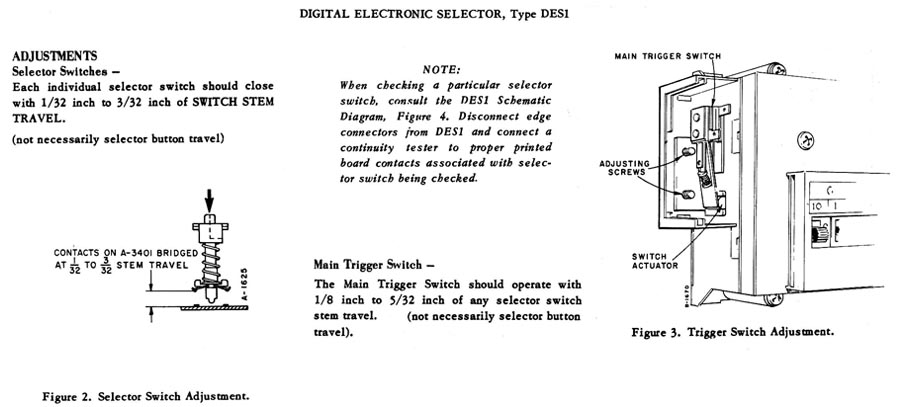

Nach der Wahl bleiben die
Tasten eingedrückt, sie kommen nicht wieder heraus - Seeburg 222
u.a. |
|
After selection the
pushbuttons stay engaged, they do not release - Seeburg 222 et. al |
![](http://www.jukebox-world.de/Forum/Bilder/Seeburg/TS-Buttons-222.jpg) |

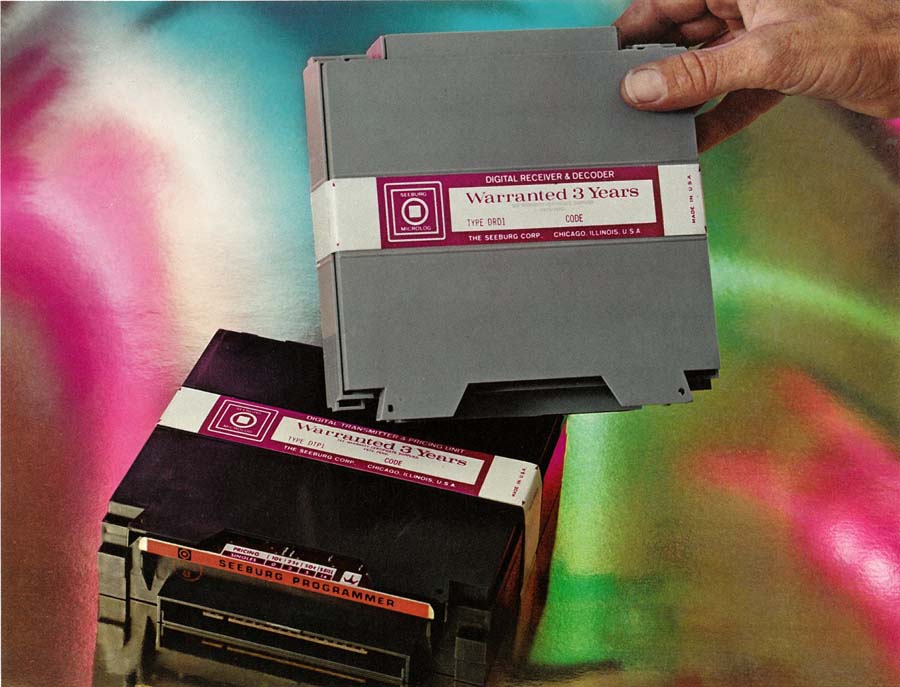

Black & Gray Boxes •••
Red Boxes |
Wahlablauf bei Modellen mit
DRD1/DTP1 (Black &
Gray Boxes)
Modelle ab LS3 bis ST4, außer SB100): allgemeine Beschreibung |
|
Selection sequence in models with DRD1/DTP1
(Black & Gray Boxes)
Modelle from LS3 to ST4, except SB100: General description |
Der Ablauf bei der Wahl ist in groben Zügen
folgendermaßen:
Eingeworfene Münzen werden in der Black Box gespeichert und mit Hilfe
der Programmkarte in eine Anzahl von möglichen Wahlen umgerechnet. Wenn
keine Programmkarte eingesteckt ist, gibt es unbeschränkten Dauerkredit.
Die Black Box nimmt auch die Wahl entgegen. Dabei wird kontrolliert, ob
auch nur erlaubte Tasten gedrückt wurden. Bei einer nicht erlaubten
Ziffer (z. B. "3" als erste Ziffer), leuchtet oder blinkt "RESET AND
RESELECT" und die weitere Eingabe ist gesperrt. Bei erlaubten Eingaben
leuchtet nach der ersten Ziffer "1st Digit", nach der zweiten
"2nd Digit" und nach der dritten erlischt die Anzeige.
Die eingegebene Ziffernfolge wird in der Black Box gespeichert. Nach
Eingabe der dritten Ziffer wird das Datenpaket über Pufferstufen im DCC
an die Gray Box übertragen. Nach der Übertragung werden die Daten wieder
gelöscht und die Black Box ist - wenn noch Kredit da ist -
wieder für eine neue Wahl bereit.
In der Gray Box werden die Daten decodiert und an eine Thyristorkette
gelegt, die die Write In - Stromkreise im Tormat aktivieren.
Gleichzeitig wird auch die Additionsspule auf der Scan Unit betätigt.
Es gibt drei Betriebsspannungen, -27 Volt, -13 Volt und +8,2 Volt. Diese
müssen relativ genau stimmen, sonst gibt es unvorhersehbare
Fehlfunktionen der Black und Gray Box. Wichtig ist, dass es keine
Spannungseinbrüche gibt. |
|
The selection sequence is
roughly as follows:
Inserted coins are stored in the Black Box and converted into a number
of possible selections using the program card. If no program card is
inserted, there is unlimited permanent credit.
The Black Box also accepts the selection. It checks whether only
permitted keys have been pressed. If a digit is not permitted (e.g. "3"
as the first digit), "RESET AND RESELECT" lights up or flashes and
further input is blocked. If entries are permitted, "1st Digit" lights
up after the first digit, "2nd Digit" lights up after the second digit
and these displays disappear again after the third digit.
The sequence of digits entered is stored in the Black Box. After
entering the third digit, the data packet is transmitted to the Gray Box
via buffer stages in the DCC. After transmitting, the data is deleted
again and the Black Box is ready for a new selection - if credit is
still available
In the Gray Box, the data is decoded and sent to a thyristor chain,
which activates the write-in circuits in the Tormat. At the same time,
the addition coil on the scan unit is also activated.
There are three operating voltages, -27 volts, -13 volts and +8.2 volts.
These must be relatively accurate, otherwise the Black and Gray Box will
malfunction unpredictably. It is important that there are no voltage
dips. |
|
Es werden falsche Titel abgespielt -
Modelle mit Kreditsystemen
DRD1/DTP1 (Black &
Gray Box) ab LS3 bis ST4, außer SB100 |
|
Wrong titles get played -
Models with credit units DRD1/DTP1 (Black and Gray Boxes) from LS3
to STD4, except SB100 |
![](http://www.jukebox-world.de/Forum/Bilder/Seeburg/DRD-Wrong-Selections.jpg) |
|
Es
wird selten der gewählten Titel gespielt, häufig ein anderer. Wahlen, in denen eine "0" oder
"9" vorkommen, werden meist ganz ignoriert. Modelle mit
Black & Gray Boxes |
|
Seldom the selected title
gets played, mostly another one. Selections with digits "0" and "9" get
mostly ignored.
Models with Black & Gray Boxes |
1. Möglichkeit: Das liegt einfach an den "Black und
Gray Boxes", wie es im Handbuch so schön heißt.
Reinige alle Kontakte am Laufwerk und stelle diese falls nötig neu ein.
Wenn Du technisch nicht ganz unbegabt bist, leuchtet Dir die Öffner-und-Schließer-Funktion
leicht ein.
Zum Reinigen benutzte ich einen "Dremel" mit Messingbürste.
(Jammert mir jetzt nicht die Ohren voll von wegen Goldkontakte. Nach 25
Jahren ist auf den eigentlichen Schaltflächen eh nichts mehr drauf.)
Das klappt ganz gut. Vergiss nicht den Kontakt hinten rechts am Laufwagen
hinter dem Motor, der ist für die Wahl besonders wichtig. Wenn nun ein
Einstellen der Kontakte notwendig ist (zumindest solltest du die
Einstellung überprüfen), dann schalte die Musikbox aus und löse die
Maschine von Hand aus. Danach drehst Du diese langsam durch.
Wichitg: Drehrichtung merken. So kannst Du prima sehen, wann sich welcher
Kontakt öffnet und schließt. Mit ein bisschen Nachdenken kommst Du
schnell hinter die notwendigen Schaltstellungen. Es ist zugegeben nicht
ganz einfach, aber machbar. Wenn Du aber technisch eher zwei linke Hände
besitzt, dann lass lieber die Finger davon.
Ebenfalls ganz wichtig für die Einschreiberei ist der kleine
Mikroschalter am Tastenfeld. Dieser muss bei jedem Tastendruck
einwandfrei schalten, sonst kommen falsche Signale am Computer an.
Das Löschproblem kommt wahrscheinlich von einem abgefallenen Magneten.
Links am Tonarm ist ein "Reed Kontakt", welcher mit besagtem
Magneten geschaltet wird. Leider lässt nach 20 Jahren auch der beste
Kleber mal nach. Oft fallen diese Magnete dann herunter (wenn man Pech
hat, blockieren sie noch den Tonarm).
Noch etwas: der "Tormat" oder die sogenannte "Vorwahleinheit" ist
bei diesen Geräten nur in 1 von 1000 Fällen defekt. Sofern sie denn
gereinigt und leicht geölt ist (z. B. mit Kontakt 60, Ballistol -
Achtung: keinesfalls ein Spray von der Tankstelle).
2. Möglichkeit:
Wenn einzelne Wahlen nicht angenommen werden, kann der Tormat, also
die Speichereinheit mit den Kontaktnieten, die unter dem Plattenmagazin
sitzt, dejustiert sein. Wenn das der Fall ist, werden meiner Erfahrung
nach oft Platten, die weit rechts oder links im Magazin sitzen, nicht
abgespielt, obwohl sie gewählt wurden. Gelegentlich werden sie dann
auch erst nach mehreren Durchläufen angenommen - das beweist, dass die
Anwahl und Speicherung grundsätzlich funktionieren, der Abtaster des
Laufwagens den polarisierten Magneten im Tormat aber nicht erkennt.
Abhilfe: den Tormat an seinen Befestigungen lösen und ganz leicht in
der horizontalen nach rechts oder links verschieben, arretieren und
ausprobieren, ob die Wahlen, die vorher nicht abgespielt wurden, jetzt
abgespielt werden.
Meist sind einige Versuche notwendig, dann sollte es aber klappen. Es
gibt von Seeburg eine Justieranweisung, die "experimentelle"
Einstellung klappt meiner Erfahrung nach aber besser.
|
|
1. Option:
This is simply due to the "Black & Gray Boxes", as the service manual so
nicely names it.
Clean all the contacts on the carriage and re-adjust them if necessary.
If you are not completely technically unskilled, the normally closed and
normally open function will be easy to understand.
I use a "Dremel" (high speed multi-tool) with a brass brush for cleaning.
(Don't whine to me about gold contacts. After 25 years, there's nothing
left on the actual buttons anyway). That works quite well. Don't forget
the contact at the back right of the carriage behind the motor which is
particularly important for the selection.
If you now need to re-adjust the contacts (at least you should check the
adjustment), then switch off the jukebox and release the machine by
hand. Then turn it slowly. Important:
Remember the direction of rotation. This is
a great way to see at which moment a contact opens and closes. With a
little thinking, you will quickly find the necessary switch positions.
Admittedly, it's not easy, but it can be done. However, if you have two
left hands in respect of technical issues, you'd better leave it alone.
The small micro-switch on the keyboard is also very important for the
write-in sequence. This must switch properly every time the pushbutton
is pressed, otherwise the wrong signals will reach the computer.
The cancelling problem is probably caused by a magnet that has fallen
off. There is a "reed
contact" on the left-hand side of the
tonearm, which is switched by the magnet mentioned before. Unfortunately,
even the best glue wears off after 20 years. These magnets then often
fall off (if you are unlucky, they block the tonearm).
One more thing: In these jukeboxes the "Tormat"
or the so-called "preselection unit" is only defective in 1 out of 1000
cases. Provided it has been cleaned and lightly oiled (e.g. with Contact 60, Ballistol - Caution: Never use a spray
from a gas station).
2. Option:
If individual selections are not accepted, the Tormat, i.e. the storage
unit with the contact rivets sitting below the record magazine, may be
misaligned. If this is the case, in my experience, records that are far
to the right or to the left in the magazine are often not played, even
though they have been selected. Occasionally, they are only accepted
after several scans - this proves that the write-in is basically working,
but the carriage's pickup does not recognize the polarized magnet in the
Tormat.
Remedy: Loosen the Tormat at its fastenings and move it very slightly
horizontally to the right or left, lock it in place and try out whether
the selections that were not played before are now will be played.
A few attempts are usually necessary, but then it should work. There are
adjustment instructions from Seeburg, but in my experience the
"experimental" setting works better. |
|
Es werden falsche Titel abgespielt
Modelle mit Kreditsystem CPS (Red Boxes) Seeburg
100-77D, 100-78D |
|
Wrong titles get played
Models with credit units CPS (Red Boxes) Seeburg 100-77D, 100-78D |
![](http://www.jukebox-world.de/Forum/Bilder/Seeburg/CPS-Wrong-Selections.jpg) |
