| Rock-Ola 1455 (1957) |
Copyright |
|
1455 D: Deluxe 1455 S: Standard |
|
| 1455-D | 1455-S |
|
|
![]() |
| Amplifier 30625-A |
|
|
| Unterschiede 1455D und 1455S - Differences 1455D and 1455S | |
| 1455 D | 1455 S |
|
Dual Credit Unit |
Credit Unit |
|
Dome Assembly |
Dome Assembly |
| Technische Daten - Specifications | ||
| 1455D | 1455S | |
| Wahlen / selections | 200 | |
| Lampen / lamps | cabinet: 2x TL 20W/24"/T12; credit/coin: GE #44; categories: 5x GE #81 (only 1455D) | cabinet: 2x TL 20W/24"/T12;
credit/coin: GE #44 |

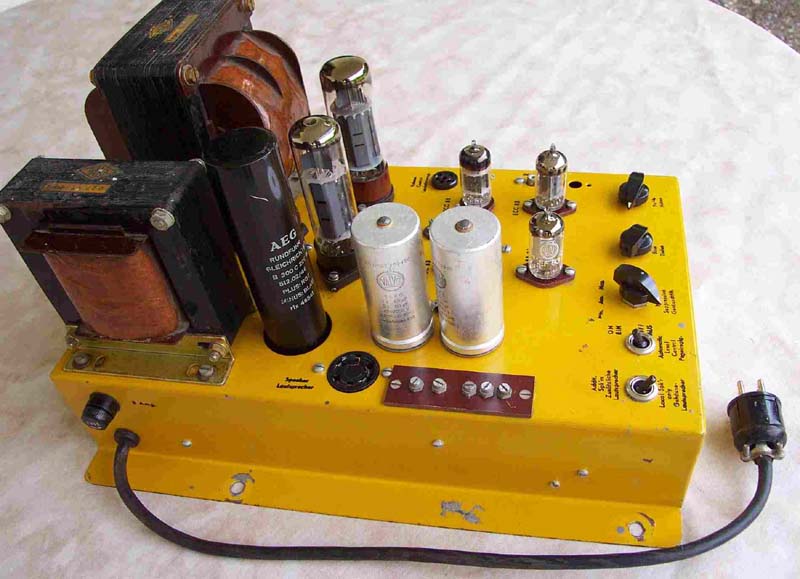

| Verstärker / amplifier | 30625-A: 6L6 GB (2); 12AT7; 6CG7 (2); 6BA6; 5U4GB or NOVA Amplifier with 3x ECC 83, EF 83, 2x EL 34 | |
| Netzteil / power supply | 1455D: 30520-A | 1455S: 30530-A |
| Kreditgerät / credit unit | 1455D: 30370-A | 1455S: 30401-A |
| Lautsprecher / speaker | 2x 12" low freq., 1x high-freq. horn | |
| Mechanismus / mechanism | ||
| Tonabnehmer / cartridge |
USA: Electro-Voice 84 with needle EV2600
(N300-1); often Astatic 51-1 installed Europe: usually Elac KST 103 |
|
| Sicherungen / fuses | Amp: 3A; Power Supply: 1.6A,
2x 3A, 10A; Credit Unit: 0.8A |
Amp: 3A; Power Supply: 1.6A,
2x 3A, 10A; Credit Unit: 0.1A |
| Schlüssel / key | F-592 | |
| Abmessungen / size | 57-3/4 x 30-1/2 x 271/4" / 146cm x 78cm x 70cm; 348 lbs / 156 kg | |
| Zubehör / accessories | Stepper 1755, wallbox 1555 (which was probably not build before model 1465) | |
| Besonderheiten / specialties | Rock-Ola's first 200 sel. model | |
