436: 100 Wahlmöglichkeiten - selections |
437: 160 Wahlmöglichkeiten - selections |
 |
 |
|
|
|
|
437: 160 Wahlmöglichkeiten - selections |
 |
|
|
|
|
Abbildung
Mechanismusabdeckung – Picture
mechanism cover |
|
|
|
|
Display Unit Rock-Ola 437 |
Aztec-Sun-Motif
Picture and Information
courtesy of
Jeff Black
When you bought a
Rock-Ola Ultra 437 or Centura 436 new from a distributor, this motif was
printed onto a stiff piece of cardboard approximately 7 inches square
and placed in the record cover display window to the right of the
cityscape. I guess owners/operators would then remove the motif and
replace it with a record cover when they loaded up the jukebox with
records.
Aztec-Sun-Motif as a .jpg-file (1.1 MB) - free download
Aztec-Sun-Motif as a .psd-file (18 MB) - free download
 |
|
|
|
|
Laufwerk Rock-Ola 437 – Mechanism |
 |
|
|
|
|

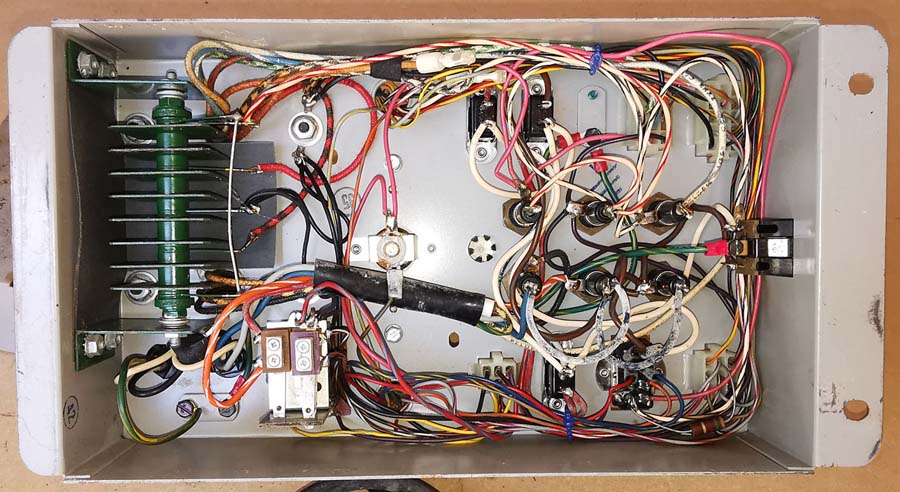

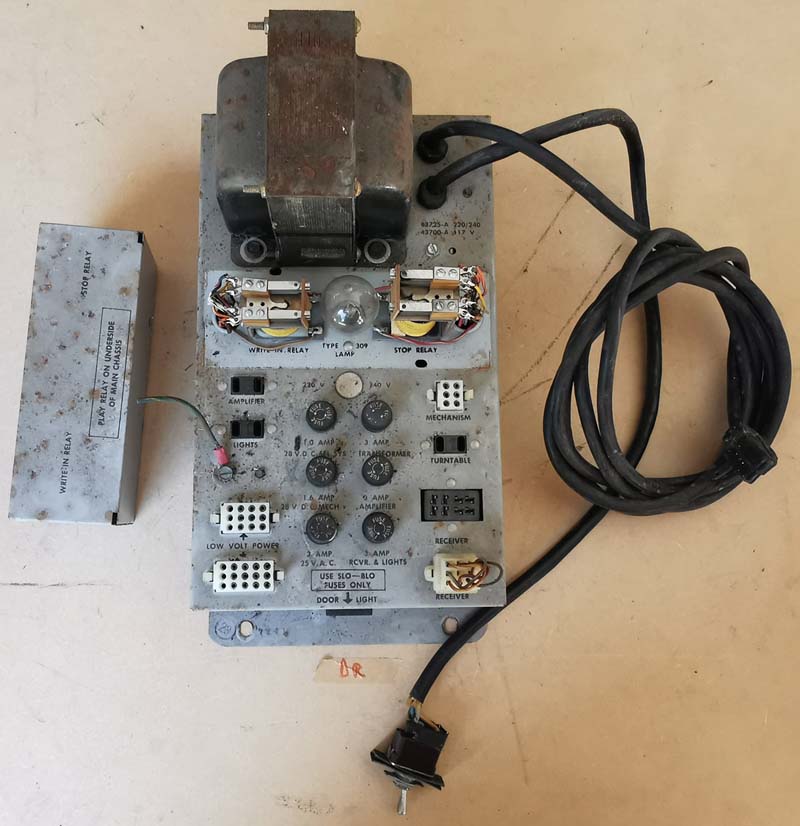

Power Supply and Credit Unit 437 |
 |
|
|
|
|
Technische Daten - Specifications |
| |
436 |
437 |
|
Wahlen / Selections |
100 |
160 |
|
Lampen / Lamps |
Cabinet:
2x TL 25W/33"/T12 | Select: GE #44
Power supply: #309 |
Cabinet:
2x TL 25W/33"/T12 | Select: GE #44
Power supply: #309 |
|
Verstärker / Amplifier |
43500-A |
43500-A |
|
Netzteil / Power supply |
117V:
43730-A |
240V: 43725-A |
117V:
43730-A |
240V: 43725-A |
|
Kreditgerät / Credit unit |
43256-A |
43256-A |
|
Kontrollbox / Contolbox |
40135-2A |
40135-2A |
|
Lautsprecher / Speaker |
Door: 2x 12"16 Ohm,
Utah, #42742
Tweeter: 2x 5x7", #42753 |
Door: 2x 12"16 Ohm,
Utah, #42742
Tweeter: 2x 5x7", #42753 |
|
Tonabnehmer / Cartridge |
Shure M44 |
Shure M44 |
|
Sicherungen / Fuses |
Credit Unit: 250 mA
slo blo
Power Supply: 4x 3A slo blo, 1.6A slo blo, 1A slo blo
Amplifier: 1A slo blo |
Credit Unit: 250 mA
slo blo
Power Supply: 4x 3A slo blo, 1.6A slo blo, 1A slo blo
Amplifier: 1A slo blo |
|
Schlüssel / Key |
F-592 |
F-592 |
|
Abmessungen / Size |
|
|
|
Zubehör / Accessories |
Remote Volume Control
1984-1
Powerized Remote Volume Control
2115
Electr. Coin Counter 1989-1
Wallbox Coin Counter Adapter 1995
Stepper
1764-8,
1765,
1765-2
Wallbox 504
Stereo Twin 1634 |
Remote Volume Control
1984-1
Powerized Remote Volume Control
2115
Electr. Coin Counter 1989-1
Wallbox Coin Counter Adapter 1995
Stepper
1765,
1765-2
Wallbox
503
Stereo Twin 1634 |
|
Besonderheiten / Features |
|
|
|
Preis / Price 1968 |
6850
DM | |
