Rock-Ola 444 & 445 (1971) |
Copyright |
160 - 100 selection |
Rock-Ola 444 |
|
Rock-Ola 445 |
|
|

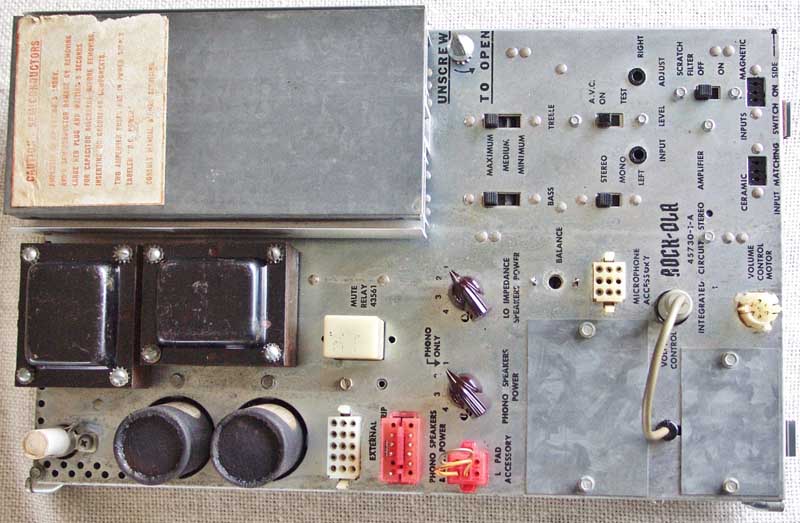

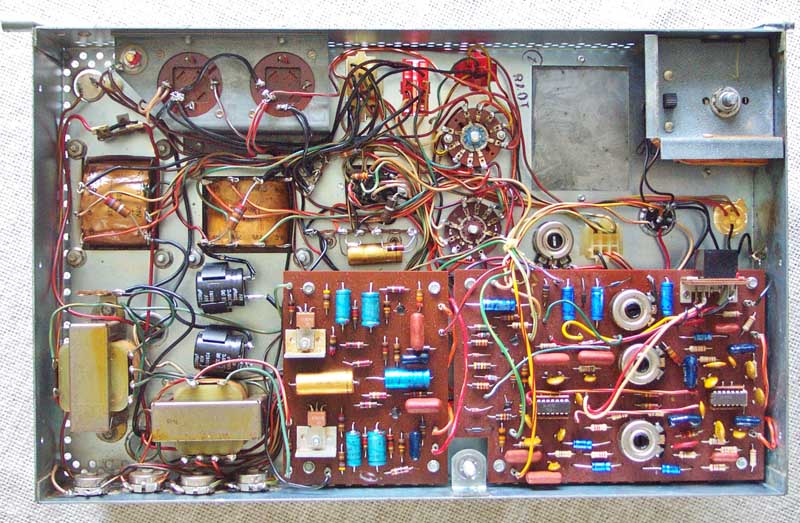

Verstärker 45730-1A – Amplifier |
Fotos: M. Sommer
|
|
Zubehör – Accessories 442, 443, 444 & 445 |
|
|
Technische Daten - Specifications | ||
444 |
445 |
|
Wahlen / Selections | 160 | 100 |
Lampen / Lamps |
Cabinet: TL 25W/T12/33" (2), TL 25W/28"/T12 Credit: GE #44 (2) Record indicator: GE # 53 (28) | Credit unit: GE # 309 |
Cabinet: TL 25W/T12/28" (3) Credit: GE #44 (2) Record indicator: GE # 53 (20) | Credit unit: GE # 309 |
Verstärker / Amplifier | 45730-1A | 45730-1A |
Netzteil / Power supply |
EU: 45750-1A US: 45745-1A |
EU: 45750-1A US: 45745-1A |
Kreditgerät / Credit unit |
Standard: 45680-1A With LP: 45675-1A |
Standard: 45680-1A With LP: 45675-1A |
Kontollbox / Control box | 40697-3A | 40697-3A |
Lautsprecher / Speaker |
Top: Oval tweeter 16 Ohm #46339 Door: 12" 8 Ohm #44854-1 |
Top: Oval tweeter 16 Ohm #46808 Door: 12" 8 Ohm #45315-1 |
Tonabnehmer / Cartridge | Magnetic Shure M44 with needle Shure N 44 | Ceramic Astatic-15D with needle Astatic N-43 |
Sicherungen / Fuses |
Credit Unit: 1x 250mA | Selection P.C. Board: 250 mA Power supply: 1x 6.25A, 3x 3A, 2x 1.6A |
Credit Unit: 1x 250mA | Selection P.C. Board: 250 mA Power supply: 1x 6.25A, 3x 3A, 2x 1.6A |
Schlüssel / Key | F-592 | F-592 |
Abmessungen / Size | ||
Zubehör / Accessories |
Remote Volume Control: 2115, 2122 |
Microphone
Kit 2130 Stepper
1768,
1767 | Wallbox
505F | |
Remote Volume Control: 2115, 2122 |
Microphone
Kit 2130 Stepper
1768,
1767 | Wallbox
505F | |
Besonderheiten / Features |
Option: Adapter 2131 with
1765-2 | Adapter 2145 with

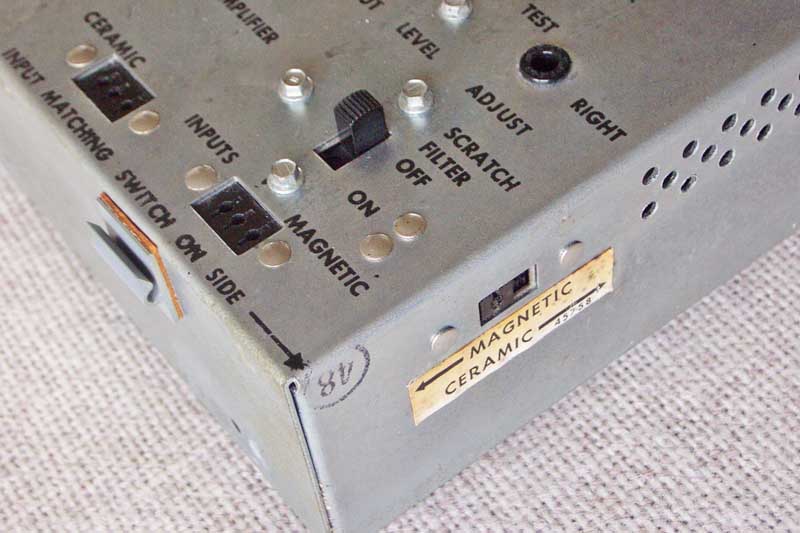

1769 Amplifier can be switched from cermaic to magnetic input |
Option: Adapter 2131 with
1765-2 | Adapter 2145 with
1769 Amplifier can be switched from cermaic to magnetic input |
Neupreis / Original Price | 5850 DM - Source "NOVA Informationen" 11/1970 |
Die Angaben haben keinen
Anspruch auf Vollständigkeit oder Richtigkeit. |
Copyright by Stamann Musikboxen |
