| Seeburg HF100G (1953) |
Copyright |
|
100 Wahlmöglichkeiten In Deutschland imoprtiert von Löwen-Automaten - Imported to Germany by Löwen-Automaten |
|
|
|
| Technische Daten - Specifications | |
| Wahlen / selections | 100 |
| Lampen / lamps | cabinet: TL 25W/33"/T12; record indicator: 2x #44; mechanism: # 81; credit: 2x # 47 |

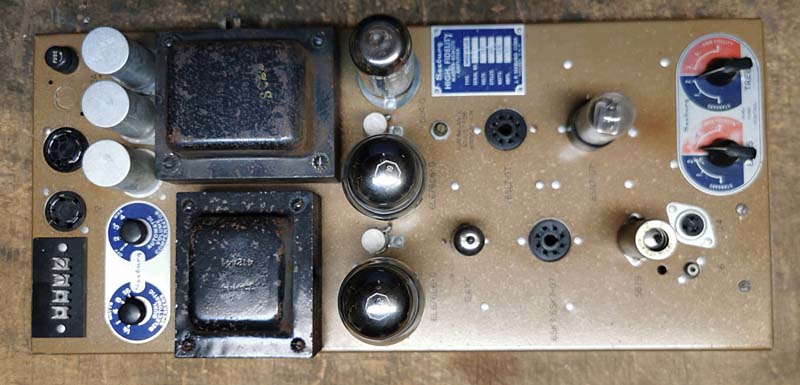

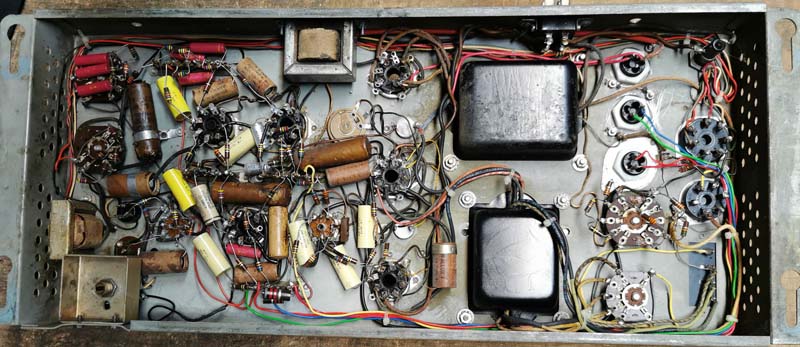

| Verstärker / amplifier | MRA4-L6: 5879, 6SN7GT, 6SK7, 6SL7GT, 12AX7, 6L6G (2), 5U4GB, 2050 |
| Netzteil / power supply | WSR5-L6 |
| Kreditgerät / credit unit | CCU-2 |
| Tormat | ./. |
| Electrical Selector | ES10-L6 |
| Lautsprecher / speaker | Utah 1x 15" electro-dynamic; 1x 5" permanent magnetic high frequency |
| Mechanismus / mechanism | 145S11-L6 |
| Tonabnehmer / cartridge | Seeburg Redhead, magnetic |
| Sicherungen / fuses | 2x 2A, 1x 3A, 1x 3A Fustat, 1x 5A |
| Schlüssel / key | F221 |
| Gehäuse / cabinet | Silver Zebrano Plastic Veneer |
| Abmessungen / size | 54 x 35 x 27", 325 lbs |
| Zubehör / accessories | Teardrop Speaker, large Mirrored Speaker, Recessed Speaker (square); 3W1; MRVC1: PAK3-L56; PS6-1Z |
| Besonderheiten / specialties | Seeburg's first High-Fidelity jukebox |
|
