Seeburg Symphonola 1-46, 1-47, 1-48 (1946 - 1948)
146   -   H146   -   H246   -   147   -   H147   -   148    -   H148
so called Trashcan and Hideaway Trashcan



Copyright



Ron Rich, a former Seeburg technician:
The letters at the end stand for the type of "selection receiver" (or "control center") that the machine was equipped with at the factory.
S: Solenoid Drum Unit - no use of Wallboxes M: Master Selection Receiver - Wired or Wireless Wallboxes W: Wired Selection Receiver - Wired Wallboxes only
A: Animated Lid L: Blonde cabinet colour  H: Hideaway


Seeburg 146 (1946): 146M, 146S, 146W

Announced in 2/1946
Seeburg 146 - Trashcan





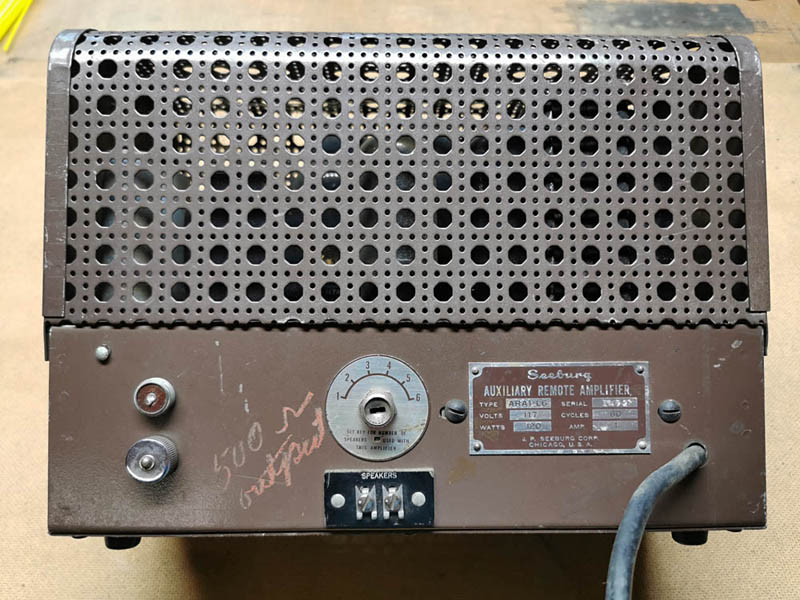

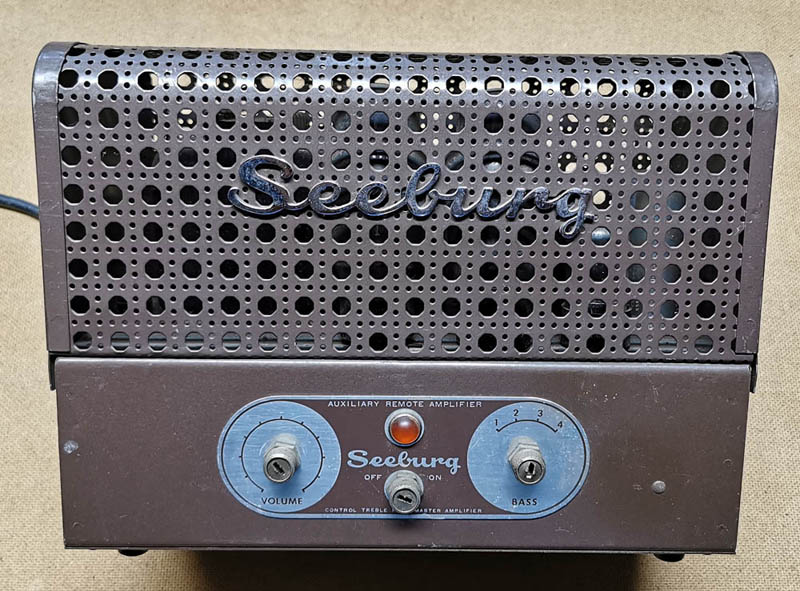

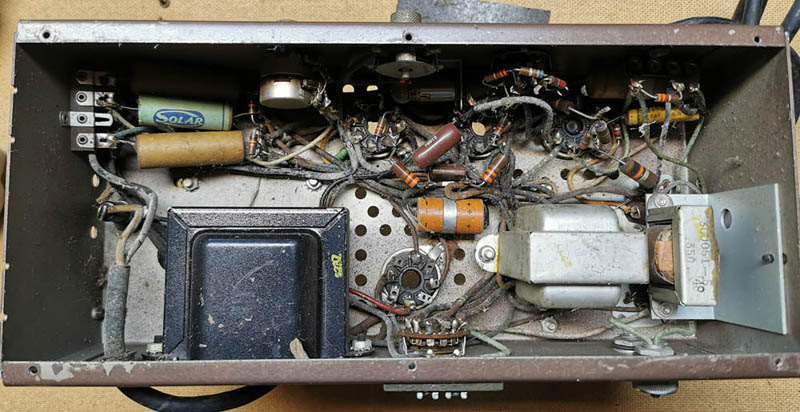

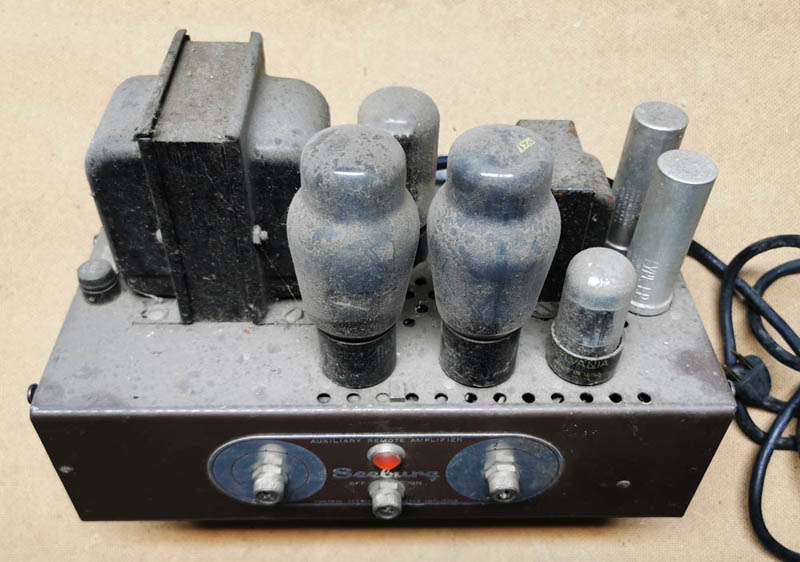

Seeburg 146 with Remote Control Equipment (1946)

Seeburg 146 - Trashcan

Seeburg 146 - Trashcan

Seeburg 146 - Trashcan

Seeburg 146 - Trashcan

Seeburg 146 - Trashcan Seeburg 146 - Trashcan Seeburg 146 - Trashcan Seeburg 146 - Trashcan

Seeburg 146 - Trashcan

Seeburg 146 - Trashcan

Seeburg 146 - Trashcan

Zum Vergrößern auf die kleinen Bilder klicken   -   Click to enlarge



Technische Daten   -   Specification Seeburg 146



Seeburg H146: H146M, H146W (1946)



- Hideaway Unit -
Sorry, no photo yet







Seeburg H246: H246M (1946)

Photos courtesy Lloyd Thoburn
Seeburg H2146M - Trashcan Hideaway

Seeburg H2146M - Trashcan Hideaway





Seeburg 147 (1947): 147A, 147M, 147 MA, 147S, 147SA, 147W

Announced in 12/1946

147M, 147S
Seeburg 147 - Trashcan

147W

Seeburg 147 - Trashcan



147SA
Picture: Edward M. Liss
Seeburg 147 - Trashcan



Technische Daten   -   Specification Seeburg 147



Seeburg H147M   -   H147W (1947)



- Hideaway Unit -
Sorry, no photo yet







Seeburg 148 (1948): 148M,  148S, 148ML, 148SL

Seeburg 148M,  148S


Dark (walnut) cabinet

- sorry, no photo yet  -






Seeburg 148ML148SL

Photos courtesy of Wilhelm Dekker


Seeburg 148 - Trashcan

Seeburg 148 - Trashcan

Seeburg 148 - Trashcan Seeburg 148 - Trashcan
Seeburg 148 - Trashcan

Seeburg 148 - Trashcan

Seeburg 148 - Trashcan

Seeburg 148 - Trashcan Seeburg 148 - Trashcan
Seeburg 148 - Trashcan

Seeburg 148 - Trashcan



Technische Daten   -   Specification Seeburg 148



Seeburg H148M  (1948)



- Hideaway Unit -
Sorry, no photo yet







Technische Daten - Specifications
  146 147 148
Wahlen / Selections 20; 78 rpm 20; 78 rpm 20; 78 rpm
Gehäuse / Cabinet Wood
Dark burl walnut finish finish


1. Serie: Wood
2. Serie: Aluminium
Aluminium cabinet: Both in dark burl walnut finish and blonde finish
Aluminium cabinet: Both in dark burl walnut finish and blonde finish


Lampen / Lamps Dome: 60W/120V, IF-lamp
Pilaster: 24x GE #81
Credit: GE #55;
Electrical selector: GE #51

Illuminated Door ID-1:
25W/120V Red Lamp
60W/120V blue lamp

Illuminated Door ID-2:
100W/120V clear

Animated Lid AL-1:
60W/120V, Day Lite Lamp

Animated Lid AL-2:
60W/120V, Day Lite Lamp

Dome: 60W/120V, Day Lite lamp
Pilaster: GE 24x #81
Credit: GE #55;
Electrical selector: GE #51

Illuminated Door ID-3:
100W/120V clear


Animated Lid AL-3:
60W/120V, Day Lite Lamp

Dome: 60W/120V, daylite
Illuminated door ID-2: 100W/120V clear
Pilaster: GE 24x #81
Credit: GE #55;
Electrical selector: GE #51


Verstärker / Amplifier MA1-L6: 2x 6L6G, 6J7, 6SN7GT, 5U4   or   MA2-L6: 2x 6L6G, 6J7, 6SN7GT, 5U4 MA1-L6: 2x 6L6G, 6J7, 6SN7GT, 5U4   or   MA2-L6: 2x 6L6G, 6J7, 6SN7GT, 5U4 MA1-L6: 2x 6L6G, 6J7, 6SN7GT, 5U4   or   MA2-L6: 2x 6L6G, 6J7, 6SN7GT, 5U4
Netzteil / Power supply 146S: SDU1
146M: MSR1-L6
146W: WRS1-L6
147S, 147SA: SDU1
147M, 147MA: MSR1-L6
147W: WRS1-L6
148S, 148SL: SDU1
148M, 148ML: MSR1-L6
148W: WRS1-L6
Kreditgerät / Credit unit
Tormat -
Electrical Selector ES1-L6 ES2-L6 ES3-L6
Lautsprecher / Speaker




Gehäuse / Cabinet Wood Wood or metal Metal
Mechanismus / Mechanism SRC1-L6
Tonabnehmer / Cartridge
Sicherungen / Fuses Amp: 2A

MSR1-L6: 1.5A, 500 mA; Fustat 2.5A
Revised: 1.5A, 500 mA; 2A, Fustat 2.5A

WRS1-L6: 1.6A; 2x 2.5A; 500 mA
RSA-1L6: 1.6A
Amp: 2A

MSR1-L6: 1.5A, 500 mA; Fustat 2.5A
Revised: 1.5A, 500 mA; 2A, Fustat 2.5A

WRS1-L6: 1.6A; 2x 2.5A; 500 mA
RSA-1L6: 1.6A
Amp: 2A

MSR1-L6: 1.5A, 500 mA; Fustat 2.5A
Revised: 1.5A, 500 mA; 2A, Fustat 2.5A

WRS1-L6: 1.6A; 2x 2.5A; 500 mA
RSA-1L6: 1.6A
Schlüssel / Key
Abmessungen / Size H 57 x W 36 x D 26.5" H 57 x W 36 x D 26.5"
147M, 147MA wood cabinet: 358 lbs
147M, 147MA metal cabinet: 325 lbs
147S, 147SA wood cabinet: 332 lbs
147S, 147SA metal cabinet: 300 lbs
H 57 x W 36 x D 26.5"
148M, 148ML: 325 lbs
148S, 148SL: 297 lbs


Zubehör / Accessories Animated Lid AL-1
Animated Lid AL-2
Illuminated Door ID-1
Illuminated Door ID-2
Wallboxes: 3W2-L56, 3W5-L56, 3W7-L56
Wallboxes: W1-L56, W3-L56 (?), W4-L56, W6-L56
Extra Speakers Mirrored Speaker, Teardrop, Recessed Speaker (square)
Animated Lid AL-3
Illuminated Door ID-3
Wallboxes: 3W2-L56, 3W5-L56, 3W7-L56
Wallboxes: W1-L56, W3-L56 (?), W4-L56, W6-L56
Extra Speakers Mirrored Speaker, Teardrop, Recessed Speaker (square)
Wallboxes: 3W2-L56, 3W5-L56, 3W7-L56
Wallboxes: W1-L56, W3-L56 (?), W4-L56, W6-L56
Extra Speakers Mirrored Speaker, Teardrop, Recessed Speaker (square)
Besonderheiten / Features Promoted as 1-46 Promoted as 1-47
Designer Nels A. Miller
