Seeburg Carnival

Technische Daten - Specifications
Wahlen / Selections	100
Lampen / Lamps	Credit and record indicator: 1x GE #19+ + 2x GE #19; Cabinet: TL 19W/26"/T8 ( 2x) \| Credit unit SPU5X / SPU5Y: GE #90

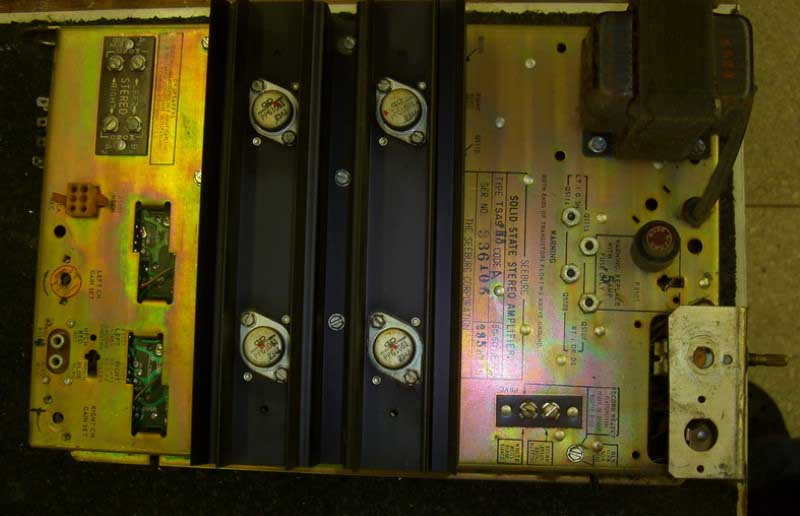

Verstärker / Amplifier	TSA9-56 \| Potentiometer: 2x 25 kOhm log

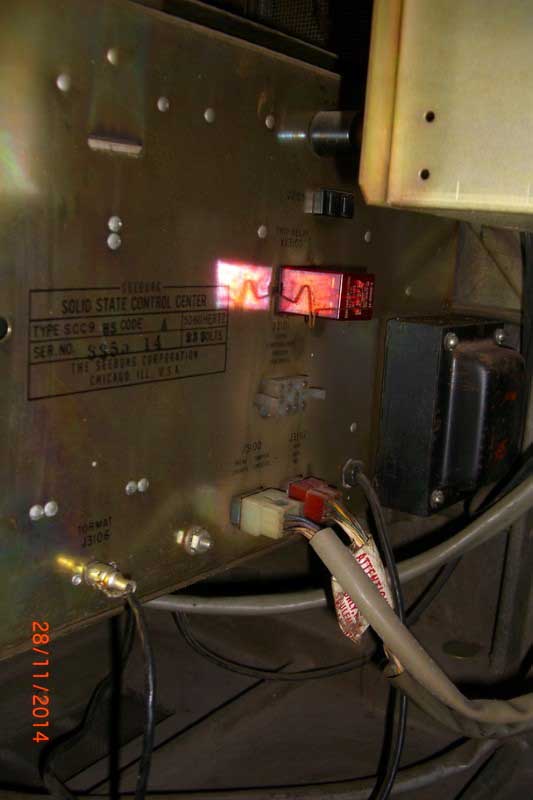

Netzteil / Power supply	SCC9 \| Aux. Power Supply RPSK-56 / RPSK-H5
Kreditgerät / Credit unit	SPU5-56 \| SPU5-X \| SPU5-Y
Tormat	100TM7
Electrical Selector	TES 112-56

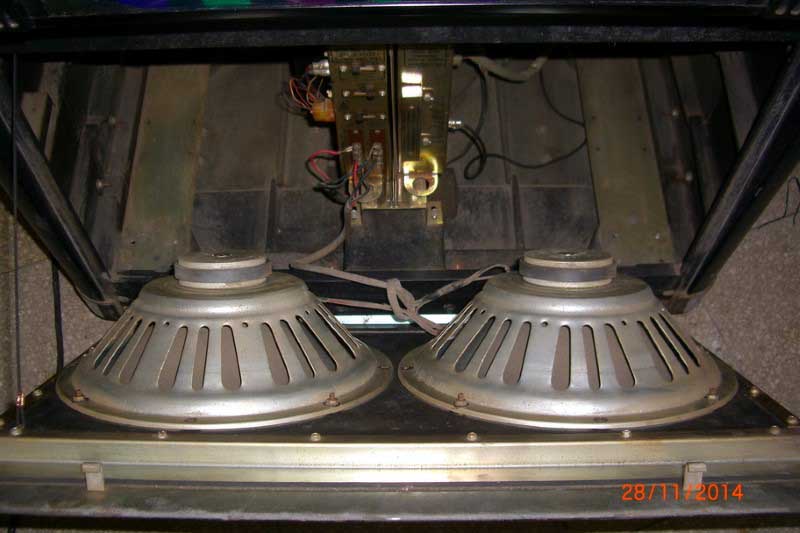

Lautsprecher / Speaker	2x low range 12"/5 Ohm, 2x high frequency

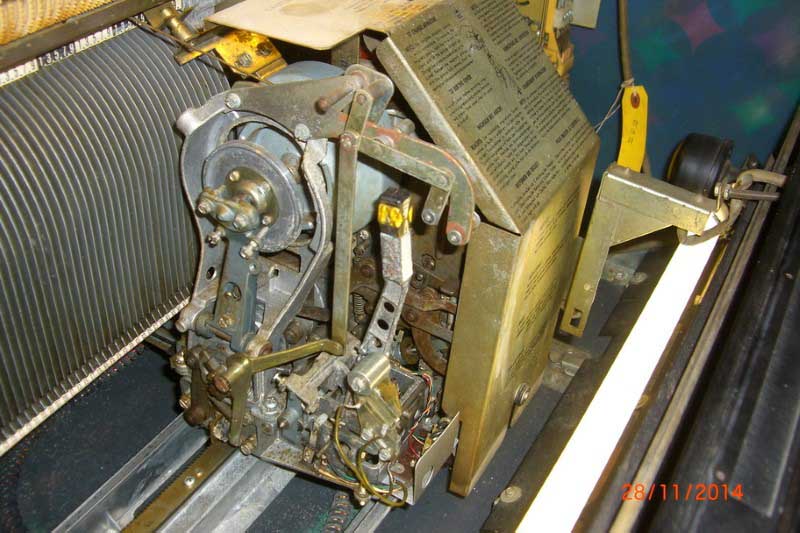

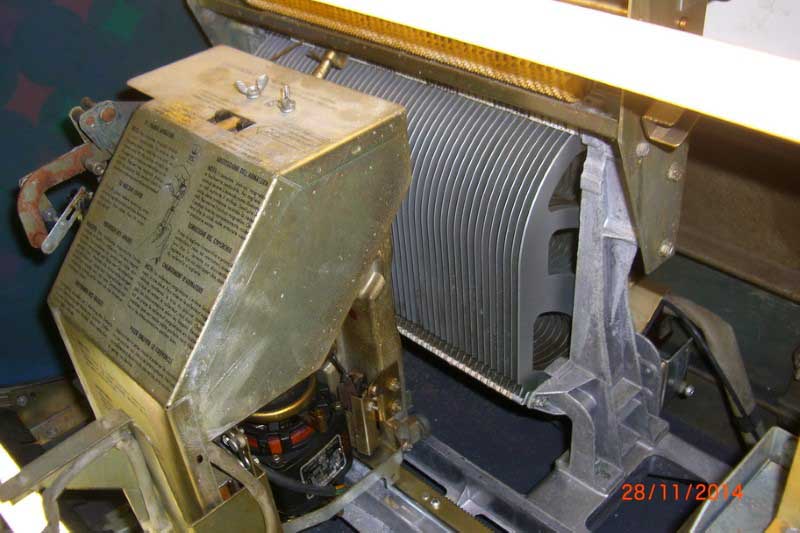

Mechanismus / Mechanism	145ST14
Tonabnehmer / Cartridge	Seeburg stereo cartridge with yellow needle
Sicherungen / Fuses	SCC 60 Hz.: 15 A, 1.5A, 6.25A and 125mA SCC 50 Hz: 15 A, 1.5A, 3.2A and 125mA Amplifier: 800 mA (60 Hz), 500 mA (50 Hz)
Schlüssel / Key	F 293
Abmessungen / Size	122 x 80 x 60 cm
Zubehör / Accessories	Stepper SSU4K (60 Hz) / SSU4K-5 (50 Hz) / SSU4K-H5 (50 Hz) \| Wallbox 3W100 \| PVCR 4 \| Extra speaker USC1K, TW1-8, TR1-8, TCI-8, EBWC2-12
Besonderheiten / Features	Also known as "Carnival"
