| Seeburg LPC-1 (1963) |
Copyright |
|
Erstmalig vorgestellt vermutlich im September 1962 In Deutschland von Seevend angeboten ab Dezember 1962 Geplant als "2-Jahres-Modell" LPC = Long Play Console
Modell Typen: LPC-1 • LPC-1R
• LPC-1B • LPC-1BR • LPC-1 H5 •
LPC-1R H5 • HLPC-1 • HLPC-1H5 •
ELPC-1 H5 |
Presented in - probably - September 1962 In Germany offered by Seevend in December 1962 Planed to be a "2-Year Model" LPC = Long Play Console for Standard 45 &33-1/3 and for 33-1/3 LP Albums, stereo
Model Types: LPC-1 • LPC-1R
• LPC-1B • LPC-1BR • LPC-1 H5 •
LPC-1R H5 • HLPC-1 • HLPC-1H5 •
ELPC-1 H5 |
|
LPC-1 |
|
|
|
|
|
HLPC (1963-66) |
|
|
|
|
| Technische Daten - Specifications | ||
| LPC1 | HLPC1 | |
| Wahlen / Selections | 160 | 160 |
| Gehäuse / Cabinet |
LPC1, LPC1R, LPC1-H5, LPC1R-H5: Decarlite phenolic laminated, oiled
walnut grain LPC1B, LPC1BR: Oyster Ash |
|
| Lampen / Lamps |
Cabinet: TL 30W/36"/T8 |
Credit GE #55 Record indicator: GE #19 |
./. |

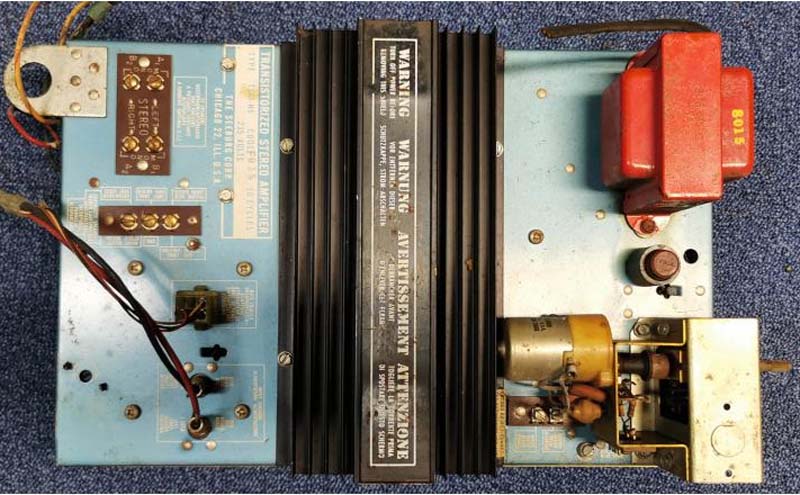

| Verstärker / Amplifier | TSA1; Potentiometer: 2x 25k | TSA1; Potentiometer: 2x 25k |
| Netzteil / Power supply | TCC1: 2x 2050, 6X4, 2x 0A2, 2x 12AX7 | TCC1: 2x 2050, 6X4, 2x 0A2, 2x 12AX7 |
| Stepper | RSCU4, RSCU4-H5 - standard for models with suffix "R" on ID plate | RSCU4, RSCU4-H5 |
| Mechanismus / Mechanism | 133S1 | 133S2 |
| Electrical Selector | TES 169-56 | TES 169-56 |
| Tormat | 160TM2 | 160TM2 |
| Kreditgerät / Credit unit | APU1; APU1-H5 | ./: |
| Auto-Speed-Unit | 45TASU1; Transistor 2x GC433 | 45TASU1; Transistor 2x GC433 |
| Lautsprecher / Speaker |
High: 2x 8" 16 Ohm, # 487502 Low: 2x 12" 16 Ohm |
´./. |
| Tonabnehmer / Cartridge | Seeburg first stereo cartridge - T-shaped needle | Seeburg first stereo cartridge - T-shaped needle |
| Sicherungen / Fuses |
Tormat: 15A | Amplifier: GMQ 800 mA Mechanism 5A MTH Stepper: 3.2A | APU 500 mA and 1.6A 115V Power Junction: 6.25A / 235V Power Junction: 3.2A |
Tormat: 15A | Amplifier: GMQ 800 mA Mechanism 5A MTH Stepper: 3.2A | APU 500 mA and 1.6A 115V Power Junction: 6.25A / 235V Power Junction: 3.2A |
| Schlüssel / Key | F-278 | |
| Abmessungen / Size | ||
| Zubehör / Accessories |
Stepper opt. for all models w/o suffix "R": RSCU4, RSCU4-H5 Wallbox Consolette SC1 Remote Volume Control PVCR 2, PVCR 3 Extra speaker TWI-8, TR1-8, EBWC1-12 LP Console Speaker Kit LPCSK1 Remote Control Kit RLPC1 / Remote Control Kit RLPC1-5 |
Wallbox
Consolette SC1 Remote Volume Control PVCR 2, PVCR 3 Extra speaker TWI-8, TR1-8, EBWC1-12 LP Console Speaker Kit LPCSK1 Remote Control Kit RLPC1 / Remote Control Kit RLPC1-5 |
| Besonderheiten / Special |

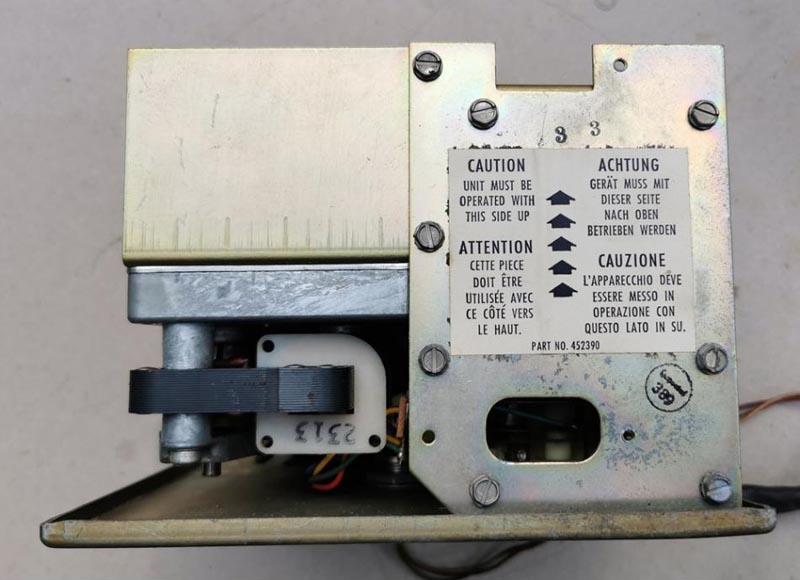

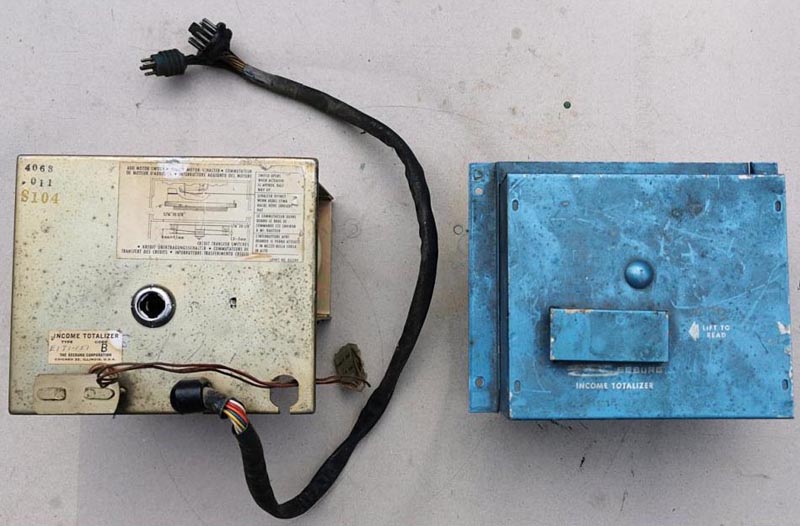

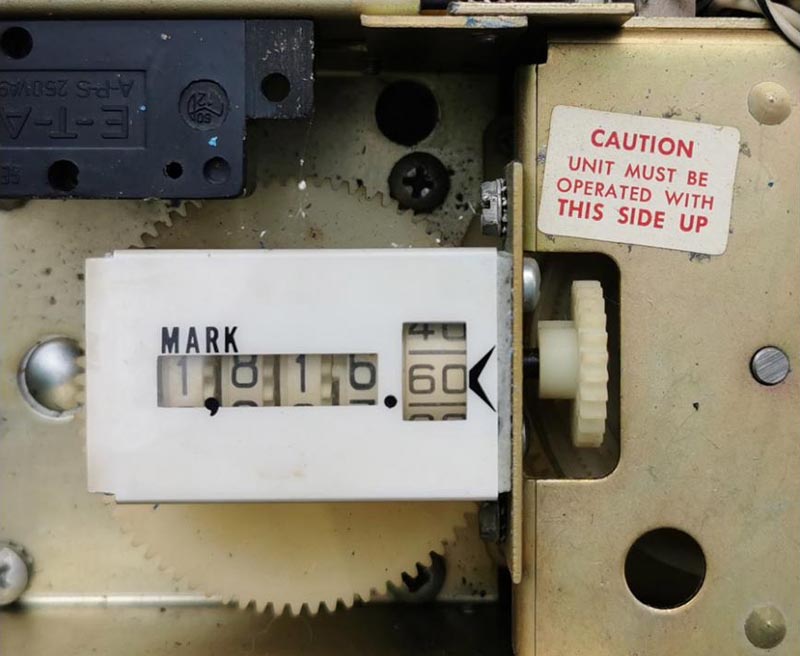

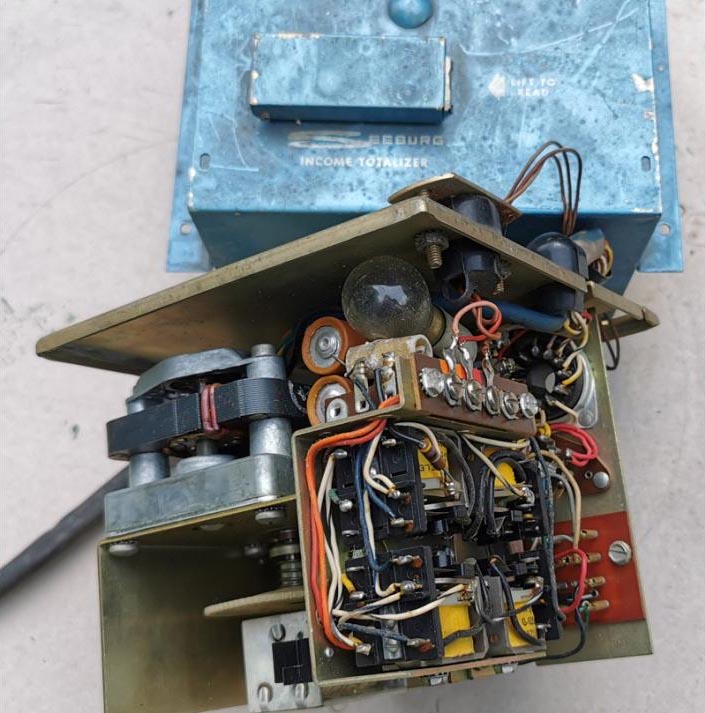

Seeburg LPC-1 was available in different versions: LPC1: Mechanism 133S1, Income Totalizer IT1 LPC1R: Mechanism 133S1, Income Totalizer IT1R-56 LPC1B: Mechanism 133S1, Income Totalizer: IT1 LPC1BR: Mechanism 133S1, Income Totalizer: IT1R-56, LPC1-H5: Mechanism 133S-356, Income Totalizer: IT1, IT2, IT3, LPC1R-H5: Mechanism 133S-356, Income Totalizer: IT1R, IT2R or IT3R Prefix "E": Export version Suffix "R": Remote Control Stepper Unit included; Income Totalizer IT1R-56 counted Consolette coin drops, too Suffix "B": Blonde cabinet "Oyster Ash"; Gray interior; Brown strip with white/light blue lettering below picture sleeves Suffix "H5": 220 Volt Suffix "XT": No Income Totalizer (?) Suffix "C": Suffix "Q": 3 coins (?) |
Seeburg LPC-1 was available in different versions: HLPC1- Hideaway: Mechanism 133S2, Income Totalizer: IT11R-56 HLPC1-H5 - Hideaway: Mechanism 133S2-356, Income Totalizer: IT12R-56 or IT13R-56, 50 Hz. Prefix "E": Export version |
| Neupreis / Original Price | LPC1: Germany by
Seevend: 7900 DM Remote Control: 77,50 DM Wallbox Consolette: 1290 DM |
Remote Control: 77,50 DM Wallbox Consolette: 1290 DM |
|
|
|
Booklet "Little LP Album Library Catalog" |
|
Little LPs offered 6 tunes per album for 50 Cent (Half Dollar). Fotos: Schwab Automaten
|
|
Die Angaben haben keinen
Anspruch auf Vollständigkeit oder Richtigkeit. |
|
