Musikbox Seeburg U100 Jukebox

Mustang: U100, U100H, U100-H5, EU100-H5

H = Half Dollar | E = Export | H5 = Hochspannung (230 Volt)

H = Half Dollar | E = Export | H5 = High Voltage (230 Volt)

Seeburg U-100

U100D Discothèque Junior

Seeburg U-100 D

Seeburg U-100 D
Photo courtesy of Neil

Das Typenschild des Seeburg Modells U100 Discothèque hat keinen Buchstaben "D" in der Bezeichnung. Das liegt sehr wahrscheinlich daran, dass die Discothèque Version nur ein Zusatz war. Die Modelle U100 und U100H wurden mit dem dem Zusatz Discothèque Conversion Kit DJK1 ausgestattet.
Im normalen Betrieb wird die 18 Watt Leuchtstofflampe verwendet. Im Discothèque Betrieb wird die 20 Watt Schwarzlichtlampe verwendet. Die Einstellung erfolgt über den Schalter an der Rückwand.
45 U/Min Singles mit verschiedenen Label-Farben (Klassifikation).

Was bedeutet die Modellbezeichnung EU100 Q-151 H5?
E = Export
U100 = Modell
Q = Münzeinwurf für drei Münzen
151= für Deutschland gefertigt
H5 = Hochspannung (230 Volt)

The id plate of Seeburg model U100 Discothèque does not show the letter "D" in model type.
This is most likely because the Discothèque version was an extra feature only. Models U100 and U100H got equipped with Discothèque Conversion Kit DJK1.
In normal operation the 18 Watt fluorescent lamp is used. For Discothèque operation the 20 Watt blacklight lamp is used. This feature gets controlled by a switch at the rear of the cabinet.

45 rpm Discothek records in different label colours (classifications).

What does the model type EU100 Q-151 H5 mean?
E = Export
U100 = model type
Q = set up for three coins
151= made for Germany
H5 = High Voltage (230 Volt)

U100H

Photos courtesy of Matt

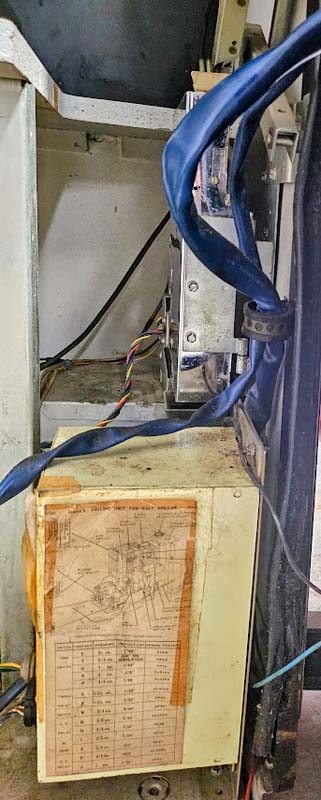

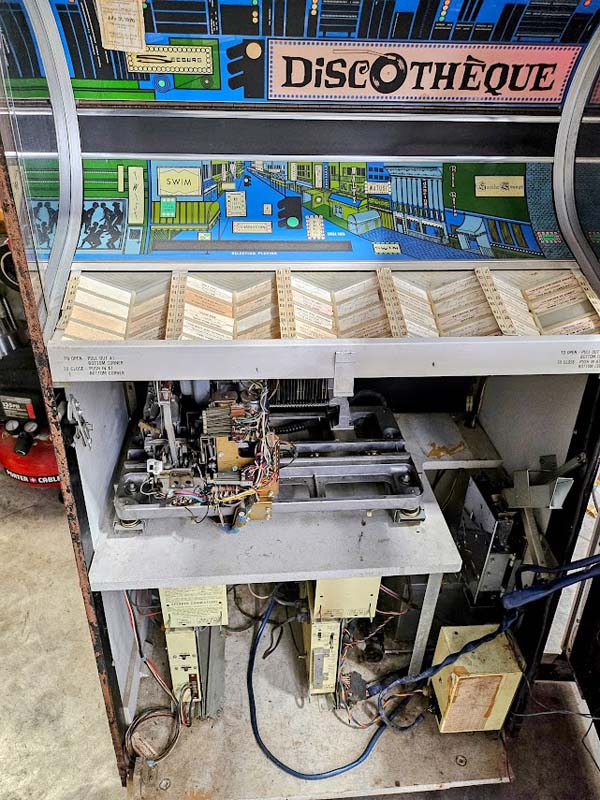

Ausgestattet mit Half Dollar Einheit und Discothèque Conversion Kit DJK1.		Equipped with Half Dollar Unit and Discothèque Conversion Kit DJK1.

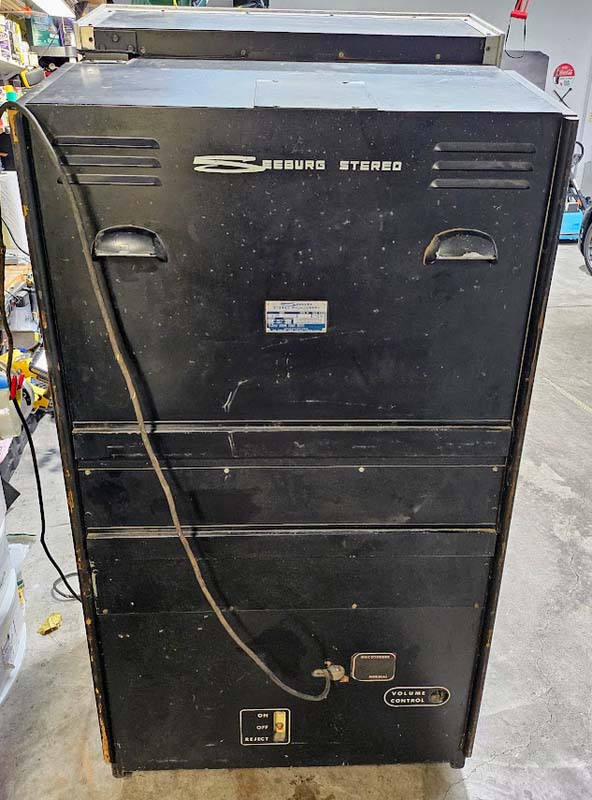

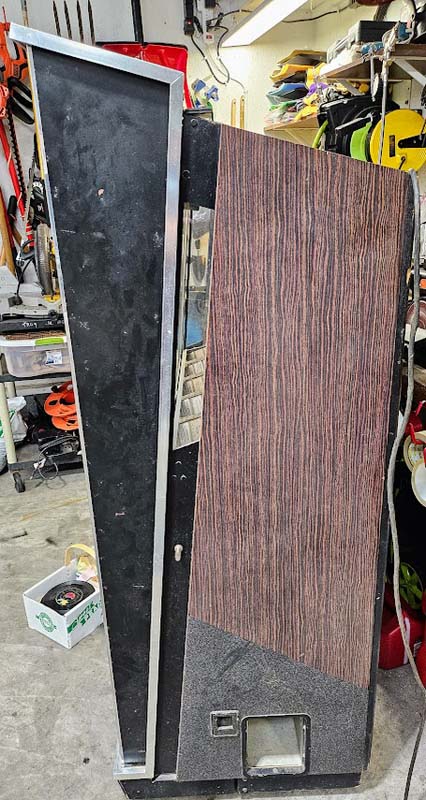

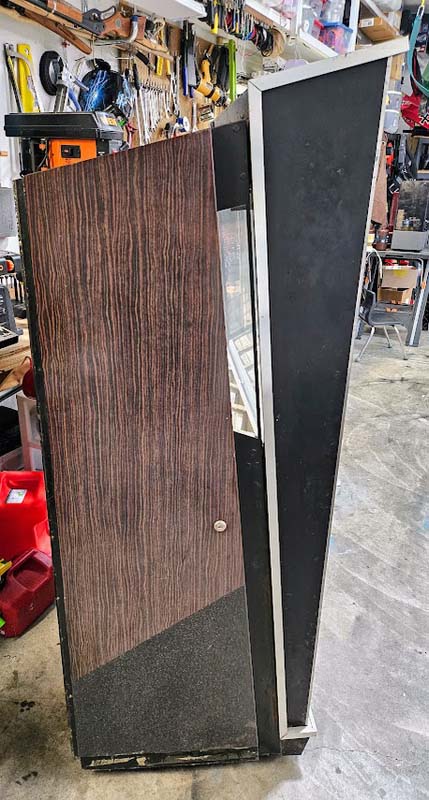

Seeburg U-100H Jukebox

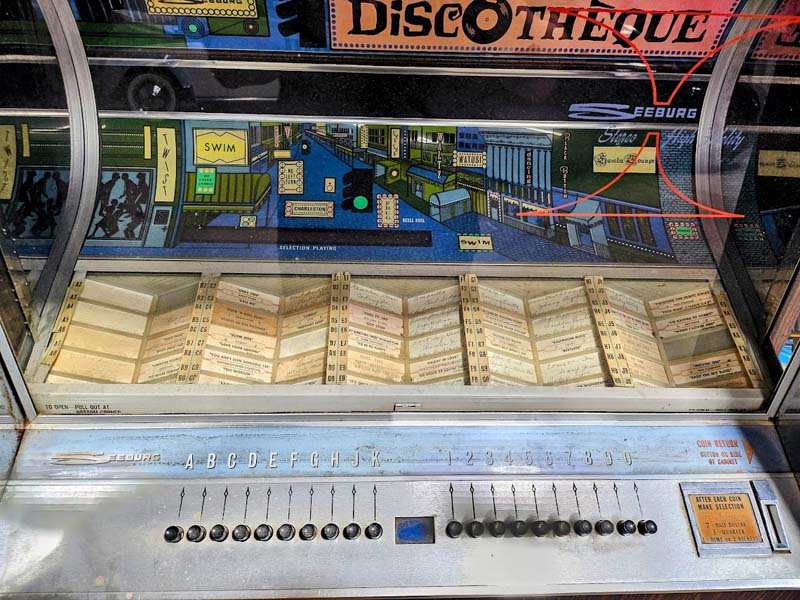

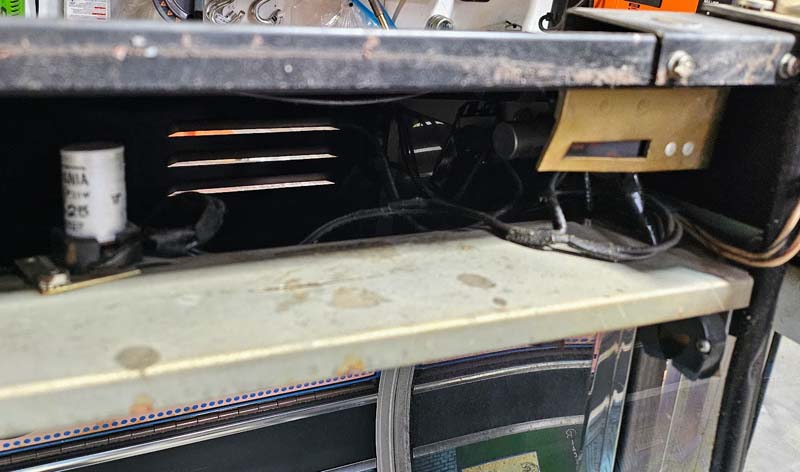

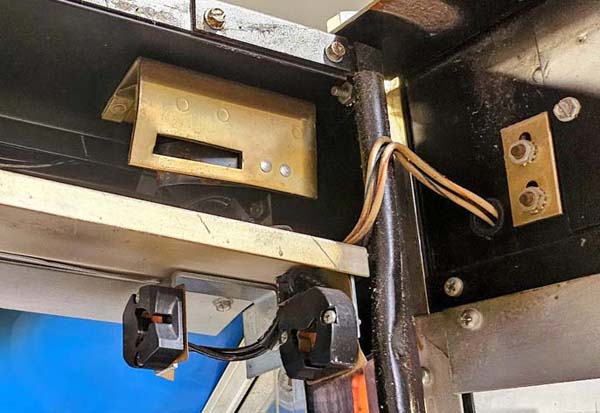

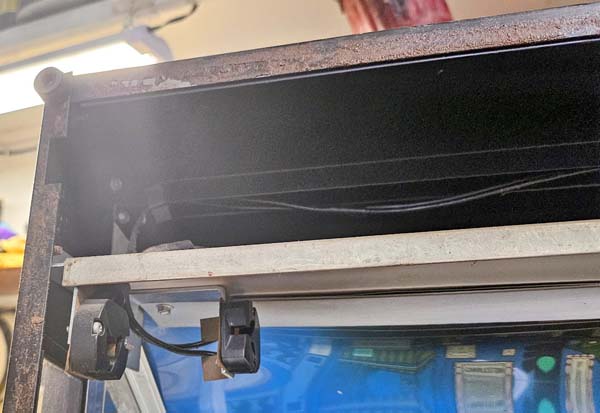

Zwei Lampenfassungen für Standard 18W und 20W Schwarzlichtlampe

Two lamp sockets for standard 18W and 20W black light

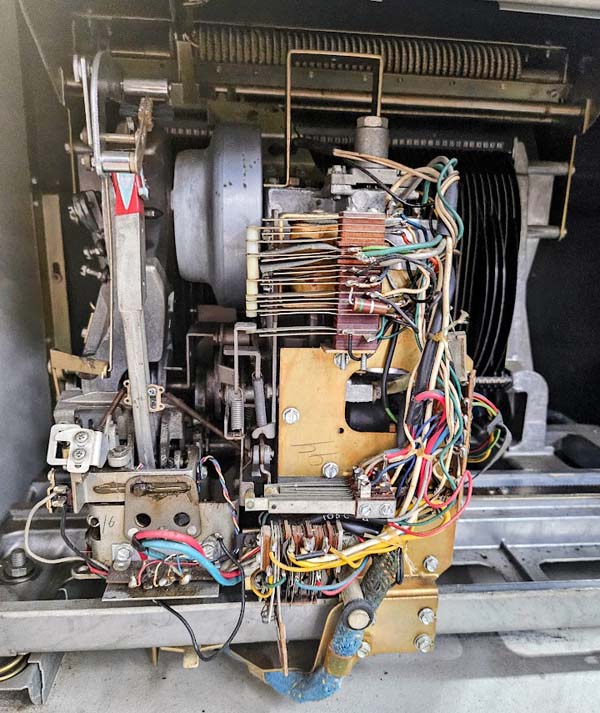

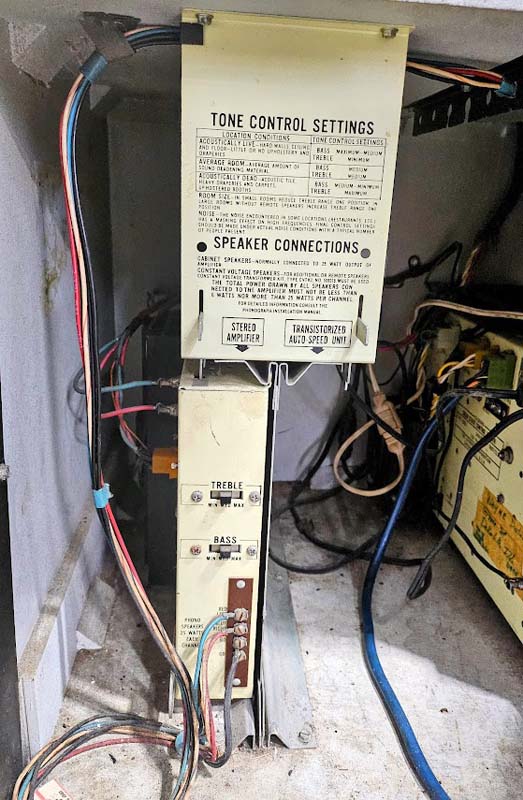

Seeburg U-100H Jukebox

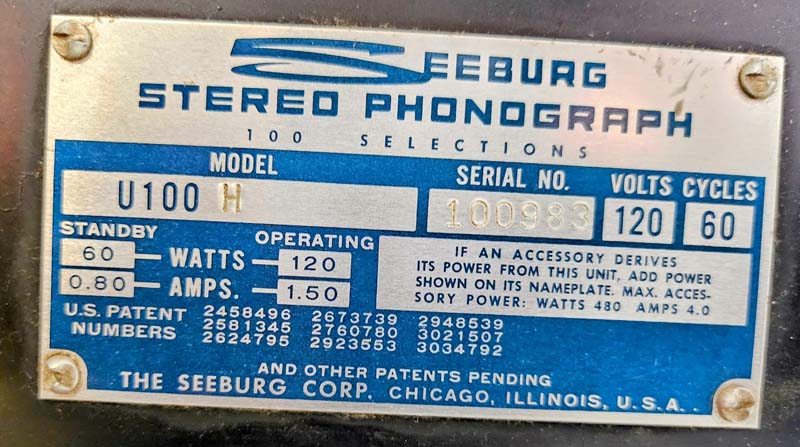

Auch hier gibt es keinen Buchstaben "D" in der Modellbezeichnung.

Also here there is no letter "D" in the model ID.

Technische Daten - Specifications
	U100 / U100-H5 / EU100-H5	U100H	U100D
Jahr / Year	1964	1964	1965
Wahlen / Selections	100	100	100
Gehäuse / Cabinet	High pressure Decarlite Phenolic Laminated, Marcassar Ebony, light antique finish grilles	High pressure Decarlite Phenolic Laminated, Marcassar Ebony, light antique finish grilles	High pressure Decarlite Phenolic Laminated, Marcassar Ebony, light antique finish grilles
Lampen / Lamps	Cabinet: TL 18W/28"/T8 Record indicator: GE #19 Credit lamp: GE #55	Cabinet: TL 18W/28"/T8 Record indicator: GE #19 Credit lamp: GE #55	Cabinet: Standard operation:TL 18W/28"/T8, Discothèque: Blacklight TL 20W 24" T12 Record indicator: GE #19 Credit lamp: GE #55

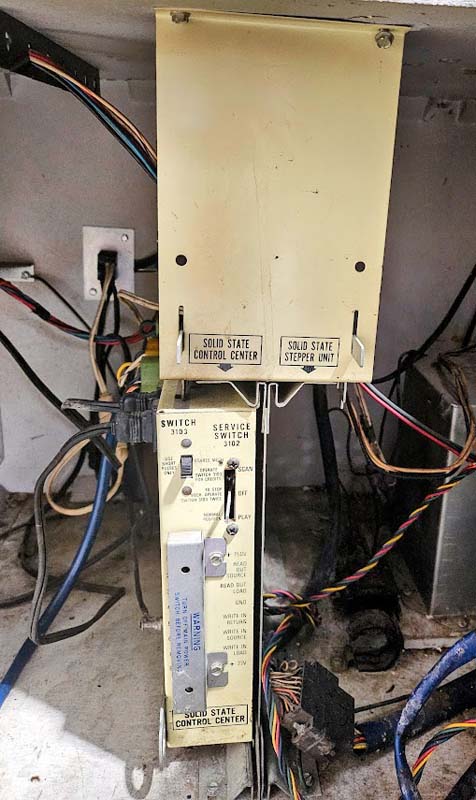

Verstärker / Amplifier	U100: TSA2 \| EU100H5: TSA2-5 Transistors: 4x 309412 PNP, 2x 309419 PNP, 2x 309418 NPN, 2x 309413 PNP, 4x 309414 PNP, 2x 309420 PNP, 2x 309421 PNP Potentiometer: 2x 25k	TSA2 Transistors: 4x 309412 PNP, 2x 309419 PNP, 2x 309418 NPN, 2x 309413 PNP, 4x 309414 PNP, 2x 309420 PNP, 2x 309421 PNP Potentiometer: 2x 25k	TSA2 Transistors: 4x 309412 PNP, 2x 309419 PNP, 2x 309418 NPN, 2x 309413 PNP, 4x 309414 PNP, 2x 309420 PNP, 2x 309421 PNP Potentiometer: 2x 25k
Netzteil / Power supply	U100: SCC1 EU100-H5: SCC1-5	SCC1	U100D: SCC1 EU100D-H5: SCC1-5
Stepper	U100: SSU1 EU100-H5: SSU1-H5	SSU1	SSU1
Mechanismus / Mechanism	U100: 145ST11 EU100: 145ST11-5	145ST11	145ST11
Electrical Selector	TES109-56	TES109-56	TES109-56
Tormat	100TM4	100TM4	100TM4
Kreditgerät / Credit unit	U100: SPU3 U100-H5 / EU100-H5: SPU3-5	SPU3H - Half Dollar Unit	U100D: SPU3 U100D-H5 / EU100D-H5: SPU3-5 U100DH: SPU3H
Auto-Speed-Unit	-	-	Auto-Speed-Unit for 33 rpm: 33TASU4K (with transistor 2N1536)
Lautsprecher / Speaker	2x Low 12" 5 Ohm 2x Hi Freq 5" 16 Ohm	2x Low 12" 5 Ohm 2x Hi Freq 5" 16 Ohm	2x Low 12" 5 Ohm 2x Hi Freq 5" 16 Ohm
Tonabnehmer / Cartridge	Seeburg first stereo cartridge with T-shaped needle	Seeburg first stereo cartridge with T-shaped needle	Seeburg first stereo cartridge with T-shaped needle
Sicherungen / Fuses	SCC1: 15 A, 1.5A pigtail, 6.25A, 125mA pigtail SCC1-H5: 15 A, 1.5A pigtail, 3.2A, 125mA pigtail Amplifier U100: 800 mA slo blo Amplifier EU100-H5: 500 mA slo blo Mechanism: 2x 5A pigtail	SCC1: 15 A, 1.5A pigtail, 6.25A, 125mA pigtail Amplifier U100: 800 mA slo blo Amplifier EU100-H5: 500 mA slo blo Mechanism: 2x 5A pigtail	SCC1: 15 A, 1.5A pigtail, 6.25A, 125mA pigtail Amplifier U100D: 800 mA slo blo Amplifier EU100D-H5: 500 mA slo blo Mechanism: 2x 5A pigtail
Schlüssel / Key	F-330	F-330	F-330
Abmessungen / Size	163 x 81 x 59 cm / 64 x 31-3/4 x 23" 147 kg / 326 lbs	163 x 81 x 59 cm / 64 x 31-3/4 x 23" 147 kg / 326 lbs	163 x 81 x 59 cm / 64 x 31-3/4 x 23" 147 kg / 326 lbs
Zubehör / Accessories	Extra speaker TW1-8, TR1-8, TC1-8, EBWC2-12 (with CVTK2 transformer) DDS1, DDS2, DWS1, DWS2 Solid State Stepper Kit SSU1K Wallbox 3W100, Remote Volume Control PRVC 3 Auto-Speed-Unit for 33 rpm: 33TASU4K (w. transistor 2N1536)	Extra speaker TW1-8, TR1-8, TC1-8, EBWC2-12 (with CVTK2 transformer) DDS1, DDS2, DWS1, DWS2, Solid State Stepper Kit SSU1K Wallbox 3W100 Remote Volume Control: PRVC 3 Auto-Speed-Unit for 33 rpm: 33TASU4K (w. transistor 2N1536)	Extra speaker TW1-8, TR1-8, TC1-8, EBWC2-12 (with CVTK2 transformer) DDS1, DDS2, DWS1, DWS2 Solid State Stepper Kit SSU1K Wallbox 3W100 Remote Volume Control: PRVC 3
Besonderheiten / Features			Equipped with Discothèque Conversion Kit DJK1 45 rpm Discothek records in different label colours (classifications) Letter "D" in model type not mentioned on ID plate. In normal operation the 18W lamp is used. For Discothèque operation the blacklight lamp is used. A switch at the rear is installed to control this feature.
