Wurlitzer Jukeboxes, Speaker & Wallboxes im Archiv von Jukebox-World |
|
Wurlitzer 36, 37, 38 (1938-39) ••• 160 (1938-41) ••• 170 (1938-41) |
Copyright |
Pictures: Lloyd Thoburn |

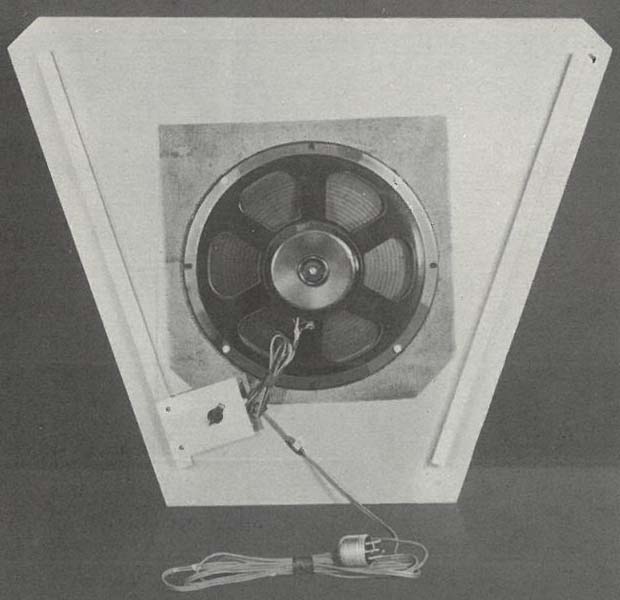

Wurlitzer 36 (1938-39) |
|
|

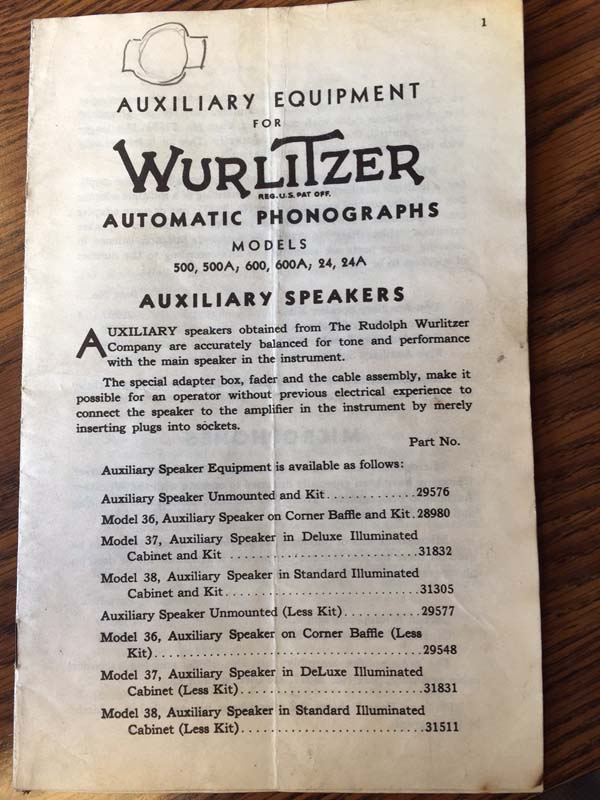

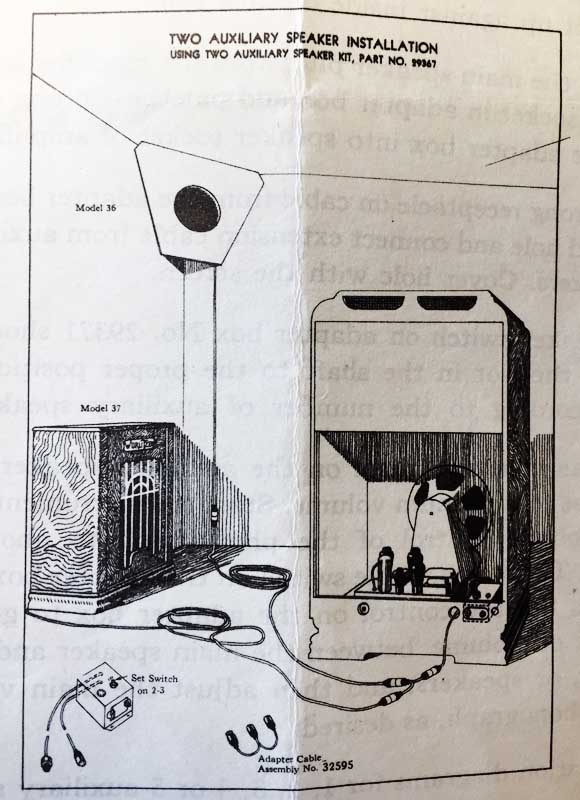

Wurlitzer 36, 37, 38 (1938-39) |
|
|

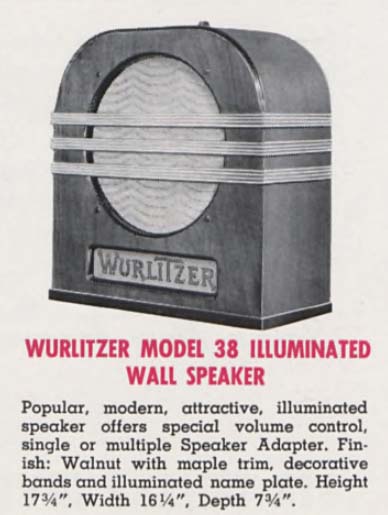

Wurlitzer 38 (1938-39) |
|
Bild: Thomas Putz |
Wurlitzer 160 (1938-41) |
|
|

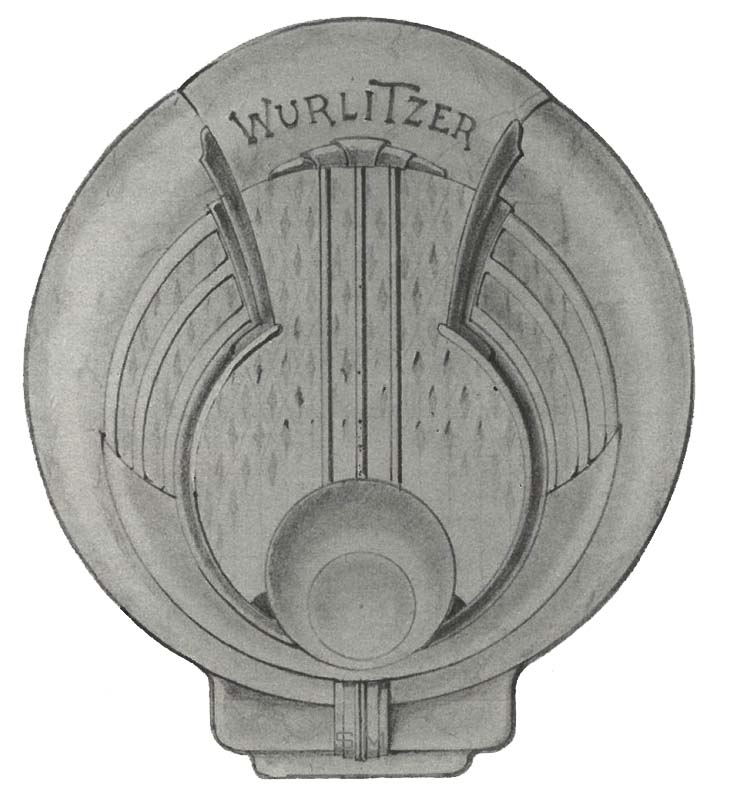

Wurlitzer 170 (1938-41) |
|
|
Technische Daten - Specifications | |||||
36 | 37 | 38 | 160 | 170 | |
Gehäuse / Cabinet |
5-ply veneer, grey | Walnut with maple trim, decorative bands and illuminated nameplate | Selected veneers, finished in neutral color or natural maple | Plastic fromt, veneered cabinet, illuminated | |
Lampen / Lamps |
- |
- | 40 W | ||
Lautsprecher / Speaker |
12" PM, dustproof with volume control | 8" PM, dustproof with volume control | 12" PM, dustproof with volume control | ||
Abmessungen / Size |
H 24" x top width 20" x bottom width 15" | H x W x D: 17-3/4" x 16-1/4" x 7-3/4" |
H x W x D: 28" x 19-1/8" x 10-1/4" |
Diameter 17", D 8.5" | |
Anschluß / Connection |
2-wire cable | 2-wire cable | 2-wire cable | ||
Für Modelle / For use with models |
50,
51,
61,
24, 24A 500, 500A, 600, 600A |
50,
51,
61,
24, 24A 500, 500A, 600, 600A |
50,
51,
61,
24, 24A 500, 500A, 600, 600A |
50, 51, 61, 24, 24A, 500, 500A, 600, 600A, 700, 800, 41, 71, 750, 750E, 780, 780E, 850 | |
Damaliger Neupreis / Original price |
US$ 17.50 |
|
