Rock-Ola 1493 - Princess (1961)

Copyright

Presented Aug 13, 1961 as new compact jukebox

Rock-Ola 1493

R.O. 1493
R.O. 1493

Fotos: Dennis Rollinger
R.O. 1493
Version für 45 RPM   -   Version for 45 rpm only





Rock-Ola Mech-O-Matic: Intermix 45 / 33 RPM

Fotos: Wolfgang P.

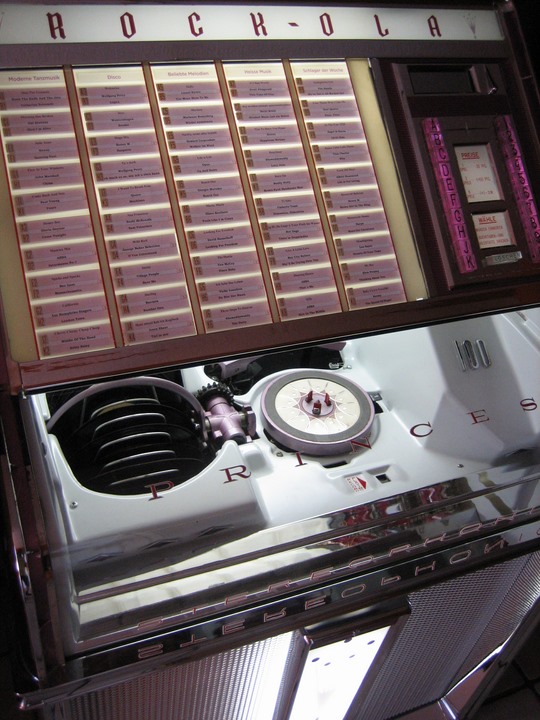

Rock-Ola 1493 Princess Intermix

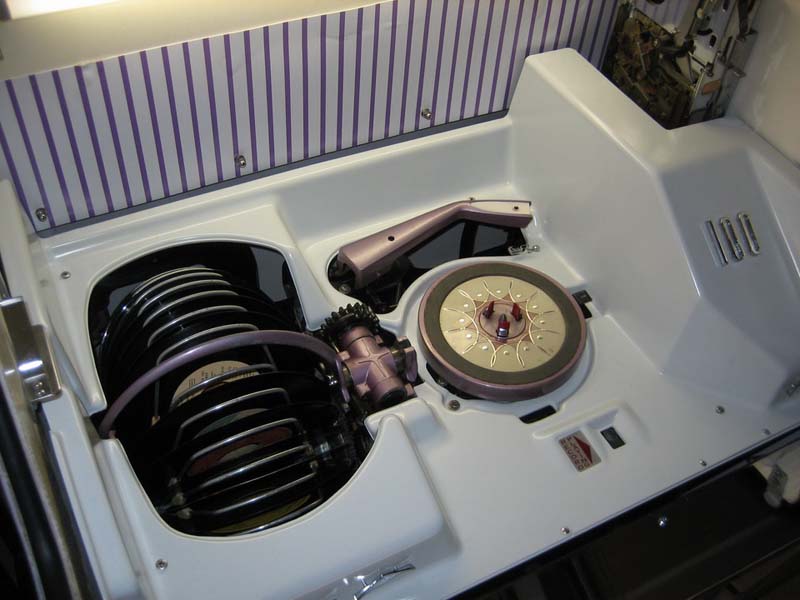

Plattenteller mit beweglichen Zungen   -   TT with moveable pins

Rock-Ola 1493 Princess Intermix

Rock-Ola 1493 Princess Intermix

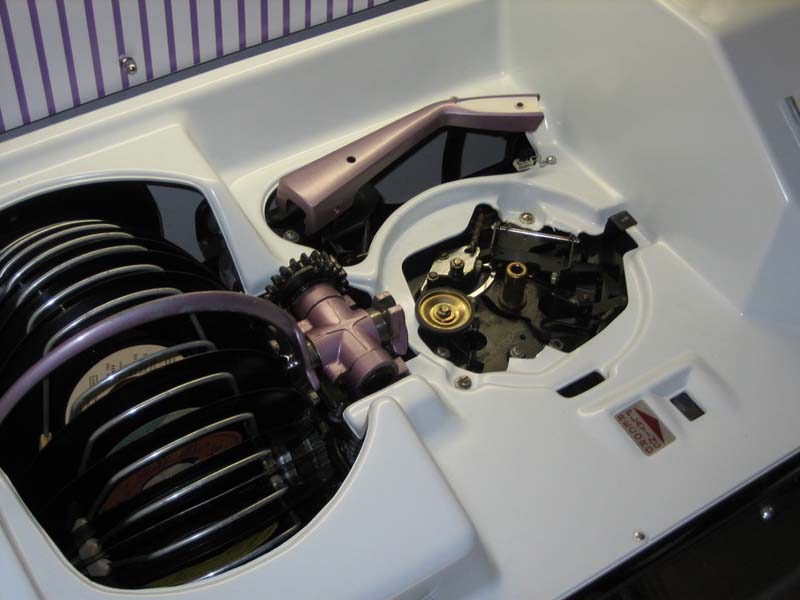

Das Zwischenrad wird für die enstprechende RPM in die dazugehörige Positionen gehoben
The idler wheel gets lifted in a certain position for the needed RPM.





Rock-Ola Controlbox 34640-A

Rock-Ola 1493 Princess Controlbox 34640-A

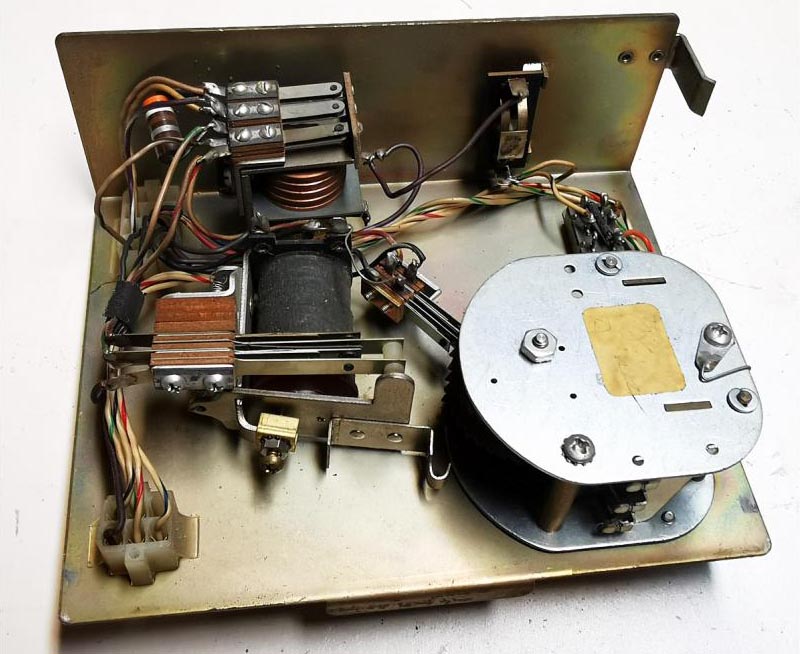

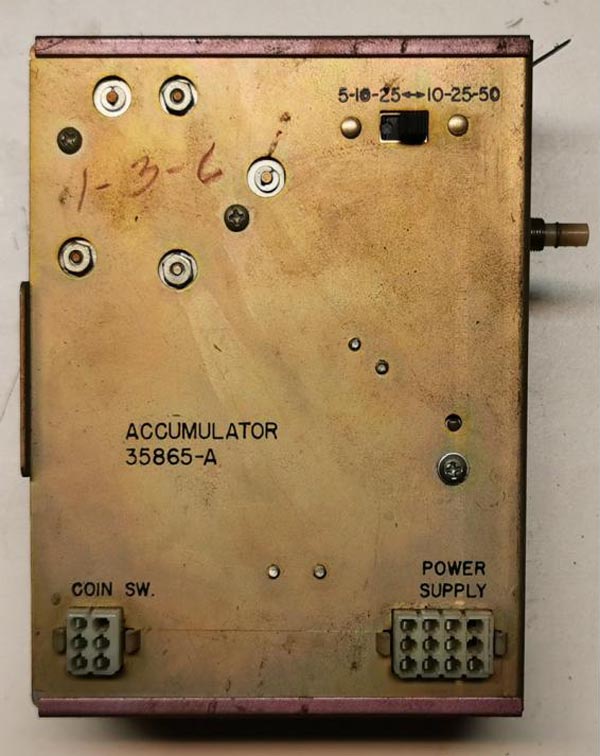

Rock-Ola Credit Unit 35865-A

Rock-Ola 1493 Princess Kreditgerät

Rock-Ola 1493 Princess Kreditgerät

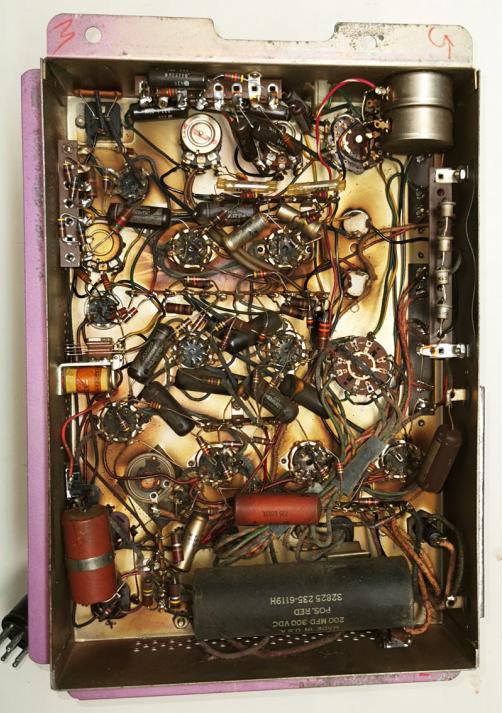

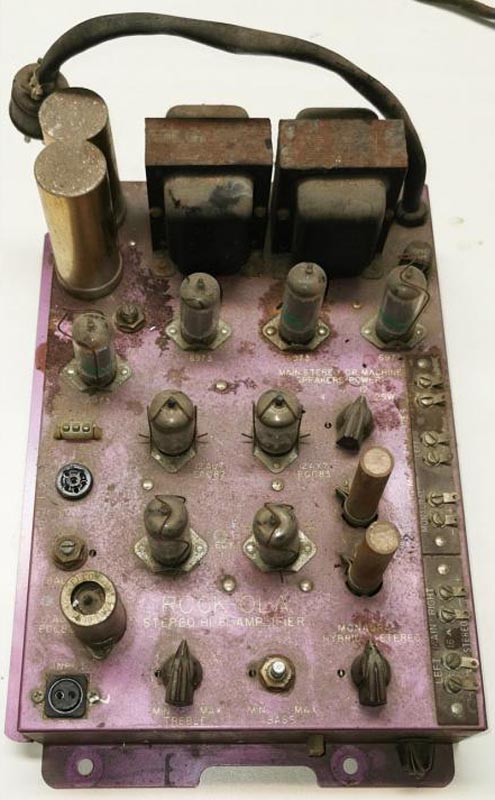

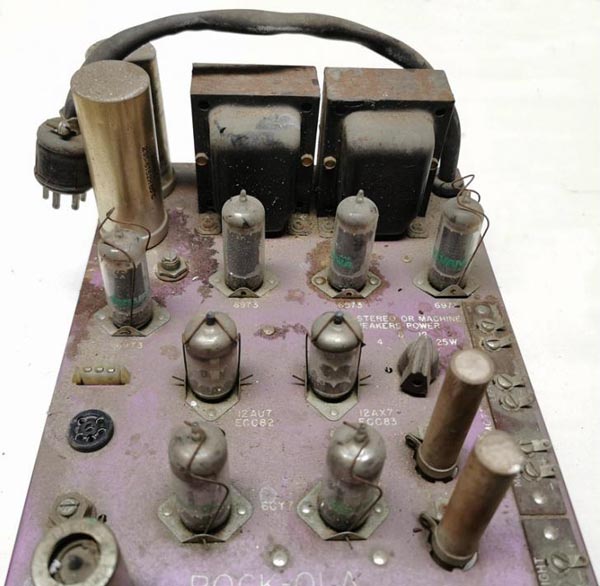

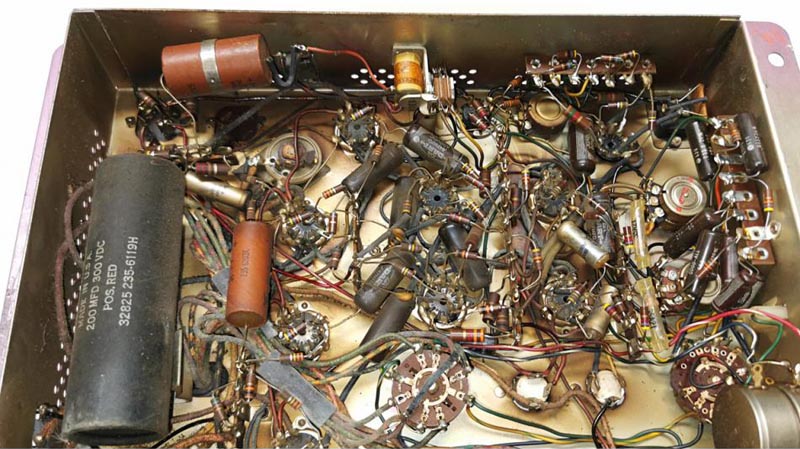

Rock-Ola Amplifier 36320-A

Rock-Ola 1493 Princess Verstärker Amplifier

Rock-Ola 1493 Princess Verstärker Amplifier

Rock-Ola 1493 Princess Verstärker Amplifier

Rock-Ola 1493 Princess Verstärker Amplifier





Reverbaration Unit 1972

Manufacturer Hammond Organ Company
Photos courtesy Robert Richardson
Rock-Ola 1493 Princess Reverbaration Unit Reverba Sound

Rock-Ola 1493 Princess Reverbaration Unit Reverba Sound

Rock-Ola 1493 Princess Reverbaration Unit Reverba Sound

Rock-Ola 1493 Princess Reverbaration Unit Reverba Sound
Source: Rock-Ola Regis Service and Parts Manual listing Reverba Unit 1964-A





Reverbaration Sound Remote Control
Bild: Michael Sommer
Regis Reverba Sound Remote Control




Technische Daten - Specifications
Wahlen / Selections 100
Lampen / Lamps Cabinet: 15W/18"/T8; 20W/24"/T12   |   Record indicator: GE #44
Verstärker / Amplifier 36320-A

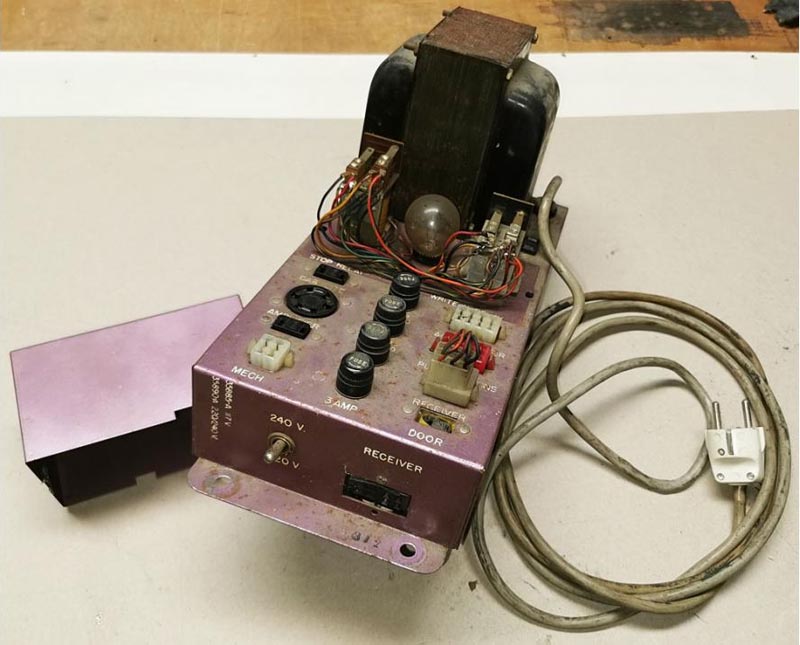

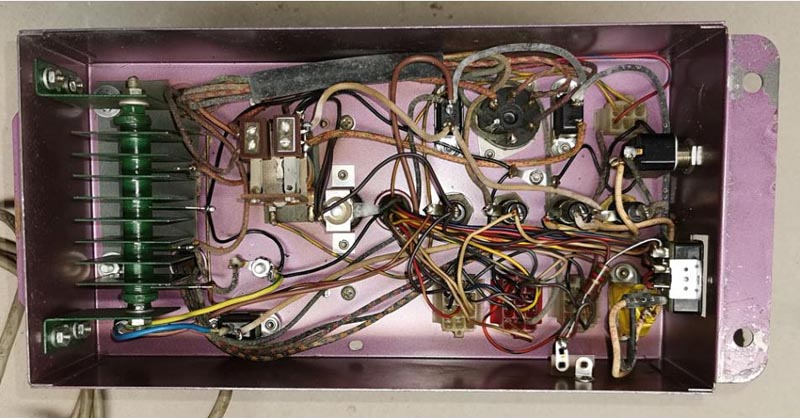

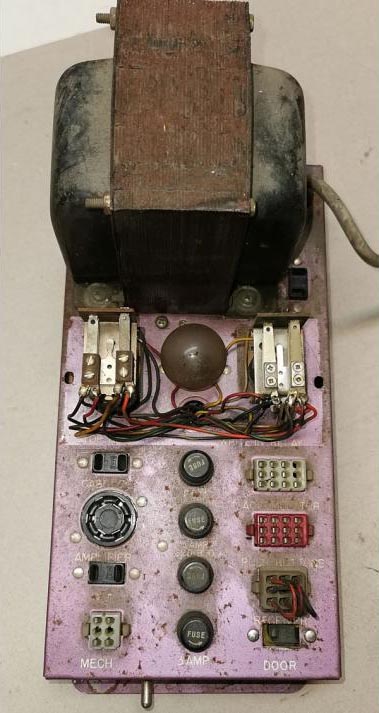

Netzteil / Power supply 35885-A (117V)   |   35890-A (220/240V)
Kreditgerät / Credit unit 35865-A
Kontollbox / Control box 34640-A
Lautsprecher / Speaker 1x Jensen AlNiCo 12" 8 Ohm   |   1x Hi Frequ. Horn
Tonabnehmer / Cartridge Astatic-15D with needle Astatic N-43 resp. Astatic 17 with needle Astatic N-41
Sicherungen / Fuses Amplifier 1A   |   Power Supply: 3x 3A, 1x 1.6A
Schlüssel / Key F-486
Abmessungen / Size 76 x 54 x 122,6 cm; 111 kg
Zubehör / Accessories 1972:Reverba-Sound Amp & Reverbaration Unit   |   Extra speaker Stereo-Twin: 1622, 1623;
Stepper 1745   |   Wallbox 1554/1556   |
Wall Box Bar Bracket 1541   |   Featured Star Display Kit 1978
Besonderheiten / Features Intermix Play 33 / 45 RPM   |   Tri-Fonic Flexibility
Preis / Price 1962 4450 DM (Phoenix Apparate, D)




Wie sieht das Gehäuse der Princess (R.O. 1493) im original aus?    How does the cabinet of Rock-Ola 1493 model Princess look originally?

Axel Rosenberger:
Ich denke, dass die Princess ein helles Gehäuse mit lila Maserung hatte, ähnlich dem unteren Gehäuseteil der Empress. Schon Tempo 1, Tempo 2 und Regis hatten ja lackierte Gehäuse auf denen die Maserung dann farblich abgesetzt war. Meist wiederholte die Maserung eine Grundfarbe der restlichen Farbgestaltung der Musikbox.
Die Gehäuse von Regis und Empress (letztere nur im unteren Gehäuseteil) hatten eine weißliche bis eierschalenfarbene Grundlackierung mit entsprechender Maserung (Regis: metallicblau wie die Haube und Teile der Tür; Empress metalliclila, ebenfalls wie die Haube und Teile der Tür).
Da die Princess ja aus der selben Zeit stammt, dürfte das dann auch für diese Musikbox gelten.

Helles Gehäuse (etwa RAL 1015 oder 9001) mit metallic-lila-farbener Maserung

Aufarbeitung dieser Holzmaserung




I think that the Princess had a light-coloured cabinet with purple grain, similar to the lower part of the Empress case. Tempo 1, Tempo 2 and Regis already had lacquered cabinets on which the grain was then colour-contrasted. In most cases, the grain repeated a basic colour of the rest of the colour scheme of the jukebox.
The Regis and Empress cabinets (the latter only in the lower part of the cabinet) had a whitish to eggshell-coloured base coat with corresponding grain (Regis: metallic blue on the hood and parts of the door; Empress metallic purple, also on the hood and parts of the door).
As the Princess dates from the same period, this should also apply to this jukebox.

Light cabinet (RAL1015 or 9001 come close) with metallic-purple grain

Refurbishing this wood grain

* Hinweis: Farbtöne verändern sich auch in 50 Jahren, und ehemals gleiche Farben "vergilben" verschieden; je nach Untergrund scheint es, so wirken dann die Plastikteile andersfarbig als die Metallteile. Somit sind vorgefundene alte Farbtöne nur bedingt als Referenz geeignet.
Farbangaben ohne Gewähr. Sie sind Richtwerte, Empfehlungen, Erfahrungswerte versch. User des Forums und kommen dem Originalfarbton nahe. In der Regel empfiehlt es sich, anhand eines gut erhaltenen Originalmusters den Farbton gezielt bei einem Lackierer oder Farbenfachgeschäft mischen zu lassen. So kann der Farbton an die übrigen Farben der Jukebox angepasst werden, ohne dass es "zu neu" aussieht.
Gut erhaltene Farbtöne finden sich i.d.R. unter Leisten, Abdeckungen, Profile usw., also dort, wo Licht und Nikotin nicht hinkommen.



* Note: Colour tones change within 50 years, and colours that were once the same get yellowish differently. Depending on the background, the plastic parts appear to be a different colour than the metal parts. Old colours found are therefore only suitable as a reference to a limited extent.
Colour specifications without guarantee. They are guidelines, recommendations and experience values of various forum users and come close to the original colour. As a rule, it is advisable to have the colour tone mixed by a painter or professional paint shop using a well-preserved original sample. In this way, the colour can be matched to the other colours of the jukebox without it looking ‘too new’.
Well-preserved colours can usually be found beneath mouldings, covers, profiles, etc., i.e. where light and nicotine cannot reach.



Die Angaben haben keinen Anspruch auf Vollständigkeit oder Richtigkeit.
Bei den (importierten) Boxen können im Laufe der Jahre durchaus Veränderungen vorgenommen worden sein. Copyright.
