Wurlitzer 1500, 1550 (1952)    •••    1500A, 1550A, 1500AF (1953)

Copyright
Intermix 78 & 45 RPM

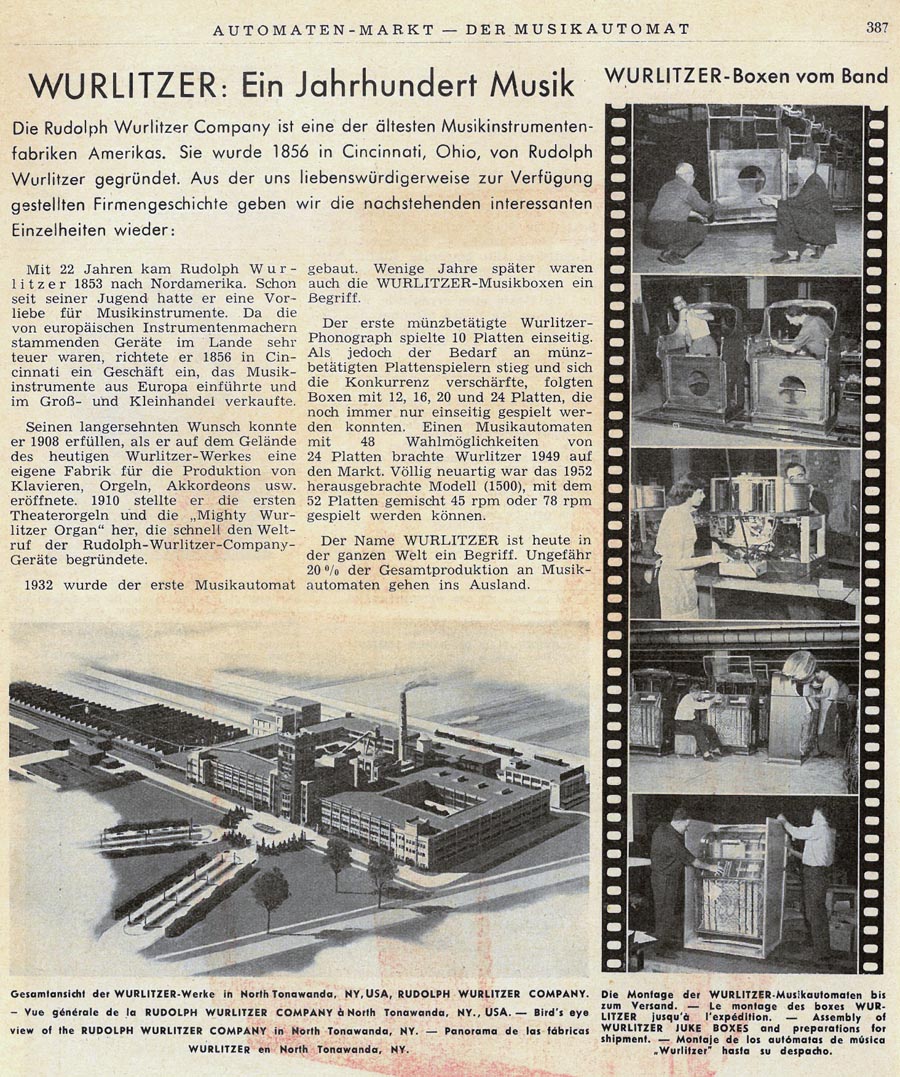

Wurlitzer 1500

 Wurlitzer 1550

Wurlitzer 1500

- Sorry, no photo yet -


Cabinet style like model 1500
but textile leather in blue, blonde or mahagony sides



Claude M's restoration of a 1550
(opens in a new window)

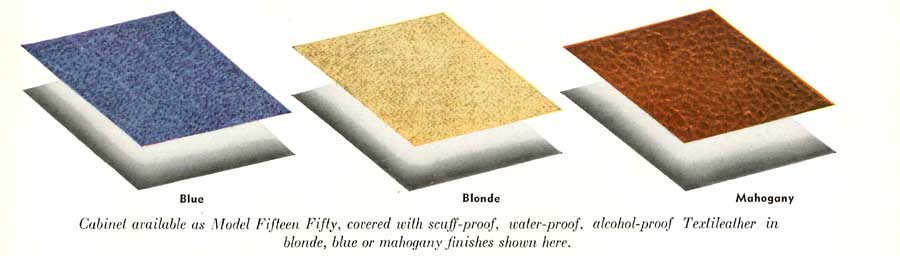

Wurlitzer 1550 colour options
W 1500



Modifications while production run of models 1500 & 1550
  1st Series 2nd Series
Selector Switches Resistors 150 Ohm 5 Watt and 200 Ohm 5 Watt Resistors 150 Ohm 5 Watt and 175 Ohm 5 Watt
Electric Selector 4x micro switches #56740, 45117, 56033, 53089 3x micro switches # 56740, 45117, 57702
Main Cam Shaft One transfer switch action 2nd transfer switch and selector motor reverse switch actions added
Tray linkage   Revised

Switches

 Line Switch
Coin Register Fully Cycle Switch
Key Switch
Override Switch
Transfer Switch
Fully Cycle Switch
Position Switch
Level Switch
Record Play Switch
Reverse Switch
Tone Arm Switch
Muting Switch
Safety Switch
Trip Switch
Cancel Switch
Gain Switch		 Line Switch
Coin Register Switch
Override Switch
Transfer Switch
Fully Cycle Switch
Selector Motor Stop Switch
Selector Motor Reverse Switch
Carry-Over Switch
Record Play Switch
Turntabe Reverse Switch
Tone Arm Switch
Muting Switch
Gain Switch
Trip Switch
Cancel switch
Service Switch




Wurlitzer 1500A

 Wurlitzer 1550A

- Sorry, no photo yet -

cabinet style like model 1550A
but with polished walnut sides



 W 1550 A

Cabinet in blonde textile leather or in custom colors blue or red

Videos of a restored 1500A in four sections:
http://www.youtube.com/watch?v=KZQ5qR98uds&feature=related
http://www.youtube.com/watch?v=KgefUkunieg&feature=related
http://www.youtube.com/watch?v=9xvS1c6a6n8&feature=related
 http://www.youtube.com/watch?v=sDO3_P5XmPw&feature=channel

 Videos courtesy of Ed






Wurlitzer 1500AF


- Sorry, no photo yet -

Cabinet style like model 1550A but with polished walnut sides, Hi-Fidelity and Amplifierlifier 520 plus aux. HiFi- Amplifier 229







Technische Daten - Specifications
  1500 1550 1500A 1550A 1500AF
Wahlen / Selections 104 104 104 104 104
Lampen /
Lamps		 1x TL 25W/33"/T12;
2x TL 20W/24"/ T12;
2x TL 14W/15"/ T12;
GE #44, #47, #51		 1x TL 25W/33"/T12;
2x TL 20W/24"/ T12;
2x TL 14W/15"/ T12;
GE #44, #47, #51		 2x TL 25W/33"/T12,
2x TL 20W/24"/ T12;
GE #44, #47, #51		 2x TL 25W/33"/T12,
2x TL 20W/24"/ T12;
GE #44, #47, #51		 2x TL 25W/33"/T12,
2x TL 20W/24"/ T12;
GE #44, #47, #51
Verstärker /
Amplifier		 516:
Tubes 5U4G, 2x 6L6G, 6J5, 6SN7GT, 6SJ7

 		 516:
Tubes 5U4G, 2x 6L6G, 6J5, 6SN7GT, 6SJ7

 		 520:
Tubes 5U4G, 6J5,
2x 6SJ7,  6SN7GT,
12AU7, 12AX7, 2x 6L6G
 		 520:
Tubes 5U4G, 6J5,
2x 6SJ7,  6SN7GT,
12AU7, 12AX7, 2x 6L6G
 		 520:
Tubes 5U4G, 6J5, 12AU7,
12AX7, 2x 6SJ7,  6SN7GT,
2x 6L6G
Aux. HiFi Amplifier 229
Lautsprecher /
Speaker		 15" 15" 15" 15" 15"
Tonabnehmer / Cartridge Cobra Cobra Cobra Cobra Cobra
Sicherungen /
Fuses		 Amplifier 516: 300 mA, 15A, 2A
Stepper 253: 3.2A, 300 mA		 Amplifier 516: 300 mA, 15A, 2A
Stepper 253: 3.2A, 300 mA		 600 mA
Amplifier 520: 15A, 2A
Stepper 253: 3.2A, 300 mA		 600 mA
Amplifier 520: 15A, 2A
Stepper 253: 3.2A, 300 mA		 600 mA
Amplifier 520: 15A, 2A
Stepper 253: 3.2A, 300 mA
Schlüssel /
Key		 RW-47 RW-47 RW-49 RW-49 RW-49
Gehäuse /
Cabinet
 		 Polished walnut
(see upper l.h. picture)		 Textile leather in blue, blonde or mahagony Polished walnut Blonde textile leather (see upper r.h. picture)
or in custom colors blue or red 		Hi-Fidelity, polished walnut
Abmessungen /
Size		 152 x 97 x 69 cm
59-5/8 x 38-1/8 x 27-7/16"
212 kg / 470 lbs		 152 x 97 x 69 cm
59-5/8 x 38-1/8 x 27-7/16"
212 kg / 470 lbs		 152 x 97 x 69 cm
59-5/8 x 38-1/8 x 27-7/16"
212 kg / 470 lbs		 152 x 97 x 69 cm
59-5/8 x 38-1/8 x 27-7/16"
212 kg / 470 lbs		 152 x 97 x 69 cm
59-5/8 x 38-1/8 x 27-7/16"
212 kg / 470 lbs
Zubehör /
Accessories		 AVC: Kit 129; Kit 113; Aux. Amplifier 227, 228; Stepper 253
Booster 222;
Speaker: 5100 (blue)
Wallbox 5204, 5204A		 AVC: Kit 129; Kit 113; Aux. Amplifier 227, 228; Stepper 253
Booster 222;
Speaker: 5100 (blue)
Wallbox 5204, 5204A		 AVC: Kit 129; Kit 143; Aux. Amplifier 227, 228; Stepper 253
Booster 222;
Speaker: 5100 (blue)
Wallbox 5204A, 5205		 AVC: Kit 129; Kit 143; Aux. Amplifier 227, 228; Stepper 253
Booster 222;
Speaker: 5100 (blue)
Wallbox 5204A, 5205		 AVC: Kit 129; Kit 143; Aux. Amplifier 227, 228; Stepper 253
Booster 222;
Speaker: 5100 (blue)
Wallbox 5204A, 5205
model 230 consists of aux. HiFi- Amplifier 229 with RVC
Besonderheiten / Features First Wurlitzer model with 104 selection due to double record stack First Wurlitzer model with 104 selection due to double record stack     High Fidelity with aux. HiFi Amplifier 229
Designer Mechanism: Fred H. Osborne


Die Angaben haben keinen Anspruch auf Vollständigkeit oder Richtigkeit.
Bei den (importierten) Boxen können im Laufe der Jahre durchaus Veränderungen vorgenommen worden sein. Copyright.
