Wurlitzer Models 1937

612   •••   616   •••   616A (1937 and 1938)   •••   Remodeled 616 cabinets by other companies


Copyright




Wurlitzer 612



12 selections
sorry, no picture yet







Wurlitzer 616 - 16 Selections

Photo courtesy of Joe Wood
Wurlitzer 616

Photo courtesy of Christian Gredel
Wurlitzer 616

Ausführliche Fotodokumentation der Restaurierung   –   Detailed photo documentation of the restoration Wurlitzer 616

Videos

Restaurierung Wurlitzer 616
176x144 mit 64Kbps (12 MB)  |  320x240 mit 256Kbps (20 MB)  |  640x480 mit 1Mbps (69 MB)

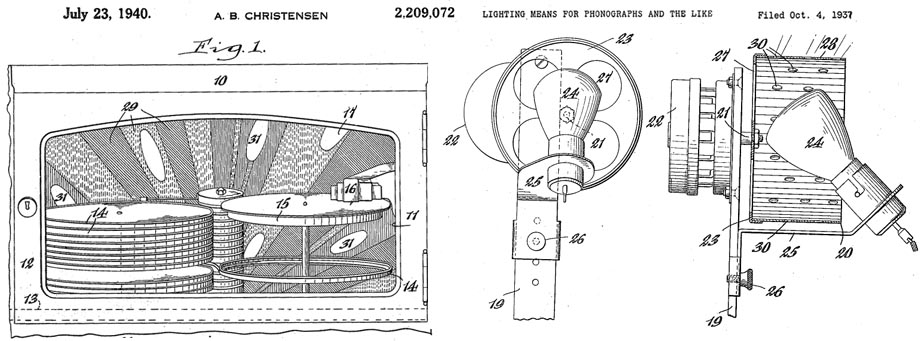

Zubehör - Accessory:  Light Animation Unit (LAU):
176x144 mit 64Kbps (6 MB)  |  320x240 mit 256Kbps (10 MB)   | 640x480 mit 1Mbps (35 MB )
(Film, Windows Media Player)

Restaurierung durchgeführt von Christian und Julia Gredel, Internet: http://www.juke-para.de, www.restaurierung-von-moebeln.de


Technische Daten / Technical Data





Wurlitzer 616A - 16 Selections - Early version (1937)

Designer: Paul M. Fuller; patent number D107148; filed Oct 4, 1937
Wurlitzer 616A Jukebox Musikbox W616 A





Wurlitzer 616A - 16 Selections - Later version (1938)

Note: No more coin slides but coin entry for a Nickel on upper right; Coin return cup r.h.    –   Photos and information courtesy Benjamin Thoburn
Wurlitzer 616A Jukebox Musikbox W616 A

Wurlitzer 616A Jukebox Musikbox W616 A

Wurlitzer 616A Jukebox Musikbox W616 A

Wurlitzer 616A Jukebox Musikbox W616 A

Wurlitzer 616A Jukebox Musikbox W616 A

Wurlitzer 616A Jukebox Musikbox W616 A





Wurlitzer 616A - 16 Selections - Another later version (1938)

Note: No more coin slides but coin entry for Dime, Nickel, and Quarter on upper right; Coin return cup r.h.    –   Photos and information courtesy M. Krieger
Wurlitzer 616A Jukebox Musikbox W616 A

Wurlitzer 616A Jukebox Musikbox W616 A

Wurlitzer 616A Jukebox Musikbox W616 A

Wurlitzer 616A Jukebox Musikbox W616 A

Wurlitzer 616A Jukebox Musikbox W616 A

Wurlitzer 616A Jukebox Musikbox W616 A

Wurlitzer 616A Jukebox Musikbox W616 A





Amplifier 771

Used in models 316, 416, 616, 716 and 616A
Wurlitzer amplifier 771





Technische Daten - Specifications
  612 616 616A
Wahlen / Selections 12 16 16
Gehäuse / Cabinet Paldao veneer

Paldao veneer

Paldao veneer
With Lucite Bars instead of wooden grill
Münzeinwurf / Coin entry Coin slides

Coin slides

Early version 1937: Coin slides
Later version 1938: ABT coin entry for 5c only or 5 - 10 - 25c on top and coin return cup right hand
Lampen / Lamps
Verstärker / Amplifier 751: 76, 48
771: 2x 30, 4x 45, 5Z3
751: 76, 48
771: 2x 30, 4x 45, 5Z3
751: 76, 48
771: 2x 30, 4x 45, 5Z3
Lautsprecher / Speaker
Tonabnehmer / Cartridge Heavy magnetic cartridge with osmium tipped permo point needle to screw in Heavy magnetic cartridge with osmium tipped permo point needle to screw in Heavy magnetic cartridge with osmium tipped permo point needle to screw in
Sicherungen / Fuses
Schlüssel / Key Cashbox: Rockford PA-Series


Cashbox: Rockford PA-Series


Cashbox: Rockford PA-Series
or
Duo Lock
Gehäuse / Cabinet
Abmessungen / Size   128 x 79 x 64 cm / 50 x 31 x 25" 128 x 79 x 64 cm / 50 x 31 x 25"
Zubehör / Accessories Light Animation Unit
Kit 25
Simplex Wall Coin Box
Fader
Light Animation Unit
Kit 25
Simplex Wall Coin Box
Fader

Greet-A-Fone by Great States Mfg. Corp.

Light Animation Unit
Kit 25
Simplex Wall Coin Box
Fader

Greet-A-Fone by Great States Mfg. Corp.

Besonderheiten / Features



Remodeled Wurlitzer Jukeboxes    -    Various manufacturers

Acme Sales  |  Archie Kass  |  D. Robbins & Company  |  Gerber & Glass  |  Corcoran  |  Jacobs Novelty  |  K.E.B.  |  Miller Vending Miraben  |  Packard  |  Stark Novelty

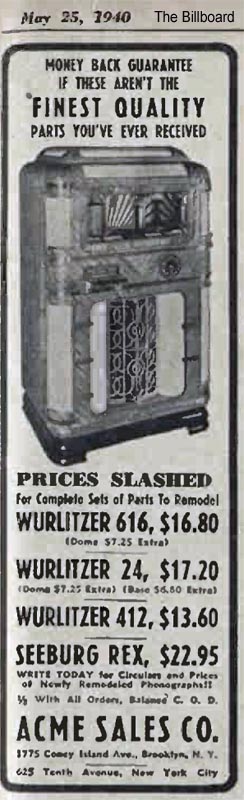

Acme Sales: Super Wurlitzer 616 Remodeled (1942)

Wurlitzer 600 500 Acme sales Remodeled





Archie Kass, Newark, N.J.: Wurlitzer 616 Light-Up (1939)

Photos courtesy of George
Wurlitzer 616

Wurlitzer 616

Wurlitzer 616 Wurlitzer 616




Gerber & Glass

Wurlitzer 616 gerber & Glass

  General information
Wurlitzer 616





Gerber & Glass Wurlitzer 616 Light-Up with Jacobs Novelty / Stark Novelty Grill

Photos courtesy of Adrian

Lesen Sie Adrians blog über diese besondere "Shining Time Station" Jukebox: The STS Jukebox



Read Adrians blog about this particuliar "Shining Time Station" jukebox: The STS Jukebox

Gerber & Glass: beleuchtetes Kopfteil, Pilaster links und rechts sowie Seiten mit Noten-Ornament
Jacobs & Novelty oder Stark Novelty: Grill und Plastiks am Grill
Wurlitzer 750 oder 780: Titelhalter



Gerber & Glass: Illuminted top, pilaster left and right and metal ornament with musical notes
Jacobs & Novelty or Stark Novelty: Grille and plastics left and right
Wurlitzer 750 or 780: Title board

Wurlitzer 616 Gerber & Glass Jacobs Novelty





Gerber & Glass Wurlitzer 616A Light-Up

Photos courtesy of Mike
Wurlitzer 616

Wurlitzer 616

Wurlitzer 616

Wurlitzer 616





Corcoran: Replacement Cabinet - Light-Up-Model (1938)

Mechanism: Wurlitzer Simplex, 16 selections  |  Coin slides and rotary wheel: 616 or 616A  |  Amplifier: 771

Wurlitzer Jukebox Wurlitzer Jukebox




D. Robbins & Company (1940-41)

Double Phono D. Robbins & Co. Jukebox





Jacobs Novelty (1937-39)

Wurlitzer 616 Jacobs Novelty Jukebox Phonograph

New Brilliance and Illumination FOR YOUR 616 MODELS

Make your 616's a thrilling eye-filling sight, a powerful magnet of attraction for the sale of todays favorite tunes, with this 1939 modern luxury light-up design, which capitalizes on color flash animation plus the great earning power for the leading locations in America. Never before, in the history of the music business, has such earning power been built into an automatic phonograph. Music merchants, act today, don't miss this great opportunity.


Equip your 616's with these beautiful walnut finished Louver Corners which are backed with a brilliant new red translucent plastic, which produces a light that is more attractive than any other light and visible from any angle, requiring only 30 watts for good illumination. The silvered silhouette on plastic in the door, when illuminated, produces blazing colors and gives an effect of unspeakable richness and beauty, attracting many players.


The Grille has two brilliant new red plastic pillars along the sides with polished cast Aluminum design in the center, backed by glittering silvered jewel cloth, illuminated by small bulbs (no Lumiline bulbs) under plastic sides, requiring only 40 watts for illumination, eliminating heat. This is all assembled in a wood frame with silver jewel cloth attached, it is so complete and perfect that you just set it in place and screw it to the cabinet, absolutely  no cutting or fitting required. Fits both 616 and 616A Models. Comes complete with electric bulbs and full instructions for installing.


The Plastic in this equipment is of the highest quality, conducting the light very readily. When installed in your Phonograph this equipment will not look like some cheap attachment, but will become a part of the cabinet, with factory built appearance, making your 616, a NEW MODEL in a very short time. This Equipment is sold at a very low price of $25.00 complete top and bottom ensemble. You can purchase the Grille Assembly.... separately at a price of $12.50 .... or you can purchase the Louver Corners and Front Door Ensemble .... at a price of $12.50

Wurlitzer 616 Jacobs Novelty Jukebox Phonograph





K.E.B. Wurlitzer 616 – UK manufacturer (1948)

Wurlitzer 616 KEB England Jukebox Phonograph

K.E.B. Camden Town, N.W.I. England
K = Thomas H. Kosh Jr.
E = Fred Evans
B = Stanley De La Bertauche
Later Jim Miller, an Ex-Wurlitzer man, joined KEB.

K.E.B. specialised in repair and modernization of jukeboxes from pre 1939: Wurlitzer, Seeburg, Rock-Ola, Capehart, Mills and 1946 UK model Music Maker





Miller Vending Company Universal Cabinet with Light-Up Grill (1947)

Universal Cabinet Miller Vending Company Phonograph Jukeboxes Light-Up Kit





Miraben 616A Light-Up (1940)

Wurlitzer 616 Miraben

BB, 10. August 1940

Wurlitzer 616 Miraben





Packard. Wurlitzer 616 (1940)

With Heads-Up Selector

Wurlitzer 616 Packard Jukebox Phonograph



Die Angaben haben keinen Anspruch auf Vollständigkeit oder Richtigkeit.
Bei den (importierten) Boxen können im Laufe der Jahre durchaus Veränderungen vorgenommen worden sein. Copyright.
